033GD - Power Steering System (RHD)

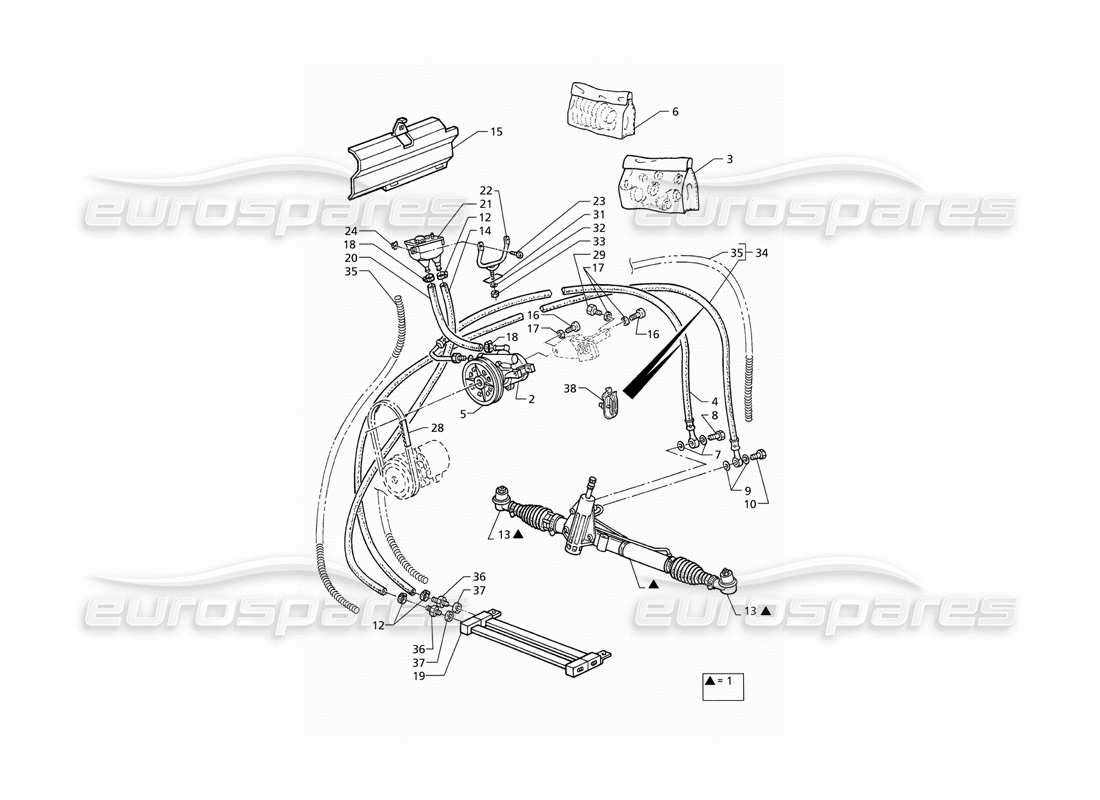

Maserati QTP V6 (1996) Power Steering System (RHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 377819125
                                                                                          POWER STEERING ASSY
                                                                                          (RHD model)
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 002
                                                                                          MPN: 317832104
                                                                                          PUMP WITH PULLEY
                                                                                          from £264.95
                                                                                          from £264.95
                                                                                          # 003
                                                                                          MPN: 310232040
                                                                                          KIT FOR PIPE AND UNION REPLACEMENT
                                                                                          from £31.70
                                                                                          from £31.70
                                                                                          # 004
                                                                                          MPN: 377840207
                                                                                          TUBE FROM PUMP TO STEERING BOX
                                                                                          from £72.95
                                                                                          from £72.95
                                                                                          # 005
                                                                                          MPN: 192415108
                                                                                          O RING
                                                                                          from £1.28
                                                                                          from £1.28
                                                                                          # 006
                                                                                          MPN: 390250080
                                                                                          KIT FOR BELLOWS AND CLAMP REPLACEMENT
                                                                                          from £126.34
                                                                                          from £126.34
                                                                                          This part replaces part number 320250033
                                                                                          # 007
                                                                                          MPN: 317851602
                                                                                          GASKET
                                                                                          from £1.07
                                                                                          from £1.07
                                                                                          # 008
                                                                                          MPN: 317832380
                                                                                          UNION SCREW
                                                                                          from £9.01
                                                                                          from £9.01
                                                                                          # 010
                                                                                          MPN: 192415108
                                                                                          O RING
                                                                                          from £1.28
                                                                                          from £1.28
                                                                                          # 011
                                                                                          MPN: 186402028
                                                                                          CLAMP
                                                                                          from £1.54
                                                                                          from £1.54
                                                                                          # 013
                                                                                          MPN: 377801133
                                                                                          TRACK ROD END
                                                                                          from £85.10
                                                                                          from £85.10
                                                                                          # 014
                                                                                          MPN: 14306424
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 14306421
                                                                                          # 015
                                                                                          MPN: 377800612
                                                                                          OIL RETURN BUNDY PIPE
                                                                                          from £16.06
                                                                                          from £16.06
                                                                                          # 016
                                                                                          MPN: 397850631
                                                                                          SLEEVE
                                                                                          from £5.61
                                                                                          from £5.61
                                                                                          # 017
                                                                                          MPN: 397850632
                                                                                          SLEEVE
                                                                                          from £0.70
                                                                                          from £0.70
                                                                                          # 018
                                                                                          MPN: 317851602
                                                                                          GASKET
                                                                                          from £1.07
                                                                                          from £1.07
                                                                                          # 019
                                                                                          MPN: 317832380
                                                                                          UNION SCREW
                                                                                          from £9.01
                                                                                          from £9.01
                                                                                          # 020
                                                                                          MPN: 317851387
                                                                                          UNION SCREW
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 021
                                                                                          MPN: 317851601
                                                                                          GASKET
                                                                                          from £1.07
                                                                                          from £1.07
                                                                                          # 022
                                                                                          MPN: 317851386
                                                                                          EYELET UNION
                                                                                          from £5.76
                                                                                          from £5.76
                                                                                          # 023
                                                                                          MPN: 377800225
                                                                                          POWER STEERING ASSY, LH STEERING
                                                                                          (LHD model)
                                                                                          from £1,175.51
                                                                                          from £1,175.51
                                                                                          This part replaces part number 367800225
                                                                                          # 024
                                                                                          MPN: 317832127
                                                                                          UNION PIPE
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 030
                                                                                          MPN: 317832104
                                                                                          PUMP WITH PULLEY
                                                                                          from £264.95
                                                                                          from £264.95
                                                                                          # 032
                                                                                          MPN: 317837372
                                                                                          POWER STEERING BELT
                                                                                          from £12.50
                                                                                          from £12.50
                                                                                          # 033
                                                                                          MPN: 397850207
                                                                                          OIL DELIVERY PIPE, LH STEERING
                                                                                          from £100.09
                                                                                          from £100.09
                                                                                          # 034
                                                                                          MPN: 397850636
                                                                                          SLEEVE
                                                                                          from £1.69
                                                                                          from £1.69
                                                                                          # 035
                                                                                          MPN: 367801200
                                                                                          BULKHEAD
                                                                                          from £93.21
                                                                                          from £93.21
                                                                                          This part replaces part number 317853350
                                                                                          # 036
                                                                                          MPN: 128380060
                                                                                          SELF LOCKING NUT
                                                                                          # 038
                                                                                          MPN: 108006012
                                                                                          SCREW
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          # 039
                                                                                          MPN: 310232040
                                                                                          KIT FOR PIPE AND UNION REPLACEMENT
                                                                                          from £31.70
                                                                                          from £31.70
                                                                                          # 040
                                                                                          MPN: 390250080
                                                                                          KIT FOR BELLOWS AND CLAMP REPLACEMENT
                                                                                          from £126.34
                                                                                          from £126.34
                                                                                          This part replaces part number 320250033
                                                                                          # 043
                                                                                          MPN: 135900064
                                                                                          FLAT WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 044
                                                                                          MPN: 397850609
                                                                                          UNION
                                                                                          from £1.76
                                                                                          from £1.76
                                                                                          # 045
                                                                                          MPN: 397850608
                                                                                          GASKET
                                                                                          from £1.07
                                                                                          from £1.07
                                                                                          # 046
                                                                                          MPN: 128300060
                                                                                          NUT
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 047
                                                                                          MPN: 315520375
                                                                                          RING
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 048
                                                                                          MPN: 397850624
                                                                                          SPACER
                                                                                          from £2.38
                                                                                          from £2.38
                                                                                          # 050
                                                                                          MPN: 397850618
                                                                                          OIL COOLER
                                                                                          from £130.26
                                                                                          from £130.26
                                                                                          # 051
                                                                                          MPN: 397850366
                                                                                          PLATE
                                                                                          from £1.07
                                                                                          from £1.07
                                                                                          # 054
                                                                                          MPN: 397850645
                                                                                          CORRUGATED PIPE
                                                                                          from £2.25
                                                                                          from £2.25
                                                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
