maserati qtp v6 (1996) air filter and ducts parts diagram

014 - Air Filter and Ducts

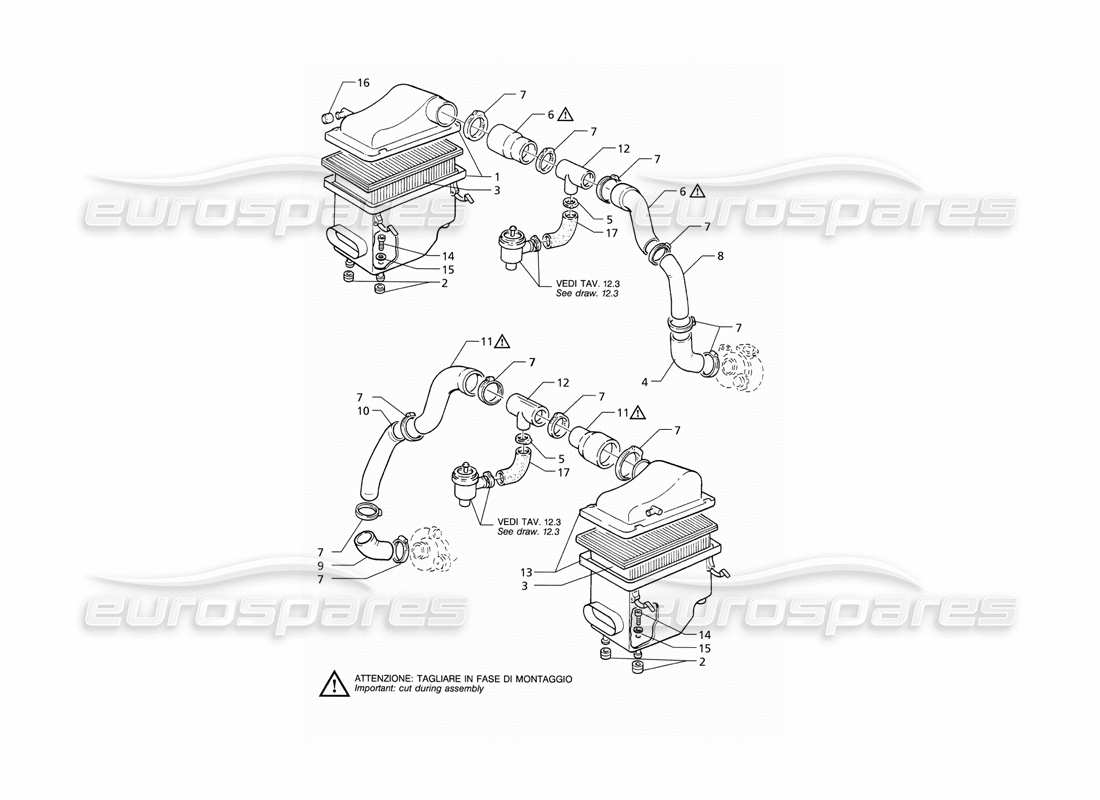

Maserati QTP V6 (1996) Air Filter and Ducts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 392450052
                                RH AIR FILTER COMPLETE ASSY
                                # 001
                                MPN: 479056201
                                RH LOWER AND UPPER BOX
                                from £35.07
                                from £35.07
                                # 002
                                MPN: 315520375
                                RING
                                Supersession
                                Supersession
                                # 003
                                MPN: 392450303

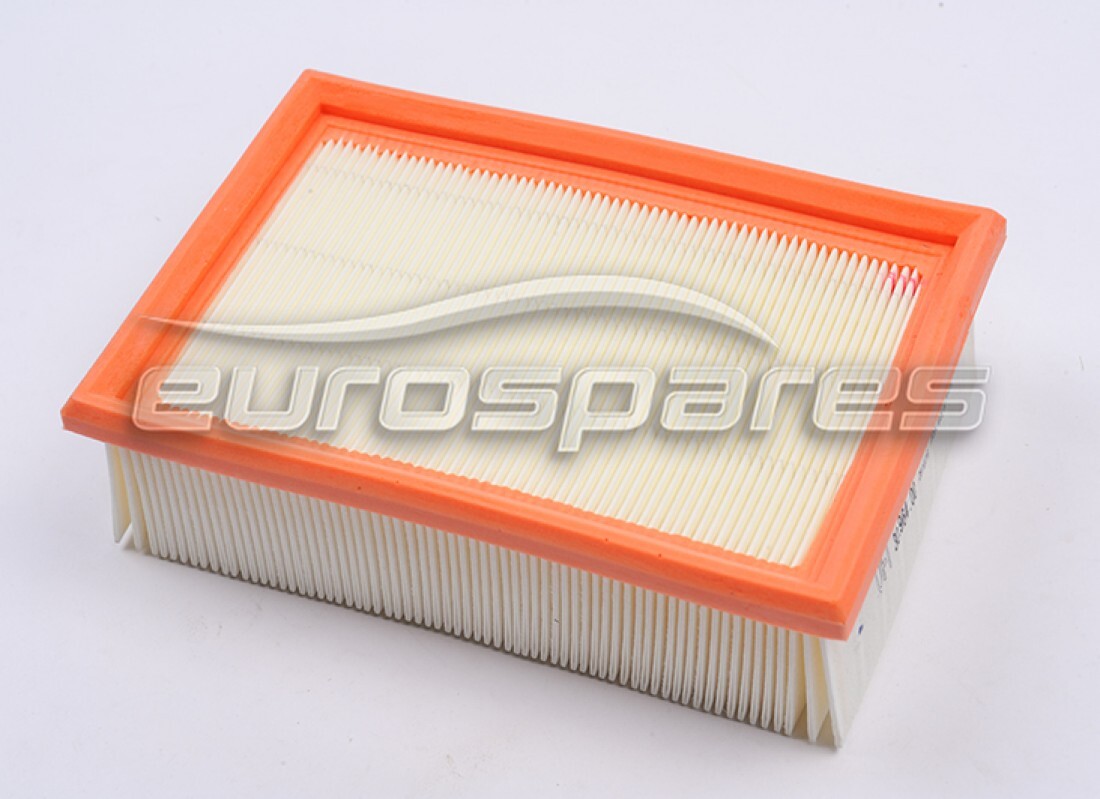

                                AIR FILTER
                                from £11.17
                                from £11.17
                                This part replaces part number 580053200
                                # 004
                                MPN: 577366000
                                RH SLEEVE
                                from £48.39
                                from £48.39
                                # 005
                                MPN: 186402028
                                CLAMP
                                from £1.55
                                from £1.55
                                # 006
                                MPN: 392450318
                                RH SLEEVE
                                - WARNING: This is a whole sleeve which must be - cut during assembly
                                # 007
                                MPN: 312420106
                                CLAMP
                                Supersession
                                Supersession
                                # 008
                                MPN: 495363200
                                RH AIR PIPE
                                from £21.25
                                from £21.25
                                # 009
                                MPN: 372430330
                                LH SLEEVE
                                from £42.00
                                from £42.00
                                This part replaces part number 372430329 - and 3 more. Click to view details
                                # 010
                                MPN: 573363100
                                LH AIR PIPE
                                from £20.59
                                from £20.59
                                # 011
                                MPN: 392450319
                                LH SLEEVE
                                - WARNING: This is a whole sleeve which must be - cut during assembly
                                # 012
                                MPN: 577057000
                                THREE WAY UNION
                                from £71.03
                                from £71.03
                                # 013
                                MPN: 392450051
                                LH AIR FILTER COMPLETE ASSY
                                # 015
                                MPN: 312220411
                                WASHER
                                from £0.47
                                from £0.47
                                # 016
                                MPN: 573052000
                                PLUG
                                from £0.86
                                from £0.86
                                # 017
                                MPN: 96033
                                SLEEVE
                                from £10.12
                                from £10.12
