013GD - Injection System Accessories (RHD)

Maserati QTP V6 (1996) Injection System Accessories (RHD) Parts Diagram

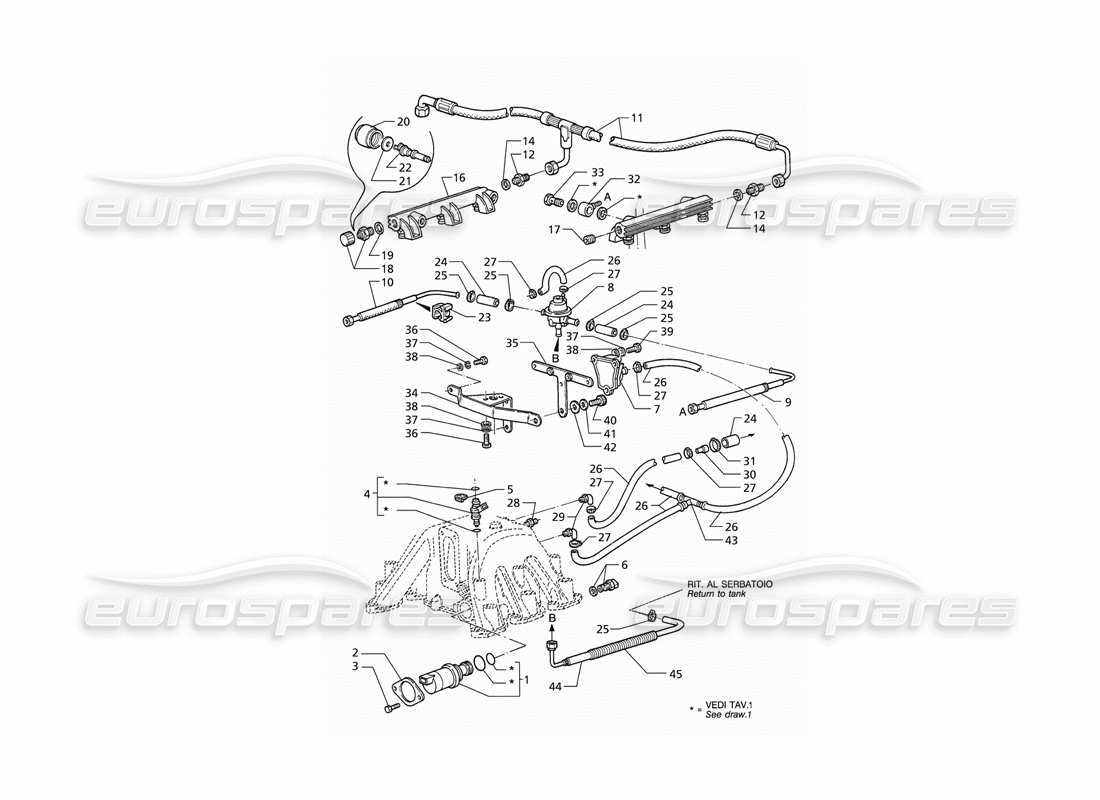

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 313737125
                                                                            V.A.E. SOLENOID VALVE (GREEN)
                                                                            - Valid for 2.8 M.T. and 2.8 A.T. version - Only for 2.8 engines Post Modification See Tab. 16GS
                                                                            # 001
                                                                            MPN: 571063900
                                                                            V.A.E. SOLENOID VALVE (GREY)
                                                                            - Only for 2.8 engines Pre See Tab. 16GS
                                                                            from £218.64
                                                                            from £218.64
                                                                            # 003
                                                                            MPN: 311053394
                                                                            SCREW
                                                                            Supersession
                                                                            Supersession
                                                                            # 004
                                                                            MPN: 470063003
                                                                            INJECTOR
                                                                            from £95.49
                                                                            from £95.49
                                                                            # 005
                                                                            MPN: 313720313
                                                                            INJECTOR TEN. SPRING
                                                                            # 006
                                                                            MPN: 470079700
                                                                            AIR TEMP. SENSOR
                                                                            from £100.26
                                                                            from £100.26
                                                                            # 007
                                                                            MPN: 571079600
                                                                            PRESSURE SENSOR
                                                                            from £153.56
                                                                            from £153.56
                                                                            # 008
                                                                            MPN: 477073601
                                                                            PRESSURE REGULATOR
                                                                            from £254.22
                                                                            from £254.22
                                                                            This part replaces part number 349202140
                                                                            # 009
                                                                            MPN: 571060700
                                                                            LH HOSE
                                                                            from £18.38
                                                                            from £18.38
                                                                            This part replaces part number 495060700
                                                                            # 010
                                                                            MPN: 571061000
                                                                            RH HOSE
                                                                            from £20.35
                                                                            from £20.35
                                                                            This part replaces part number 495061000
                                                                            # 011
                                                                            MPN: 573064204
                                                                            PETROL DELIVERY TUBE
                                                                            - New petrol pipes updating
                                                                            from £157.13
                                                                            from £157.13
                                                                            This part replaces part number 573064203
                                                                            # 012
                                                                            MPN: 580062301
                                                                            UNION
                                                                            - New petrol pipes updating
                                                                            from £12.21
                                                                            from £12.21
                                                                            This part replaces part number 573062400 - and 2 more. Click to view details
                                                                            # 014
                                                                            MPN: 97348
                                                                            GASKET
                                                                            from £2.84
                                                                            from £2.84
                                                                            # 015
                                                                            MPN: 495060100
                                                                            LH MANIFOLD
                                                                            from £35.08
                                                                            from £35.08
                                                                            # 016
                                                                            MPN: 495060000
                                                                            RH MANIFOLD
                                                                            from £35.08
                                                                            from £35.08
                                                                            # 017
                                                                            MPN: 312020495
                                                                            PLUG
                                                                            from £1.54
                                                                            from £1.54
                                                                            # 018
                                                                            MPN: 495984900
                                                                            BREATHER VALVE
                                                                            from £19.36
                                                                            from £19.36
                                                                            # 019
                                                                            MPN: 97347
                                                                            GASKET
                                                                            from £5.93
                                                                            from £5.93
                                                                            # 020
                                                                            MPN: 97414
                                                                            SCREW CAP
                                                                            (minimum order quantity = 4)
                                                                            from £1.71
                                                                            from £1.71
                                                                            # 021
                                                                            MPN: 97084
                                                                            GASKET
                                                                            from £1.54
                                                                            from £1.54
                                                                            # 022
                                                                            MPN: 495062900
                                                                            VALVE
                                                                            from £4.49
                                                                            from £4.49
                                                                            # 023
                                                                            MPN: 377430345
                                                                            SPACER
                                                                            from £0.68
                                                                            from £0.68
                                                                            # 024
                                                                            MPN: 97982
                                                                            SLEEVE
                                                                            - Section in metres order minimum amount of 2 m
                                                                            # 026
                                                                            MPN: 300100803
                                                                            SLEEVE
                                                                            - Section in metres order minimum amount of 2 m
                                                                            from £54.71
                                                                            from £54.71
                                                                            This part replaces part number 318720329
                                                                            # 027
                                                                            MPN: 312050310
                                                                            CLAMP
                                                                            from £1.07
                                                                            from £1.07
                                                                            # 028
                                                                            MPN: 95517
                                                                            UNION
                                                                            Supersession
                                                                            Supersession
                                                                            # 029
                                                                            MPN: 585064500
                                                                            UNION
                                                                            from £63.06
                                                                            from £63.06
                                                                            This part replaces part number 578064500
                                                                            # 030
                                                                            MPN: 312230461
                                                                            UNION
                                                                            from £0.98
                                                                            from £0.98
                                                                            # 031
                                                                            MPN: 96115
                                                                            CLAMP
                                                                            from £1.07
                                                                            from £1.07
                                                                            # 032
                                                                            MPN: 97976
                                                                            EYE UNION
                                                                            from £2.84
                                                                            from £2.84
                                                                            # 033
                                                                            MPN: 312020510
                                                                            UNION SCREW
                                                                            from £2.67
                                                                            from £2.67
                                                                            This part replaces part number 193520 - and 1 more. Click to view details
                                                                            # 034
                                                                            MPN: 495083100
                                                                            BRACKET
                                                                            from £8.16
                                                                            from £8.16
                                                                            # 035
                                                                            MPN: 571084700
                                                                            BRACKET
                                                                            from £5.54
                                                                            from £5.54
                                                                            # 036
                                                                            MPN: 108006012
                                                                            ALLEN SCREW
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 037
                                                                            MPN: 138410060
                                                                            RETAINING WASHER
                                                                            # 038
                                                                            MPN: 312220411
                                                                            FLAT WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 040
                                                                            MPN: 313720314
                                                                            ALLEN SCREW Ø 5
                                                                            # 041
                                                                            MPN: 12604179
                                                                            RETAINING WASHER Ø 5
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 042
                                                                            MPN: 312430322
                                                                            FLAT WASHER Ø 5
                                                                            # 043
                                                                            MPN: 312030448
                                                                            THREE WAY UNION
                                                                            from £0.56
                                                                            from £0.56
                                                                            # 044
                                                                            MPN: 475054500
                                                                            FUEL RETURN TUBE
                                                                            from £37.88
                                                                            from £37.88
                                                                            # 045
                                                                            MPN: 318720333
                                                                            CORRUGATED TUBE
                                                                            - Section in metres order minimum amount of 2 m
                                                                            from £5.12
                                                                            from £5.12
                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
