maserati qtp v6 (1996) engine cooling and cabin heating system (lhd) parts diagram

012.1GS - Engine Cooling and Cabin Heating System (LHD)

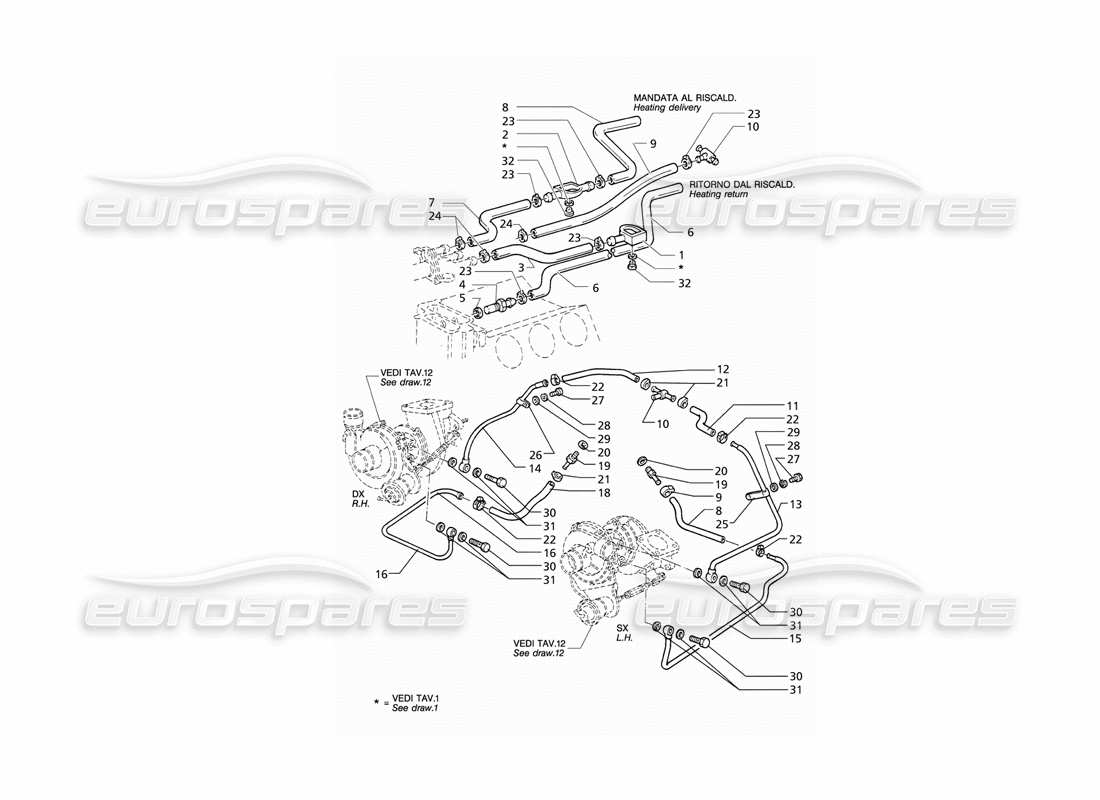

Maserati QTP V6 (1996) Engine Cooling and Cabin Heating System (LHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 470009900
                                                                UNION
                                                                from £9.61
                                                                from £9.61
                                                                # 003
                                                                MPN: 315520352
                                                                SLEEVE
                                                                from £33.33
                                                                from £33.33
                                                                # 004
                                                                MPN: 571018400
                                                                UNION ON BLOCK
                                                                from £6.74
                                                                from £6.74
                                                                # 005
                                                                MPN: 55138
                                                                GASKET
                                                                Supersession
                                                                Supersession
                                                                # 006
                                                                MPN: 580042560
                                                                RETURN SLEEVE
                                                                from £17.26
                                                                from £17.26
                                                                # 007
                                                                MPN: 577042600
                                                                DELIVERY SLEEVE
                                                                from £3.36
                                                                from £3.36
                                                                # 008
                                                                MPN: 580042260
                                                                DELIVERY SLEEVE
                                                                from £11.01
                                                                from £11.01
                                                                # 009
                                                                MPN: 477369660
                                                                RETURN FROM TURBO MANIFOLD
                                                                from £26.37
                                                                from £26.37
                                                                # 010
                                                                MPN: 312020407
                                                                THREE WAY UNION
                                                                from £65.58
                                                                from £65.58
                                                                # 011
                                                                MPN: 470369200
                                                                LH RETURN SLEEVE
                                                                from £19.51
                                                                from £19.51
                                                                This part replaces part number 312020423 - and 1 more. Click to view details
                                                                # 012
                                                                MPN: 312020422
                                                                RH RETURN SLEEVE
                                                                # 015
                                                                MPN: 312020137
                                                                LH DELIVERY TUBE
                                                                # 016
                                                                MPN: 312020138
                                                                RH DELIVERY TUBE
                                                                Supersession
                                                                Supersession
                                                                # 017
                                                                MPN: 452369701
                                                                LH DELIVERY SLEEVE
                                                                from £12.98
                                                                from £12.98
                                                                # 018
                                                                MPN: 452369601
                                                                RH DELIVERY SLEEVE
                                                                from £35.49
                                                                from £35.49
                                                                # 020
                                                                MPN: 319220424
                                                                GASKET
                                                                from £1.70
                                                                from £1.70
                                                                # 021
                                                                MPN: 312020404
                                                                CLAMP D. 14 22
                                                                from £4.15
                                                                from £4.15
                                                                # 023
                                                                MPN: 312020410
                                                                CLAMP D. 17 25
                                                                from £1.93
                                                                from £1.93
                                                                # 024
                                                                MPN: 312420317
                                                                CLAMP D. 22 30
                                                                from £1.54
                                                                from £1.54
                                                                # 025
                                                                MPN: 312020432
                                                                LH SHAPED CLAMP
                                                                from £1.93
                                                                from £1.93
                                                                # 026
                                                                MPN: 312020433
                                                                RH SHAPED CLAMP
                                                                from £1.72
                                                                from £1.72
                                                                # 027
                                                                MPN: 108006012
                                                                SCREW
                                                                from £0.54
                                                                from £0.54
                                                                # 028
                                                                MPN: 138410060
                                                                RETAINING WASHER
                                                                # 029
                                                                MPN: 312220411
                                                                FLAT WASHER
                                                                from £0.47
                                                                from £0.47
                                                                # 031
                                                                MPN: 312020430
                                                                GASKET
                                                                (minimum order quantity = 10)
                                                                from £0.74
                                                                from £0.74
                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
