012 - Lubrication Of Turboblowers and Exhaust Manifolds

Maserati QTP V6 (1996) Lubrication Of Turboblowers and Exhaust Manifolds Parts Diagram

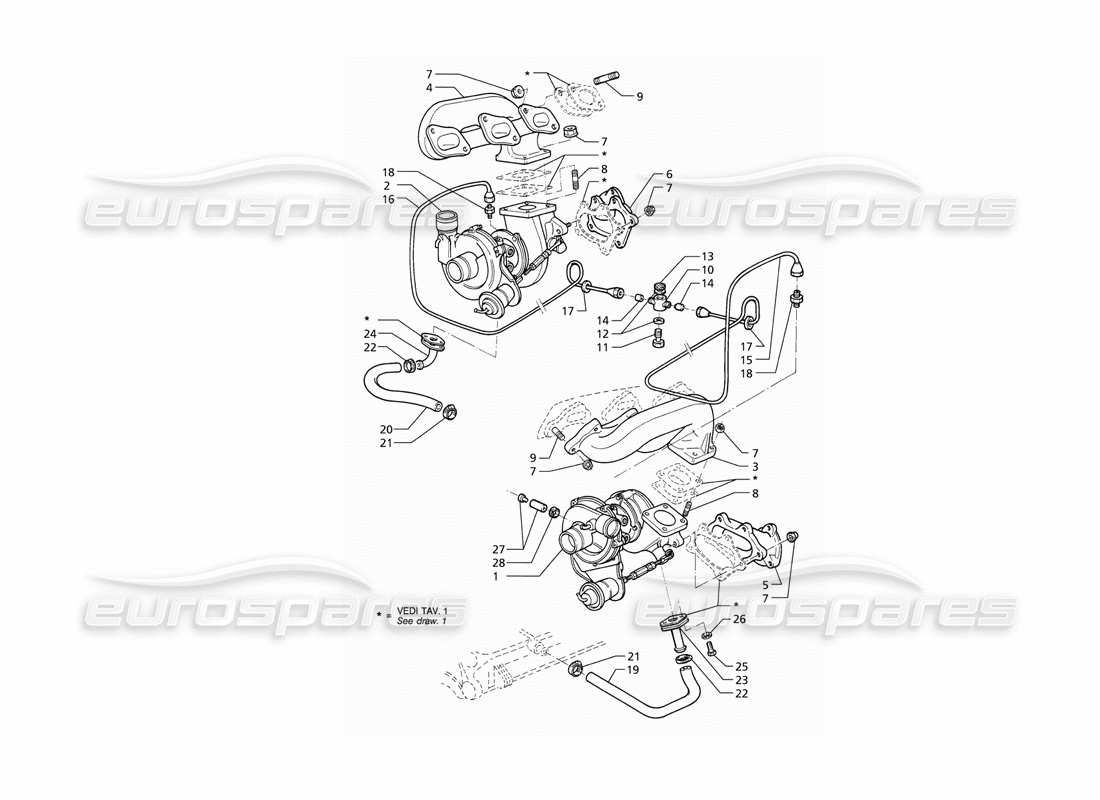

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 573360101
                                                      LH TURBO
                                                      - Valid for 2.0 M.T. version
                                                      from £1,193.74
                                                      from £1,193.74
                                                      This part replaces part number 573360100
                                                      # 001
                                                      MPN: 574360100
                                                      LH TURBO
                                                      - Valid for 2.8 M.T. and 2.8 A.T. version
                                                      from £284.94
                                                      from £284.94
                                                      # 002
                                                      MPN: 573360001
                                                      RH TURBO
                                                      - Valid for 2.0 M.T. version
                                                      from £711.30
                                                      from £711.30
                                                      This part replaces part number 573360000 - and 1 more. Click to view details
                                                      # 002
                                                      MPN: 574360000
                                                      RH TURBO
                                                      - Valid for 2.8 M.T. and 2.8 A.T. version
                                                      from £262.50
                                                      from £262.50
                                                      # 003
                                                      MPN: 571362000
                                                      LH EXHAUST MANIFOLD
                                                      from £1,046.16
                                                      from £1,046.16
                                                      This part replaces part number 342000325
                                                      # 004
                                                      MPN: 571362100
                                                      MANIFOLD HEAD TO RH TURBO
                                                      from £231.00
                                                      from £231.00
                                                      This part replaces part number 477362100 - and 1 more. Click to view details
                                                      # 005
                                                      MPN: 467361901
                                                      LH EXHAUST MANIFOLD
                                                      from £99.40
                                                      from £99.40
                                                      # 006
                                                      MPN: 467361801
                                                      RH EXHAUST MANIFOLD
                                                      from £99.40
                                                      from £99.40
                                                      # 007
                                                      MPN: 97376
                                                      NUT
                                                      from £1.32
                                                      from £1.32
                                                      # 008
                                                      MPN: 312020327
                                                      STUD BOLT
                                                      from £5.59
                                                      from £5.59
                                                      # 009
                                                      MPN: 310620370
                                                      STUD BOLT
                                                      from £14.82
                                                      from £14.82
                                                      # 011
                                                      MPN: 312020344
                                                      UNION SCREW
                                                      from £4.89
                                                      from £4.89
                                                      # 012
                                                      MPN: 312020353
                                                      COPPER GASKET
                                                      from £0.70
                                                      from £0.70
                                                      # 014
                                                      MPN: 312020328
                                                      BUNDY TUBES LOCKING DEVICE
                                                      # 017
                                                      MPN: 312020368
                                                      WIRE INLET
                                                      from £0.57
                                                      from £0.57
                                                      # 018
                                                      MPN: 312020308
                                                      UNION
                                                      from £12.38
                                                      from £12.38
                                                      # 019
                                                      MPN: 452364402
                                                      LH OIL SLEEVE
                                                      from £68.27
                                                      from £68.27
                                                      This part replaces part number 312020105
                                                      # 020
                                                      MPN: 467364300
                                                      RH OIL SLEEVE
                                                      from £58.50
                                                      from £58.50
                                                      This part replaces part number 312020408
                                                      # 021
                                                      MPN: 312420504
                                                      CLAMP
                                                      from £1.08
                                                      from £1.08
                                                      # 022
                                                      MPN: 312020410
                                                      CLAMP
                                                      from £2.11
                                                      from £2.11
                                                      # 027
                                                      MPN: 479943412
                                                      PLUG
                                                      from £8.41
                                                      from £8.41
