006 - Cylinder Heads

Maserati QTP V6 (1996) Cylinder Heads Parts Diagram

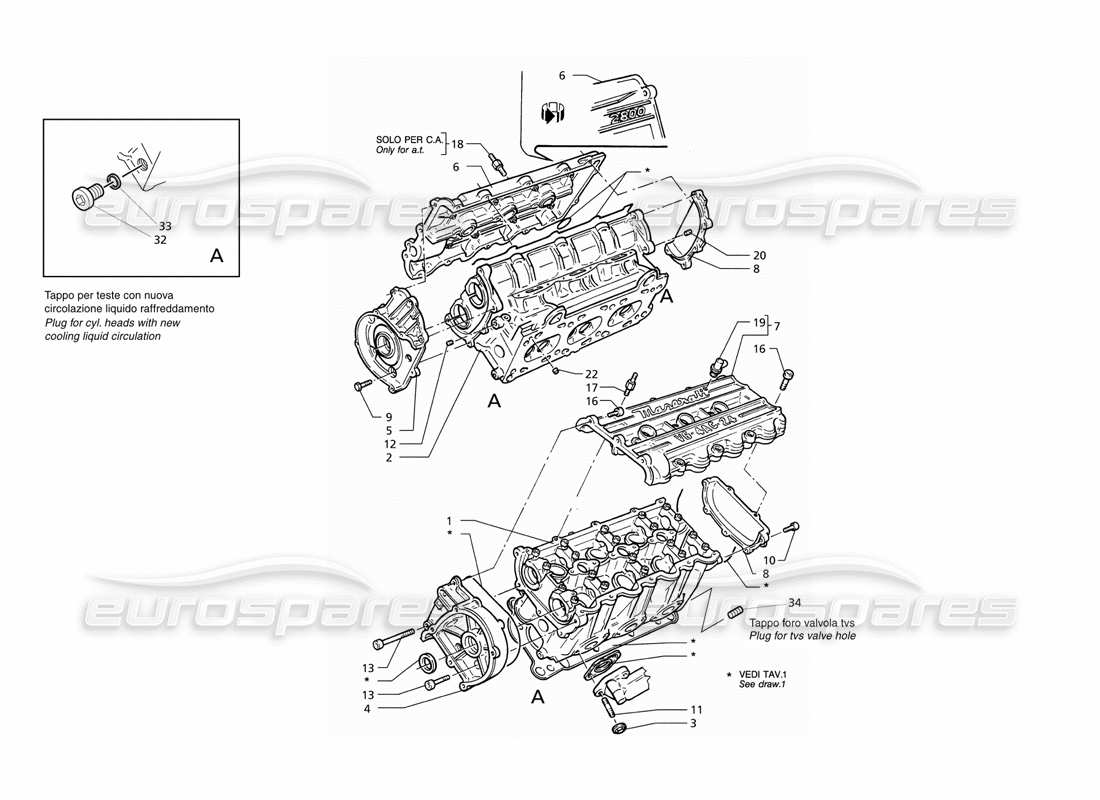

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 490003300
                                        LH cylinder head
                                        - Valid for 2.0 M.T. version
                                        from £3,014.95
                                        from £3,014.95
                                        This part replaces part number 310653007
                                        # 001
                                        MPN: 588003300
                                        LH cylinder head
                                        - Valid for 2.8 M.T. and 2.8 A.T. version
                                        from £4,384.63
                                        from £4,384.63
                                        This part replaces part number 477003300
                                        # 002
                                        MPN: 490003200
                                        RH cylinder head
                                        - Valid for 2.0 M.T. version
                                        from £2,815.93
                                        from £2,815.93
                                        This part replaces part number 310653006
                                        # 002
                                        MPN: 588003200
                                        RH cylinder head
                                        - Valid for 2.8 M.T. and 2.8 A.T. version
                                        from £5,700.02
                                        from £5,700.02
                                        This part replaces part number 477003200
                                        # 003
                                        MPN: 210971
                                        COPPER PLATED NUT
                                        from £0.92
                                        from £0.92
                                        This part replaces part number 279628 - and 1 more. Click to view details
                                        # 004
                                        MPN: 571000600
                                        LH FRONT COVER, ASSY
                                        from £134.01
                                        from £134.01
                                        # 005
                                        MPN: 571000700
                                        RH FRONT COVER, ASSY
                                        from £139.31
                                        from £139.31
                                        # 006
                                        MPN: 571008802
                                        RH UPPER COVER
                                        - Valid for 2.0 M.T. version
                                        from £88.86
                                        from £88.86
                                        # 006
                                        MPN: 574008801
                                        RH UPPER COVER
                                        - Valid for 2.8 M.T. and 2.8 A.T. version
                                        from £132.45
                                        from £132.45
                                        # 007
                                        MPN: 571008701
                                        LH UPPER COVER
                                        from £78.11
                                        from £78.11
                                        # 009
                                        MPN: 311053391
                                        SCREW
                                        from £3.18
                                        from £3.18
                                        # 010
                                        MPN: 311453300
                                        SCREW
                                        from £3.26
                                        from £3.26
                                        # 011
                                        MPN: 310620370
                                        STUD BOLT
                                        from £14.82
                                        from £14.82
                                        # 012
                                        MPN: 600009700
                                        PLUG
                                        from £1.08
                                        from £1.08
                                        # 013
                                        MPN: 311053390
                                        SCREW
                                        from £6.05
                                        from £6.05
                                        # 017
                                        MPN: 310653435
                                        CABLES REPLACEMENT STUD BOLT
                                        # 018
                                        MPN: 479009120
                                        SCREW
                                        - Valid for 2.8 A.T. version
                                        from £23.04
                                        from £23.04
                                        # 019
                                        MPN: 311053384
                                        OIL BLOWER
                                        # 020
                                        MPN: 311053312
                                        DOWEL
                                        from £1.94
                                        from £1.94
                                        # 022
                                        MPN: 310653366
                                        OIL CALIBRATION DOWEL
                                        # 028
                                        MPN: 571945000
                                        RH CYLINDER HEAD WITH VALVE DRIVE
                                        - Valid for 2.0 M.T. version - Not illustrated
                                        from £4,744.25
                                        from £4,744.25
                                        # 029
                                        MPN: 571945100
                                        LH CYLINDER HEAD WITH VALVE DRIVE
                                        - Valid for 2.0 M.T. version - Not illustrated
                                        from £4,744.25
                                        from £4,744.25
                                        # 030
                                        MPN: 574945000
                                        RH CYLINDER HEAD WITH VALVE DRIVE
                                        - Valid for 2.8 M.T. and 2.8 A.T. version - Not illustrated
                                        from £4,200.97
                                        from £4,200.97
                                        # 031
                                        MPN: 574945100
                                        LH CYLINDER HEAD WITH VALVE DRIVE
                                        - Valid for 2.8 M.T. and 2.8 A.T. version - Not illustrated
                                        from £4,200.97
                                        from £4,200.97
                                        # 032
                                        MPN: 571044400
                                        PLUG
                                        from £8.69
                                        from £8.69
                                        # 033
                                        MPN: 571044500
                                        GASKET
                                        from £1.94
                                        from £1.94
                                        # 034
                                        MPN: 585411800
                                        PLUG
                                        from £2.54
                                        from £2.54
