maserati qtp.v8 4.9 (s3) 1979 bumpers and glasses parts diagram

031 - Bumpers and Glasses

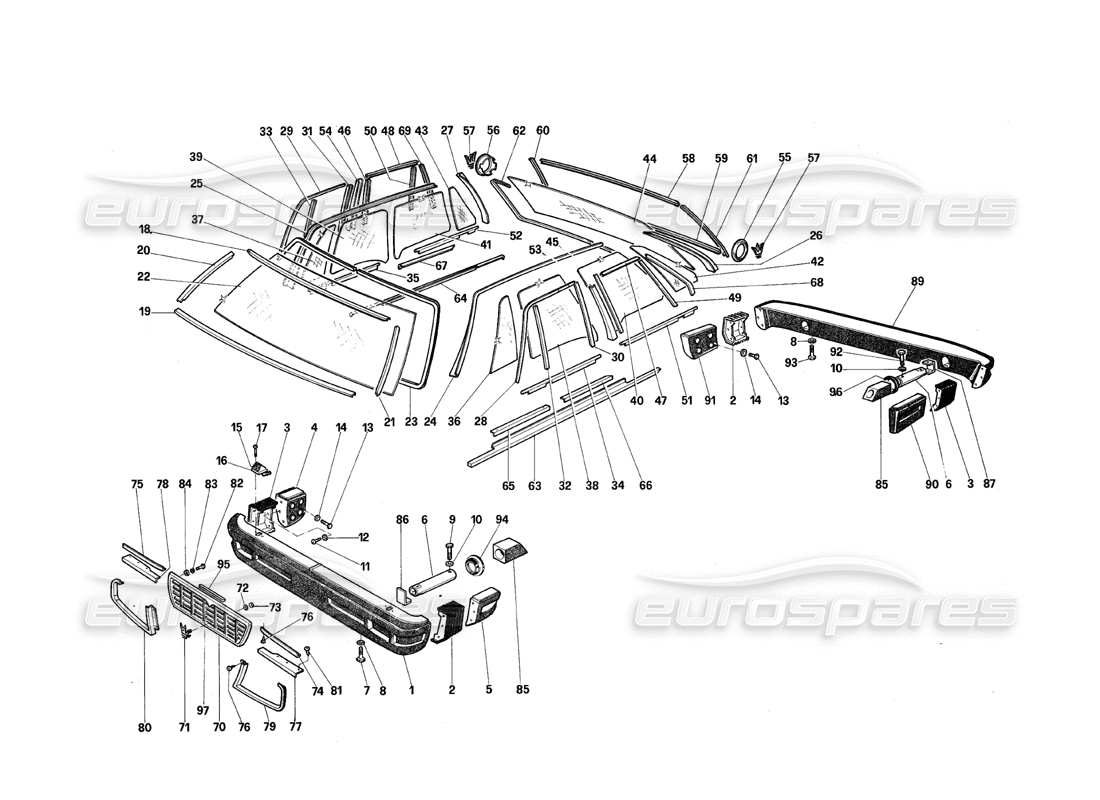

Maserati QTP.V8 4.9 (S3) 1979 Bumpers And Glasses Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                                                                  #
                                                                                                                                                                                                  Part number
                                                                                                                                                                                                  Description
                                                                                                                                                                                                  Price
                                                                                                                                                                                                  # 001
                                                                                                                                                                                                  MPN: 330-80-09-00
                                                                                                                                                                                                  Front bumper, center (Europe)
                                                                                                                                                                                                  # 001
                                                                                                                                                                                                  MPN: 330800940
                                                                                                                                                                                                  FRONT BUMPER, CENTER (USA)
                                                                                                                                                                                                  from £574.56
                                                                                                                                                                                                  from £574.56
                                                                                                                                                                                                  # 002
                                                                                                                                                                                                  MPN: 330802200
                                                                                                                                                                                                  SHROUD, FRONT LH AND REAR RH
                                                                                                                                                                                                  from £23.79
                                                                                                                                                                                                  from £23.79
                                                                                                                                                                                                  # 003
                                                                                                                                                                                                  MPN: 330802300
                                                                                                                                                                                                  SHROUD, FRONT RH AND REAR LH
                                                                                                                                                                                                  from £23.79
                                                                                                                                                                                                  from £23.79
                                                                                                                                                                                                  # 004
                                                                                                                                                                                                  MPN: 330-80-24-00
                                                                                                                                                                                                  Front bumper RH side (up to car)
                                                                                                                                                                                                  from £387.18
                                                                                                                                                                                                  from £387.18
                                                                                                                                                                                                  # 004
                                                                                                                                                                                                  MPN: 330-80-24-00
                                                                                                                                                                                                  FRONT BUMPER RH SIDE (FROM CAR)
                                                                                                                                                                                                  from £387.18
                                                                                                                                                                                                  from £387.18
                                                                                                                                                                                                  # 005
                                                                                                                                                                                                  MPN: 330-80-25-00
                                                                                                                                                                                                  FRONT BUMPER LH SIDE (UP TO CAR)
                                                                                                                                                                                                  # 005
                                                                                                                                                                                                  MPN: 330802540
                                                                                                                                                                                                  FRONT BUMPER LH SIDE (FROM CAR) 1
                                                                                                                                                                                                  from £73.29
                                                                                                                                                                                                  from £73.29
                                                                                                                                                                                                  # 006
                                                                                                                                                                                                  MPN: 330-80-36-00
                                                                                                                                                                                                  FRONT BUMPER BRACKET
                                                                                                                                                                                                  # 006
                                                                                                                                                                                                  MPN: 330-80-86-00
                                                                                                                                                                                                  ENERGY ABSORBER, BUMPER COMPL. (USA)
                                                                                                                                                                                                  # 007
                                                                                                                                                                                                  MPN: 330-80-17-00
                                                                                                                                                                                                  FIXING BOLT
                                                                                                                                                                                                  # 008
                                                                                                                                                                                                  MPN: 330-80-18-00
                                                                                                                                                                                                  WASHER
                                                                                                                                                                                                  # 009
                                                                                                                                                                                                  MPN: 330-80-19-00
                                                                                                                                                                                                  BRACKET FIXING BOLT
                                                                                                                                                                                                  # 010
                                                                                                                                                                                                  MPN: RNT 47091
                                                                                                                                                                                                  WASHER
                                                                                                                                                                                                  # 011
                                                                                                                                                                                                  MPN: VAT 49215
                                                                                                                                                                                                  Shroud screw
                                                                                                                                                                                                  # 013
                                                                                                                                                                                                  MPN: BNT 67853
                                                                                                                                                                                                  BOLT, FRONT BUMPER SIDE
                                                                                                                                                                                                  # 014
                                                                                                                                                                                                  MPN: RNT 87234
                                                                                                                                                                                                  WASHER
                                                                                                                                                                                                  This part replaces part number 87234
                                                                                                                                                                                                  # 015
                                                                                                                                                                                                  MPN: 330877800
                                                                                                                                                                                                  LIGHTS WASHING NOZZLE
                                                                                                                                                                                                  from £46.40
                                                                                                                                                                                                  from £46.40
                                                                                                                                                                                                  # 016
                                                                                                                                                                                                  MPN: 330-87-79-00
                                                                                                                                                                                                  Nozzle support
                                                                                                                                                                                                  # 017
                                                                                                                                                                                                  MPN: 330818100
                                                                                                                                                                                                  FXING SCREW
                                                                                                                                                                                                  from £1.08
                                                                                                                                                                                                  from £1.08
                                                                                                                                                                                                  # 018
                                                                                                                                                                                                  MPN: 330828300
                                                                                                                                                                                                  WINDSHIELD UPPER MOULDING
                                                                                                                                                                                                  from £8.16
                                                                                                                                                                                                  from £8.16
                                                                                                                                                                                                  # 019
                                                                                                                                                                                                  MPN: 330828400
                                                                                                                                                                                                  WINDSHIELD LOWER MOULDING
                                                                                                                                                                                                  from £13.43
                                                                                                                                                                                                  from £13.43
                                                                                                                                                                                                  # 020
                                                                                                                                                                                                  MPN: 330-82-86-00
                                                                                                                                                                                                  RH SIDE WINDSHIELD MOULDING
                                                                                                                                                                                                  # 021
                                                                                                                                                                                                  MPN: 330-82-85-00
                                                                                                                                                                                                  LH SIDE WINDSHILED MOULDING
                                                                                                                                                                                                  # 022
                                                                                                                                                                                                  MPN: 330-82-15-00
                                                                                                                                                                                                  ATHERMIC WINDSHIELD (GREEN)
                                                                                                                                                                                                  # 022
                                                                                                                                                                                                  MPN: 330-82-16-00
                                                                                                                                                                                                  Athermic windshield (bronze) (up to car)
                                                                                                                                                                                                  # 022
                                                                                                                                                                                                  MPN: 330-82-21-00
                                                                                                                                                                                                  Thermic windshield (green)
                                                                                                                                                                                                  # 023
                                                                                                                                                                                                  MPN: PRN 94349
                                                                                                                                                                                                  RUBBER WEATHERSTRIP M 4.30
                                                                                                                                                                                                  # 024
                                                                                                                                                                                                  MPN: 330-82-74-00
                                                                                                                                                                                                  LH UPPER DRIP
                                                                                                                                                                                                  # 025
                                                                                                                                                                                                  MPN: 330827300
                                                                                                                                                                                                  RH UPPER DRIP
                                                                                                                                                                                                  from £199.66
                                                                                                                                                                                                  from £199.66
                                                                                                                                                                                                  # 026
                                                                                                                                                                                                  MPN: 330-81-55-00
                                                                                                                                                                                                  LH rear drip
                                                                                                                                                                                                  # 027
                                                                                                                                                                                                  MPN: 330-81-54-00
                                                                                                                                                                                                  RH REAR DRIP
                                                                                                                                                                                                  # 028
                                                                                                                                                                                                  MPN: 330-72-53-00
                                                                                                                                                                                                  Upper weatherstrip, LH front frame
                                                                                                                                                                                                  # 029
                                                                                                                                                                                                  MPN: 330-72-52-00
                                                                                                                                                                                                  UPPER WEATHERSTRIP, RH FRONT FRAME
                                                                                                                                                                                                  # 030
                                                                                                                                                                                                  MPN: 330-72-71-00
                                                                                                                                                                                                  REAR WEATHERSTRIP, LH FRONT FRAME
                                                                                                                                                                                                  # 031
                                                                                                                                                                                                  MPN: 330-72-70-00
                                                                                                                                                                                                  REAR WEATHERSTRIP, RH FRONT FRAME
                                                                                                                                                                                                  # 032
                                                                                                                                                                                                  MPN: 330-72-13-00
                                                                                                                                                                                                  CENTRAL WEATHERSTRIP, LH FRONT FRAME
                                                                                                                                                                                                  # 033
                                                                                                                                                                                                  MPN: 330-72-12-00
                                                                                                                                                                                                  CENTRAL WEATHERSTRIP, RH FRONT FRAME
                                                                                                                                                                                                  # 034
                                                                                                                                                                                                  MPN: 330-72-69-00
                                                                                                                                                                                                  LOWER WEATHERSTRIP, LH FRONT FRAME
                                                                                                                                                                                                  # 035
                                                                                                                                                                                                  MPN: 330-72-68-00
                                                                                                                                                                                                  LOWER WEATHERSTRIP, RH FRONT FRAME
                                                                                                                                                                                                  # 036
                                                                                                                                                                                                  MPN: 330-73-01-00
                                                                                                                                                                                                  LH front side glass, fixed (bronze) (up to car)
                                                                                                                                                                                                  # 036
                                                                                                                                                                                                  MPN: 330-73-09-00
                                                                                                                                                                                                  LH FRONT SIDE GLASS, FIXED (GREEN)
                                                                                                                                                                                                  # 037
                                                                                                                                                                                                  MPN: 330-73-02-00
                                                                                                                                                                                                  RH FRONT SIDE GLASS, FIXED (BRONZE) (UP TO CAR)
                                                                                                                                                                                                  # 037
                                                                                                                                                                                                  MPN: 330730800
                                                                                                                                                                                                  RH FRONT SIDE GLASS, FIXED (GREEN)
                                                                                                                                                                                                  from £25.32
                                                                                                                                                                                                  from £25.32
                                                                                                                                                                                                  # 038
                                                                                                                                                                                                  MPN: 330-73-03-00
                                                                                                                                                                                                  LH FRONT DROP GLASS (BRONZE) (UP TO CAR)
                                                                                                                                                                                                  # 038
                                                                                                                                                                                                  MPN: 330-73-21-00
                                                                                                                                                                                                  LH FRONT DROP GLASS (GREEN)
                                                                                                                                                                                                  from £52.50
                                                                                                                                                                                                  from £52.50
                                                                                                                                                                                                  # 039
                                                                                                                                                                                                  MPN: 330-73-04-00
                                                                                                                                                                                                  RH front drop glass (bronze) (up to car)
                                                                                                                                                                                                  # 039
                                                                                                                                                                                                  MPN: 330-73-20-00
                                                                                                                                                                                                  RH front drop glass (bronze) (up to car)
                                                                                                                                                                                                  # 040
                                                                                                                                                                                                  MPN: 330-73-05-00
                                                                                                                                                                                                  LH rear drop glass (bronze) (up to car)
                                                                                                                                                                                                  # 040
                                                                                                                                                                                                  MPN: 330-73-17-00
                                                                                                                                                                                                  LH rear drop glass (green)
                                                                                                                                                                                                  from £52.50
                                                                                                                                                                                                  from £52.50
                                                                                                                                                                                                  # 041
                                                                                                                                                                                                  MPN: 330-73-06-00
                                                                                                                                                                                                  RH REAR DROP GLASS (BRONZE) (UP TO CAR)
                                                                                                                                                                                                  # 041
                                                                                                                                                                                                  MPN: 330-73-16-00
                                                                                                                                                                                                  RH rear drop glass (green)
                                                                                                                                                                                                  from £68.25
                                                                                                                                                                                                  from £68.25
                                                                                                                                                                                                  # 042
                                                                                                                                                                                                  MPN: 330-73-19-00
                                                                                                                                                                                                  LH rear glass, fixed (green)
                                                                                                                                                                                                  # 042
                                                                                                                                                                                                  MPN: 330-73-27-00
                                                                                                                                                                                                  LH REAR GLASS, FIXED (BRONZE) (UP TO CAR)
                                                                                                                                                                                                  # 043
                                                                                                                                                                                                  MPN: 330-73-18-00
                                                                                                                                                                                                  RH REAR GLASS, FIXED (GREEN)
                                                                                                                                                                                                  # 043
                                                                                                                                                                                                  MPN: 330-73-28-00
                                                                                                                                                                                                  RH REAR GLASS, FIXED (BRONZE) (UP TO CAR)
                                                                                                                                                                                                  # 044
                                                                                                                                                                                                  MPN: 330-82-27-00
                                                                                                                                                                                                  Thermic rear glass (bronze) (up to car)
                                                                                                                                                                                                  # 044
                                                                                                                                                                                                  MPN: 330-82-31-00
                                                                                                                                                                                                  THERMIC REAR GLASS (GREEN)
                                                                                                                                                                                                  # 045
                                                                                                                                                                                                  MPN: 330-72-15-00
                                                                                                                                                                                                  FRONT WEATHERSTRIP, LH REAR DOOR
                                                                                                                                                                                                  # 046
                                                                                                                                                                                                  MPN: 330-72-14-00
                                                                                                                                                                                                  Front weatherstrip, RH rear door
                                                                                                                                                                                                  # 047
                                                                                                                                                                                                  MPN: 330-72-55-00
                                                                                                                                                                                                  UPPER WEATHERSTRIP, LH REAR DOOR
                                                                                                                                                                                                  # 048
                                                                                                                                                                                                  MPN: 330-72-54-00
                                                                                                                                                                                                  UPPER WEATHERSTRIP, RH REAR DOOR
                                                                                                                                                                                                  # 049
                                                                                                                                                                                                  MPN: 330-72-73-00
                                                                                                                                                                                                  CENTRAL WEATHERSTRIP, LH REAR DOOR
                                                                                                                                                                                                  # 050
                                                                                                                                                                                                  MPN: 330-72-72-00
                                                                                                                                                                                                  CENTRAL WEATHERSTRIP, RH REAR DOOR
                                                                                                                                                                                                  # 051
                                                                                                                                                                                                  MPN: 330-72-77-00
                                                                                                                                                                                                  LOWER WEATHERSTRIP, LH REAR DOOR
                                                                                                                                                                                                  # 052
                                                                                                                                                                                                  MPN: 330-72-76-00
                                                                                                                                                                                                  LOWER WEATHERSTRIP, RH REAR DOOR
                                                                                                                                                                                                  # 053
                                                                                                                                                                                                  MPN: 330-72-17-00
                                                                                                                                                                                                  LH SIDE PILLAR WEATHERSTRIP
                                                                                                                                                                                                  # 054
                                                                                                                                                                                                  MPN: 330-72-16-00
                                                                                                                                                                                                  RH side pillar weatherstrip
                                                                                                                                                                                                  # 055
                                                                                                                                                                                                  MPN: 330-81-47-00
                                                                                                                                                                                                  Ring for dummy fuel filler door, LH
                                                                                                                                                                                                  # 056
                                                                                                                                                                                                  MPN: 330-81-46-00
                                                                                                                                                                                                  Weather ring for fuel filler door, RH
                                                                                                                                                                                                  # 057
                                                                                                                                                                                                  MPN: 330-81-70-00
                                                                                                                                                                                                  TRIDENT
                                                                                                                                                                                                  # 058
                                                                                                                                                                                                  MPN: 330-82-87-00
                                                                                                                                                                                                  REAR GLASS UPPER MOULDING
                                                                                                                                                                                                  # 059
                                                                                                                                                                                                  MPN: 330-82-88-00
                                                                                                                                                                                                  REAR GLASS LOWER MOULDING
                                                                                                                                                                                                  # 060
                                                                                                                                                                                                  MPN: 330-82-90-00
                                                                                                                                                                                                  RH SIDE MOULDING
                                                                                                                                                                                                  # 061
                                                                                                                                                                                                  MPN: 330-82-89-00
                                                                                                                                                                                                  LH SIDE MOULDING
                                                                                                                                                                                                  # 062
                                                                                                                                                                                                  MPN: PRN 94349
                                                                                                                                                                                                  RUBBER WEATHERSTRIP M 4.20
                                                                                                                                                                                                  # 063
                                                                                                                                                                                                  MPN: 330818700
                                                                                                                                                                                                  ROCKER PANEL WEATHERSTRIP LH
                                                                                                                                                                                                  from £21.09
                                                                                                                                                                                                  from £21.09
                                                                                                                                                                                                  # 064
                                                                                                                                                                                                  MPN: 330-81-86-00
                                                                                                                                                                                                  ROCKER PANEL WEATHERSTRIP RH
                                                                                                                                                                                                  # 065
                                                                                                                                                                                                  MPN: 330-75-66-00
                                                                                                                                                                                                  INSIDE UNDER DOOR PANEL RH FRONT
                                                                                                                                                                                                  # 065
                                                                                                                                                                                                  MPN: 330-75-67-00
                                                                                                                                                                                                  Inside under door panel LH front
                                                                                                                                                                                                  # 066
                                                                                                                                                                                                  MPN: 330-75-69-00
                                                                                                                                                                                                  INSIDE UNDER DOOR PANEL LH REAR
                                                                                                                                                                                                  # 067
                                                                                                                                                                                                  MPN: 330-75-68-00
                                                                                                                                                                                                  INSIDE UNDER DOOR PANEL RH REAR
                                                                                                                                                                                                  # 068
                                                                                                                                                                                                  MPN: 330-72-75-00
                                                                                                                                                                                                  LH rear door weatherstrip
                                                                                                                                                                                                  # 069
                                                                                                                                                                                                  MPN: 330-72-74-00
                                                                                                                                                                                                  RH REAR DOOR WEATHERSTRIP
                                                                                                                                                                                                  # 070
                                                                                                                                                                                                  MPN: 330-81-20-00
                                                                                                                                                                                                  FRONT GRILLE COMPL. WITH TRIDENT
                                                                                                                                                                                                  # 071
                                                                                                                                                                                                  MPN: 330813400
                                                                                                                                                                                                  TRIDENT
                                                                                                                                                                                                  from £3.40
                                                                                                                                                                                                  from £3.40
                                                                                                                                                                                                  # 074
                                                                                                                                                                                                  MPN: 330812800
                                                                                                                                                                                                  GRILLE SIDE MOULDING LH
                                                                                                                                                                                                  from £11.98
                                                                                                                                                                                                  from £11.98
                                                                                                                                                                                                  # 075
                                                                                                                                                                                                  MPN: 330-81-32-00
                                                                                                                                                                                                  Grille side moulding RH
                                                                                                                                                                                                  # 076
                                                                                                                                                                                                  MPN: VAT 73620
                                                                                                                                                                                                  SCREW
                                                                                                                                                                                                  # 077
                                                                                                                                                                                                  MPN: 330812200
                                                                                                                                                                                                  LH LIGHTS UPPER MOULDING
                                                                                                                                                                                                  from £28.68
                                                                                                                                                                                                  from £28.68
                                                                                                                                                                                                  # 078
                                                                                                                                                                                                  MPN: 330-81-24-00
                                                                                                                                                                                                  RH LIGHTS UPPER MOULDING
                                                                                                                                                                                                  # 079
                                                                                                                                                                                                  MPN: 330813900
                                                                                                                                                                                                  LH LIGHTS LOWER MOULDING
                                                                                                                                                                                                  from £178.30
                                                                                                                                                                                                  from £178.30
                                                                                                                                                                                                  # 080
                                                                                                                                                                                                  MPN: 330-81-38-00
                                                                                                                                                                                                  RH LIGHTS LOWER MOULDING
                                                                                                                                                                                                  # 081
                                                                                                                                                                                                  MPN: VAT 62309
                                                                                                                                                                                                  MOULDING FIXING SCREW
                                                                                                                                                                                                  # 082
                                                                                                                                                                                                  MPN: BNT. 53968
                                                                                                                                                                                                  FRONT GRILLE BOLT
                                                                                                                                                                                                  # 085
                                                                                                                                                                                                  MPN: 330-80-96-00
                                                                                                                                                                                                  RUBBER PAD
                                                                                                                                                                                                  # 086
                                                                                                                                                                                                  MPN: 330-80-94-01
                                                                                                                                                                                                  PLATE FOR FRONT BRACKET
                                                                                                                                                                                                  # 087
                                                                                                                                                                                                  MPN: 330-80-94-00
                                                                                                                                                                                                  PLATE FOR REAR BRACKET
                                                                                                                                                                                                  # 089
                                                                                                                                                                                                  MPN: 330-80-52-00
                                                                                                                                                                                                  Rear bumper, center (Europe)
                                                                                                                                                                                                  # 089
                                                                                                                                                                                                  MPN: 330805240
                                                                                                                                                                                                  Rear bumper, center (USA)
                                                                                                                                                                                                  from £460.17
                                                                                                                                                                                                  from £460.17
                                                                                                                                                                                                  # 090
                                                                                                                                                                                                  MPN: 330-80-74-00
                                                                                                                                                                                                  LH REAR BUMPER, SIDE (UP TO CAR)
                                                                                                                                                                                                  # 090
                                                                                                                                                                                                  MPN: 330-80-74-40
                                                                                                                                                                                                  LH REAR BUMPER SIDE (FROM CAR)
                                                                                                                                                                                                  # 091
                                                                                                                                                                                                  MPN: 330-80-73-00
                                                                                                                                                                                                  RH rear bumper, side (up to car)
                                                                                                                                                                                                  # 091
                                                                                                                                                                                                  MPN: 330-80-73-40
                                                                                                                                                                                                  RH REAR BUMPER SIDE (FROM CAR)
                                                                                                                                                                                                  # 092
                                                                                                                                                                                                  MPN: 330-80-21-00
                                                                                                                                                                                                  BRACKET FIXING BOLT
                                                                                                                                                                                                  # 093
                                                                                                                                                                                                  MPN: 330-80-63-00 1
                                                                                                                                                                                                  BUMPER FIXING BOLT
                                                                                                                                                                                                  # 094
                                                                                                                                                                                                  MPN: 330-80-70-00
                                                                                                                                                                                                  FRONT RUBBER RING
                                                                                                                                                                                                  # 095
                                                                                                                                                                                                  MPN: PRN 94350
                                                                                                                                                                                                  GRILLE RADIATOR MOULDING
                                                                                                                                                                                                  # 096
                                                                                                                                                                                                  MPN: 330-80-90-00
                                                                                                                                                                                                  REAR RUBBER RING
                                                                                                                                                                                                  # 097
                                                                                                                                                                                                  MPN: 330-81-21-00
                                                                                                                                                                                                  GRILLE FOR CENTRAL MASK
