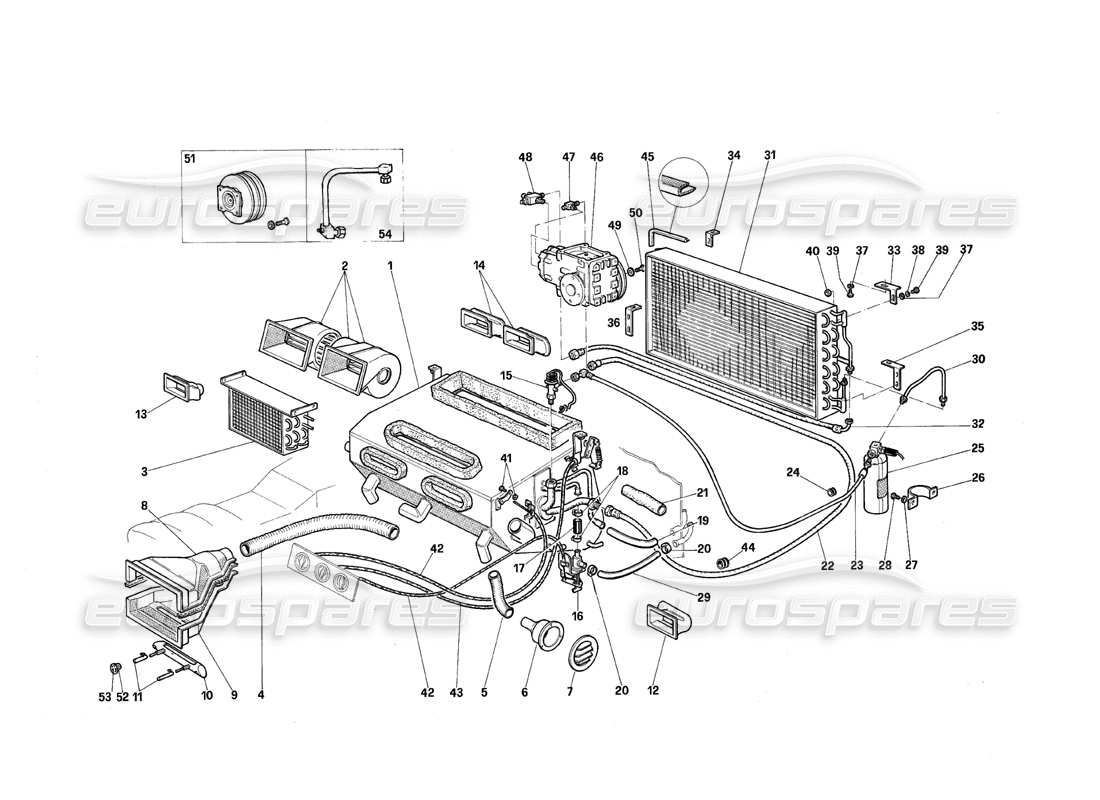

Maserati QTP.V8 4.9 (S3) 1979 Conditioning Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                              #
                                                                                                              Part number
                                                                                                              Description
                                                                                                              Price
                                                                                                              # 001
                                                                                                              MPN: 330-39-00-00
                                                                                                              HEATER ASSY
                                                                                                              # 002
                                                                                                              MPN: 330-38-59-00
                                                                                                              VALVE ASSY
                                                                                                              # 003
                                                                                                              MPN: 330-38-26-00
                                                                                                              evaporator
                                                                                                              # 004
                                                                                                              MPN: TFC 90477
                                                                                                              CONNECTION TUBE Ø 55X60 M = 3
                                                                                                              # 005
                                                                                                              MPN: TFC 48873
                                                                                                              CONNECTION TUBE Ø 40X45 M = 1.5
                                                                                                              # 006
                                                                                                              MPN: 330-39-97-00
                                                                                                              INNER DUCT HOUSING
                                                                                                              # 007
                                                                                                              MPN: 316-39-20-00
                                                                                                              DUCT GRID
                                                                                                              # 008
                                                                                                              MPN: 330-39-86-00
                                                                                                              DUCT UPPER PART
                                                                                                              # 009
                                                                                                              MPN: 330-39-87-00
                                                                                                              DUCT LOWER PART
                                                                                                              # 010
                                                                                                              MPN: 330-39-88-00
                                                                                                              Spoiler complete
                                                                                                              # 011
                                                                                                              MPN: 330-39-83-00
                                                                                                              SPOILER EXTENSION
                                                                                                              # 012
                                                                                                              MPN: 330-39-02-00
                                                                                                              RH SIDE INNER DUCT
                                                                                                              # 013
                                                                                                              MPN: 330-39-06-00
                                                                                                              LH SIDE INNER DUCT
                                                                                                              # 014
                                                                                                              MPN: 330-39-01-00
                                                                                                              INNER DUCT, CENTER
                                                                                                              # 015
                                                                                                              MPN: 330-37-07-00
                                                                                                              EXPANSION VALVE
                                                                                                              # 016
                                                                                                              MPN: 330-38-49-00
                                                                                                              WATER TAP
                                                                                                              # 017
                                                                                                              MPN: MN 57698
                                                                                                              RUBBER HOSE
                                                                                                              # 018
                                                                                                              MPN: FRN 81850
                                                                                                              CLAMP
                                                                                                              # 019
                                                                                                              MPN: 329385300
                                                                                                              HOSE
                                                                                                              from £1.55
                                                                                                              from £1.55
                                                                                                              # 020
                                                                                                              MPN: FRN 77519
                                                                                                              CLAMP
                                                                                                              # 021
                                                                                                              MPN: 330-38-43-00
                                                                                                              HOSE PROTECTION
                                                                                                              # 022
                                                                                                              MPN: 329-37-23-00
                                                                                                              HEATER, ISOBARIC VALVE TUBE
                                                                                                              # 023
                                                                                                              MPN: 329-37-22-00
                                                                                                              TUBE
                                                                                                              # 024
                                                                                                              MPN: PFN 45004
                                                                                                              Tube clamp
                                                                                                              # 025
                                                                                                              MPN: 329-37-04-00
                                                                                                              AIR CONDIT. FILTER
                                                                                                              # 026
                                                                                                              MPN: 317-37-05-00
                                                                                                              CLAMP
                                                                                                              # 027
                                                                                                              MPN: RSN/32690
                                                                                                              WASHER
                                                                                                              # 028
                                                                                                              MPN: BNT 80759
                                                                                                              BOLT
                                                                                                              # 029
                                                                                                              MPN: 329-38-52-00
                                                                                                              HOSE
                                                                                                              # 030
                                                                                                              MPN: 330-37-21-00
                                                                                                              COPPER TUBE
                                                                                                              # 031
                                                                                                              MPN: 330-37,02-00
                                                                                                              CONDENSER
                                                                                                              # 032
                                                                                                              MPN: 329-37-20-00
                                                                                                              Compressor to condenser tube
                                                                                                              # 033
                                                                                                              MPN: 330-37-30-00
                                                                                                              CONDENSER SUPPORT UPPER RH
                                                                                                              # 034
                                                                                                              MPN: 330-37-30-01
                                                                                                              CONDENSER SUPPORT UPPER LH
                                                                                                              # 035
                                                                                                              MPN: 330-37-31-00
                                                                                                              CONDENSER SUPPORT LOWER RH
                                                                                                              # 036
                                                                                                              MPN: 330-37-31-01
                                                                                                              CONDENSER SUPPORT LOWER LH
                                                                                                              # 037
                                                                                                              MPN: RNT 35345
                                                                                                              CONDENSER FIXING WASHER
                                                                                                              # 038
                                                                                                              MPN: RSN 3 2 4 9 7
                                                                                                              LOCK WASHER
                                                                                                              # 041
                                                                                                              MPN: NPL 75890
                                                                                                              NIPPLE
                                                                                                              # 042
                                                                                                              MPN: 330-37-56-00
                                                                                                              BOWDEN CABLE
                                                                                                              # 043
                                                                                                              MPN: 330-37-57-00
                                                                                                              BOWDEN CABLE
                                                                                                              # 045
                                                                                                              MPN: PRN 86268
                                                                                                              CONDENSER RUBBER PROFILE
                                                                                                              # 046
                                                                                                              MPN: 329-37-01-00
                                                                                                              AIR COMPRESSOR ASSY R. 206
                                                                                                              from £472.50
                                                                                                              from £472.50
                                                                                                              # 047
                                                                                                              MPN: 107 BR 66095
                                                                                                              COMPRESSOR VALVE
                                                                                                              # 048
                                                                                                              MPN: 315-37-09-00
                                                                                                              ISOBARIC VALVE
                                                                                                              # 049
                                                                                                              MPN: RN 43775
                                                                                                              Washer Ø 8X22X2
                                                                                                              # 050
                                                                                                              MPN: BNT 57391
                                                                                                              Clutch fixing bolt 3/8X24X11/4
                                                                                                              # 051
                                                                                                              MPN: 317-37-03-00
                                                                                                              CLUTCH PULLEY
                                                                                                              # 052
                                                                                                              MPN: 330-89-93-00
                                                                                                              FAN CONTROL
                                                                                                              # 053
                                                                                                              MPN: 330-89-80-04
                                                                                                              FAN CONTROL BADGE
                                                                                                              # 054
                                                                                                              MPN: 317-37-19-00
                                                                                                              Compressor valves connecting tube
