018 - Frame

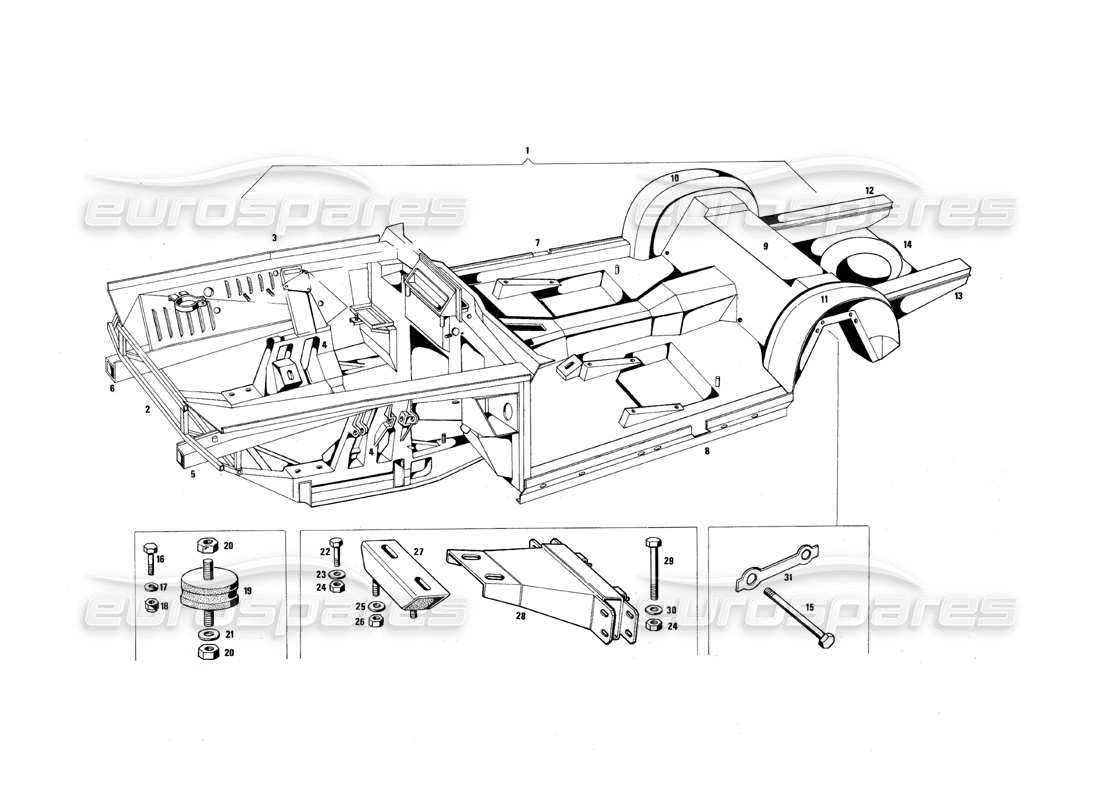

Maserati QTP.V8 4.9 (S3) 1979 Frame Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 330-20-00-00
                                                                BODY STRUCTURE ASSY
                                                                # 002
                                                                MPN: 330-21-57-00
                                                                FRONT ASSY
                                                                # 003
                                                                MPN: 330-20-01-00
                                                                FRONT SIDE PANEL ASSY
                                                                # 004
                                                                MPN: 330-21-00-00
                                                                FRONT CROSS MEMBER, CENTER
                                                                # 005
                                                                MPN: 330-20-21-00
                                                                FRONT CROSS MEMBER, LH , BUMPERS, SUPPORT
                                                                # 006
                                                                MPN: 330-20-22-00
                                                                FRONT CROSS MEMBER, RH , BUMPERS SUPPORT
                                                                # 007
                                                                MPN: 330-25-63-00
                                                                RH SIDE MEMBER
                                                                # 008
                                                                MPN: 330-25-91-00
                                                                LH SIDE MEMBER
                                                                # 009
                                                                MPN: 330-27-00-00
                                                                REAR BODY ASSY
                                                                # 010
                                                                MPN: 330-27-74-00
                                                                REAR WHEEL COWL, RH
                                                                # 011
                                                                MPN: 330-27-73-00
                                                                REAR WHEEL COWL, LH
                                                                # 012
                                                                MPN: 330-28-32-00
                                                                REAR CROSS MEMBER, RH
                                                                # 013
                                                                MPN: 330-28-33-00
                                                                REAR CROSS MEMBER, LH
                                                                # 014
                                                                MPN: 330-28-70-00
                                                                REAR PANEL MEMBER
                                                                # 016
                                                                MPN: BNT. 47015
                                                                Bolt Ø 8
                                                                # 017
                                                                MPN: RNT 87234
                                                                Washer Ø 8
                                                                This part replaces part number 87234
                                                                # 018
                                                                MPN: DST 53397
                                                                NUT
                                                                This part replaces part number 53397
                                                                # 019
                                                                MPN: 329268700
                                                                Rubber pad engine support
                                                                from £30.91
                                                                from £30.91
                                                                # 020
                                                                MPN: DST 55222
                                                                Nut Ø 12X1.75
                                                                # 021
                                                                MPN: RNT 88658
                                                                Washer Ø 12X24X3
                                                                # 022
                                                                MPN: BNT 65439
                                                                Bolt Ø 12X1.25X45 for Automatic Transmission
                                                                # 022
                                                                MPN: BNT 65440
                                                                Bolt Ø 12X1.25X50 for Automatic Transmission
                                                                # 022
                                                                MPN: BNT 73034
                                                                Bolt Ø 12X1.75X40
                                                                # 023
                                                                MPN: RNT 88568
                                                                Washer Ø 12 for Automatic Transmission
                                                                # 023
                                                                MPN: RNT47085
                                                                Washer Ø 12
                                                                from £3.42
                                                                from £3.42
                                                                # 024
                                                                MPN: DST 67242
                                                                LOCK NUT Ø 12X1.25X11 FOR AUTOMATIC TRANSMISSION
                                                                # 025
                                                                MPN: RN 32423
                                                                Washer Ø 11.5X24X3
                                                                # 027
                                                                MPN: 329158300
                                                                RUBBER PAD GEARBOX SUPPORT BRACKET
                                                                from £76.36
                                                                from £76.36
                                                                # 028
                                                                MPN: 330-14-14-00
                                                                GEAR SUPPORT ASSY (TO 59TH CAR)
                                                                # 028
                                                                MPN: 330-14-14-20
                                                                GEAR SUPPORT ASSY (FROM 60TH CAR)
                                                                # 029
                                                                MPN: BNT 76207
                                                                Bolt Ø 10XL.25X70
                                                                # 030
                                                                MPN: RDI 87232
                                                                Washer Ø 10
                                                                # 031
                                                                MPN: 329-18-62-00
                                                                PLATE
                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
