maserati qtp.v8 4.7 (s1 & s2) 1967 front car parts diagram

040 - Front Car

Maserati QTP.V8 4.7 (S1 & S2) 1967 Front Car Parts Diagram

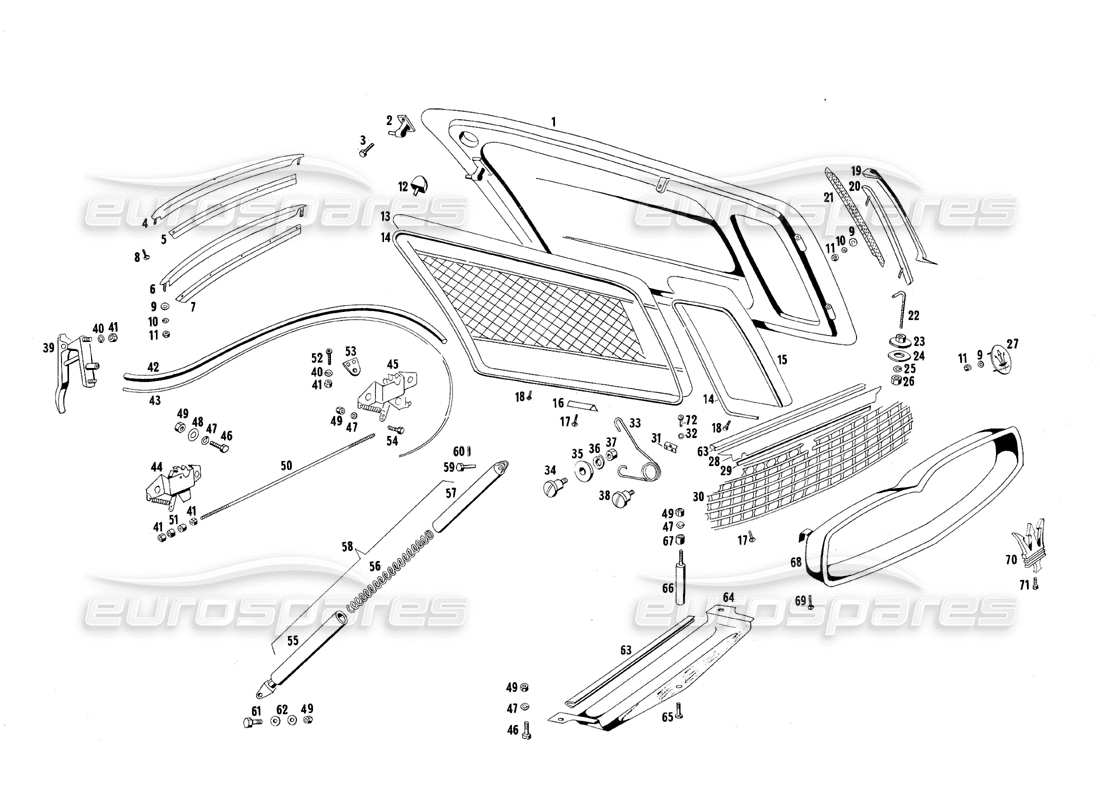

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 107 BM 59175
COVER
# 002
MPN: 107 BM 59176
RISCONTRO SERRATURA COFANO MOTORE
# 003
MPN: BNT 47019
BOLT
# 004
MPN: 107 BM 59177
REAR ROSTER FOR AIR INTAKE UNDER THE WINDSHIELD
# 005
MPN: 107 BM 59178
SHEET FOR REAR STRUT. AIR INTAKE UNDER THE WINDSHIELD
# 006
MPN: 107 BM 59179
ROSTRO ANT. PER PRESA ARIA SOTTO IT PARABREZZA
# 007
MPN: 107 BM 59180
SHEET FOR REAR STRUT. AIR INTAKE UNDER THE WINDSHIELD
# 008
MPN: VNT 58531
SCREW
# 009
MPN: RNT 47373
WASHER
# 009
MPN: RNT 47373
WASHER
# 009
MPN: RNT 47373
WASHER
# 010
MPN: RS 33201
WASHER
# 010
MPN: RS 33201
WASHER
# 010
MPN: RS 33201
WASHER
# 011
MPN: DN/33200
NUT
# 011
MPN: DN/33200
NUT
# 011
MPN: DN/33200
NUT
# 012
MPN: 107 BM 57778
GOMMINO BATTICOFANO MOTORE
# 013
MPN: 107 BP 59181
RIVESTIMENTO COFANO MOTORE (ELEMENTO GRANDE)
# 014
MPN: PRN 59182
PROFILATO IN ALLUMINIO PER GIRO COFANO MOTORE (ELEMENTO GRANDE)
# 014
MPN: PRN 59182
Profilato in alluminio per giro cofano motore (elemento piccolo)
# 015
MPN: 107 BP 59183
RIVESTIMENTO COFANO MOTORE (ELEMENTO PICCOLO)
# 016
MPN: 107 BM 59184
Engine bonnet rabbet sheet metal
# 017
MPN: VNT 59185
SCREW
# 017
MPN: VNT 59185
SCREW
# 018
MPN: VNT 56818
SCREW
# 019
MPN: 107 BM 55448
AIR INTAKE MASK ON THE ENGINE BONNET
# 020
MPN: 107 BM 56058
ELEMENT UNDER THE ENGINE BONNET AIR INTAKE MASK
# 021
MPN: 107 BM 59186
GRILLE FOR ENGINE BONNET AIR INTAKE MASK
# 022
MPN: 107 BM 59187
HOOK FOR ENGINE BONNET HINGE
# 023
MPN: 107 BM 59188
SUPPORT
# 024
MPN: RN 50616
WASHER
# 025
MPN: RSN/33112
WASHER
from £1.70
from £1.70
# 026
MPN: DNT/47053
NUT
# 027
MPN: TRG 32573

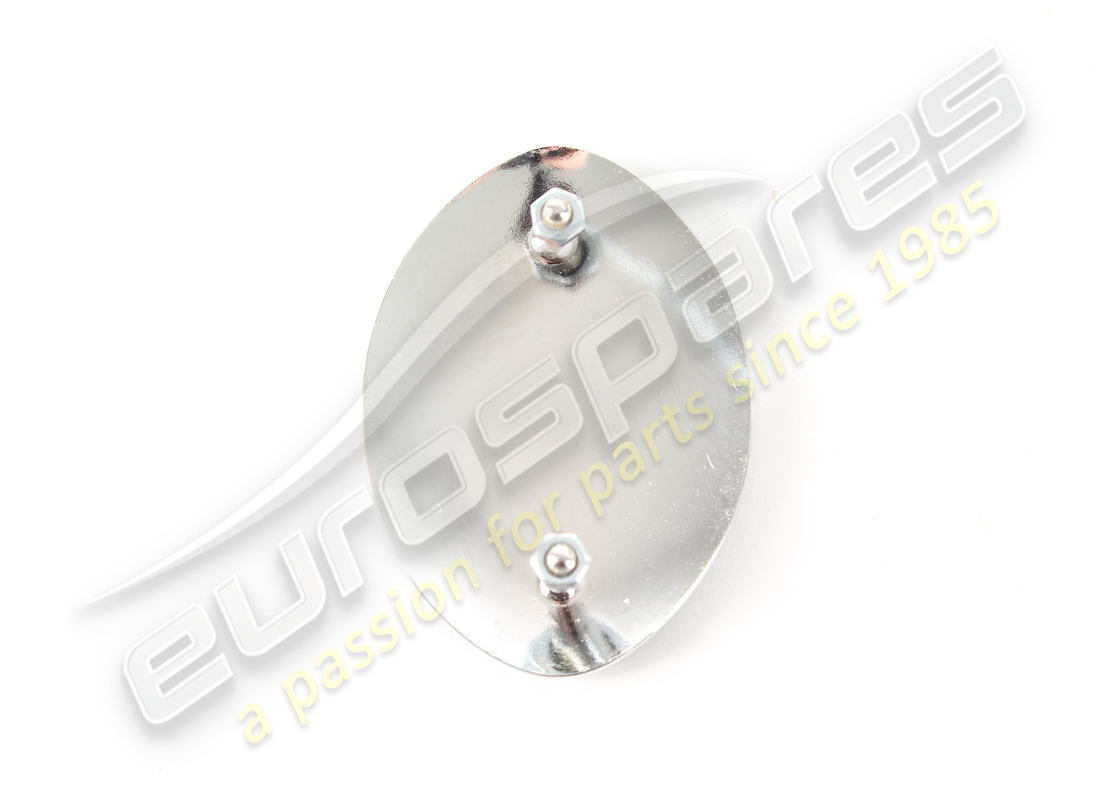

BADGE PLATE A Maserati
from £95.00
from £95.00
# 028
MPN: 107 BM 59189
PARATIA RADIATORE
# 030
MPN: 107 BA 59190
Front mask grille
# 031
MPN: 107 BM 59191
SUPPORT FOR RADIATOR BULKHEAD
# 032
MPN: SVT 56866
UNDERSCREW Ø 4 FOR RADIATOR BULKHEAD FIXING
# 033
MPN: 107 BM 59192
SPRING
# 034
MPN: VN 59193
SCREW
# 035
MPN: RN 32261
WASHER
# 036
MPN: RS 32690
WASHER
# 037
MPN: DNT 47047
NUT
# 038
MPN: VN 59194
SCREW
# 039
MPN: 109 - BC 56423
LEVER
# 040
MPN: RSN 3 2 4 9 7
WASHER
# 040
MPN: RSN 3 2 4 9 7
WASHER
# 041
MPN: DNT 47046
NUT
from £0.86
from £0.86
This part replaces part number 47046
# 041
MPN: DNT 47046
NUT
from £0.86
from £0.86
This part replaces part number 47046
# 041
MPN: DNT 47046
NUT
from £0.86
from £0.86
This part replaces part number 47046
# 042
MPN: GFN 56711
FLEXIBLE SHEATH FOR STEEL WIRE Ø 2 ENGINE BONNET OPENING
# 043
MPN: FGN 55641
STEEL WIRE Ø 2 FOR ENGINE BONNET OPENING CONTROL
# 044
MPN: 107 BM 59195
SERRATURA COFANO MOTORE SENZA PASSAFILO
# 045
MPN: 107 BM 59196
SERRATURA COFANO MOTORE CON PASSAFILO
# 046
MPN: BNT 58999
BOLT
# 047
MPN: BNT 58999
BOLT
# 047
MPN: RS 32690
DONDELLA Ø 6,5 PER DETTO
# 047
MPN: RS 32690
ROONDELLA Ø 6,5 PER FISSAGGIO PRESA ARIA SOTTO LA VETTURA
# 049
MPN: DNT 47047
NUT
# 049
MPN: DNT 47047
NUT
# 049
MPN: DNT 47047
NUT
# 049
MPN: DNT 47047
NUT
# 050
MPN: 107 BM 59198
ENGINE BONNET LOCK OPENING CONTROL ROD
# 051
MPN: 107 BM 59199
THICKNESS BUSHINGS FOR THE ENGINE BONNET LOCK OPENING CONTROL ROD
# 053
MPN: 107 BM 59201
SUPPORT
# 054
MPN: BN 59202
BOLT
# 055
MPN: 107 BM 59203
FIXED TELESCOPE COMPASS CYLINDER
# 056
MPN: 107 BM 59204
MOLLS PER COMPASSO A CANNOCCHIALE
# 057
MPN: 107 BM 59205
MOBILE TELESCOPE COMPASS CYLINDER
# 058
MPN: 107 BM 59206
COPASSO A CANNOCCHIALE
# 059
MPN: 107 BM 59016
PIVOT
# 060
MPN: CN 33030
Copiglia Ø 3X30 per detto
# 061
MPN: BNT 47019
BOLT
# 062
MPN: RNT 47074
WASHER
# 063
MPN: PRN 59207
SPONGE PROFILE FOR RADIATOR BULKHEAD
# 063
MPN: PRN 59207
Spongy profile for air intake under the car
# 064
MPN: 107 BV 57127
AIR INTAKE UNDER THE CAR
# 066
MPN: 107 BM 59209
Air intake support column under the car
# 067
MPN: 107 BM 59210
Thick bush for air intake support column under the vehicle.
# 068
MPN: 107 BA 56424
MASCHERA ANT.
# 069
MPN: VNT 59197
Vita Ø 4,2X22,22 per fissaggio griglia maschera ant.
# 070
MPN: 107 BA 57083
TRIDENT COAT OF ARMS Maserati
# 070
MPN: BNT/47370
BOLT
from £3.26
from £3.26
This part replaces part number 47370
