025 - Rear Wheels and Brakes

Maserati QTP.V8 4.7 (S1 & S2) 1967 Rear Wheels and Brakes Parts Diagram

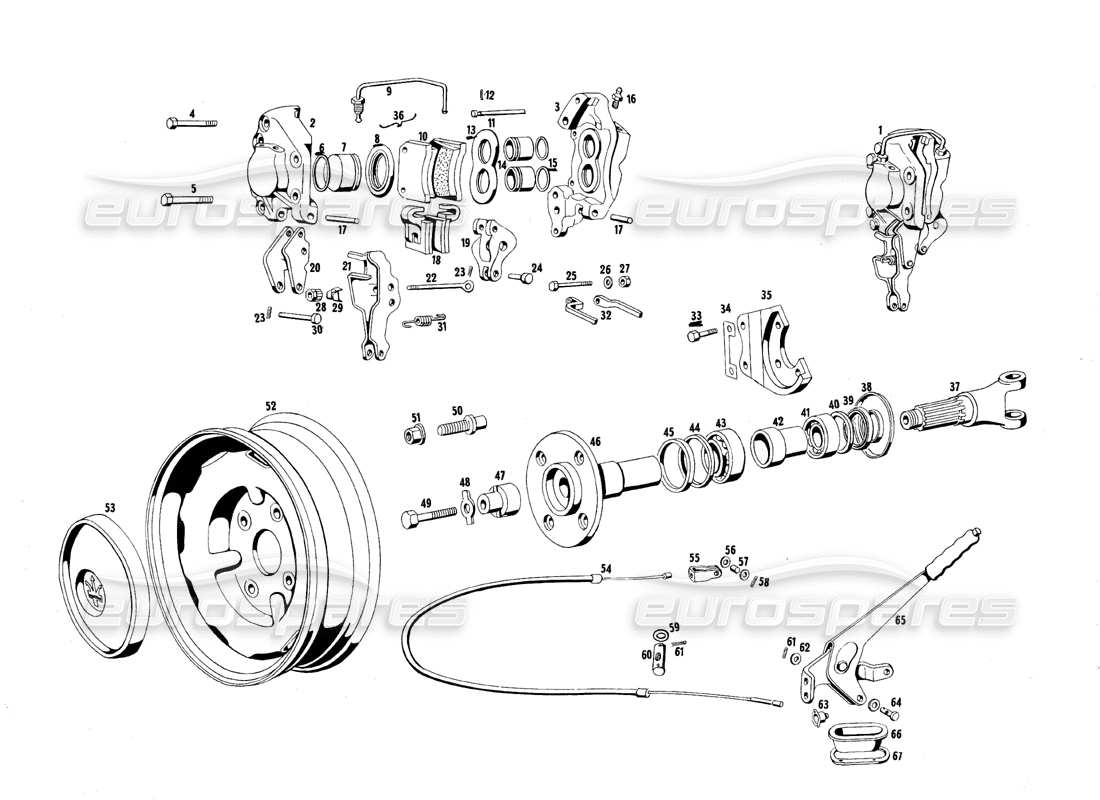

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                      #
                                                                                                                                      Part number
                                                                                                                                      Description
                                                                                                                                      Price
                                                                                                                                      # 001
                                                                                                                                      MPN: 107 FP 54842
                                                                                                                                      Left rear caliper
                                                                                                                                      # 001
                                                                                                                                      MPN: 107 FP 54843
                                                                                                                                      RIGHT REAR CALIPER
                                                                                                                                      # 002
                                                                                                                                      MPN: 107 FP 58444
                                                                                                                                      Semipinza poster. interns sinistra
                                                                                                                                      # 002
                                                                                                                                      MPN: 107FP58443
                                                                                                                                      SEMIPINZA POSTER. INTERNS DESTRA
                                                                                                                                      # 003
                                                                                                                                      MPN: 107 FP 58445
                                                                                                                                      Semipinza poster. esterna destra
                                                                                                                                      # 003
                                                                                                                                      MPN: 107 FP 58446
                                                                                                                                      Semipinza poster. esterna sinistra
                                                                                                                                      # 006
                                                                                                                                      MPN: GOM58449
                                                                                                                                      Seal rubber on the large rear caliper piston
                                                                                                                                      # 007
                                                                                                                                      MPN: 107 FP 58450
                                                                                                                                      Large rear caliper piston
                                                                                                                                      # 008
                                                                                                                                      MPN: 107 FP 58451
                                                                                                                                      GOMMINO PARAPOLVERE SUL PISTONE GRANDE
                                                                                                                                      # 009
                                                                                                                                      MPN: 107 FP 58452
                                                                                                                                      Oil delivery pipe on the rear calipers
                                                                                                                                      # 010
                                                                                                                                      MPN: 1467551926
                                                                                                                                      Rear braking blocks
                                                                                                                                      # 012
                                                                                                                                      MPN: CN58454
                                                                                                                                      Split pin on the dowel holding pin
                                                                                                                                      # 013
                                                                                                                                      MPN: FP 58455
                                                                                                                                      REAR CALIPER REPAIR KIT (42 MM)
                                                                                                                                      from £62.98
                                                                                                                                      from £62.98
                                                                                                                                      # 014
                                                                                                                                      MPN: 107 FP 58456
                                                                                                                                      Small pistons poster calipers
                                                                                                                                      # 015
                                                                                                                                      MPN: GOM58457
                                                                                                                                      RUBBER SEAL ON THE SMALL REAR CALIPER PISTONS
                                                                                                                                      # 016
                                                                                                                                      MPN: 107 FP 58458
                                                                                                                                      Air vent cap on the rear calipers
                                                                                                                                      # 017
                                                                                                                                      MPN: 107 FP 58459
                                                                                                                                      PIN
                                                                                                                                      # 018
                                                                                                                                      MPN: 107 FP 58461
                                                                                                                                      Left handbrake block
                                                                                                                                      # 018
                                                                                                                                      MPN: 107FP58460
                                                                                                                                      Right handbrake block
                                                                                                                                      # 019
                                                                                                                                      MPN: 107 FP 58462
                                                                                                                                      LEVER
                                                                                                                                      # 022
                                                                                                                                      MPN: 107 FP 58464
                                                                                                                                      TIE ROD
                                                                                                                                      # 023
                                                                                                                                      MPN: CN. 43776
                                                                                                                                      PIN FOR TIE ROD
                                                                                                                                      from £0.86
                                                                                                                                      from £0.86
                                                                                                                                      # 024
                                                                                                                                      MPN: 107 FP 58465
                                                                                                                                      PIN
                                                                                                                                      # 026
                                                                                                                                      MPN: RSN 58467
                                                                                                                                      WASHER
                                                                                                                                      # 028
                                                                                                                                      MPN: 107 FP 58469
                                                                                                                                      NUT
                                                                                                                                      # 029
                                                                                                                                      MPN: 107 - FP 58470
                                                                                                                                      WASHER
                                                                                                                                      # 030
                                                                                                                                      MPN: 107 - FP 58471
                                                                                                                                      PIN
                                                                                                                                      # 032
                                                                                                                                      MPN: 107FP58473
                                                                                                                                      Handbrake block holding plate
                                                                                                                                      # 034
                                                                                                                                      MPN: 14554 51501
                                                                                                                                      Piastrino di fermo per bulloni fiss. caliper
                                                                                                                                      # 035
                                                                                                                                      MPN: 107 FP 54255
                                                                                                                                      SUPPORT
                                                                                                                                      # 035
                                                                                                                                      MPN: 107 FP 54256
                                                                                                                                      SUPPORT
                                                                                                                                      # 036
                                                                                                                                      MPN: 101/9 - FP 55469
                                                                                                                                      SPRING
                                                                                                                                      # 038
                                                                                                                                      MPN: 107 TP 57785
                                                                                                                                      PROTECTIVE DISC ON THE REAR HUBS FORK. 0 64
                                                                                                                                      # 038
                                                                                                                                      MPN: 107 TP 58066
                                                                                                                                      PROTECTIVE DISC ON THE REAR HUBS FORK. 0 64,5
                                                                                                                                      # 039
                                                                                                                                      MPN: ANT53977
                                                                                                                                      ANGUS 65X90X10 SULLA FORCELLA
                                                                                                                                      from £48.52
                                                                                                                                      from £48.52
                                                                                                                                      # 040
                                                                                                                                      MPN: 107TP55312
                                                                                                                                      SPACER ON THE REAR HUB
                                                                                                                                      # 041
                                                                                                                                      MPN: CSC 53940
                                                                                                                                      REAR HUB INTERNAL BEARING
                                                                                                                                      # 042
                                                                                                                                      MPN: 107 TP 57143
                                                                                                                                      DISTANZIALE SUL MOZZO PER CSC
                                                                                                                                      # 043
                                                                                                                                      MPN: CSC56873
                                                                                                                                      REAR HUB OUTER BEARING
                                                                                                                                      from £135.32
                                                                                                                                      from £135.32
                                                                                                                                      # 044
                                                                                                                                      MPN: 107TP57270
                                                                                                                                      SPACER ON THE REAR HUB
                                                                                                                                      # 045
                                                                                                                                      MPN: ANT57793
                                                                                                                                      ANGUS 70X100XL0 SUL MOZZO POSTERIORE
                                                                                                                                      from £74.04
                                                                                                                                      from £74.04
                                                                                                                                      # 046
                                                                                                                                      MPN: 107TP57142
                                                                                                                                      Rear hub for turbo sports wheels
                                                                                                                                      # 047
                                                                                                                                      MPN: 107 TP 56152
                                                                                                                                      NUT
                                                                                                                                      # 049
                                                                                                                                      MPN: BNT 54080
                                                                                                                                      BOLT
                                                                                                                                      # 050
                                                                                                                                      MPN: 107 TP 55589
                                                                                                                                      CLUTCH ON THE REAR HUB FOR WHEEL FIXING
                                                                                                                                      # 051
                                                                                                                                      MPN: DN/46440
                                                                                                                                      NUT
                                                                                                                                      # 052
                                                                                                                                      MPN: 13010-54019
                                                                                                                                      Turbo sport wheel 600X15
                                                                                                                                      # 054
                                                                                                                                      MPN: 107FM54263
                                                                                                                                      COMPLETE HANDBRAKE CABLE
                                                                                                                                      # 055
                                                                                                                                      MPN: 107 FM 54264
                                                                                                                                      FORK
                                                                                                                                      # 056
                                                                                                                                      MPN: RN/43855
                                                                                                                                      WASHER
                                                                                                                                      # 057
                                                                                                                                      MPN: 107 FM 54278
                                                                                                                                      PIVOT
                                                                                                                                      # 058
                                                                                                                                      MPN: CN. 43776
                                                                                                                                      PIN 2X22 ON THE CABLE PRESS FORK PIN
                                                                                                                                      from £0.86
                                                                                                                                      from £0.86
                                                                                                                                      # 059
                                                                                                                                      MPN: RNT 54276
                                                                                                                                      WASHER
                                                                                                                                      # 060
                                                                                                                                      MPN: 107 FM 54280
                                                                                                                                      PIVOT
                                                                                                                                      # 062
                                                                                                                                      MPN: RN 46792
                                                                                                                                      WASHER
                                                                                                                                      # 063
                                                                                                                                      MPN: 107BL56933
                                                                                                                                      Interruttore segnalazione freno mano inserito
                                                                                                                                      # 064
                                                                                                                                      MPN: 107 FM 59545
                                                                                                                                      PIVOT
                                                                                                                                      # 066
                                                                                                                                      MPN: 107FM55111
                                                                                                                                      HAND BRAKE LEVER PROTECTION CAP
                                                                                                                                      # 067
                                                                                                                                      MPN: 107 FM 55112
                                                                                                                                      FRAME FOR CAP
