maserati qtp.v8 4.7 (s1 & s2) 1967 rear suspension parts diagram

020 - Rear Suspension

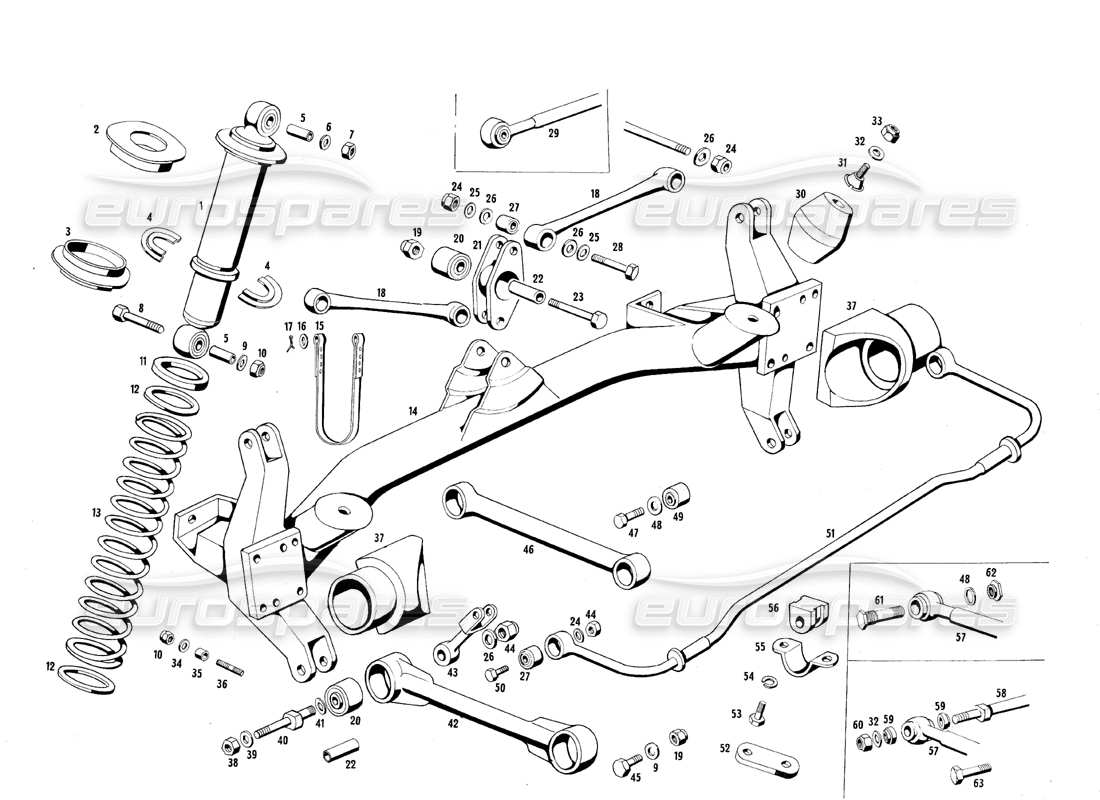

Maserati QTP.V8 4.7 (S1 & S2) 1967 Rear Suspension Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: SP55031
AMMORTIZZATORE POSTERIORE
# 002
MPN: SP57470
Upper ring for mounting the Ø 145 spring on the shock absorber
# 003
MPN: SP 57469
Anello ports molla Ø 145 sull'ammortizzatore
# 004
MPN: SP55268
Semianello porta molla sull'ammortizzatore
# 005
MPN: SP 55230
BUSH FOR REDUCING SHOCK ABSORBER HOLE
# 006
MPN: RDI 57731
WASHER
# 006
MPN: RDI 57731
DALLA VETT. N° VIENE SOSTITUITA DA RL-57717
# 007
MPN: DN 33573
NUT
# 008
MPN: BNT 57999
BOLT
# 009
MPN: RNT 47091
WASHER
# 009
MPN: RNT 47091
WASHER
# 011
MPN: SP 55972
Rubber ring for mounting molls on the shock absorber
# 012
MPN: SP55971
RING FOR REAR SUSPENSION SPRING
# 013
MPN: SP55986
MOLLS PER SOSPENSIONE POSTERIORE
# 014
MPN: SP 55220
DE-DION
# 014
MPN: SP 55220
DALLA VETT. N° VIENE SOSTITUITO DA SP- 57790
# 015
MPN: SP57669
BRACE FOR LOWER SHAKE
# 017
MPN: CN. 43776
COPIGLIE Ø 2X22 PER TENUTA BRETELLE
from £0.86
from £0.86
# 018
MPN: SP 55771
TIE ROD
# 021
MPN: SP 53820
PARTE CENTRALE WATT.
# 022
MPN: SP 55756
REDUCTION BUSH FOR SILENTBLOC ON THE CENTRAL PART WATT
# 022
MPN: SP 55756
Reduction bushing on the longitudinal struts. Inferior
# 023
MPN: BNT 55753
BOLT
# 025
MPN: RN33675
Dondella Ø 12,5X22X2 per fissaggio tirante watt
# 026
MPN: RNT47085
WASHER
from £3.40
from £3.40
# 026
MPN: RNT47085
WASHER
from £3.40
from £3.40
# 027
MPN: SLN34748
Silentbloc per tirante watt
from £49.10
from £49.10
# 027
MPN: SLN34748
SILENTBLOC PER BARRA STABILIZZATRICE E BIELLETTA
from £49.10
from £49.10
# 030
MPN: SLN 55327
RUBBER BUFFER 0 95X90 FOR SUPERIOR SHAKENING
# 032
MPN: RNT47101
WASHER
This part replaces part number 47101
# 032
MPN: RNT47101
WASHER
This part replaces part number 47101
# 035
MPN: GRN55747
GRAIN 14X18 FOR HUB CENTERING ON THE DE-DION
# 036
MPN: PN 57215
THREADED STUD
# 037
MPN: TP54865
MOZZO POSTERIORE SUL DE-DION
# 039
MPN: RDI 55937
WASHER
# 042
MPN: SP 55777
LOWER LONGITUDINAL STRUTS
# 043
MPN: SP55817
BIELLETTA PER BARRA STABILIZZATRICE
# 044
MPN: DNT 55222
NUT
# 045
MPN: BNT 55785
BOLT
# 046
MPN: SP55783
UPPER LONGITUDINAL STRUTS
# 047
MPN: BN 55863
BOLT
# 048
MPN: RDI 55937
WASHER
# 048
MPN: RDI 55937
WASHER
# 049
MPN: SLN 55859
SILENTBLOC PER PUNTONI LONGITUDINALI
# 050
MPN: BNT 56965
BOLT
# 051
MPN: SP 55816
REAR STABILIZER BAR
# 052
MPN: SP 57517
SPACER FOR REAR STABILIZER BAR SUPPORT
# 054
MPN: RSN/33112
WASHER
from £1.70
from £1.70
# 056
MPN: 12574 44118
ELASTIC PLUSH FOR STABILIZER BAR SUPPORT
# 057
MPN: SP 56768
PUNTONE LONGITUDINALE (TIPO EHRENREICH)
# 058
MPN: SP 56828
PIVOT
# 059
MPN: SP56762
DISTANZIALE PER PUNTONI LONGITUDINALI (EHRENREICH)
# 062
MPN: DN 56743
NUT
# 063
MPN: BNT 56166
BOLT
