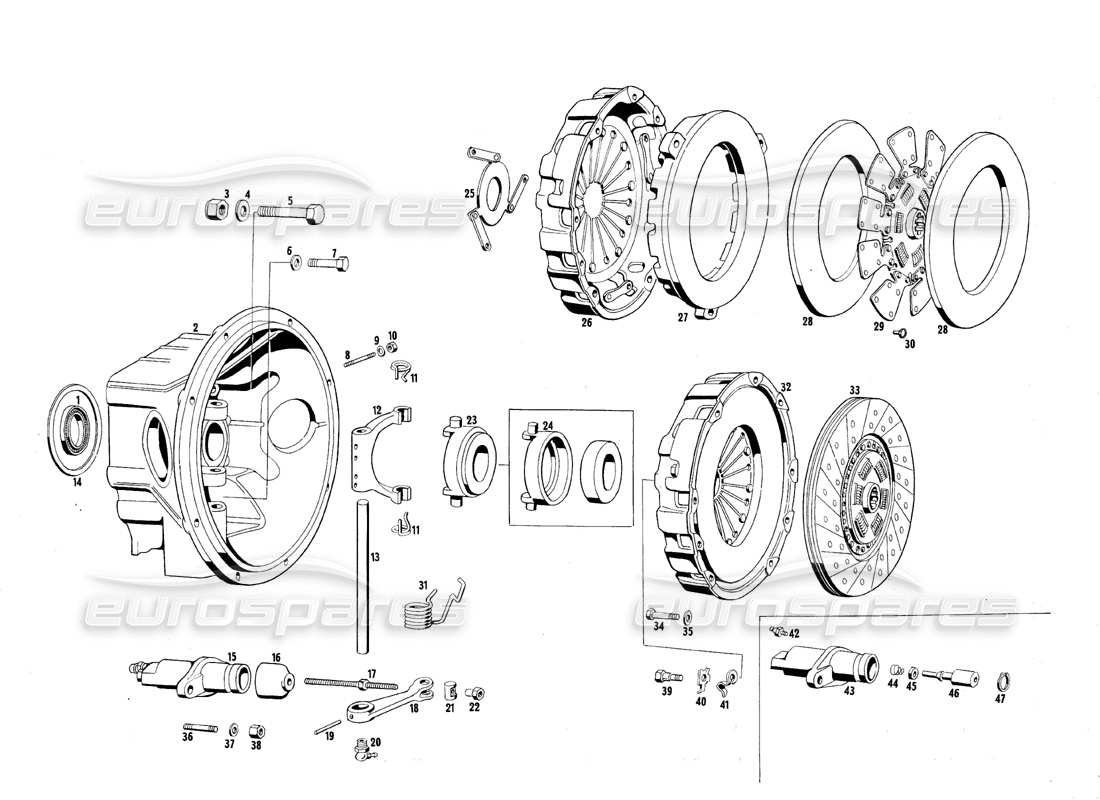

Maserati QTP.V8 4.7 (S1 & S2) 1967 Clutch Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Price
                                                                                                  # 000
                                                                                                  MPN: TF 62335
                                                                                                  CLUTCH KIT 10.½
                                                                                                  from £1,187.42
                                                                                                  from £1,187.42
                                                                                                  # 001
                                                                                                  MPN: ANT 50239
                                                                                                  SEAL RING ON THE CLUTCH SUPPORT BELL
                                                                                                  from £57.02
                                                                                                  from £57.02
                                                                                                  # 004
                                                                                                  MPN: RNT47085
                                                                                                  WASHER
                                                                                                  from £3.40
                                                                                                  from £3.40
                                                                                                  # 005
                                                                                                  MPN: BN 52455
                                                                                                  BOLT
                                                                                                  # 007
                                                                                                  MPN: BNT 53970
                                                                                                  BOLT
                                                                                                  # 008
                                                                                                  MPN: SN46652
                                                                                                  PIN
                                                                                                  from £25.53
                                                                                                  from £25.53
                                                                                                  # 009
                                                                                                  MPN: RN 45678
                                                                                                  WASHER
                                                                                                  # 010
                                                                                                  MPN: DNT 47046
                                                                                                  NUT
                                                                                                  from £0.86
                                                                                                  from £0.86
                                                                                                  This part replaces part number 47046
                                                                                                  # 011
                                                                                                  MPN: 8064/51171
                                                                                                  SPRING
                                                                                                  # 012
                                                                                                  MPN: 8302/48050
                                                                                                  LEVER
                                                                                                  # 013
                                                                                                  MPN: 107TF53927
                                                                                                  FORK SHAFT
                                                                                                  # 014
                                                                                                  MPN: 107 TF 57422
                                                                                                  SLIM RING BETWEEN BEARING AND CLUTCH SUPPORT
                                                                                                  # 015
                                                                                                  MPN: MT48335

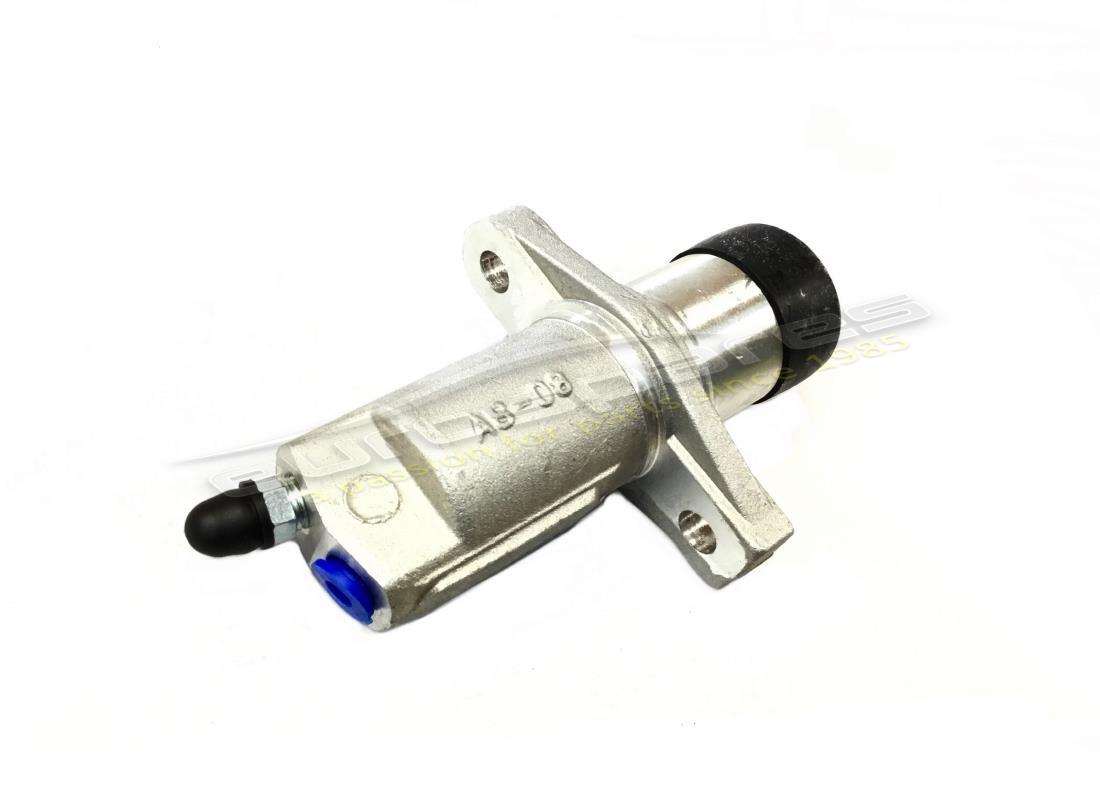

                                                                                                  CLUTCH SLAVE CYLINDER
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 016
                                                                                                  MPN: 101/9 - TF 58735
                                                                                                  Parapolvere sulla pompa frizione
                                                                                                  # 017
                                                                                                  MPN: 107 TF 57381
                                                                                                  PUNTALINO SULLA POMPA FRIZIONE
                                                                                                  # 018
                                                                                                  MPN: 8306/48108
                                                                                                  LEVER
                                                                                                  # 019
                                                                                                  MPN: SN/46473
                                                                                                  PIN
                                                                                                  from £26.04
                                                                                                  from £26.04
                                                                                                  # 020
                                                                                                  MPN: IN 58389
                                                                                                  GREASE GREASE ON THE CLUTCH CONTROL FORK SHAFT
                                                                                                  from £10.22
                                                                                                  from £10.22
                                                                                                  # 021
                                                                                                  MPN: 107 TF 57684
                                                                                                  PIVOT
                                                                                                  from £71.48
                                                                                                  from £71.48
                                                                                                  # 022
                                                                                                  MPN: DN/46474
                                                                                                  NUT
                                                                                                  from £26.82
                                                                                                  from £26.82
                                                                                                  # 023
                                                                                                  MPN: TF 67032
                                                                                                  Clutch Bearing
                                                                                                  from £147.00
                                                                                                  from £147.00
                                                                                                  # 024
                                                                                                  MPN: 813451172
                                                                                                  Thrust carbon holder ring
                                                                                                  # 025
                                                                                                  MPN: 101/9 TF 58737
                                                                                                  PRESSURE PLATE
                                                                                                  # 026
                                                                                                  MPN: 101/9TF58738
                                                                                                  DIAPHRAGM SPRING AND CAST IRON DISC HOLDER CUP
                                                                                                  # 027
                                                                                                  MPN: 101/9 TF 58739
                                                                                                  CAST IRON CLUTCH DISC
                                                                                                  # 028
                                                                                                  MPN: 101/9 TF 58740
                                                                                                  FERODO DISC
                                                                                                  # 029
                                                                                                  MPN: 101/9 TF 58741
                                                                                                  Bracket holder disk
                                                                                                  # 030
                                                                                                  MPN: 101/9 TF 58742
                                                                                                  Rivet for fixing the lining disc to the flexible coupling
                                                                                                  # 031
                                                                                                  MPN: 109 TF 58065
                                                                                                  SPRING
                                                                                                  # 032
                                                                                                  MPN: TF 62335
                                                                                                  CLUTCH KIT 10.½
                                                                                                  from £1,187.42
                                                                                                  from £1,187.42
                                                                                                  # 033
                                                                                                  MPN: 109 TF 57550
                                                                                                  COMPLETE CLUTCH DISC
                                                                                                  # 034
                                                                                                  MPN: BNT 47017
                                                                                                  BOLT
                                                                                                  # 035
                                                                                                  MPN: RSN 3 2 6 3 5
                                                                                                  WASHER
                                                                                                  # 036
                                                                                                  MPN: PN/45832
                                                                                                  THREADED STUD
                                                                                                  # 037
                                                                                                  MPN: RN 45680
                                                                                                  WASHER
                                                                                                  # 038
                                                                                                  MPN: DNT/47064
                                                                                                  NUT
                                                                                                  # 041
                                                                                                  MPN: 101/9 TF 58745
                                                                                                  DIAPHRAGM SPRING SEAL PLATE
                                                                                                  # 042
                                                                                                  MPN: 107FA58418
                                                                                                  Air vent cap on the secondary pump
                                                                                                  # 043
                                                                                                  MPN: 101/9TF58731
                                                                                                  Corpo pompa secondaria corn. frizione (con bussola)
                                                                                                  # 044
                                                                                                  MPN: 101/9 TF 58732
                                                                                                  SPRING
                                                                                                  # 045
                                                                                                  MPN: 101/9TF58733
                                                                                                  Rubber for secondary clutch pump piston
                                                                                                  # 047
                                                                                                  MPN: Seeger47043
                                                                                                  LOCKING RING
