036 - Body (Variations for 109-A)

Maserati Mistral 3.7 Body (Variations for 109-A) Parts Diagram

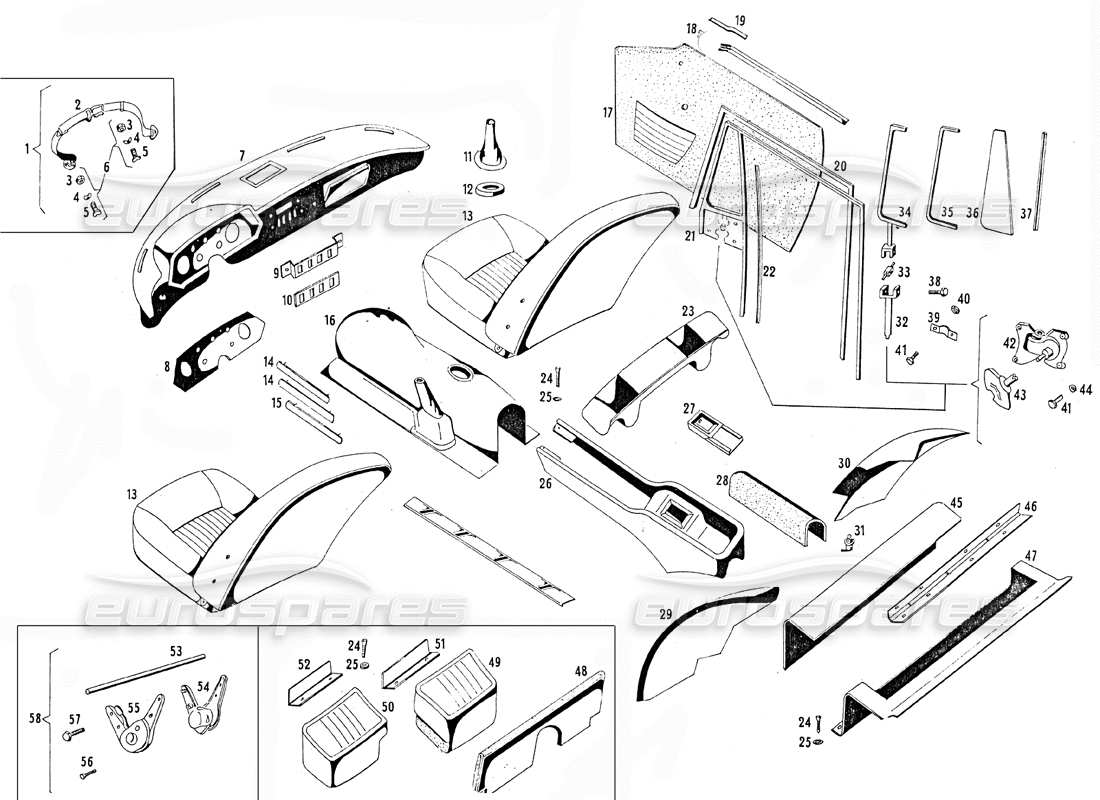

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                  #
                                                                                                                  Part number
                                                                                                                  Description
                                                                                                                  Price
                                                                                                                  # 001
                                                                                                                  MPN: 107 - BP 59439
                                                                                                                  SAFETY BELT COMPLETE WITH ATTACHMENTS
                                                                                                                  # 002
                                                                                                                  MPN: 107 - BP 59438
                                                                                                                  Safety strap without attachments
                                                                                                                  # 003
                                                                                                                  MPN: DNT 59085
                                                                                                                  DISTANZIALE 7/16 X 20 UNF PER DETTO
                                                                                                                  # 004
                                                                                                                  MPN: RNT 59096
                                                                                                                  WASHER
                                                                                                                  # 005
                                                                                                                  MPN: BNT 59084
                                                                                                                  BOLT
                                                                                                                  # 006
                                                                                                                  MPN: 107 - BP 59494
                                                                                                                  Attachment with AT3 7/16 X 20 F type spacer for safety strap
                                                                                                                  # 007
                                                                                                                  MPN: 109/A - BC 62269

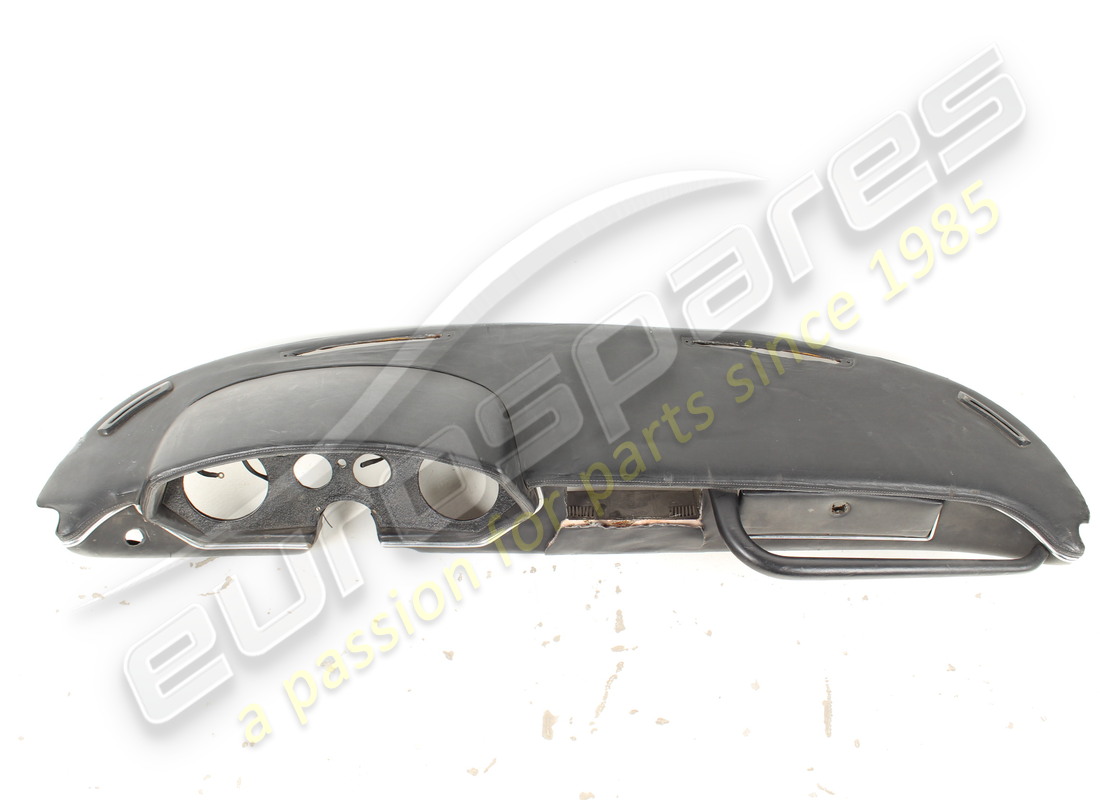

                                                                                                                  CRUSCOTTO GREZZO G.D. (VERSIONE 1 POMPA BENZINA)
                                                                                                                  # 007
                                                                                                                  MPN: 109/A - BP 62270
                                                                                                                  CRUSCOTTO COMPLETE DI RIVESTLMENTO G.D. (VERSIONE 1 POMPA BENZINA)
                                                                                                                  # 007
                                                                                                                  MPN: 109/A - BP 677611
                                                                                                                  CRUSCOTTO COMPLETO DI RIVESTIMENTO G.S. (VERSIONE 1 POMPA BENZLINA)
                                                                                                                  # 007
                                                                                                                  MPN: 109/A - DC 67767
                                                                                                                  CRUSCOTTO GREZZO G.S. (VERSIONS 1 POMPA BENZINA)
                                                                                                                  from £2,094.75
                                                                                                                  from £2,094.75
                                                                                                                  # 008
                                                                                                                  MPN: 109 - BC 60312
                                                                                                                  Electrical instrument panel frame
                                                                                                                  from £309.75
                                                                                                                  from £309.75
                                                                                                                  # 009
                                                                                                                  MPN: 109 - BC 59857
                                                                                                                  SUPPORT
                                                                                                                  # 010
                                                                                                                  MPN: 109 - BC 59858
                                                                                                                  PIASTRA DI CHIUSURA PULSANTIERA (VERSIONE 1 POMPA BENZINA)
                                                                                                                  # 011
                                                                                                                  MPN: 109 - BP 62193
                                                                                                                  SOFFIETTO LEVA CAMBIO (COLORE E TIPO DA PRECISARE)
                                                                                                                  # 012
                                                                                                                  MPN: 109 - BF 60490
                                                                                                                  RING
                                                                                                                  # 013
                                                                                                                  MPN: 109/S - BP 62197
                                                                                                                  SERLILE COMPLETE DA RIVESTIRNENTO (COLORE E TIPO DA PRECLSARE)
                                                                                                                  # 014
                                                                                                                  MPN: 109/A - BF 60712
                                                                                                                  MOLLURE SUPERIORI BATTISCARPA
                                                                                                                  # 015
                                                                                                                  MPN: 109/A - BF 60714
                                                                                                                  MOLLURA INFERIORE BATTISCARPA
                                                                                                                  # 016
                                                                                                                  MPN: 109/A - BF 62221
                                                                                                                  RAW RESIN GEAR GEAR COVER GS
                                                                                                                  # 016
                                                                                                                  MPN: 109/A - BP 62272
                                                                                                                  Copricambio complete di rivestimento (colore e tipo da precisare G.S.)
                                                                                                                  # 017
                                                                                                                  MPN: 109/A - BP 62273
                                                                                                                  PANNELLO PORTA DESTRA COMPLETO DI RIVESTIMENTO (COLORE E TIPO CLA PRESISARE) (VERSIONE CON ALZACRISTALLO MECCANICO E VOLETTO CON GALIETTO)
                                                                                                                  # 017
                                                                                                                  MPN: 109/A - BP 62274
                                                                                                                  PANNELLO PORTA SINISTRA COMPLETO DI RIVESTIMENTO (COLORE E TIPO DA PRECISARE) VERSIONE CON ALZACRISTALLO MECCANICO E VOLETTO CON GALLETTO) .
                                                                                                                  # 017
                                                                                                                  MPN: 109/a - BP 62275
                                                                                                                  RIGHT DOOR PANEL COMPLETE WITH COVERING (COLOR AND TYPE TO BE SPECIFIED) VERSION WITH ELECTRIC WINDOW AND GLASS WITH KNIFE
                                                                                                                  # 017
                                                                                                                  MPN: 109/A - BP 62276
                                                                                                                  LEFT DOOR PANEL COMPLETE WITH COVERING (COLOR AND TYPE TO BE SPECIFIED) VERSION WITH ELECTRIC WINDOW AND GLASS WITH KNIFE
                                                                                                                  # 018
                                                                                                                  MPN: 109/A - BO 62183
                                                                                                                  MODANATURA GREZZA SUPERIORE PORTA DESTRA (DALLA VETTURA 109/A/544 IN POI)
                                                                                                                  # 018
                                                                                                                  MPN: 109/A BO 62184
                                                                                                                  MODANATURA GREZZA SUPERIORE PORTA SINISTRA (DALLA VETTURA 109/A/544 IN POI)
                                                                                                                  # 019
                                                                                                                  MPN: 109/A BO 62189
                                                                                                                  MODANATURA CROMATA SOTTO VOLETTO DESTRO (DALLA VETT .544 IN POI)
                                                                                                                  # 019
                                                                                                                  MPN: 109/A BO 62190
                                                                                                                  MODANATURA CROMATA SOTTE VOLETTO SINISTRO (DALLA VETT. 544 IN POI)
                                                                                                                  # 020
                                                                                                                  MPN: 15318170
                                                                                                                  TOP FRAME SEAL
                                                                                                                  RH/LH HIGHER DOOR OPENING RUBBER SEAL
                                                                                                                  from £147.00
                                                                                                                  from £147.00
                                                                                                                  # 021
                                                                                                                  MPN: 109/A - BO 62278
                                                                                                                  TELARINO VETRI PORTA DESTRA
                                                                                                                  # 021
                                                                                                                  MPN: 109/A - BO 62279
                                                                                                                  TELARINO VETRI PORTA SINISTRA
                                                                                                                  from £2,541.88
                                                                                                                  from £2,541.88
                                                                                                                  # 022
                                                                                                                  MPN: 15318829
                                                                                                                  Window glass channel rubber
                                                                                                                  Sold as pair Rh/LH set window rubbers
                                                                                                                  from £29.40
                                                                                                                  from £29.40
                                                                                                                  # 023
                                                                                                                  MPN: 109/A - BT 62063
                                                                                                                  COPRICERNIERA LUNOTTO
                                                                                                                  # 024
                                                                                                                  MPN: VNT 49216
                                                                                                                  SCREW
                                                                                                                  # 024
                                                                                                                  MPN: VNT 49216
                                                                                                                  SCREW
                                                                                                                  # 024
                                                                                                                  MPN: VNT 49216
                                                                                                                  SCREW
                                                                                                                  # 026
                                                                                                                  MPN: 109/A - BF 61695
                                                                                                                  RAW STORAGE BOX ON GEAR COVER
                                                                                                                  # 026
                                                                                                                  MPN: 109/A - BP 62280
                                                                                                                  SCATOLA PORTA OGGETTI SUL COPRICAMBIO (COMPLETA DI RIVESTIMENTO COLORE E TIPO DA PRECISARE)
                                                                                                                  # 027
                                                                                                                  MPN: 107 BL 54261
                                                                                                                  ASHTRAY WITH LAMP
                                                                                                                  # 028
                                                                                                                  MPN: 109/A - BP 62217
                                                                                                                  TAPPETO SUL TUNNELL (COLORE E TIPO DA PRECISARE)
                                                                                                                  # 029
                                                                                                                  MPN: 109/A - BF 62062
                                                                                                                  COPRIPARAFANGO SINISTRO GREZZO
                                                                                                                  # 029
                                                                                                                  MPN: 109/A - BP 62284
                                                                                                                  COPRIPARAFANGO SINISTRO COMPLETO DI RIVESTIMENTO (COLORE E TIPO DA PRECISARE)
                                                                                                                  # 030
                                                                                                                  MPN: 109/A - BF 62061
                                                                                                                  Copriparafango destro grezzo
                                                                                                                  # 030
                                                                                                                  MPN: 109/A - BP 62283
                                                                                                                  COPRIPARAFANGO DESTRO COMPLETO DI RIVESTIMENTO (COLORE E TIPO DA PRECISARE)
                                                                                                                  # 031
                                                                                                                  MPN: 109 - BM 56357
                                                                                                                  Serratura mobilette posteriore
                                                                                                                  # 032
                                                                                                                  MPN: 109/A - BO 62285
                                                                                                                  ALBERINO DI COMANDO APERTURA VOLETTO
                                                                                                                  # 033
                                                                                                                  MPN: 109/A - BO 62286
                                                                                                                  PIVOT
                                                                                                                  # 034
                                                                                                                  MPN: 109/A - BO 62287
                                                                                                                  CORNICE VETRO VOLETTO DESTRO
                                                                                                                  # 034
                                                                                                                  MPN: 109/A - BO 62288
                                                                                                                  CORNICE VETRO VOLETTO SINISTRO
                                                                                                                  # 035
                                                                                                                  MPN: 109 - BO 59426
                                                                                                                  STAMPATO GOMMA VETRO VOLETTO
                                                                                                                  # 036
                                                                                                                  MPN: 109 - BO 56416
                                                                                                                  Vetro voletto porta destra
                                                                                                                  from £84.00
                                                                                                                  from £84.00
                                                                                                                  # 036
                                                                                                                  MPN: 109 - BO 56417
                                                                                                                  Vetro voletto porta sinistra
                                                                                                                  from £84.00
                                                                                                                  from £84.00
                                                                                                                  # 037
                                                                                                                  MPN: PRN 59692
                                                                                                                  Profilato tenuta vetro voletto (m. 0,45)
                                                                                                                  # 038
                                                                                                                  MPN: BNT 34770
                                                                                                                  BOLT
                                                                                                                  # 039
                                                                                                                  MPN: 109/A - BO 62289
                                                                                                                  2 STAFFA FISSAGGIO ALBERINO COMANDO VOLETTO
                                                                                                                  # 040
                                                                                                                  MPN: DNT 47047
                                                                                                                  NUT
                                                                                                                  # 041
                                                                                                                  MPN: BNT/47370
                                                                                                                  BOLT
                                                                                                                  from £3.26
                                                                                                                  from £3.26
                                                                                                                  This part replaces part number 47370
                                                                                                                  # 041
                                                                                                                  MPN: BNT/47370
                                                                                                                  BOLT
                                                                                                                  from £3.26
                                                                                                                  from £3.26
                                                                                                                  This part replaces part number 47370
                                                                                                                  # 042
                                                                                                                  MPN: 109/A BO 61471
                                                                                                                  DISPOSITIVE APERTURA VOLETTO ANTERIORE
                                                                                                                  # 043
                                                                                                                  MPN: 109/A - BO 61449
                                                                                                                  Galletto comando apertura voletto anteriore
                                                                                                                  # 044
                                                                                                                  MPN: RDI 32497
                                                                                                                  WASHER
                                                                                                                  # 045
                                                                                                                  MPN: 109/A - BF 62065
                                                                                                                  COVER
                                                                                                                  # 046
                                                                                                                  MPN: 109/A - BF 62290
                                                                                                                  REAR CABINET HINGE
                                                                                                                  # 047
                                                                                                                  MPN: 109/A - BF 62064
                                                                                                                  REAR CABINET IN RESIN
                                                                                                                  # 048
                                                                                                                  MPN: 109/A - BP 62291
                                                                                                                  REAR SEAT BACKREST COMPLETE WITH COVERING (COLOR AND TYPE TO BE SPECIFIED)
                                                                                                                  # 049
                                                                                                                  MPN: 109/A - BP 62292
                                                                                                                  SEDILE POSTERIORE DESTRO DI EMERGENZA (COLORE E TIPO DA PRECISARE)
                                                                                                                  # 050
                                                                                                                  MPN: 109/A - BP 62293
                                                                                                                  SEDILE POSTERIORE SINISTRO DI EMERGENZA (COLORE E TIPO DA PRECISARE)
                                                                                                                  # 051
                                                                                                                  MPN: 109/A - BP 62294
                                                                                                                  RIGHT REAR SEAT SEAL CORNER - RAW
                                                                                                                  # 051
                                                                                                                  MPN: 109/A - BP 62295
                                                                                                                  RIGHT REAR SEAT SEAL CORNER (COMPLETE WITH COVERING, COLOR AND TYPE TO BE SPECIFIED)
                                                                                                                  # 052
                                                                                                                  MPN: 109/A - BP 62296
                                                                                                                  LEFT REAR SEAT SEAL CORNER - RAW
                                                                                                                  # 052
                                                                                                                  MPN: 109/A - BP 62297
                                                                                                                  ANGOLARE TENUTA SEDILE POSTERIORE SINISTRO - COMPLETO DI RIVESTIMENTO (COLORE E TIPO DA PRECISARE)
                                                                                                                  # 053
                                                                                                                  MPN: 109/S - BP 62298
                                                                                                                  BARRA ACCOPPIAMENTO RIBALTIBILI SEDILI ANTERIORI
                                                                                                                  # 054
                                                                                                                  MPN: 107 - BP 58115
                                                                                                                  TILTING FRONT RIGHT SEAT WITHOUT CONTROL LEVER
                                                                                                                  # 054
                                                                                                                  MPN: 107 - BP 58117
                                                                                                                  TIPPING FRONT LEFT SEAT WITHOUT CONTROL LEVER
                                                                                                                  # 055
                                                                                                                  MPN: 107 - BP 58114
                                                                                                                  FOLDABLE RIGHT FRONT SEAT WITH CONTROL LEVER
                                                                                                                  # 055
                                                                                                                  MPN: 107 BP 58116
                                                                                                                  TILTING FRONT LEFT SEAT WITH CONTROL LEVER
                                                                                                                  # 056
                                                                                                                  MPN: VNT 57673
                                                                                                                  SCREW
                                                                                                                  # 057
                                                                                                                  MPN: BN 56844
                                                                                                                  BOLT
                                                                                                                  # 058
                                                                                                                  MPN: 109/S - BP 62265
                                                                                                                  RIGHT FRONT SEAT FOLDING ASSEMBLY
                                                                                                                  # 058
                                                                                                                  MPN: 109/S - BP 62266
                                                                                                                  LEFT FRONT SEAT FOLDING ASSEMBLY
