020 - Rear Suspension

Maserati Mistral 3.7 Rear Suspension Parts Diagram

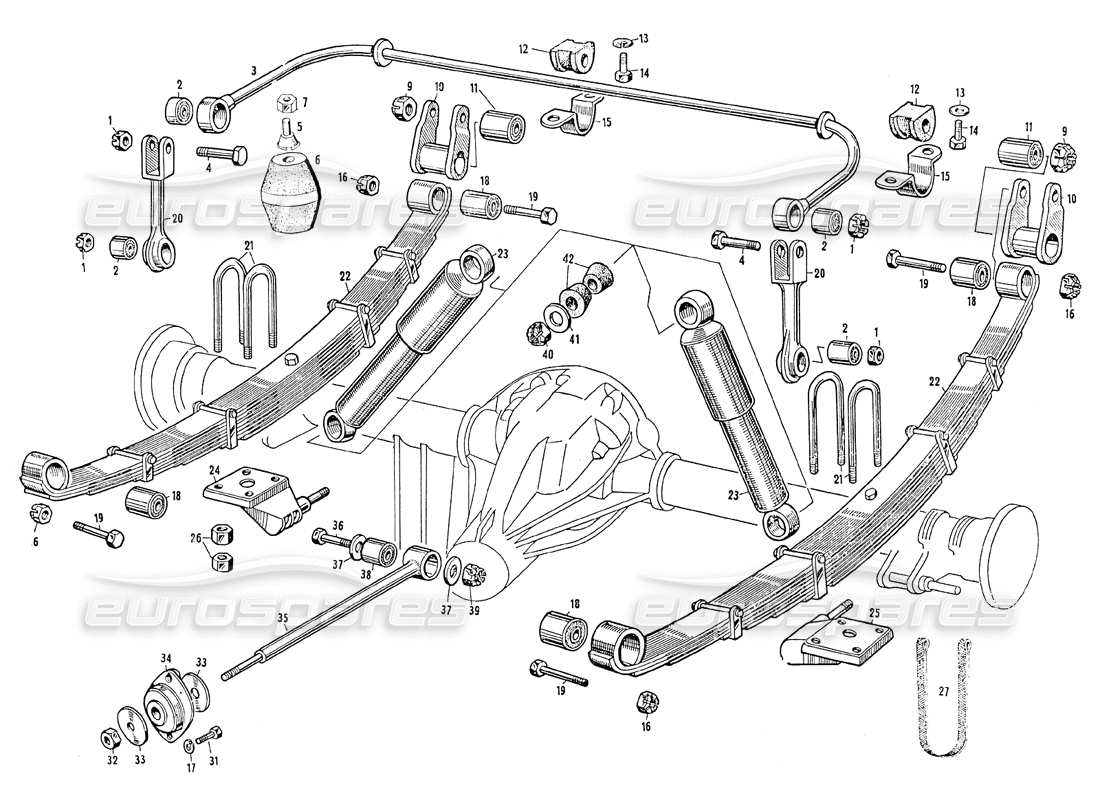

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: DCN/44858
                                                                              NUT
                                                                              # 002
                                                                              MPN: 5LN 34748
                                                                              SUPPORT
                                                                              from £41.02
                                                                              from £41.02
                                                                              # 003
                                                                              MPN: 101/10 SP 58093
                                                                              Barra stabilizzatrice posteriore dal telaio coupe´ N° 554 e dal telaio spyder N° 601
                                                                              # 003
                                                                              MPN: 109 - SP 57098
                                                                              Barra stabilizzatrice posteriore fino al telaio coupe´ N° 522 e al telaio spyder 599
                                                                              # 004
                                                                              MPN: BN 47451
                                                                              BOLT
                                                                              # 005
                                                                              MPN: 109 - SP 54912
                                                                              PIVOT
                                                                              # 005
                                                                              MPN: 109/A SP 61568
                                                                              PIVOT
                                                                              # 006
                                                                              MPN: SLN 55028
                                                                              RUBBER BUFFER FOR UPPER LIMIT SWITCH
                                                                              # 009
                                                                              MPN: DCNT/47106
                                                                              NUT
                                                                              # 010
                                                                              MPN: 101 11537 47976
                                                                              COMPLETE BISCUIT FOR CROSSBOW
                                                                              # 011
                                                                              MPN: SLN 42573
                                                                              SUPPORT
                                                                              from £99.82
                                                                              from £99.82
                                                                              # 012
                                                                              MPN: 109 SA 59732
                                                                              TASSELLO ELASTICO PER SUPPORTO BARRA STABILIZZATRICE DAL TELAIO COUPE´ N° 554 E TELAIO SPYDER N° 601
                                                                              from £53.33
                                                                              from £53.33
                                                                              # 012
                                                                              MPN: A6G54 12574 44118
                                                                              Tassello elastico per supporto barra stabilizzatrice posteriore serve fino al telaio coupe´ N° 552 telaio spyder N° 599
                                                                              # 013
                                                                              MPN: RSN/33112
                                                                              WASHER
                                                                              from £1.70
                                                                              from £1.70
                                                                              # 015
                                                                              MPN: A6.G 54.12572.44117
                                                                              SUPPORT
                                                                              # 016
                                                                              MPN: DN 59392
                                                                              NUT
                                                                              # 017
                                                                              MPN: RSN 3 2 6 3 5
                                                                              WASHER
                                                                              # 018
                                                                              MPN: SLN/47969
                                                                              SUPPORT
                                                                              from £71.10
                                                                              from £71.10
                                                                              # 019
                                                                              MPN: BN 59391
                                                                              BOLT
                                                                              # 020
                                                                              MPN: 101/10 SP 58092
                                                                              BIELLETTA PER BARRA STABILIZZATRICE DAL TELAIO COUPE´ N° 554 AL TELAIO SPYDER N° 601
                                                                              # 020
                                                                              MPN: 109 - SP 58131
                                                                              Bielletta per barra stabilizzatrice posteriore fino al telaio coupe N° 552 e telaio spyder N° 599
                                                                              # 021
                                                                              MPN: 101 - 11670 47979
                                                                              Cavallotto fissaggio piastra inferiore sostegno balestra dal telaio coupe´ N° 554 telaio spyder N° 601
                                                                              # 021
                                                                              MPN: 109 - SP 60361
                                                                              Cavallotto fissaggio piastra inferiore sostegno balestra, serve solo fino al telaio coupe´ N° 552 telaio spyder N° 599
                                                                              # 022
                                                                              MPN: 109 - SP 59109
                                                                              SPRING
                                                                              # 023
                                                                              MPN: 101/7 - 12504 52078
                                                                              AMMORTIZZATORE POSTERIORE
                                                                              # 024
                                                                              MPN: 101 - 11589 47994
                                                                              Piastra destra fissaggio balestra e ammortizzatori dal telaio coupe´ N° 554 telaio spyder N° 561
                                                                              # 024
                                                                              MPN: 109 - SP 57100
                                                                              Piastra destra fissaggio balestra e ammortizzatori. Serve fino al telaio coupe N° 552 telaio spyder N° 559
                                                                              # 025
                                                                              MPN: 10111590 47993
                                                                              Piastra sinistra coupe´ N° 554 telaio spyder N° 601
                                                                              # 025
                                                                              MPN: 109 - SP 57101
                                                                              Piastra sinistra fissaggio balestra e ammortizzatori. Serve fino al telaio coupe N° 552 telaio spyder N° 559
                                                                              # 026
                                                                              MPN: DNT/47053
                                                                              NUT
                                                                              # 027
                                                                              MPN: 109 SP 55621
                                                                              BRACE FOR LOWER SHAKE
                                                                              from £27.36
                                                                              from £27.36
                                                                              # 031
                                                                              MPN: BNT. 47015
                                                                              BOLT
                                                                              # 033
                                                                              MPN: RN 49442
                                                                              WASHER
                                                                              # 034
                                                                              MPN: SLN 49441
                                                                              SUPPORT
                                                                              from £273.50
                                                                              from £273.50
                                                                              # 035
                                                                              MPN: 1012 11698 49440
                                                                              REAR AXLE BOX REACTION STRUT
                                                                              # 036
                                                                              MPN: BNT 59674
                                                                              BOLT
                                                                              # 037
                                                                              MPN: RNT 47091
                                                                              WASHER
                                                                              # 039
                                                                              MPN: DST 55754
                                                                              NUT
                                                                              # 040
                                                                              MPN: DCNT 47105
                                                                              NUT
                                                                              # 041
                                                                              MPN: RNT 47091
                                                                              WASHER
                                                                              # 042
                                                                              MPN: GOM 52764
                                                                              GOMMINO Ø 16 X 30 X 18 PER AMMORTIZZATORI POSTERIORI
                                                                              from £6.84
                                                                              from £6.84
