019 - Front Suspension

Maserati Mistral 3.7 Front Suspension Parts Diagram

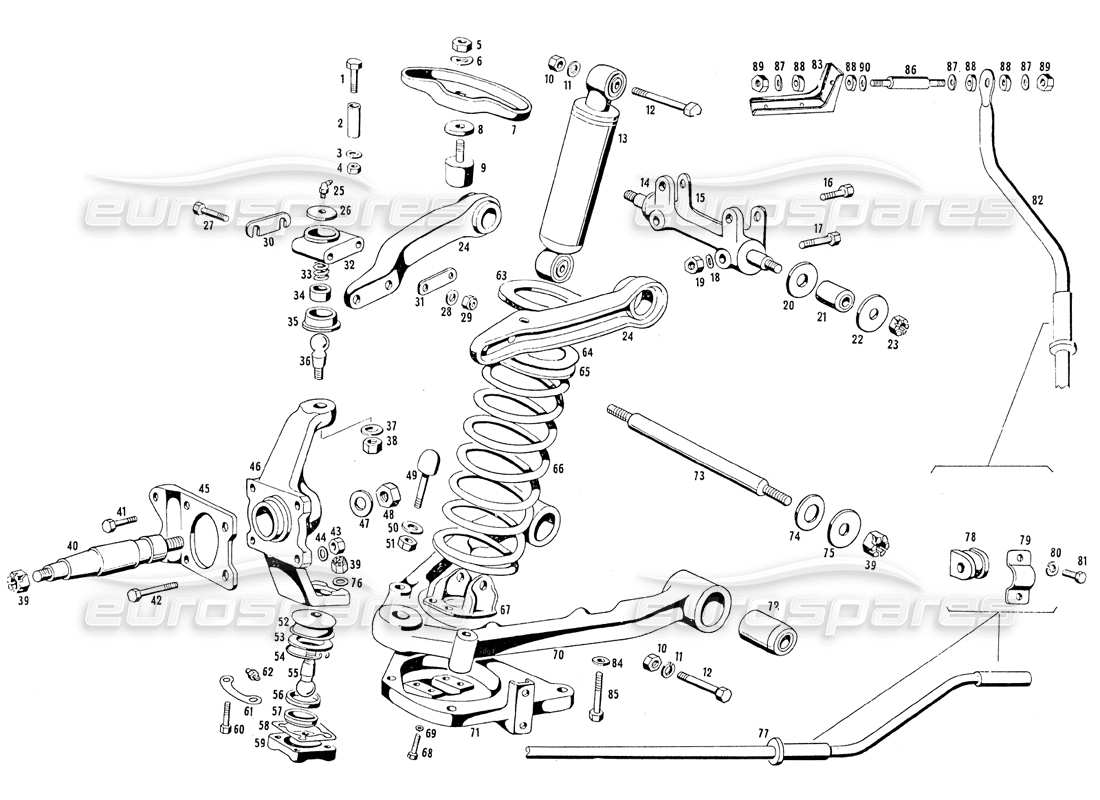

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                                                      #
                                                                                                                                                                                      Part number
                                                                                                                                                                                      Description
                                                                                                                                                                                      Price
                                                                                                                                                                                      # 001
                                                                                                                                                                                      MPN: BN 48206
                                                                                                                                                                                      BOLT
                                                                                                                                                                                      # 003
                                                                                                                                                                                      MPN: RN 48207
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      # 004
                                                                                                                                                                                      MPN: DN 48204
                                                                                                                                                                                      NUT
                                                                                                                                                                                      # 005
                                                                                                                                                                                      MPN: DNT. 47031
                                                                                                                                                                                      NUT
                                                                                                                                                                                      # 006
                                                                                                                                                                                      MPN: RN 45680
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      # 009
                                                                                                                                                                                      MPN: 12008/46436
                                                                                                                                                                                      UPPER LIMIT SWITCH BUFFER
                                                                                                                                                                                      # 010
                                                                                                                                                                                      MPN: D N 33540
                                                                                                                                                                                      NUT
                                                                                                                                                                                      # 010
                                                                                                                                                                                      MPN: DCN 33141
                                                                                                                                                                                      NUT
                                                                                                                                                                                      # 012
                                                                                                                                                                                      MPN: BN 54883
                                                                                                                                                                                      BOLT
                                                                                                                                                                                      # 012
                                                                                                                                                                                      MPN: BN 55537
                                                                                                                                                                                      BOLT
                                                                                                                                                                                      # 013
                                                                                                                                                                                      MPN: 107 - SA 57214
                                                                                                                                                                                      AMMORTIZZATORE ANTERIORE
                                                                                                                                                                                      # 016
                                                                                                                                                                                      MPN: BNT 48831
                                                                                                                                                                                      BOLT
                                                                                                                                                                                      # 017
                                                                                                                                                                                      MPN: BNT 47020
                                                                                                                                                                                      BOLT
                                                                                                                                                                                      # 018
                                                                                                                                                                                      MPN: RAT. 45681
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      This part replaces part number 45681
                                                                                                                                                                                      # 020
                                                                                                                                                                                      MPN: 12052 48189
                                                                                                                                                                                      RONCLELLE PER FULCRO SUPERIORE
                                                                                                                                                                                      # 022
                                                                                                                                                                                      MPN: RN 48193
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      # 023
                                                                                                                                                                                      MPN: DCN 48194
                                                                                                                                                                                      NUT
                                                                                                                                                                                      # 024
                                                                                                                                                                                      MPN: 109 - SA 59186
                                                                                                                                                                                      Braccio superiore per sospensione anteriore solo fino alia berlina con telaio N° 304 e Spyder N° 049
                                                                                                                                                                                      # 024
                                                                                                                                                                                      MPN: 12032 48192
                                                                                                                                                                                      Upper arm for front suspension with cars with modified rear arm N° 2 pieces
                                                                                                                                                                                      # 025
                                                                                                                                                                                      MPN: IN/48242
                                                                                                                                                                                      GREASE GREASE FOR TOP JOINT
                                                                                                                                                                                      # 026
                                                                                                                                                                                      MPN: 1228948240
                                                                                                                                                                                      SPRING HOLDING PLATE ON THE UPPER JOINT SEAT
                                                                                                                                                                                      # 028
                                                                                                                                                                                      MPN: RN 48207
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      # 029
                                                                                                                                                                                      MPN: DN 48204
                                                                                                                                                                                      NUT
                                                                                                                                                                                      # 030
                                                                                                                                                                                      MPN: 12107/48210
                                                                                                                                                                                      UPPER JOINT SEAT PACKAGE SPACER
                                                                                                                                                                                      # 031
                                                                                                                                                                                      MPN: 109 SA 58187
                                                                                                                                                                                      Upper knuckle seat thickness up to sedan with chassis No. 304 and Spyder with chassis 049
                                                                                                                                                                                      # 031
                                                                                                                                                                                      MPN: 12101 48209
                                                                                                                                                                                      Upper joint seat thickness
                                                                                                                                                                                      # 032
                                                                                                                                                                                      MPN: 1228748238
                                                                                                                                                                                      SEAT FOR UPPER JOINT
                                                                                                                                                                                      # 033
                                                                                                                                                                                      MPN: 12288 48239
                                                                                                                                                                                      SPRING
                                                                                                                                                                                      # 034
                                                                                                                                                                                      MPN: 12286 48237
                                                                                                                                                                                      NUT FOR TOP JOINT
                                                                                                                                                                                      # 035
                                                                                                                                                                                      MPN: 12291 48241
                                                                                                                                                                                      COPRIPOLVERE SNODO SUPERIORE
                                                                                                                                                                                      # 037
                                                                                                                                                                                      MPN: RN 48244
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      # 039
                                                                                                                                                                                      MPN: DCN 48200
                                                                                                                                                                                      NUT
                                                                                                                                                                                      # 039
                                                                                                                                                                                      MPN: DCN 48200
                                                                                                                                                                                      NUT
                                                                                                                                                                                      # 039
                                                                                                                                                                                      MPN: DCN 48200
                                                                                                                                                                                      NUT

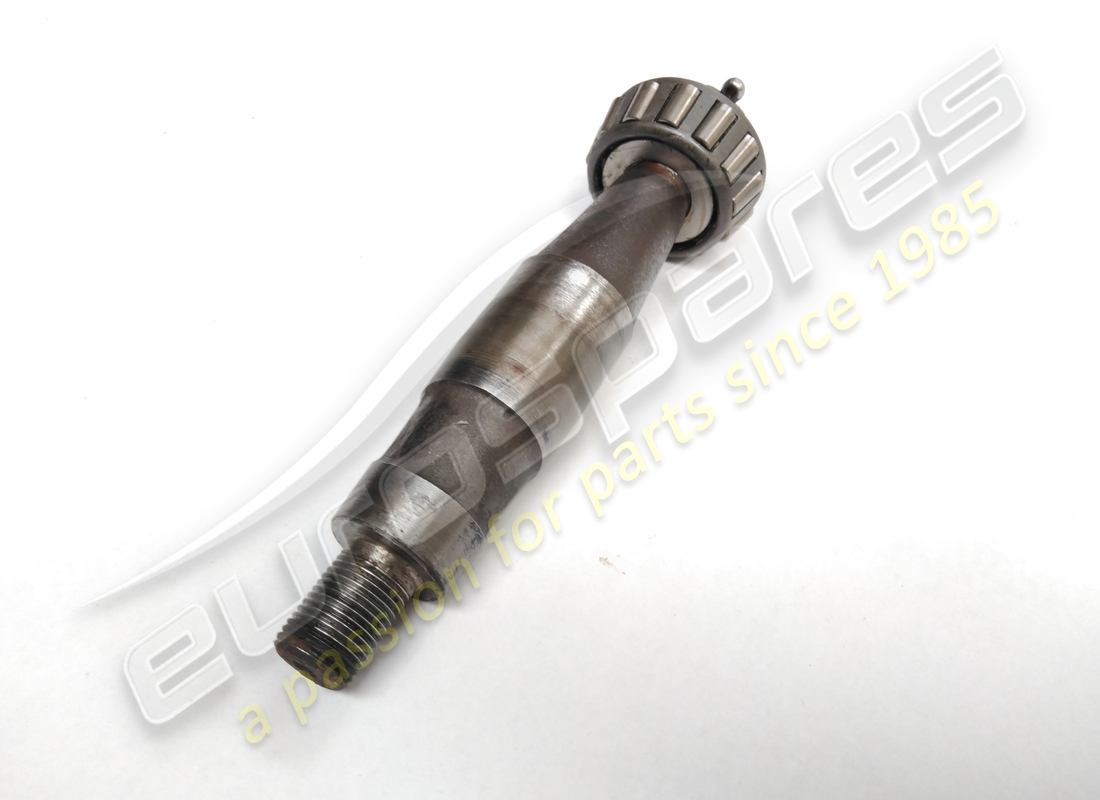

                                                                                                                                                                                      # 040
                                                                                                                                                                                      MPN: 12100 48227
                                                                                                                                                                                      KNEE
                                                                                                                                                                                      from £168.00
                                                                                                                                                                                      from £168.00
                                                                                                                                                                                      # 041
                                                                                                                                                                                      MPN: BN 48246
                                                                                                                                                                                      BOLT
                                                                                                                                                                                      # 043
                                                                                                                                                                                      MPN: DN 48250
                                                                                                                                                                                      NUT
                                                                                                                                                                                      # 044
                                                                                                                                                                                      MPN: RNT/52064
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      # 045
                                                                                                                                                                                      MPN: 101/4 - FA 50845
                                                                                                                                                                                      SUPPORT
                                                                                                                                                                                      # 045
                                                                                                                                                                                      MPN: 101/4 - FA 50846
                                                                                                                                                                                      SUPPORT
                                                                                                                                                                                      # 045
                                                                                                                                                                                      MPN: 101/7 - FA 52746
                                                                                                                                                                                      SUPPORT
                                                                                                                                                                                      # 045
                                                                                                                                                                                      MPN: 101/7 - FA 52747
                                                                                                                                                                                      SUPPORT
                                                                                                                                                                                      # 045
                                                                                                                                                                                      MPN: 109/A - FA 54318
                                                                                                                                                                                      SUPPORT
                                                                                                                                                                                      # 045
                                                                                                                                                                                      MPN: 109/A - FA 54319
                                                                                                                                                                                      SUPPORT
                                                                                                                                                                                      # 046
                                                                                                                                                                                      MPN: 12097 48226
                                                                                                                                                                                      LEVER HOLDER ARM
                                                                                                                                                                                      # 048
                                                                                                                                                                                      MPN: DN/48229
                                                                                                                                                                                      NUT
                                                                                                                                                                                      # 049
                                                                                                                                                                                      MPN: 107SA55252
                                                                                                                                                                                      LOWER LIMIT SWITCH BUFFER
                                                                                                                                                                                      # 050
                                                                                                                                                                                      MPN: RN 45680
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      # 051
                                                                                                                                                                                      MPN: DNT/47064
                                                                                                                                                                                      NUT
                                                                                                                                                                                      # 052
                                                                                                                                                                                      MPN: 12306/48223
                                                                                                                                                                                      COPRISNODO INFERIORE
                                                                                                                                                                                      # 053
                                                                                                                                                                                      MPN: 12309 48224
                                                                                                                                                                                      LAMIERINO SOSTEGNO COPRISNODO
                                                                                                                                                                                      # 055
                                                                                                                                                                                      MPN: 1230448219
                                                                                                                                                                                      LOWER JOINT
                                                                                                                                                                                      # 056
                                                                                                                                                                                      MPN: 12119 48221
                                                                                                                                                                                      RING
                                                                                                                                                                                      # 057
                                                                                                                                                                                      MPN: 12296 48218
                                                                                                                                                                                      NUT FOR LOWER JOINT
                                                                                                                                                                                      # 059
                                                                                                                                                                                      MPN: 1229848217
                                                                                                                                                                                      COPERCHIETTO SNODO INFERIORE SUL BRACCIO
                                                                                                                                                                                      # 060
                                                                                                                                                                                      MPN: BN/48214
                                                                                                                                                                                      BOLT
                                                                                                                                                                                      # 061
                                                                                                                                                                                      MPN: RDL 48215
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      # 063
                                                                                                                                                                                      MPN: 1201047997
                                                                                                                                                                                      UPPER SUSPENSION SPRING HOLDER CAP
                                                                                                                                                                                      # 065
                                                                                                                                                                                      MPN: 12024 48001
                                                                                                                                                                                      Upper sheet for suspension spring rubber ring. front
                                                                                                                                                                                      # 066
                                                                                                                                                                                      MPN: 12002 51426
                                                                                                                                                                                      SPRING
                                                                                                                                                                                      # 068
                                                                                                                                                                                      MPN: BN 47122
                                                                                                                                                                                      BOLT
                                                                                                                                                                                      # 069
                                                                                                                                                                                      MPN: RSN 3 2 6 3 5
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      # 070
                                                                                                                                                                                      MPN: 12030 48198
                                                                                                                                                                                      LOWER SUSPENSION ARM
                                                                                                                                                                                      # 071
                                                                                                                                                                                      MPN: 12060 49741
                                                                                                                                                                                      SPRING HOLDER CAP ON THE LOWER ARM
                                                                                                                                                                                      # 072
                                                                                                                                                                                      MPN: 12126 48197
                                                                                                                                                                                      BUSH
                                                                                                                                                                                      # 073
                                                                                                                                                                                      MPN: 12122 48196
                                                                                                                                                                                      PIN. ON THE LOWER ARM
                                                                                                                                                                                      # 074
                                                                                                                                                                                      MPN: 12042 46456
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      # 075
                                                                                                                                                                                      MPN: RN/48199
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      # 076
                                                                                                                                                                                      MPN: RN/48225
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      # 077
                                                                                                                                                                                      MPN: 12570 49622
                                                                                                                                                                                      Barra stabilizzatrice anteriore 1ª soluzione
                                                                                                                                                                                      # 078
                                                                                                                                                                                      MPN: 109 SA 59732
                                                                                                                                                                                      ELASTIC PLUSH FOR STABILIZER BAR SUPPORT
                                                                                                                                                                                      # 080
                                                                                                                                                                                      MPN: RSN/33112
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      from £1.72
                                                                                                                                                                                      from £1.72
                                                                                                                                                                                      # 082
                                                                                                                                                                                      MPN: 109 - SA 57023
                                                                                                                                                                                      Barra stabilizzatrice anteriore 2ª soluzione
                                                                                                                                                                                      # 083
                                                                                                                                                                                      MPN: 107 - SA 56295
                                                                                                                                                                                      SUPPORT
                                                                                                                                                                                      from £141.64
                                                                                                                                                                                      from £141.64
                                                                                                                                                                                      # 084
                                                                                                                                                                                      MPN: RN 48253
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      # 086
                                                                                                                                                                                      MPN: 107 - SA 56294
                                                                                                                                                                                      PIVOT
                                                                                                                                                                                      # 087
                                                                                                                                                                                      MPN: RN 61533
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      # 088
                                                                                                                                                                                      MPN: GOM 58835
                                                                                                                                                                                      GOMMINO Ø 12,5 X 35 X 15 PER DETTO
                                                                                                                                                                                      from £24.04
                                                                                                                                                                                      from £24.04
                                                                                                                                                                                      # 089
                                                                                                                                                                                      MPN: DST 46472
                                                                                                                                                                                      NUT
                                                                                                                                                                                      # 090
                                                                                                                                                                                      MPN: RN 38551
                                                                                                                                                                                      WASHER
                                                                                                                                                                                      from £4.30
                                                                                                                                                                                      from £4.30
