Maserati Mistral 3.7 Clutch Parts Diagram

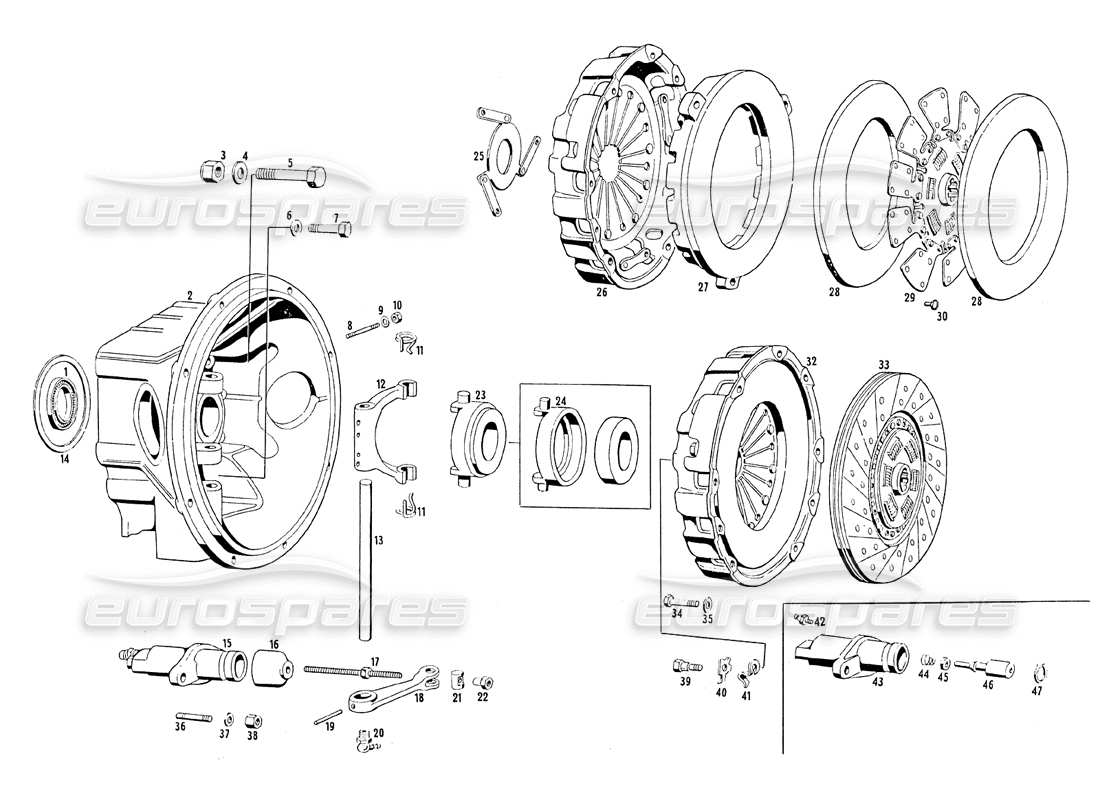

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: ANT 50239
SEALING RING
from £56.78
from £56.78
# 002
MPN: 101/9 - TF 56939
SUPPORT
# 002
MPN: 107 - TF 57413
SUPPORT
# 002
MPN: 109 - TF 57376
SUPPORT
# 004
MPN: RN 47085
WASHER
# 005
MPN: PN 46471
THREADED STUD
# 007
MPN: BNT 53970
BOLT
# 008
MPN: SN46652
PIN
from £25.41
from £25.41
# 009
MPN: RL 45678
WASHER
# 010
MPN: DNT 47046
NUT
from £0.84
from £0.84
This part replaces part number 47046
# 011
MPN: 107 - TF 60382
SPRING
# 011
MPN: 8064 61171
SPRING
from £4.24
from £4.24
# 012
MPN: 8302/48050
LEVER
# 013
MPN: 101/9 TF 55547
FORK SHAFT
# 013
MPN: 107 - TF 57382
FORK SHAFT WITH LAYCOCK CLUTCH
# 014
MPN: 101/9 - TF 57680
RING
# 015
MPN: MT48335
CLUTCH SLAVE CYLINDER
Supersession
Supersession
# 016
MPN: 101/9 - TF 58735
Parapolvere sulla pompa frizione
# 017
MPN: 101/9 - TF 57426
PUNTALINO SULLA POMPA FRIZIONE
# 018
MPN: 101/9 - TF 57407
LEVER
# 019
MPN: SN/46473
PIN
from £25.92
from £25.92
# 020
MPN: IN 58389
GREASE GREASE ON THE FORK SHAFT
from £10.16
from £10.16
# 021
MPN: 8310/48111
PIVOT
# 022
MPN: DN/46474
NUT
from £26.70
from £26.70

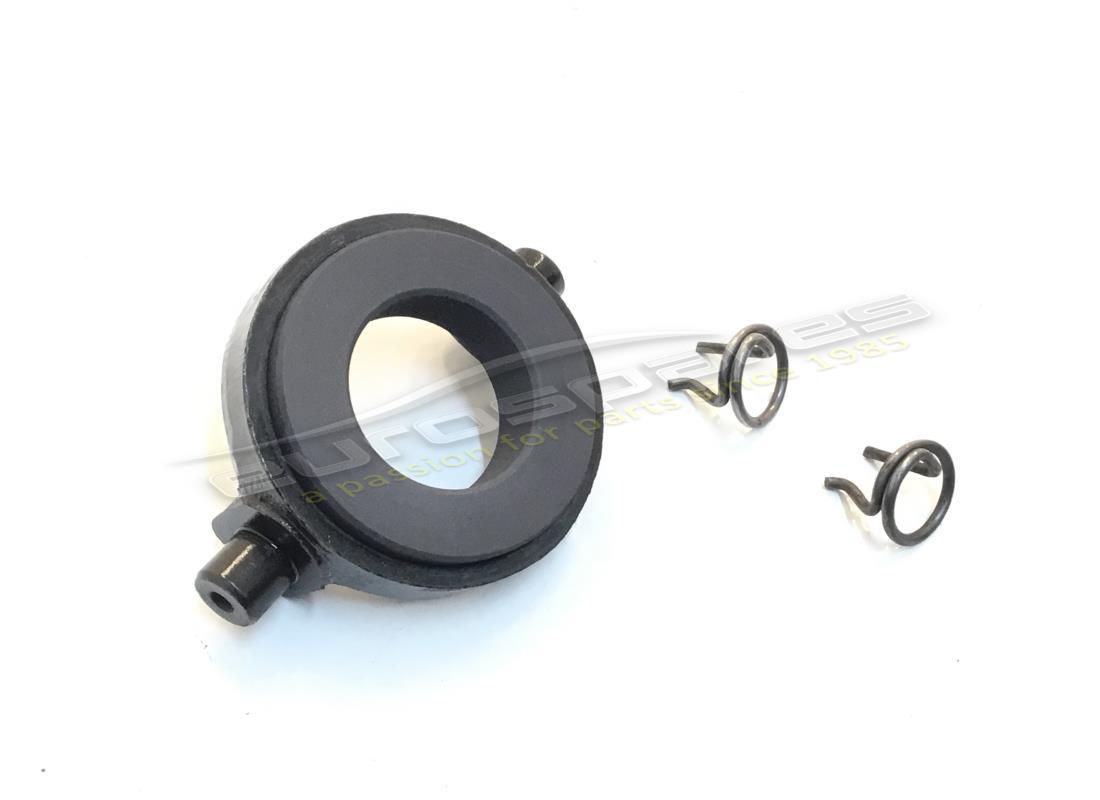

# 023
MPN: 101/9TF58736
REGGISPINTA COMPLETE PER FRIZIONE 9'' 1/2 BORG E BECH
# 023
MPN: 107 - TF 60380
REGGISPINTA COMPLETE PER FRIZIONE 1 LAYCOCK
# 025
MPN: 101/9 TF 58737
FLANGE
# 026
MPN: 101 - V9 TF 58738
Tazza porta molla frizione 9'/3 Borg e Bech
# 026
MPN: 107 - TF 61364
SPINGIDISCO PER FRIZIONE 10 LAYCOCK
# 026
MPN: ML60381
Pressure Plate complete
# 027
MPN: 101/9 TF 58379
CLUTCH DISC 9.5 CM
# 027
MPN: 107 - TF 61365
DISCO IN GHISA FRIZIONE 10 LAYCOCK
# 028
MPN: 107 - TF 61366
DISCO FERODO FRIZIONE 10 LAYCOCK
# 028
MPN: TF58740
PLATE
# 029
MPN: 101/9 TF 58741
CLUTCH LINER HOLDER BUSH 9 1/2
# 029
MPN: 107 - TF 61367
PARASTRAPPI PORTA FERODO FRIZIONE 10 LAYCOCK
# 030
MPN: 101/9 TF 58742
DISC SEALING RIVET FIXED TO THE BUSHING
# 032

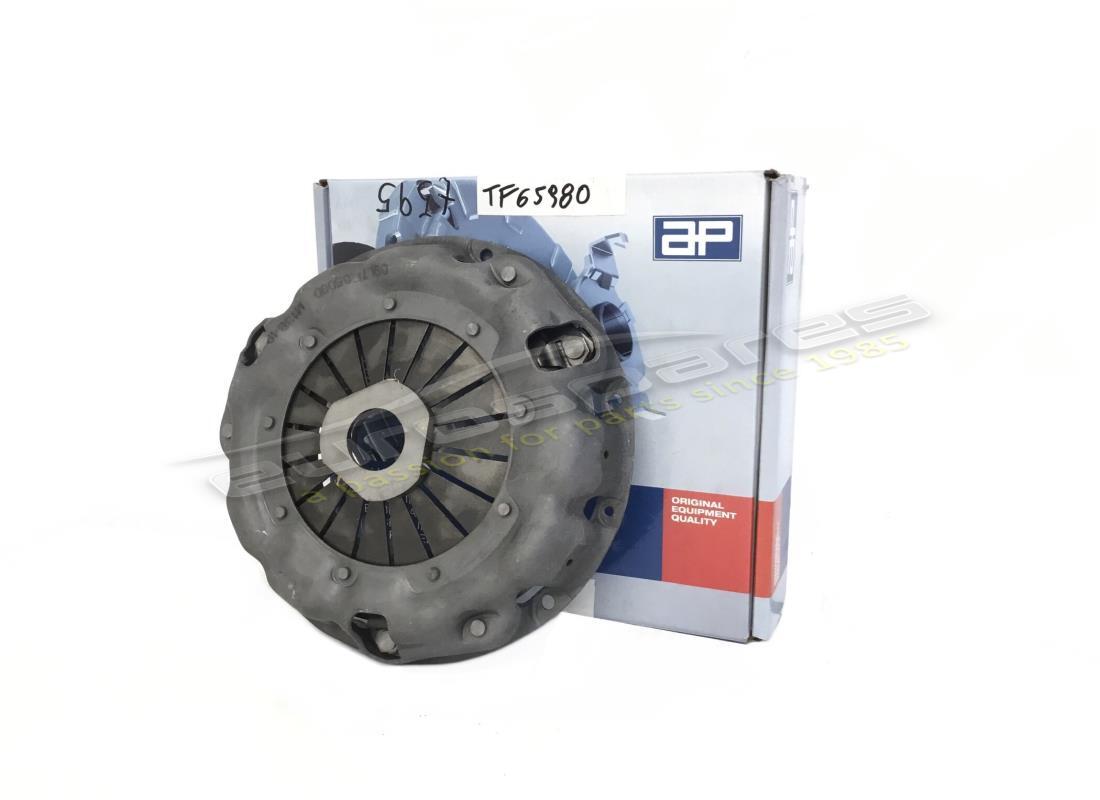

MPN: TF65980
PRESSURE PLATE 9.5 CM
(Borg & Beck)
from £595.00
from £595.00
# 033

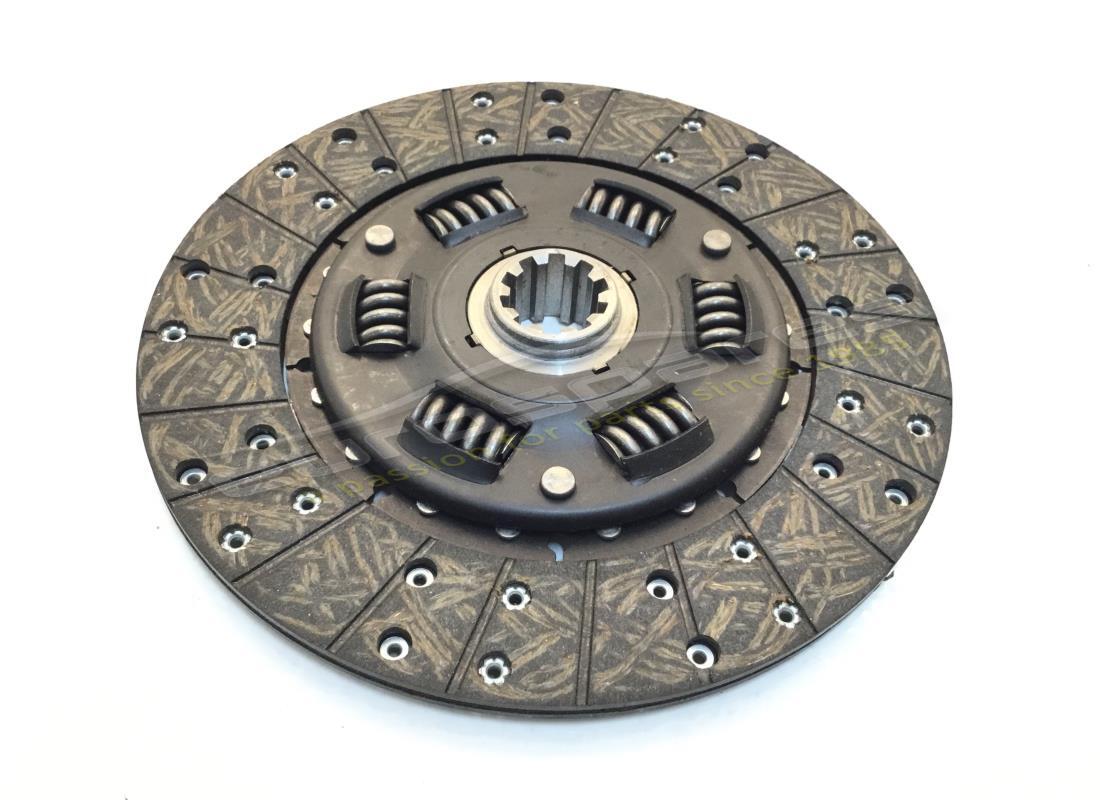

MPN: TC55525
CLUTCH DISC
from £325.00
from £325.00
