008 - Injection Equipment

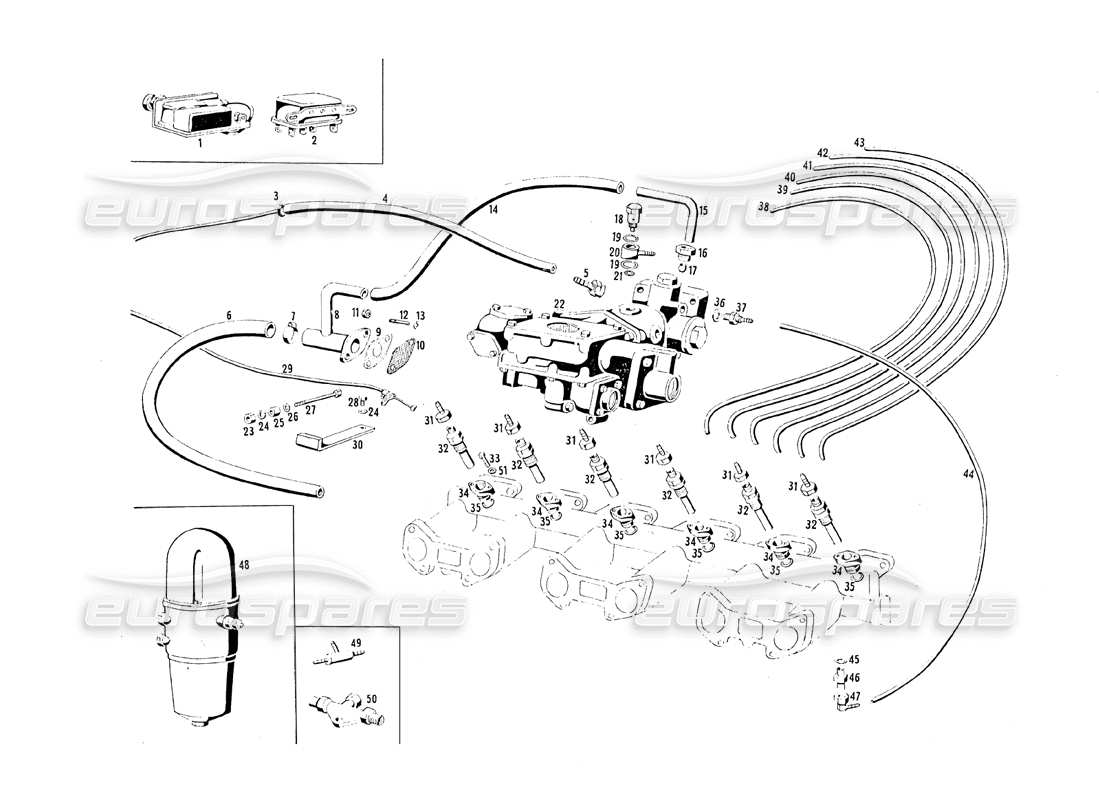

Maserati Mistral 3.7 Injection Equipment Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Key
                                                                              Price
                                                                              # 001
                                                                              MPN: 101/7 6340 52534
                                                                              THERMAL SWITCH WITH INDICATOR LIGHT
                                                                              THERMAL SWITCH WITH INDICATOR LIGHT Genuine Maserati Part - New (to order)
                                                                              # 002
                                                                              MPN: 101/7 17132 52771
                                                                              RELAIS FOR THERMAL SWITCH
                                                                              RELAIS FOR THERMAL SWITCH Genuine Maserati Part - New (to order)
                                                                              # 003
                                                                              MPN: FRN/37825
                                                                              CLAMP FOR FIXING THE PETROL INLET SLEEVE ON THE DISPENSER
                                                                              Fascetta TO tubazione benzina Genuine Maserati Part - New (to order)
                                                                              # 004
                                                                              MPN: MN 54780
                                                                              SLEEVE Ø 10 X 16 PETROL ARRIVAL ON THE DISPENSER
                                                                              This part replaces part number 54780
                                                                              Rubber manifold Ø 9.52x15.87 L = 2.30 mt. Genuine Maserati Part - New (to order)
                                                                              # 005
                                                                              MPN: RMN 54781
                                                                              UNION
                                                                              UNION Genuine Maserati Part - New (to order)
                                                                              # 006
                                                                              MPN: MN 52424
                                                                              Manicotto Ø 20 X 14 X 270 dal coll. aspiraz. al tubo per starter
                                                                              Manicotto Ø 20 X 14 X 270 dal coll. aspiraz. al tubo per starter Genuine Maserati Part - New (to order)
                                                                              # 007
                                                                              MPN: FRN/37025
                                                                              FASCETTA PER MANICOTTO STARTER
                                                                              Fascetta per manicotto mandata starter Genuine Maserati Part - New (to order)
                                                                              # 008
                                                                              MPN: 101/7 - 6310 62267
                                                                              TUBO RACCORDO DEPRESSIONE MANDATA STARTER
                                                                              TUBO RACCORDO DEPRESSIONE MANDATA STARTER Genuine Maserati Part - New (to order)
                                                                              # 009
                                                                              MPN: 101/7 - 6304 52264
                                                                              GASKET OR SEAL
                                                                              GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                              # 010
                                                                              MPN: 101/7 - 6306 52265
                                                                              RETICELLA PER TUBO STARTER
                                                                              RETICELLA PER TUBO STARTER Genuine Maserati Part - New (to order)
                                                                              # 011
                                                                              MPN: DN 47369
                                                                              NUT
                                                                              NUT Genuine Maserati Part - New (to order)
                                                                              # 012
                                                                              MPN: PN 42480
                                                                              THREADED STUD
                                                                              THREADED STUD Genuine Maserati Part - New (to order)
                                                                              # 013
                                                                              MPN: RSN 3 2 4 9 7
                                                                              WASHER
                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                              # 014
                                                                              MPN: MN52135
                                                                              MANICOTTO Ø 9 X 15 COLLEGAMENTO Tubi DEPRESSIONE
                                                                              Sleeve Ø 9x14x500 from the filter to the carburettors Genuine Maserati Part - New (to order)
                                                                              # 015
                                                                              MPN: 101/7 - 6308 52266
                                                                              VACUUM CONNECTION HOSE ON THE DISTRIBUTOR
                                                                              VACUUM CONNECTION HOSE ON THE DISTRIBUTOR Genuine Maserati Part - New (to order)
                                                                              # 016
                                                                              MPN: TN-52349
                                                                              CAP 9/16 X 18 F FOR SAID
                                                                              Cap 9/16x18 F for depression pipe Genuine Maserati Part - New (to order)
                                                                              # 017
                                                                              MPN: RCN-52348
                                                                              UNION
                                                                              UNION Genuine Maserati Part - New (to order)
                                                                              # 018
                                                                              MPN: 101/9 MC 60993
                                                                              SCREW
                                                                              SCREW Genuine Maserati Part - New (to order)
                                                                              # 019
                                                                              MPN: GOM 57089
                                                                              GOMMINO Ø 12,37 X 17,67 TENUTA MANDATA BENZ. FRA DISTR. E RACE.
                                                                              Gommlno Ø 12,37x17,67 sul raccordo ad occhio Genuine Maserati Part - New (to order)
                                                                              # 020
                                                                              MPN: RON 53262
                                                                              UNION
                                                                              UNION Genuine Maserati Part - New (to order)
                                                                              # 021
                                                                              MPN: GOM 57088
                                                                              GOMMINO Ø 7,65 X 11,21 TENUTA FRA VRN E DISTRIBUTORE
                                                                              Gommlno Ø 7,65x11,21 sulla vite raccordo Genuine Maserati Part - New (to order)
                                                                              # 022
                                                                              MPN: 101/7 - 6256 51580
                                                                              DISTIRBUTORE INIEZIONE FINO VETTURA COUPE N 740 SPYDER 619
                                                                              DISTIRBUTORE INIEZIONE FINO VETTURA COUPE N 740 SPYDER 619 Genuine Maserati Part - New (to order)
                                                                              # 022
                                                                              MPN: 106 - MC 62521
                                                                              Distributore iniezione senza cilcolazione olio dalla vettura copue N 742 Spyder N° 621
                                                                              Distributore iniezione senza cilcolazione olio dalla vettura copue N 742 Spyder N° 621 Genuine Maserati Part - New (to order)
                                                                              # 023
                                                                              MPN: DNT 47047
                                                                              NUT
                                                                              NUT Genuine Maserati Part - New (to order)
                                                                              # 024
                                                                              MPN: RSN/32690
                                                                              WASHER
                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                              # 025
                                                                              MPN: 101/7 - 6298 52253
                                                                              RING
                                                                              RING Genuine Maserati Part - New (to order)
                                                                              # 026
                                                                              MPN: RN/32075
                                                                              WASHER
                                                                              WASHER Genuine Maserati Part - New (to order)
                                                                              # 029
                                                                              MPN: 16806 47454
                                                                              TIRETTO COMANDO STARTER
                                                                              TIRETTO COMANDO STARTER Genuine Maserati Part - New (to order)
                                                                              # 030
                                                                              MPN: 101/7 - 6300 52254
                                                                              PLATE SUPPORTING AND FIXING DISTRIBUTOR TO MANIFOLD
                                                                              PLATE SUPPORTING AND FIXING DISTRIBUTOR TO MANIFOLD Genuine Maserati Part - New (to order)
                                                                              # 031
                                                                              MPN: RMN 59100
                                                                              UNION
                                                                              UNION Genuine Maserati Part - New (to order)
                                                                              # 033
                                                                              MPN: BN 49603
                                                                              BOLT
                                                                              BOLT Genuine Maserati Part - New (to order)
                                                                              # 034
                                                                              MPN: 101/7 - 6251 50851
                                                                              INJECTOR HOLDER BUSH
                                                                              INJECTOR HOLDER BUSH Genuine Maserati Part - New (to order)
                                                                              # 035
                                                                              MPN: Gom/46824
                                                                              Gommino Ø 22 X 16 X 3 per detto
                                                                              Gommino Ø 22x16x3 per detto Genuine Maserati Part - New (to order)
                                                                              # 036
                                                                              MPN: GN/46445
                                                                              GASKET OR SEAL
                                                                              GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                              # 036
                                                                              MPN: GN/46445
                                                                              GASKET OR SEAL
                                                                              GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                              # 037
                                                                              MPN: RMN 53264
                                                                              UNION
                                                                              UNION Genuine Maserati Part - New (to order)
                                                                              # 037
                                                                              MPN: RMN 54989
                                                                              UNION
                                                                              UNION Genuine Maserati Part - New (to order)
                                                                              # 037
                                                                              MPN: VRN 53248
                                                                              SCREW
                                                                              SCREW Genuine Maserati Part - New (to order)
                                                                              # 038
                                                                              MPN: N 101/9 MC 55032 I
                                                                              INJECTION LINE 1 CYLINDER
                                                                              INJECTION LINE 1 CYLINDER Genuine Maserati Part - New (to order)
                                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
