003 - Intake Manifold - Injection Equipment

Maserati Mistral 3.7 Intake Manifold - Injection Equipment Parts Diagram

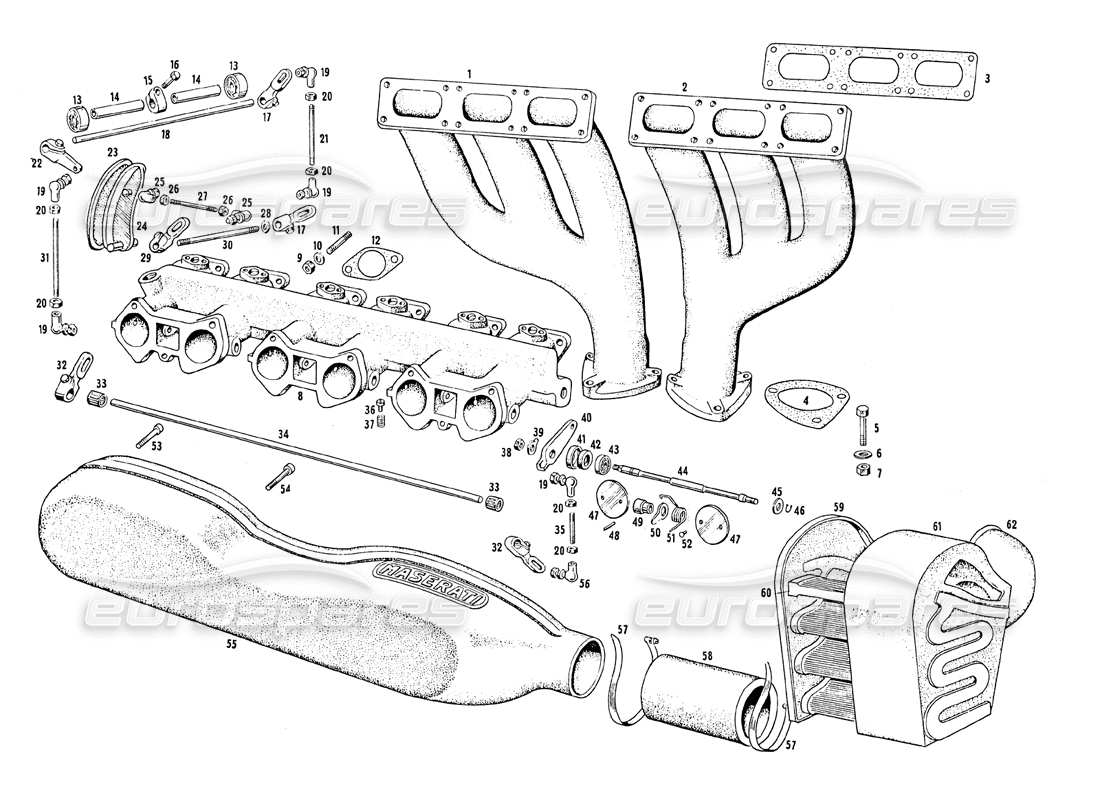

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 101 - 5806 46961
COLLETTORE SCARICO POSTERIORE
# 002
MPN: 101/9 MB 54594
COLLETTORE SCARICO ANTERIORE
# 003
MPN: 5814/48029
EX GASKET
# 004
MPN: 5822/44756
EX GASKET
# 005
MPN: BNT 47017
BOLT
# 006
MPN: RSN 3 2 6 3 5
WASHER
# 007
MPN: DN 48101
NUT
# 008
MPN: 101/7 - 5520 50198
Collettore d'aspirazione
from £367.50
from £367.50
# 009
MPN: DN 431 18
NUT
# 012
MPN: 101 - 5525 48061
GASKET OR SEAL
# 013
MPN: CSC 46581
Bearing on the base for the accelerator lever control rod.
# 014
MPN: 101/2 - 6069 49817
SHAFT SPACER ON THE BASE
# 016
MPN: BN 55071
BOLT
# 017
MPN: 101/7 - 6067 53785
LEVER
# 018
MPN: 101/7 - 6024 52258
ALBERINO PORTALEVE SUL BASAMENTO
# 019
MPN: 101/3 6090 50184
SNODO ANGOLARE COMPLETO TP. EHRENREICH
# 021
MPN: 101/7 - 6088 52653
TIE ROD
# 022
MPN: 101/7 - 6063 47167
Lever on the crankcase transmission shaft
# 023
MPN: 101 - 6043 47149
ACCELERATOR PEDAL COVER
# 024
MPN: 101/3 - 6041 50564
PECLALE ACCELERATORE
# 025
MPN: 103/A - 6270 50660
COMPLETE CORNER JOINT 6X1 ON THE PEDAL AND ON THE TRANSFER LEVER
# 026
MPN: DNT 47047
NUT
# 027
MPN: 101/7 - 6092 52652
TIE ROD
# 029
MPN: 101/2 - 6064 49745
Levetta sull'albsrino rinvio acceleratore
# 030
MPN: 101/7 - 6029 53655
TRANSFER SHAFT ON THE FRAME
# 031
MPN: 101/7 - 6092 52236
TIE ROD
# 032
MPN: 101/7 6063 52232
LEVETTA SULL'ALBERO PORTALEVE COMANDO FARFALLE
# 033
MPN: RUL 47155
BUSH
# 034
MPN: 101/7 - 6022 52256
ROD ON THE MANIFOLD FOR THROTTLE CONTROL LEVERS
# 035
MPN: 101/7 - 6092 52237
TIE ROD
# 036
MPN: VN 50351
SCREW
# 037
MPN: 101/7 5515 50352
SPRING
# 038
MPN: DNT 47080
NUT
# 039
MPN: 101/7 - 5563 52224
WASHER
# 040
MPN: 101/7 - 5512 52225
LEVER
# 041
MPN: 103 - 5551 50858
COVER
# 042
MPN: 103 - 5545 50857
COPRIPOLVERE
# 043
MPN: CSC50855
BEARING FOR THROTTLE CONTROL SHAFT
# 044
MPN: 101/7 - 5517 50213
ALBERO COMANCLO FARFALLE
# 045
MPN: RN/52390
WASHER
# 046
MPN: ART/52457
RING
# 047
MPN: 10/7 - 5518 50214
FARFALLA
# 048
MPN: SN 50258
PIN
# 049
MPN: 101/7 - 5519 50215
THROTTLE CONTROL LEVER HUB
# 050
MPN: 101/7 - 5553 50212
LEVER
# 051
MPN: 5115 50209
SPRING
# 052
MPN: VN/52157
SCREW
# 053
MPN: BNT 54585
BOLT
# 054
MPN: BNT 54584
BOLT

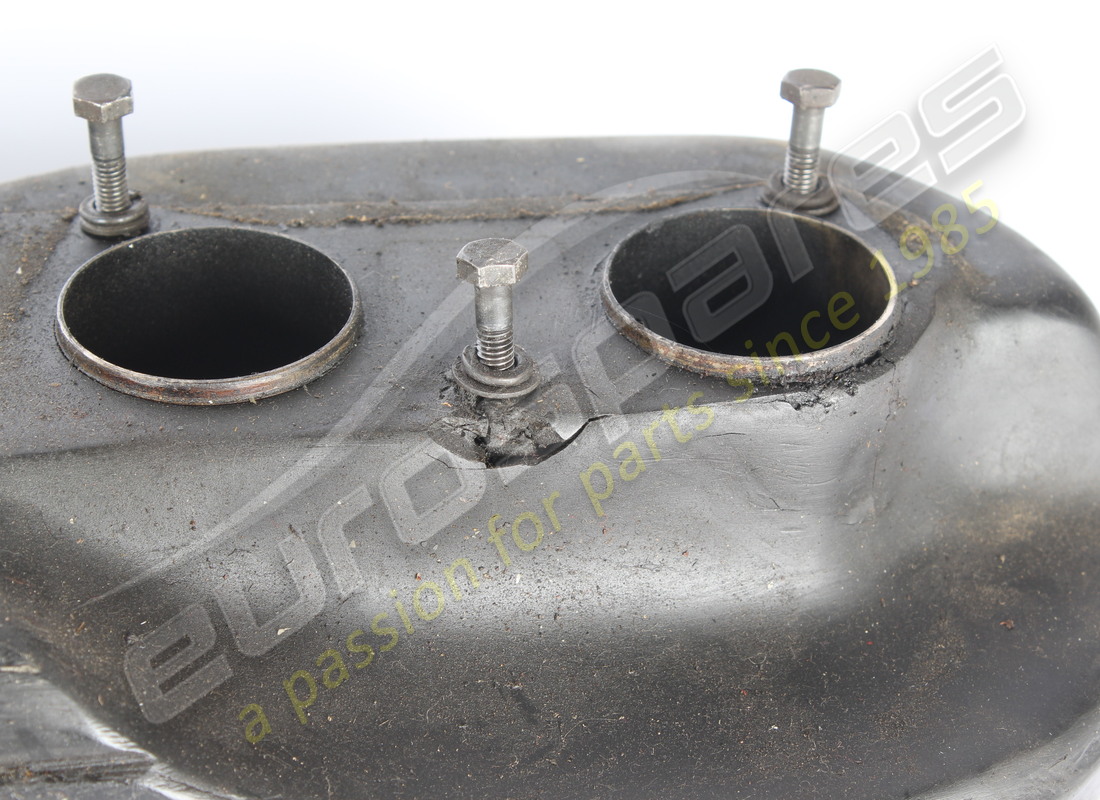

# 055
MPN: MC54645
BOX ON THE INTAKE MANIFOLD
from £524.95
from £524.95
# 056
MPN: 101/9 - 6090 52233
Complete angular joint 5 X 0,8 left for throttle control levers
# 057
MPN: FRN 61802
CLAMP FOR FIXING RUBBER HOSE ON THE AIR FILTER BOX
# 058
MPN: 106 - MC 50143
TUBO COLLEGOMENTO SCATOLA FILTRO ARIA
# 059
MPN: 101/7 - 6148 52838
COVER
# 060
MPN: AF11024
AIR FILTER
from £98.08
from £98.08

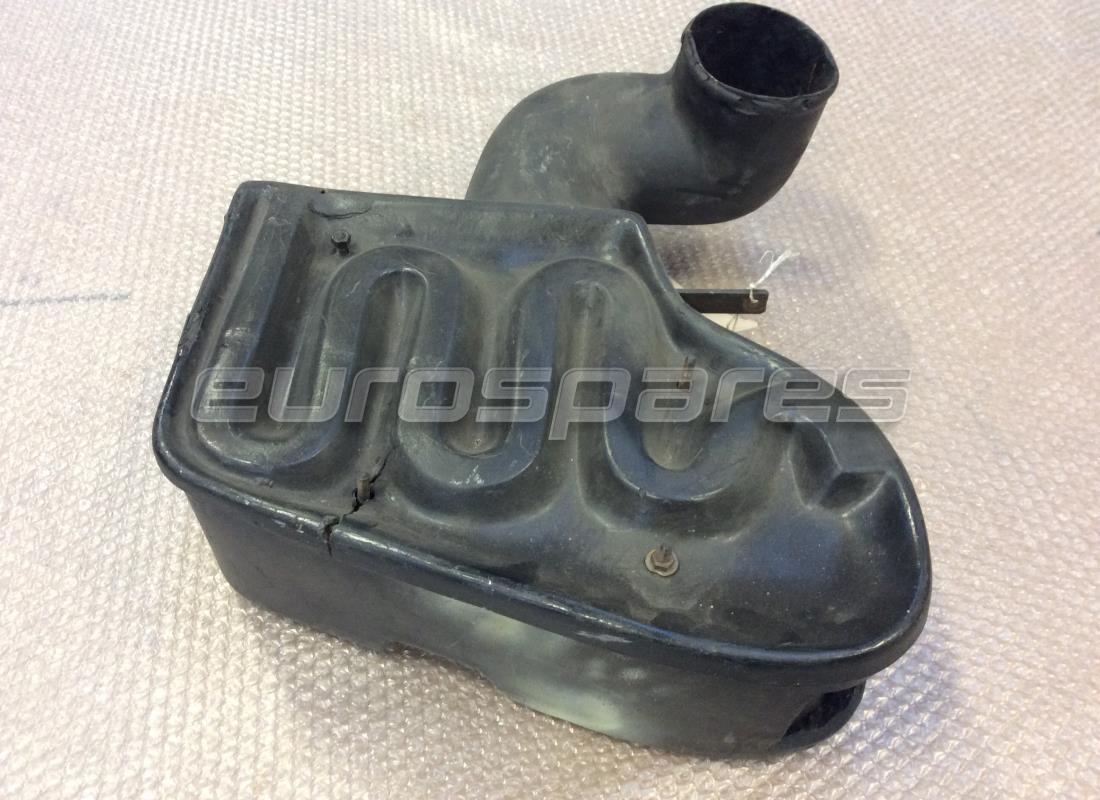

# 061
MPN: 101/9 MC 54650
AIR FILTER BOX
from £498.75
from £498.75
# 062
MPN: 101/9 MC 54650
AIR FILTER BOX
from £498.75
from £498.75
