032 - Front Body

Maserati Merak 3.0 Front Body Parts Diagram

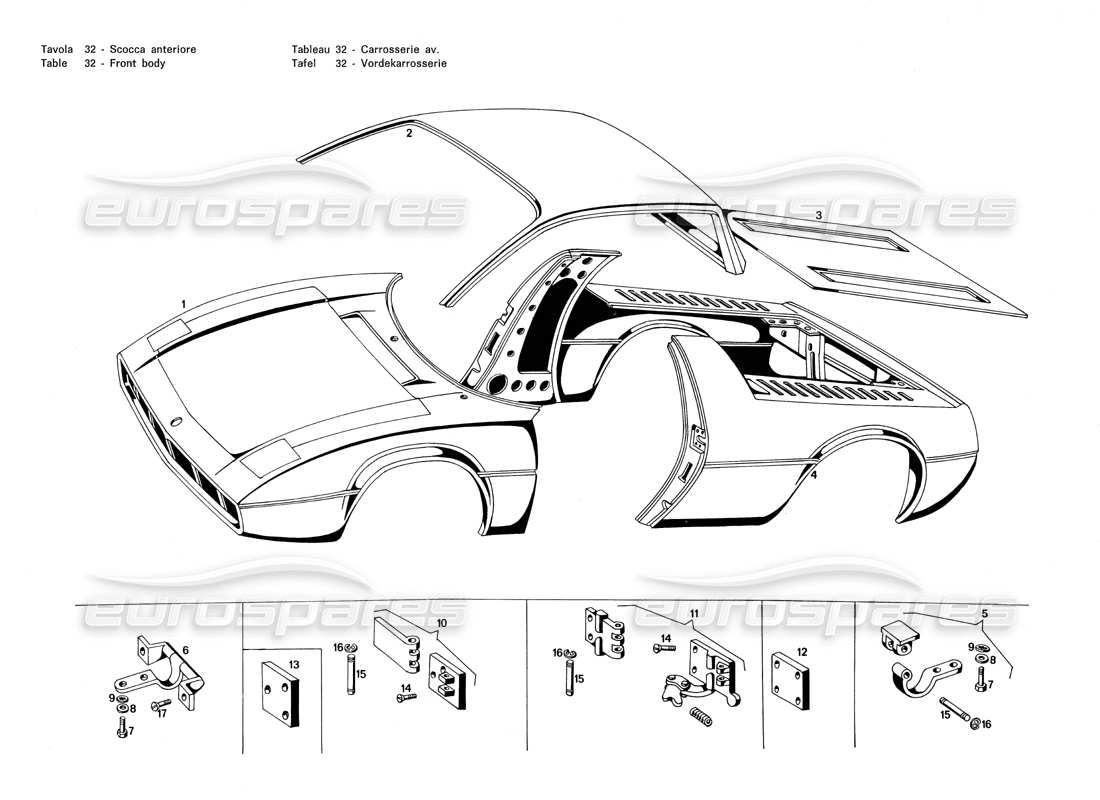

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 002
                                    MPN: 122 BT 80858
                                    PADIGLIONE COMPLETO ANELLO LUNOTTO CON CURVANO E RIVESTIMENTI COLONNETTE PARABREZZA
                                    # 003
                                    MPN: 122 BT 80859
                                    COFANO MOTORE IN ALLUMINIO
                                    # 004
                                    MPN: 122 BT 80860
                                    POSTERIORE COMPLETO DI PARAFANGHI E FASCIE POSTERIORI (FASCIA SUPERIORE E ALLOGGIAMENTO FARI)
                                    # 005
                                    MPN: 122 BM 79154
                                    CERNIERA COFANO MOTORE
                                    # 006
                                    MPN: 117 BM 74925
                                    CERNIERA SINISTRA COFANO BAULE
                                    # 006
                                    MPN: 117 BM 77232
                                    CERNIERA DESTRA COFANO BAULE
                                    # 007
                                    MPN: BNT 75607
                                    BOLT
                                    # 008
                                    MPN: RNT 71306
                                    WASHER
                                    # 010
                                    MPN: 117 BO 74927
                                    CERNIERA INFERIORE PORTIERA
                                    # 011
                                    MPN: 117 BO 74928
                                    CERNIERA SUPERIORE PORTIERA DESTRA CON FINE CORSA INCORP
                                    from £334.76
                                    from £334.76
                                    # 011
                                    MPN: 117 BO 74929
                                    CERNIERA SUPERIORE PORTIERA SINISTRA CON FINE CORSA INCORP
                                    from £334.76
                                    from £334.76
                                    # 012
                                    MPN: 117 BO 74950
                                    PIASTRA A 4 FORI PER CERNIERA SUPERIORE INTERNO PORTIERA
                                    # 013
                                    MPN: 117 BO 74951
                                    PIASTRA A 3 FORI CON CERNIERA INFERIORE INTERNO PORTIERA
                                    # 015
                                    MPN: 117 BO 76937
                                    PIN
                                    # 016
                                    MPN: ART 71509
                                    RING
                                    This part replaces part number 71509
                                    # 017
                                    MPN: VNT 68537
                                    SCREW
                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
