005 - oil pump and filter

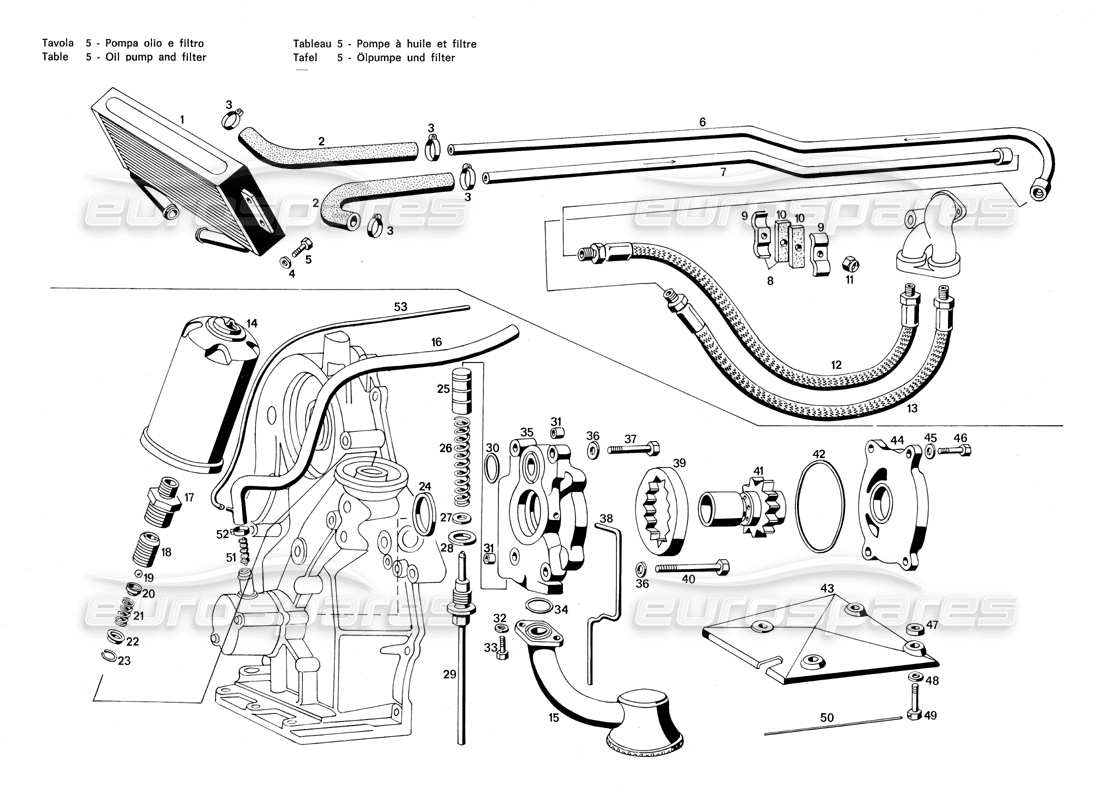

Maserati Merak 3.0 Oil Pump and Filter Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Key
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 122 CS 77229
                                                                                                            RADIATORE PER RAFFREDDAMENTO OLIO MOTORE
                                                                                                            RADIATORE PER RAFFREDDAMENTO OLIO MOTORE Genuine Maserati Part - New (to order)
                                                                                                            # 002
                                                                                                            MPN: MN 76991
                                                                                                            Manicotto Ø 20 X 300 collegamento Tubi intermedi at radiatore olio
                                                                                                            Manicotto Ø 20 X 300 collegamento Tubi intermedi at radiatore olio Genuine Maserati Part - New (to order)
                                                                                                            # 003
                                                                                                            MPN: FRN37827
                                                                                                            CLAMP Ø 25 X 35 FIXING THE SLEEVE TO THE INTERMEDIATE Tubi
                                                                                                            Fascetta per manicotto fra scambiatore e scatola ports termostato Genuine Maserati Part - New (to order)
                                                                                                            # 004
                                                                                                            MPN: RNT 6701,1
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 006
                                                                                                            MPN: 122 CS 77051
                                                                                                            COMPLESSIVO TUBO INTERMEDIO SUPERIORE MANDATA OLIO AT RADIA,TORE (MONTATO FINO AT TELAIO N. 186)
                                                                                                            COMPLESSIVO TUBO INTERMEDIO SUPERIORE MANDATA OLIO AT RADIA,TORE (MONTATO FINO AT TELAIO N. 186) Genuine Maserati Part - New (to order)
                                                                                                            # 006
                                                                                                            MPN: 122 CS 79678
                                                                                                            COMPLESSIVO TUBO INTERMEDIO SUPERIORE MANDATA OLIO AT RADIATORE (MONTATO DAL TELAIO N. 188 IN POI)
                                                                                                            COMPLESSIVO TUBO INTERMEDIO SUPERIORE MANDATA OLIO AT RADIATORE (MONTATO DAL TELAIO N. 188 IN POI) Genuine Maserati Part - New (to order)
                                                                                                            # 007
                                                                                                            MPN: 122 CS 77050
                                                                                                            COMPLESSIVO TUBO INTERMEDIO INFERIORE RITORNO OLIO DAL RADIATORE (MONTATO FINO AT TELAIO N. 186)
                                                                                                            COMPLESSIVO TUBO INTERMEDIO INFERIORE RITORNO OLIO DAL RADIATORE (MONTATO FINO AT TELAIO N. 186) Genuine Maserati Part - New (to order)
                                                                                                            # 007
                                                                                                            MPN: 122 CS 79677
                                                                                                            COMPLESSIVO TUBO INTERMEDIO INFERIORE RITORNO OLIO DAL RADIATORE (MONTATO DAL TELAIO N. 188 IN POI)
                                                                                                            COMPLESSIVO TUBO INTERMEDIO INFERIORE RITORNO OLIO DAL RADIATORE (MONTATO DAL TELAIO N. 188 IN POI) Genuine Maserati Part - New (to order)
                                                                                                            # 008
                                                                                                            MPN: 122 CS 77162
                                                                                                            SUPPORT BRACKET ASSEMBLY Tubi INTERMEDIATE
                                                                                                            SUPPORT BRACKET ASSEMBLY Tubi INTERMEDIATE Genuine Maserati Part - New (to order)
                                                                                                            # 009
                                                                                                            MPN: 122 CS 77163
                                                                                                            BRACKET / SUPPORT
                                                                                                            BRACKET / SUPPORT Genuine Maserati Part - New (to order)
                                                                                                            # 010
                                                                                                            MPN: 122 CS 77164
                                                                                                            ISOLAMENTO IN FELTRO PER STAFFA
                                                                                                            ISOLAMENTO IN FELTRO PER STAFFA Genuine Maserati Part - New (to order)
                                                                                                            # 011
                                                                                                            MPN: DNT 47047
                                                                                                            NUT
                                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                                            # 012
                                                                                                            MPN: 122 CS 77347
                                                                                                            FLEXIBLE PIPE
                                                                                                            from £355.94
                                                                                                            from £355.94
                                                                                                            FLEXIBLE PIPE Genuine Maserati Part - New (to order)
                                                                                                            # 013
                                                                                                            MPN: 122 CS 77346
                                                                                                            FLEXIBLE PIPE
                                                                                                            FLEXIBLE PIPE Genuine Maserati Part - New (to order)
                                                                                                            # 014
                                                                                                            MPN: ML78049
                                                                                                            OIL FILTER
                                                                                                            from £30.98
                                                                                                            from £30.98
                                                                                                            OIL FILTER (ML78049) Eurospares Approved Part - New In stock
                                                                                                            OIL FILTER Genuine Maserati Part - New (to order)
                                                                                                            # 015
                                                                                                            MPN: 114.5030 MB 79001
                                                                                                            PESCANTE POMPA OLIO
                                                                                                            from £126.00
                                                                                                            from £126.00
                                                                                                            PESCANTE POMPA OLIO Genuine Maserati Part - New (to order)
                                                                                                            PESCANTE POMPA OLIO Genuine Maserati Part - Used In stock
                                                                                                            # 016
                                                                                                            MPN: 5 423 094
                                                                                                            TUBO IN GUAINA DAL SOFFIANTE AT FILTRO ARIA
                                                                                                            TUBO IN GUAINA DAL SOFFIANTE AT FILTRO ARIA Genuine Maserati Part - New (to order)
                                                                                                            # 017
                                                                                                            MPN: 5 406 243
                                                                                                            PIVOT
                                                                                                            PIVOT Genuine Maserati Part - New (to order)
                                                                                                            # 018
                                                                                                            MPN: 5 406 231
                                                                                                            CORPO VALVOLINA REGOLAZIONE PRESSIONE OLIO
                                                                                                            CORPO VALVOLINA REGOLAZIONE PRESSIONE OLIO Genuine Maserati Part - New (to order)
                                                                                                            # 019
                                                                                                            MPN: 5 406 232
                                                                                                            SFERA1PER VALVOLINA PRESSIONE OLIO
                                                                                                            SFERA1PER VALVOLINA PRESSIONE OLIO Genuine Maserati Part - New (to order)
                                                                                                            # 020
                                                                                                            MPN: 5 406 233
                                                                                                            ALLOGGIAMENTO PER SFERA VALVOLINA PRESSIONE OLIO
                                                                                                            ALLOGGIAMENTO PER SFERA VALVOLINA PRESSIONE OLIO Genuine Maserati Part - New (to order)
                                                                                                            # 021
                                                                                                            MPN: 5 406 234
                                                                                                            MOLIA PER VALVOLINA PRESSIONE OLIO
                                                                                                            MOLIA PER VALVOLINA PRESSIONE OLIO Genuine Maserati Part - New (to order)
                                                                                                            # 022
                                                                                                            MPN: 5 406 235
                                                                                                            SCODELLINO INFERIORE MOLLA VALVOLINA
                                                                                                            SCODELLINO INFERIORE MOLLA VALVOLINA Genuine Maserati Part - New (to order)
                                                                                                            # 023
                                                                                                            MPN: 5 406 241
                                                                                                            RING
                                                                                                            RING Genuine Maserati Part - New (to order)
                                                                                                            # 024
                                                                                                            MPN: 5406228
                                                                                                            SEALING RING
                                                                                                            from £0.69
                                                                                                            from £0.69
                                                                                                            OIL SEAL (5406228) Genuine Ferrari Part - New (to order)
                                                                                                            RUBBER TIP Genuine Maserati Part - New (to order)
                                                                                                            # 025
                                                                                                            MPN: 5 406 217
                                                                                                            VALVOLINA DI REGOLAZIONE PRESSIONE OLIO
                                                                                                            VALVOLINA DI REGOLAZIONE PRESSIONE OLIO Genuine Maserati Part - New (to order)
                                                                                                            # 026
                                                                                                            MPN: 5 406 216
                                                                                                            MALLA PER VALVOLINA PRESSIONE OLIO
                                                                                                            MALLA PER VALVOLINA PRESSIONE OLIO Genuine Maserati Part - New (to order)
                                                                                                            # 027
                                                                                                            MPN: 5 406 921
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 028
                                                                                                            MPN: 5 406 222
                                                                                                            GASKET OR SEAL
                                                                                                            GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                            # 029
                                                                                                            MPN: 5 406 218
                                                                                                            TAPPO CON PERNO DI GUIDA
                                                                                                            TAPPO CON PERNO DI GUIDA Genuine Maserati Part - New (to order)
                                                                                                            # 030
                                                                                                            MPN: 5405827
                                                                                                            RUBBER Ø 25 X 2,62 ON THE OIL PUMP BODY
                                                                                                            from £1.93
                                                                                                            from £1.93
                                                                                                            GASKET (5405827) Genuine Ferrari Part - New (to order)
                                                                                                            GASKET Genuine Maserati Part - New (to order)
                                                                                                            # 031
                                                                                                            MPN: 5 405 609
                                                                                                            Grano Ø 10 X6 per corpo pompa olio
                                                                                                            from £6.36
                                                                                                            from £6.36
                                                                                                            This part replaces part number GRN 56859
                                                                                                            Grano Ø 10 X6 per corpo pompa olio Genuine Maserati Part - New (to order)
                                                                                                            # 032
                                                                                                            MPN: ZD 9236 300 U
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 033
                                                                                                            MPN: ZD 9368 100
                                                                                                            BOLT
                                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                                            # 034
                                                                                                            MPN: 5 406 167
                                                                                                            Gommino Ø 30 X 36 X 3 per pescante olio
                                                                                                            Gommino Ø 30 X 36 X 3 per pescante olio Genuine Maserati Part - New (to order)
                                                                                                            # 035
                                                                                                            MPN: 5 406 238
                                                                                                            CORPO POMPA OLIO COMPLETA
                                                                                                            from £236.25
                                                                                                            from £236.25
                                                                                                            CORPO POMPA OLIO COMPLETA Genuine Maserati Part - New (to order)
                                                                                                            CORPO POMPA OLIO COMPLETA Genuine Maserati Part - Used In stock
                                                                                                            # 036
                                                                                                            MPN: ZD 9254 100 U
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 037
                                                                                                            MPN: ZD 9377 300 U
                                                                                                            BOLT
                                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                                            # 038
                                                                                                            MPN: 5 406 240
                                                                                                            TUBO DI SCARICO SUL CORPO POMPA OLIO
                                                                                                            TUBO DI SCARICO SUL CORPO POMPA OLIO Genuine Maserati Part - New (to order)
                                                                                                            # 039
                                                                                                            MPN: 5 406 203
                                                                                                            INGRANAGGIO CONDOTTO POMPA OLIO
                                                                                                            INGRANAGGIO CONDOTTO POMPA OLIO Genuine Maserati Part - New (to order)
                                                                                                            # 040
                                                                                                            MPN: ZD 9377 900 W
                                                                                                            BOLT
                                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                                            # 041
                                                                                                            MPN: 5 406 204
                                                                                                            INGRANAGGIO CONDUTTORE POMPA OLIO
                                                                                                            INGRANAGGIO CONDUTTORE POMPA OLIO Genuine Maserati Part - New (to order)
                                                                                                            # 042
                                                                                                            MPN: 5406205
                                                                                                            RUBBER Ø 86,64 X 1,78 FOR OIL PUMP COVER
                                                                                                            from £1.08
                                                                                                            from £1.08
                                                                                                            PLUG WATER PUMP (5406205) Genuine Ferrari Part - New (to order)
                                                                                                            RUBBER TIP Genuine Maserati Part - New (to order)
                                                                                                            # 043
                                                                                                            MPN: 5 425 912
                                                                                                            PARATIA SUPERIORE PESCANTE OLIO
                                                                                                            PARATIA SUPERIORE PESCANTE OLIO Genuine Maserati Part - New (to order)
                                                                                                            # 044
                                                                                                            MPN: 5 406 239
                                                                                                            COVER
                                                                                                            COVER Genuine Maserati Part - New (to order)
                                                                                                            # 045
                                                                                                            MPN: 5 406 223
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 046
                                                                                                            MPN: ZD 9345 100 U
                                                                                                            BOLT
                                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                                            # 047
                                                                                                            MPN: 5 425 909
                                                                                                            DISTANZIALE IN GOMMA PER PARATIA PESCANTE
                                                                                                            DISTANZIALE IN GOMMA PER PARATIA PESCANTE Genuine Maserati Part - New (to order)
                                                                                                            # 048
                                                                                                            MPN: ZD 9236 300 U
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 049
                                                                                                            MPN: 5 425 910
                                                                                                            BOLT
                                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                                            # 050
                                                                                                            MPN: 5 436 644
                                                                                                            FILO 0 250 FISSAGGIO PARATIA PESCANTE
                                                                                                            FILO 0 250 FISSAGGIO PARATIA PESCANTE Genuine Maserati Part - New (to order)
                                                                                                            # 051
                                                                                                            MPN: 5 408 838
                                                                                                            RETINA SPEGNI FIAMMA PER SOFFIANTE
                                                                                                            RETINA SPEGNI FIAMMA PER SOFFIANTE Genuine Maserati Part - New (to order)
                                                                                                            # 052
                                                                                                            MPN: ZD 9614 039 U
                                                                                                            FASCETTA PER TUBO SOFFIANTE
                                                                                                            FASCETTA PER TUBO SOFFIANTE Genuine Maserati Part - New (to order)
                                                                                                            # 053
                                                                                                            MPN: 5 423 093
                                                                                                            TUBO IN PLASTICA PER TUBO SOFFIANTE
                                                                                                            TUBO IN PLASTICA PER TUBO SOFFIANTE Genuine Maserati Part - New (to order)
