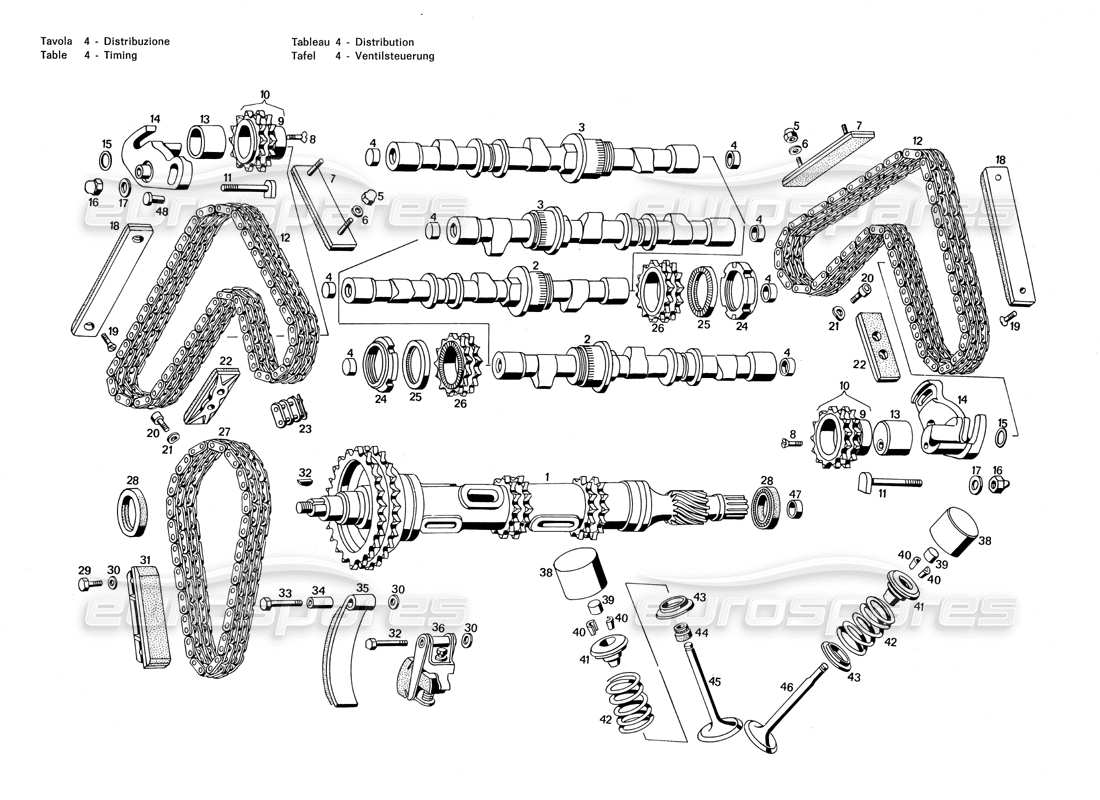

Maserati Merak 3.0 Timing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 5 405 685

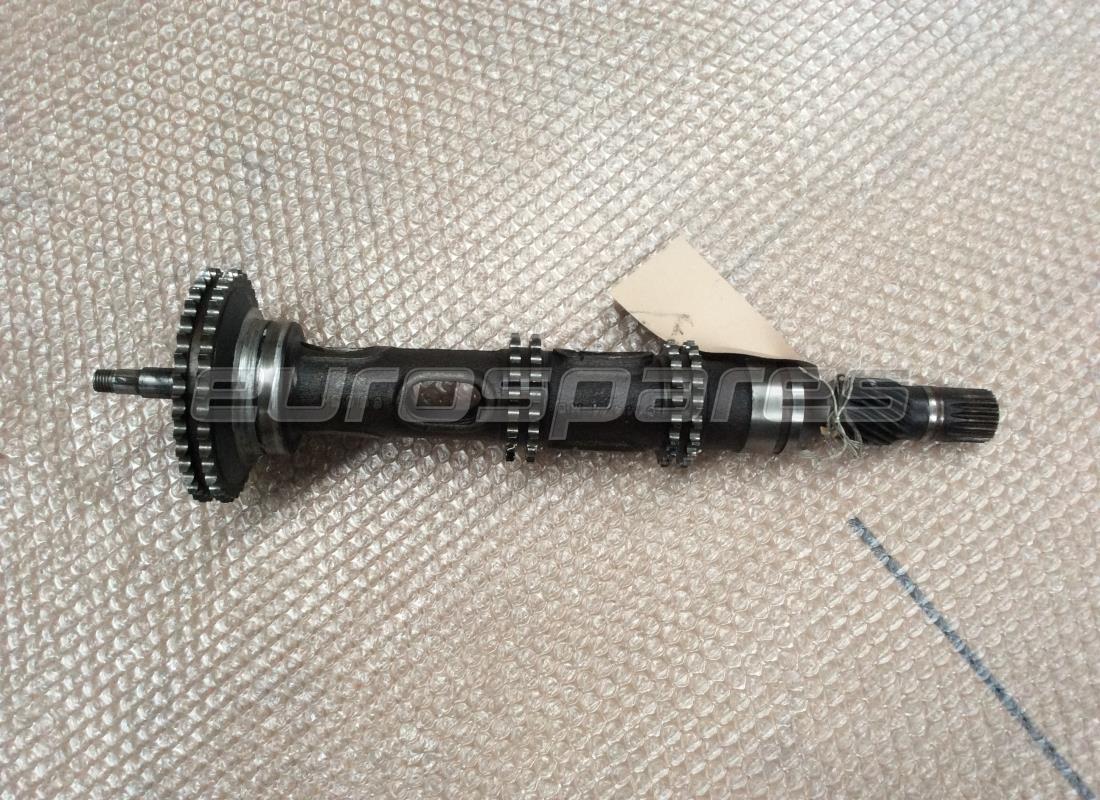

ALBERO CENTRALE COMANDO DISTRIBUZIONE COMPLETO
from £1,155.00
from £1,155.00
ALBERO CENTRALE COMANDO DISTRIBUZIONE COMPLETO Genuine Maserati Part - New (to order)
ALBERO CENTRALE COMANDO DISTRIBUZIONE COMPLETO Genuine Maserati Part - Used In stock
# 002
MPN: 5 413 848
ALBERO DISTRIBUZIONE LATO SCARICO COMPLETO
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 003
MPN: 5 413 847
ALBERO DISTRIBUZIONE LATO ASPIRAZIONE
from £1,101.70
from £1,101.70
ALBERO DISTRIBUZIONE LATO ASPIRAZIONE Genuine Maserati Part - New (to order)
# 004
MPN: 5 405 725
TAPPO PER ALBERO DISTRIBUZIONE
TAPPO PER ALBERO DISTRIBUZIONE Genuine Maserati Part - New (to order)
# 005
MPN: 5 422 304
NUT
NUT Genuine Maserati Part - New (to order)
# 006
MPN: 5422303
GASKET OR SEAL
from £0.69
from £0.69
Maserati PART 5422303 Genuine Maserati Part - New (to order)
GASKET Genuine Ferrari Part - New (to order)
# 007
MPN: 5 422 302
PATTINO PER CATENA SULLA TESTA
PATTINO PER CATENA SULLA TESTA Genuine Maserati Part - New (to order)
# 008
MPN: 5 405 709
SCREW
SCREW Genuine Maserati Part - New (to order)
# 009
MPN: 5 405 693
BUSH
BUSH Genuine Maserati Part - New (to order)
# 010
MPN: 5 405 692
PIGNONE PER TENDICATENA COMPLETO
PIGNONE PER TENDICATENA COMPLETO Genuine Maserati Part - New (to order)
# 011
MPN: 5 421 042
PIVOT
PIVOT Genuine Maserati Part - New (to order)
# 012
MPN: 5 405 684
CATENA DOPPIA SUPERIORE
from £186.44
from £186.44
TIMING CHAIN Genuine Maserati Part - New (to order)
TIMING CHAIN Eurospares Approved Part - New In stock
# 012
MPN: 54056890
TIMING CHAINS KIT
TIMING CHAINS KIT Genuine Maserati Part - New (to order)
# 013
MPN: 5 405 708
BUSSOLA SUL SUPPORTO TENDICATENA
BUSSOLA SUL SUPPORTO TENDICATENA Genuine Maserati Part - New (to order)
# 014
MPN: 5 421 108
SUPPORT
from £126.00
from £126.00
SUPPORT Genuine Maserati Part - New (to order)
SUPPORT Genuine Maserati Part - Used In stock
With no 14/13/10/9
# 015
MPN: 5405705
RUBBER Ø 12,37 X 17,67 X 2,65 FOR CHAIN ​​TENSIONER ON THE HEAD
from £0.69
from £0.69
RUBBER TIP Genuine Maserati Part - New (to order)
PLUG Genuine Ferrari Part - New (to order)
# 016
MPN: 5 405 707
NUT
NUT Genuine Maserati Part - New (to order)
# 017
MPN: 5 405 706
GASKET OR SEAL
GASKET OR SEAL Genuine Maserati Part - New (to order)
# 018
MPN: 5 405 689
PATTINO PER CATENA SUL COPERCHIO TESTA
PATTINO PER CATENA SUL COPERCHIO TESTA Genuine Maserati Part - New (to order)
# 019
MPN: ZD 9464 00011
Vilte Ø 5 X 0,8 X 12 per detto
Vilte Ø 5 X 0,8 X 12 per detto Genuine Maserati Part - New (to order)
# 020
MPN: 5 405 699
SCREW
SCREW Genuine Maserati Part - New (to order)
# 021
MPN: ZD 9236 300 U
WASHER
WASHER Genuine Maserati Part - New (to order)
# 022
MPN: 5405690
PATTINO PER CATENA SUL BASAMENTO
from £4.17
from £4.17
PAD Genuine Maserati Part - New (to order)
KIT Genuine Ferrari Part - New (to order)
# 023
MPN: 5 423 424
GIUNTO PER CATENA DISTRIBUZIONE
GIUNTO PER CATENA DISTRIBUZIONE Genuine Maserati Part - New (to order)
# 024
MPN: 5 405 698
Ghiera sull'albero distribuzione
Ghiera sull'albero distribuzione Genuine Maserati Part - New (to order)
# 025
MPN: 5 405 697
GHIERA DENTATA TRAINO ALBERO DISTRIBUZIONE
GHIERA DENTATA TRAINO ALBERO DISTRIBUZIONE Genuine Maserati Part - New (to order)
# 026
MPN: 5 405 696
INGRANAGGIO TRAINO ALBERO DISTRIBUZIONE
INGRANAGGIO TRAINO ALBERO DISTRIBUZIONE Genuine Maserati Part - New (to order)
# 027
MPN: 5 405 683
CATENA DOPPIA INFERIORE
from £169.50
from £169.50
CATENA DOPPIA INFERIORE Genuine Maserati Part - New (to order)
TIMING CHAIN Eurospares Approved Part - New In stock
# 028
MPN: 5405710

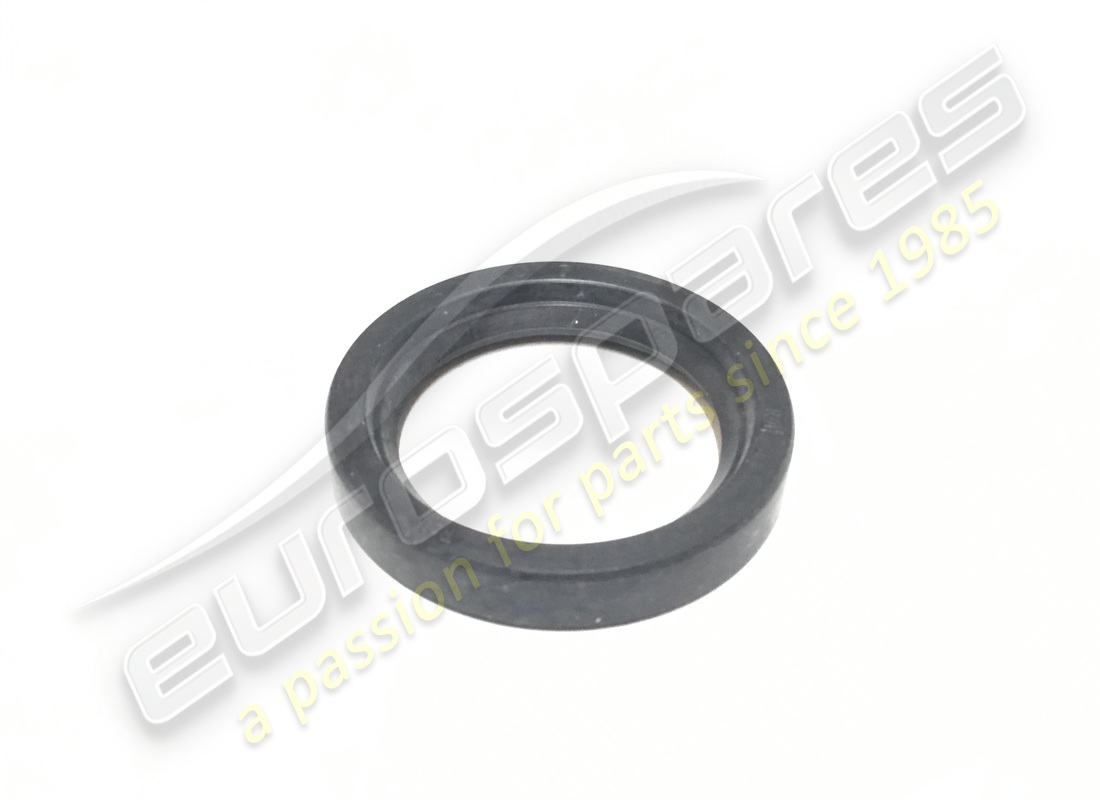

SEALING RING
from £11.03
from £11.03
GASKET Genuine Maserati Part - New In stock
OIL SEAL Genuine Ferrari Part - New (to order)
# 029
MPN: ZD 9368 100 U
BOLT
BOLT Genuine Maserati Part - New (to order)
# 030
MPN: ZD 9236 300 U
WASHER
WASHER Genuine Maserati Part - New (to order)
# 031
MPN: 5405686
PATTINO PER CATENA INFERIORE
from £15.85
from £15.85
PAD Genuine Maserati Part - New (to order)
KIT Genuine Ferrari Part - New (to order)
# 032
MPN: 5 405 266
LINGUETTA PER ALBERO CENTRALE COMANDO DISTRIBUZIONE
LINGUETTA PER ALBERO CENTRALE COMANDO DISTRIBUZIONE Genuine Maserati Part - New (to order)
# 033
MPN: 5 405 714
BOLT
BOLT Genuine Maserati Part - New (to order)
# 034
MPN: 5 405 712
BUSSOLA PER PATTINO TENDICATENA
BUSSOLA PER PATTINO TENDICATENA Genuine Maserati Part - New (to order)
# 035
MPN: 5426216
PATTINO PER TENDICATENA AUTOMATICO «RENOLD»
from £7.04
from £7.04
Maserati PART 5426216 Genuine Maserati Part - New (to order)
PLUG CAP Genuine Ferrari Part - New (to order)

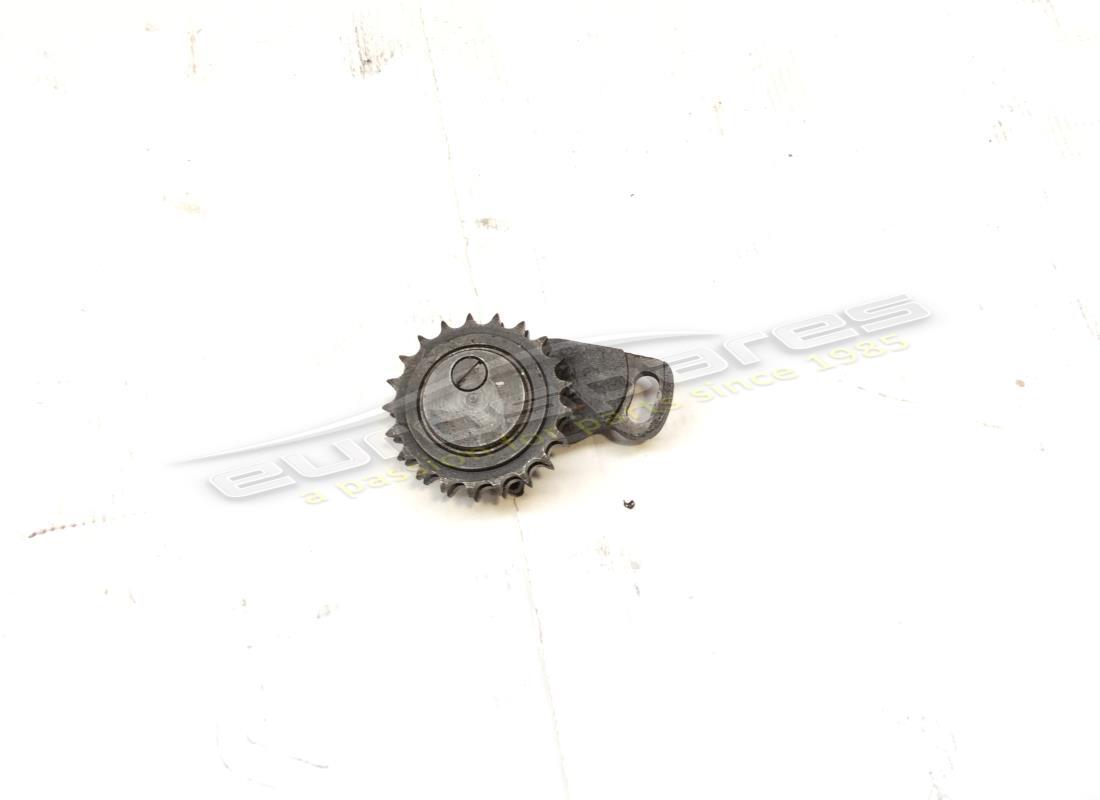

# 036
MPN: 5426217
TENDICATENA «RENOLD»
from £14.29
from £14.29
Maserati PART 5426217 Genuine Maserati Part - New (to order)
LEAD SET Genuine Ferrari Part - New (to order)
# 038
MPN: 5 405 726
BICCHIERINO COMANDO VALVOLA
BICCHIERINO COMANDO VALVOLA Genuine Maserati Part - New (to order)
# 039
MPN: 5 402 894
PASTIGLIA PER REGOLAZIONE GIOCO VALVOLA, NUMERAZIONE PROGRESSIVA DA LA 3,5 A 4 MM. CON VARIAZIONE DI 0,025 IN 0,025MM
PASTIGLIA PER REGOLAZIONE GIOCO VALVOLA, NUMERAZIONE PROGRESSIVA DA LA 3,5 A 4 MM. CON VARIAZIONE DI 0,025 IN 0,025MM Genuine Maserati Part - New (to order)
# 039
MPN: 5 402 913
PASTIGLIA PER REGOLAZIONE GIOCO VALVOLA, NUMERAZIONE PROGRESSIVA DA LA 3,5 A 4 MM. CON VARIAZIONE DI 0,025 IN 0,025MM
PASTIGLIA PER REGOLAZIONE GIOCO VALVOLA, NUMERAZIONE PROGRESSIVA DA LA 3,5 A 4 MM. CON VARIAZIONE DI 0,025 IN 0,025MM Genuine Maserati Part - New (to order)
# 039
MPN: 5 405 818
PASTIGLIA PER REGOLAZIONE GIOCO VALVOLA, NUMERAZIONE PROGRESSIVA DA LA 3 A 3,5 MM. CON VARIAZIONE DI 0,025 IN 0,025MM
PASTIGLIA PER REGOLAZIONE GIOCO VALVOLA, NUMERAZIONE PROGRESSIVA DA LA 3 A 3,5 MM. CON VARIAZIONE DI 0,025 IN 0,025MM Genuine Maserati Part - New (to order)
# 039
MPN: 5405798
PASTIGLIA PER REGOLAZIONE GIOCO VALVOLA, NUMERAZIONE PROGRESSIVA DA LA 3 A 3,5 MM. CON VARIAZIONE DI 0,025 IN 0,025MM
from £1.55
from £1.55
PAD Genuine Maserati Part - New (to order)
ADJUSTING PAD Genuine Ferrari Part - New (to order)
# 040
MPN: 5 405 734
SEMICONI PER VALVOLE
SEMICONI PER VALVOLE Genuine Maserati Part - New (to order)
# 041
MPN: 5 434 450
PIATTELLO SUPERIORE PER MOLLA VALVOLA
PIATTELLO SUPERIORE PER MOLLA VALVOLA Genuine Maserati Part - New (to order)
# 042
MPN: 5 434 449
SPRING
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 043
MPN: 5 432 608
PIATTELLO INFERIORE PER MOLLA VALVOLA
PIATTELLO INFERIORE PER MOLLA VALVOLA Genuine Maserati Part - New (to order)
# 044
MPN: 5412026
VALVE STEM SEAL FOR INLET VALVE
from £6.30
from £6.30
VALVE Genuine Maserati Part - New In stock
VALVE OIL SEAL Genuine Ferrari Part - New (to order)
# 045
MPN: 5405729

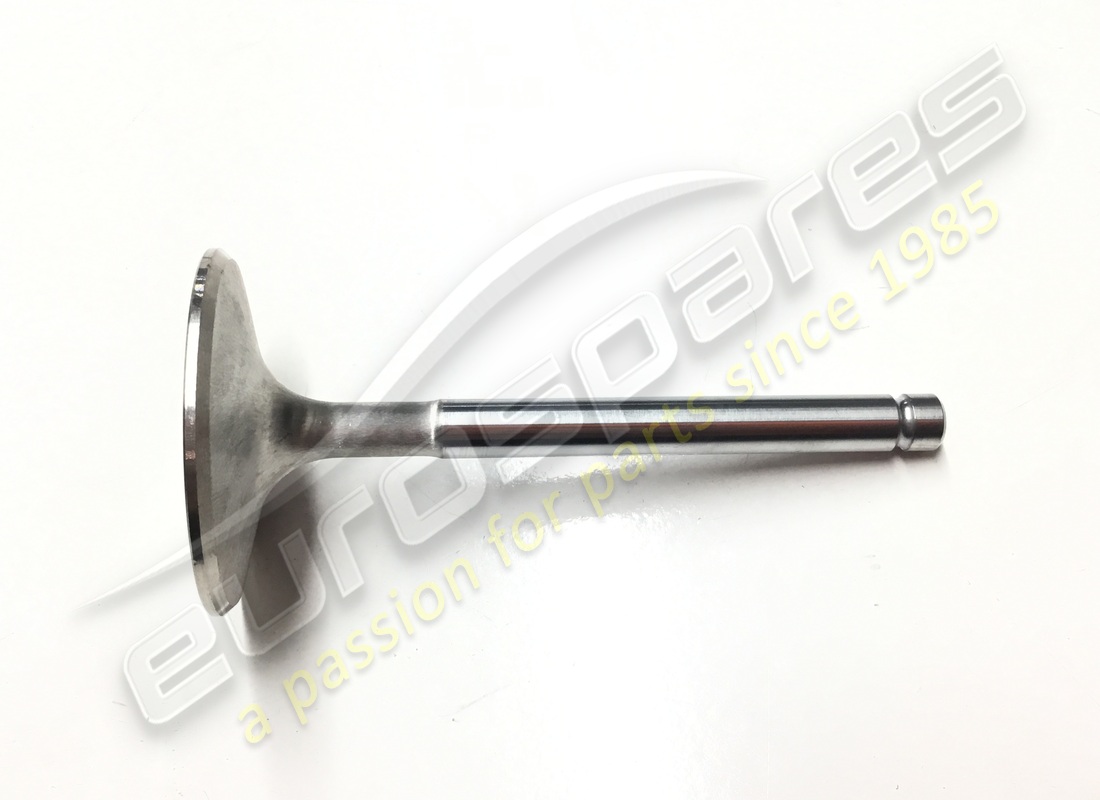

VALVOLA DI SCARICO
from £50.40
from £50.40
EXHAUST VALVE Genuine Maserati Part - New In stock
# 045
MPN: MD82385
EXHAUST VALVE SS TYPE
VALID FOR SS ENGINES
from £51.98
from £51.98
EXHAUST VALVE SS TYPE Genuine Maserati Part - New (to order)
SS EXHAUST VALVE Eurospares Approved Part - New In stock
# 046
MPN: 5405728
VALVOLA DI ASPIRAZIONE
from £8.66
from £8.66
INTAKE VALVE Genuine Maserati Part - New (to order)
Eurospares PART 5405728 Eurospares Approved Part - New In stock
# 046
MPN: MD71055
INLET VALVE SS TYPE
VALID FOR SS ENGINES
from £50.93
from £50.93
INLET VALVE SS TYPE Genuine Maserati Part - New (to order)
SS INLET VALVE Eurospares Approved Part - New In stock
# 047
MPN: 5 405 704
TAPPO PER ALBERO CENTRALE COMANDO DISTRIBUZIONE
TAPPO PER ALBERO CENTRALE COMANDO DISTRIBUZIONE Genuine Maserati Part - New (to order)
# 048
MPN: 5 422 844
TAPPO CHIUSURA FORO ALLOGGIAMENTO TENDICATENA
TAPPO CHIUSURA FORO ALLOGGIAMENTO TENDICATENA Genuine Maserati Part - New (to order)
