Eurospares Valid from assembly: 6053787 - 99999999. (valid for: 3.8 BT V8 4WD 550 HP - 530 HP | USA)
08.20.1 - ENERGY GENERATION AND ACCUMULATION

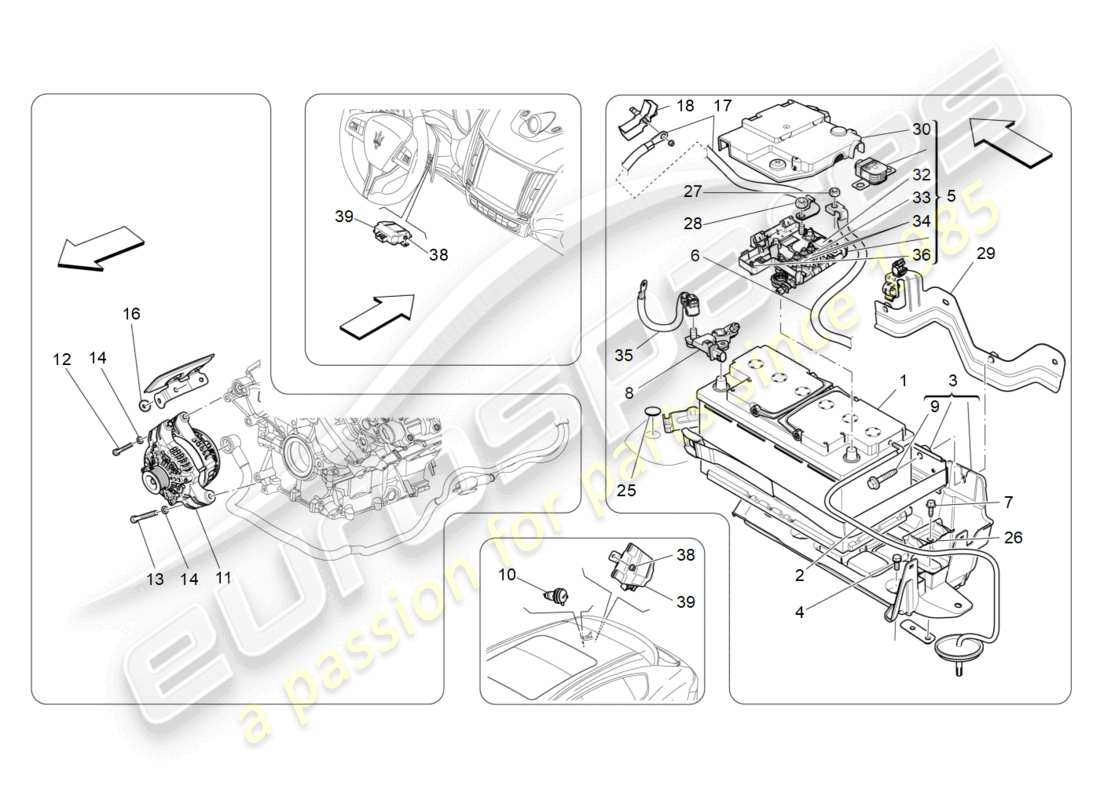

Maserati Levante Modena S (2022) ENERGY GENERATION AND ACCUMULATION Parts Diagram
View the exploded parts diagram to find the part you are looking for
View all the part pricing and availability information on the parts table to the rightbelow
in the parts diagram to locate the part in the tableSwitch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
PN: 673005577
95AH-800A BATTERY
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $246.36
from $246.36
# 002
PN: 670008109
BATTERY VENT PIPE
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $16.15
from $16.15
# 003
PN: 675000297
BATTERY HOUSING ASSEMBLY
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $37.44
from $37.44
# 004
PN: 675000174
SCREW [M8]
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $1.23
from $1.23
# 005
PN: 670105054
BATTERY MULTI-FUNCTION ECU
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $117.97
from $117.97
# 006
PN: 670006554
ECU REAR BATTEY POSITIVE POLE CABLE
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $12.85
from $12.85
# 007
PN: 675000088
SCREW [M6X22]
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $2.95
from $2.95
# 008
PN: 675001164
IBS SENSOR
Valid from assembly: 6079467. Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $42.65
from $42.65
# 009
PN: 675000214
SCREW
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $23.12
from $23.12
# 010
PN: 670014974
POWER SOCKET
Colour: BLACK.Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $11.36
from $11.36
# 011
PN: 283531

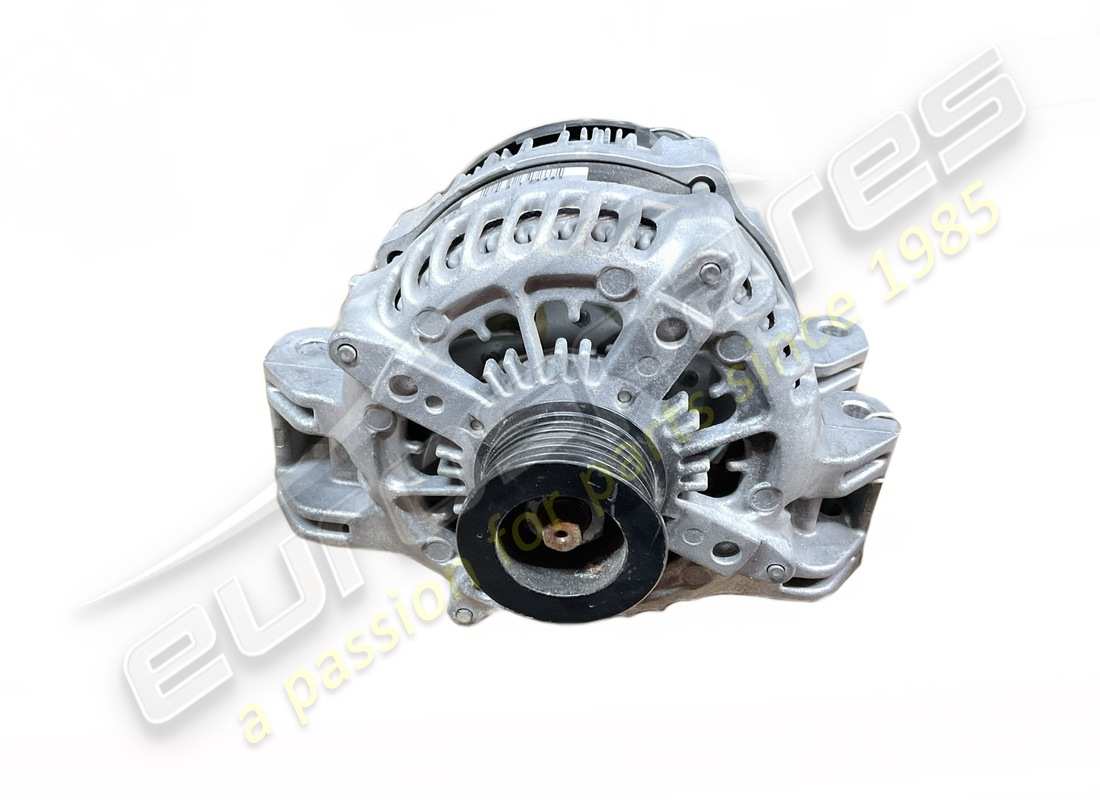

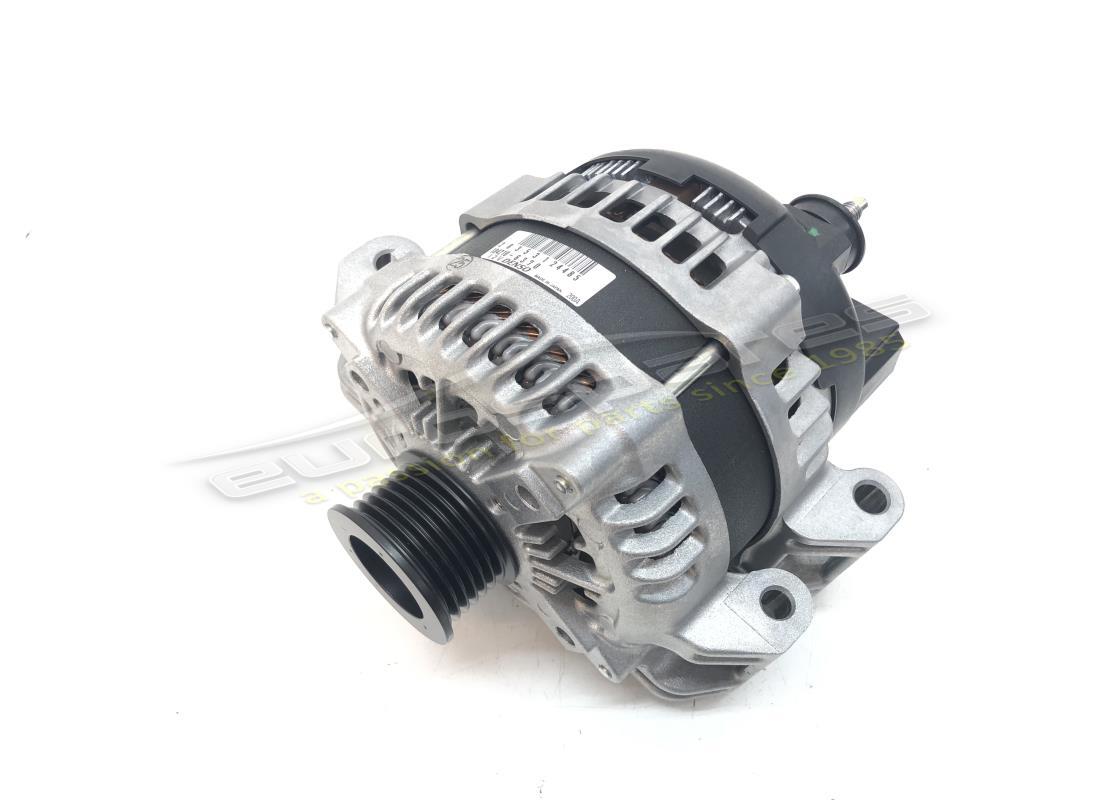

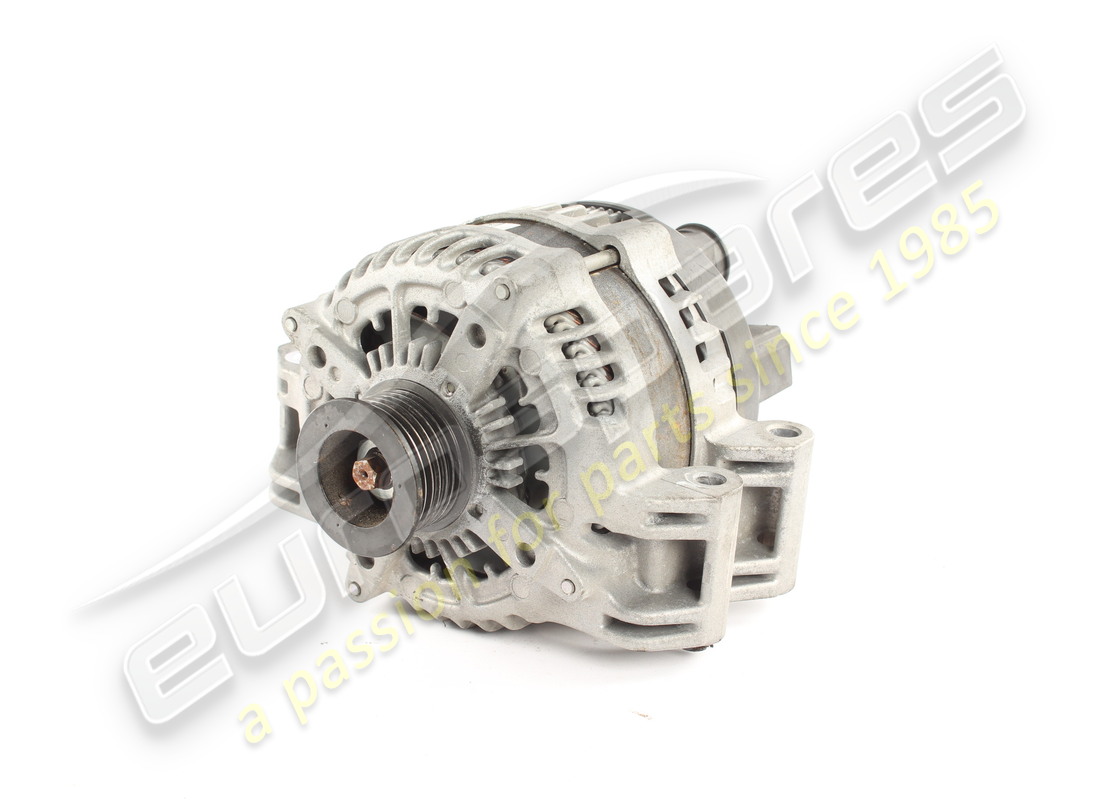

ALTERNATOR
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $318.97
from $318.97
# 013
PN: 14359524
SCREW [M8X80]
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $0.61
from $0.61
# 014
PN: 11193874
WASHER [D.8.4-16X1.4]
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $0.70
from $0.70
# 016
PN: 675000093
NUT [M6]
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $0.92
from $0.92
# 017
PN: 670032363
BATTERY POSITIVE POLE CABLE
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $90.71
from $90.71
# 018
PN: 675000578
SHUNT NODE
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $19.36
from $19.36
# 025
PN: 675000244
PLUG
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $0.72
from $0.72
# 026
PN: 675000426
BRACKET
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $5.30
from $5.30
# 027
PN: 675000439
NUT
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $5.30
from $5.30
# 028
PN: 675000450
NUT
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $5.81
from $5.81
# 029
PN: 670031002
REAR BRACKET
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $12.72
from $12.72
# 030
PN: 675000806
COVER
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $18.00
from $18.00
# 032
PN: 673002762
MAXI FUSE 175A
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $6.67
from $6.67
# 033
PN: 673002763
MIDI FUSE 30A
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $2.71
from $2.71
# 034
PN: 673002764
MIDI FUSE 40A
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $2.71
from $2.71
# 035
PN: 670109171
BATTERY NEGATIVE POLE CABLE
Valid from assembly: 6069008. Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $27.32
from $27.32
This part replaces part number 670107464 which we have in stock
# 036
PN: 673003650
FUSE PULLER
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $1.33
from $1.33
# 038
PN: 675000095
NUT [M6]
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $0.72
from $0.72
# 039
PN: 675000786
VOLTAGE STABILIZER
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $106.58
from $106.58
This part replaces part number 675000493 - and 1 more. Click to view details
# 040
PN: 291068
BRACKET #(IMAGE NOT AVAILABLE)#
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $2.05
from $2.05
# 041
PN: 233600
SCREW [M6X12] #(IMAGE NOT AVAILABLE)#
Suitable for: 3.8 BT V8 4WD 550 HP - 530 HP | USA
from $0.68
from $0.68
