Eurospares Not for cars with: CHINA 6B EMISSION. Applicable for markets: EU AU CN UK JP ME JRH IN SA.
01.44.1 - FUEL VAPOUR RECIRCULATION SYSTEM

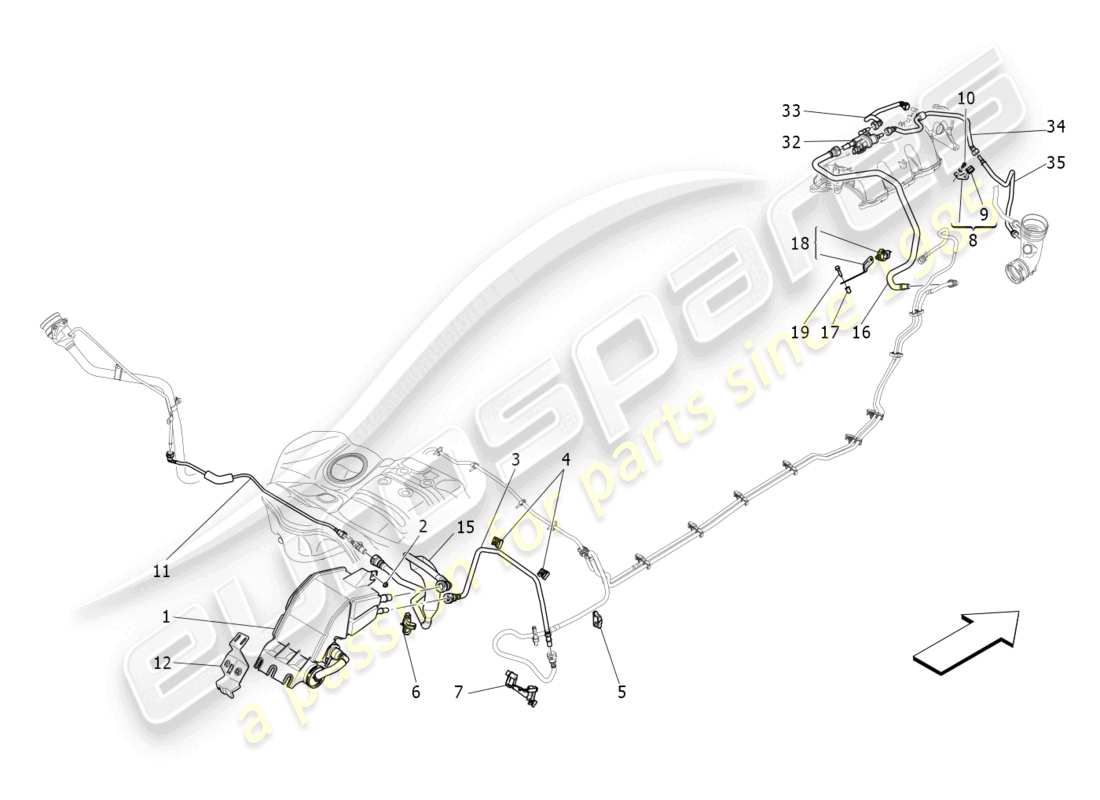

Maserati Levante Modena (2022) FUEL VAPOUR RECIRCULATION SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
View all the part pricing and availability information on the parts table to the rightbelow
in the parts diagram to locate the part in the tableSwitch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
PN: 670033287

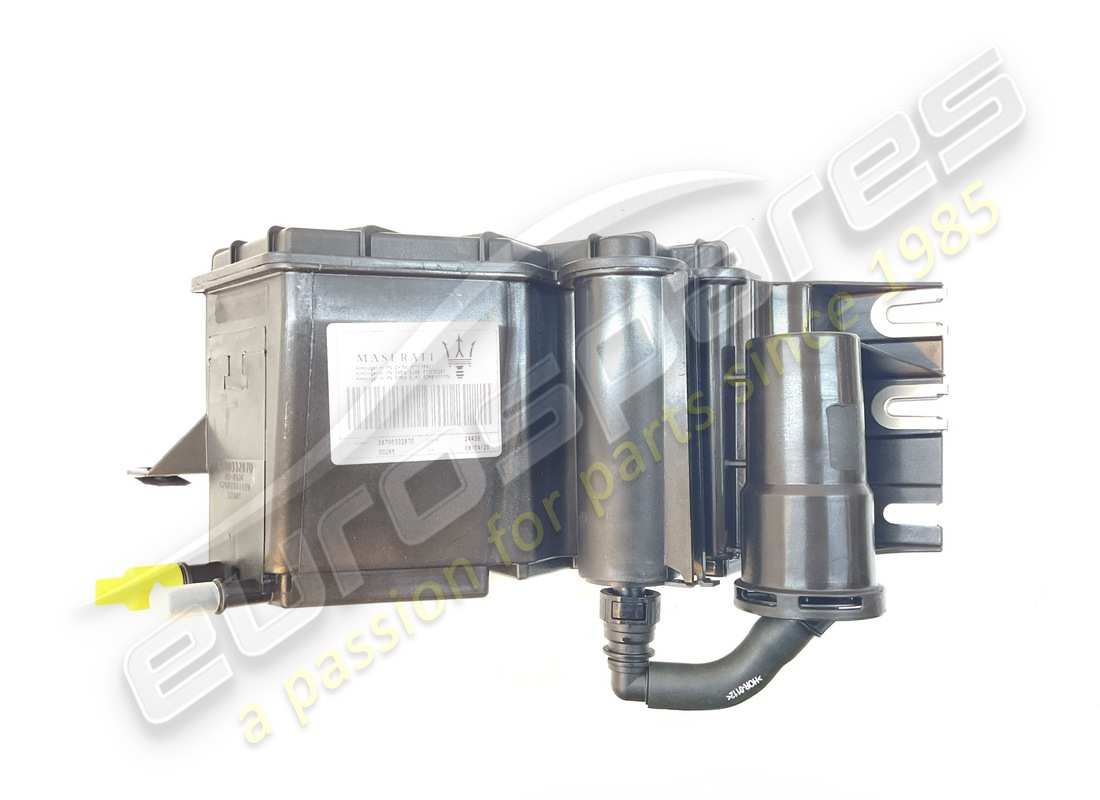

FUEL VAPOUR FILTER
Not for cars with: CHINA 6B EMISSION.
from $161.04
from $161.04
# 002
PN: 675000095
NUT [M6]
Valid from assembly: 6097169.
from $0.72
from $0.72
# 002
PN: 675000114
NUT
Valid from assembly: 0 - 6097168.
from $0.92
from $0.92
# 003
PN: 670033294
PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR
from $26.08
from $26.08
# 004
PN: 670033289
CLIP
from $2.44
from $2.44
# 005
PN: 675000790
CLIP
Valid from assembly: 6053787.
from $0.72
from $0.72
# 006
PN: 670100038
BRACKET
from $2.44
from $2.44
# 007
PN: 670031947
CLIP
from $8.14
from $8.14
# 009
PN: 675000132
CLIP
from $0.72
from $0.72
# 010
PN: 675000191
SCREW [M6X14]
from $1.84
from $1.84
# 011
PN: 670033572
VAPOUR PIPE
from $30.06
from $30.06
# 012
PN: 670034699
REAR BRACKET
Valid from assembly: 0 - 6097168.
from $14.77
from $14.77
# 012
PN: 670217138
REAR BRACKET
Valid from assembly: 6097169.
from $12.42
from $12.42
# 015
PN: 670033274
VENT PIPE
from $78.48
from $78.48
# 016
PN: 670033126
PIPE BETWEEN UNION AND INTAKE MANIFOLD
Not for cars with: EU6D Final, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from $35.17
from $35.17
# 016
PN: 670105047
PIPE BETWEEN UNION AND INTAKE MANIFOLD
Valid from assembly: 6072512. Suitable for cars with: EU6D Final. Not for cars with: EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: CHILE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from $36.18
from $36.18
# 017
PN: 675000576
RIVET
from $0.72
from $0.72
# 018
PN: 670035380
BRACKET
Not for cars with: EU6D Final, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from $6.53
from $6.53
# 018
PN: 670104126
BRACKET ASSEMBLY
Valid from assembly: 6072512. Suitable for cars with: EU6D Final. Not for cars with: EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: CHILE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from $5.81
from $5.81
# 019
PN: 675000242
SCREW [M6X25]
from $4.08
from $4.08
This part replaces part number 11568424
# 032
PN: 670162028
SOLENOID VALVE
Valid from assembly: 6083655.
from $30.06
from $30.06
# 033
PN: 670033129
PIPE FROM SOLENOID VALVE TO ENGINE
from $26.08
from $26.08
# 034
PN: 670033130
PIPE FROM SOLENOID VALVE TO CLEAN AIR SLEEVE PIPE
from $41.46
from $41.46
# 035
PN: 670033133
VAPOUR PIPE FROM PIPE TO CLEAN AIR SLEEVE
Not for cars with: EU6D Final, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: AUSTRALIA, CHILE, JAPAN, JAPAN (RH DRIVE)
from $28.10
from $28.10
# 035
PN: 670105048
VAPOUR PIPE FROM PIPE TO CLEAN AIR SLEEVE
Valid from assembly: 6072512. Suitable for cars with: EU6D Final. Not for cars with: EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION. Suitable for: CHILE, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from $25.79
from $25.79
