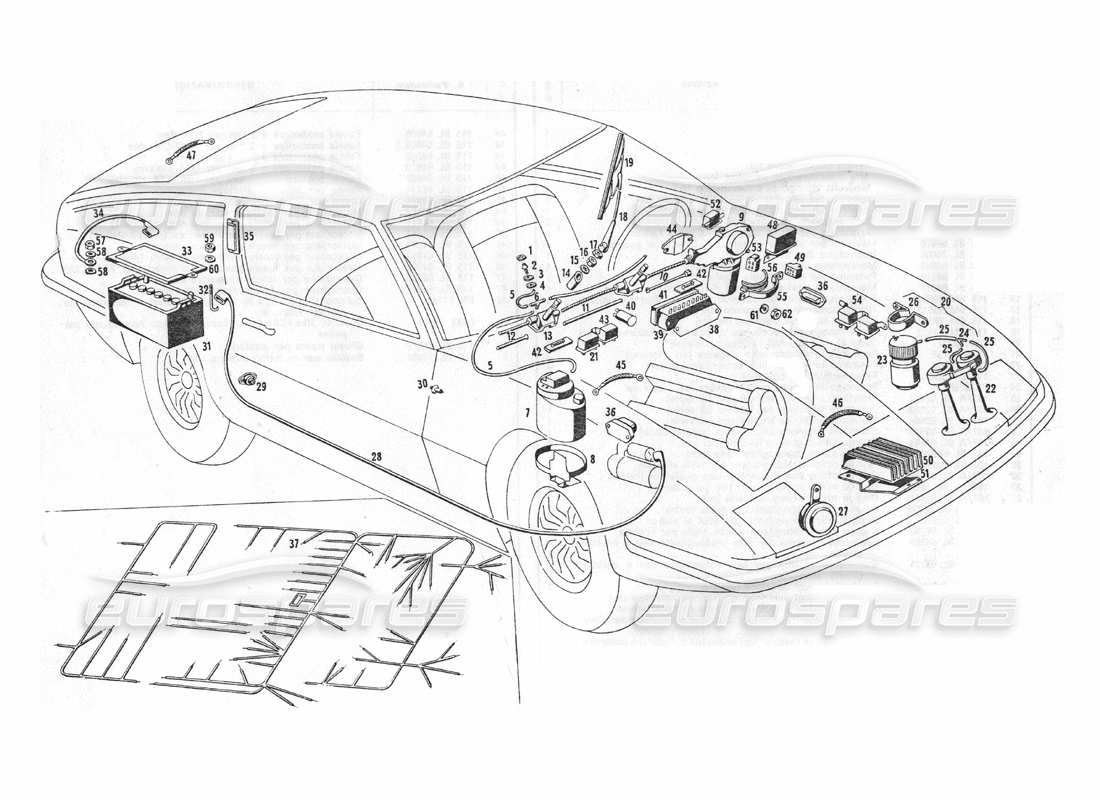

Maserati Indy 4.2 Electrical equipment Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 115 BL 70286
CHROME UPPER BASE LUCAS SPRAYERS N. 295067
# 002
MPN: 115 BL 70285
SPRUZZATORE LAVACRISTALLO
from £41.02
from £41.02
# 003
MPN: 115 BL 70287
SOTTOBASETTA INFERIORE SPRUZZATORI LUCAS N. 295068
# 004
MPN: 115 BL 70288
RUBBER BASE FOR LUCAS WINDSHIELD WASHER SPRAYER
# 005
MPN: TPN 58276
Tubo in plastica Ø 55 X 3 X 1375
# 005
MPN: TPN 58276
Tubo in plastica Ø 55 x 3 x 550
# 006
MPN: 115 BL 66814
UNION
# 007
MPN: 115 BL 69815
WINDSHIELD WASHER FLUID RESERVOIR
# 008
MPN: 116 BL 70446
SUPPORT
# 009
MPN: 116 BL 68145
16 W 120° wiper control motor complete with hose, base, U-bolt and connector
# 010
MPN: 116 BL 68685
TUBO SUL MOTORINO PER FLESSIBILE COMANDO TERGI L = 274 MM.
# 011
MPN: 116 BL 68157
TUBO CENTRALE PER FLESSIBILE COMANDO TERGI L = 605 MM.
# 012
MPN: 107BL59640
TUBO TERMINALE PER FLESSIBILE COMANDO TERGI I =
# 013
MPN: 107 BL 59649
COMPLETE BOX FOR WIPER CONTROL SHAFT
Supersession
Supersession
This part replaces part number 107 BL 59490
# 014
MPN: 107 BL 59646
Distanziale sull'alberino comando tergi LUCAS
# 016
MPN: 107 BL 59645
Coprimozzo esterno alberino comando tergi « Lucas »
# 017
MPN: DNT 59475
NUT
# 018
MPN: 116 BL 68686
ARM FOR WIPER BLADES
# 018
MPN: 116 BL 70322
ARM FOR WIPER BLADES
# 019
MPN: 116 BL 68687
SPAZZOLE PER TERGI
# 019
MPN: 116 BL 70323
SPAZZOLE PER TERGI
# 020
MPN: 116 BL 67061
ONE SOUND HORN COMPRESSOR COMPLETE WITH SCREWS, CLAMPS
# 021
MPN: 1,16 BL 67757
RELE PER COMANDO TROMBE PNEUMATICO
# 022
MPN: 116 BL 70075
Trombe pneumatiche complete ad 1 suono
# 023
MPN: 101/7 17349 52102
COMPRESSOR FOR PNEUMATIC HORNS
# 024
MPN: 107 - BL 58684
UNION
# 025
MPN: TPN 58683
PLASTIC COMPRESSOR HOSE AT 3 WAY
# 025
MPN: TPN 58683
PLASTIC PIPE FROM 3 WAY TO THE HORNS
# 026
MPN: 107 - BL 58685
Fascetta per fissaggio compressore trombe
# 028
MPN: 107 BL 57185
Cable from battery to starter motor
# 029
MPN: 107 - BL 55888
FANALINO SEGNALAZIONE APERTURA PORTIERE
# 030
MPN: 101/9 BL 55109
INTERRUTTORE A PULSANTE PER LUCI APERTURA PORTIERE
from £14.52
from £14.52
# 031
MPN: 101/5 17430 51457
Batteria d'aiimentazione da 72 A
# 032
MPN: 116 BL 67755
TIE ROD
# 033
MPN: 107 BL 56601
FRAME TO HOLD THE BATTERY TO THE FRAME
# 034
MPN: 104 BL 56619
CAVO COMPLETO PER MASSA BATTERIA SUL TELAIO
# 035
MPN: 116 BL 68742
INTERNAL LIGHTING CEILING LIGHT
# 036
MPN: 109 - BL 56628
ENGINE COMPARTMENT LIGHTING CEILING LIGHT
# 037
MPN: 116 BL 67621
ELECTRICAL SYSTEM COMPLETE WITH TERMINAL VALVE BOX AND GS TERMINAL BLOCKS
# 037
MPN: 116 BL 68282
ELECTRICAL SYSTEM COMPLETE WITH VALVE BOX, TERMINALS AND TERMINAL BLOCKS FOR GD
# 038
MPN: 107/A BL 62995
PROTECTIVE BASE BETWEEN VALVE BOX AND FRAME
# 039
MPN: 116 BL 68084
Scatola valvole find alla 250ª vettura
# 039
MPN: 116 BL 71340
Valve box from the 251th car onwards
# 040
MPN: 107 - BL 57278
FLASHING DEVICE FOR DIRECTION LIGHTS
# 040
MPN: 116 BL 67764
FLASHING FIXTURE FOR DIRECTION LIGHTS FOR USA AND GERMANY
# 041
MPN: 116 BL 69903
COVER
# 042
MPN: 116 BL 68741
PLAFONIERA INF. PER CRUSCOTTO
from £100.86
from £100.86
# 043
MPN: 116 BL 56288
REID INVERTITORE PER ACCENSIONE MEZZE IUCI CON ABBAGLIANTI
# 044
MPN: 116 BL 71914
RUBBER BASE FOR FIXING THE WIPER MOTOR
# 045
MPN: 101/9 - BL 55209
COMPLETE BRAIDED CABLE FOR EARTH BETWEEN RADIATOR AND FRAME
# 046
MPN: 109 BL 56620
Complete ground cable between radiator and frame
# 047
MPN: 107/A BL 62615
EARTH CABLE FOR FUEL PUMP
# 048
MPN: 107 - ME 58568
REGOLATORE PER ALTERNATORE
# 049
MPN: 107 ME 58024
TERMINAL BLOCK FOR ALTERNATOR AND REGULATOR
# 050
MPN: 115 ME 67097
COMPLETE ELECTRONIC IGNITION AMPLIFIER
# 051
MPN: 115 ME 68340
AMPLIFIER SUPPORT BASE
# 052
MPN: 109/A BL 62873
REID POWER EXCLUSION FLASHING HEADLIGHTS, ENGINE FANS AND HEATING FANS
from £58.98
from £58.98
# 053
MPN: 107/A BL 65361
WIPER TERMINAL HOLDER BLOCK
# 054
MPN: 107/R BL 62865
Relé comando ventole motore (ad esaurimento montare e particolare N. 52 52873)
# 055
MPN: 116 BL 71915
WIPER MOTOR SEAL CLAMP
# 056
MPN: 116 BL 71916
SOTTOFASCETTA PER TENUTA MOTORINO TERGI
# 059
MPN: DNT 47047
NUT
# 060
MPN: RN 32025
WASHER
# 061
MPN: DNT 47030
NUT
# 062
MPN: RSN 3 2 6 3 5
WASHER
