maserati indy 4.2 brake control parts diagram

030 - Brake Control

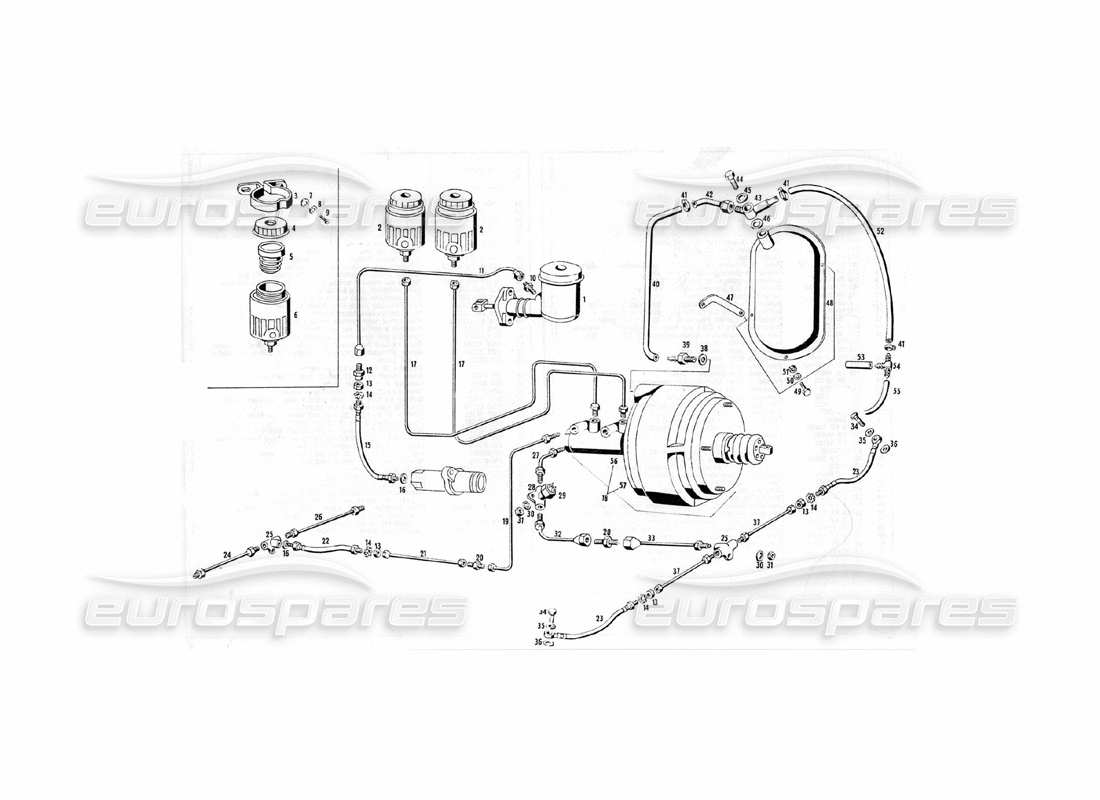

Maserati Indy 4.2 Brake Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Price
                                                                                                                    # 001
                                                                                                                    MPN: 116 FC 66665

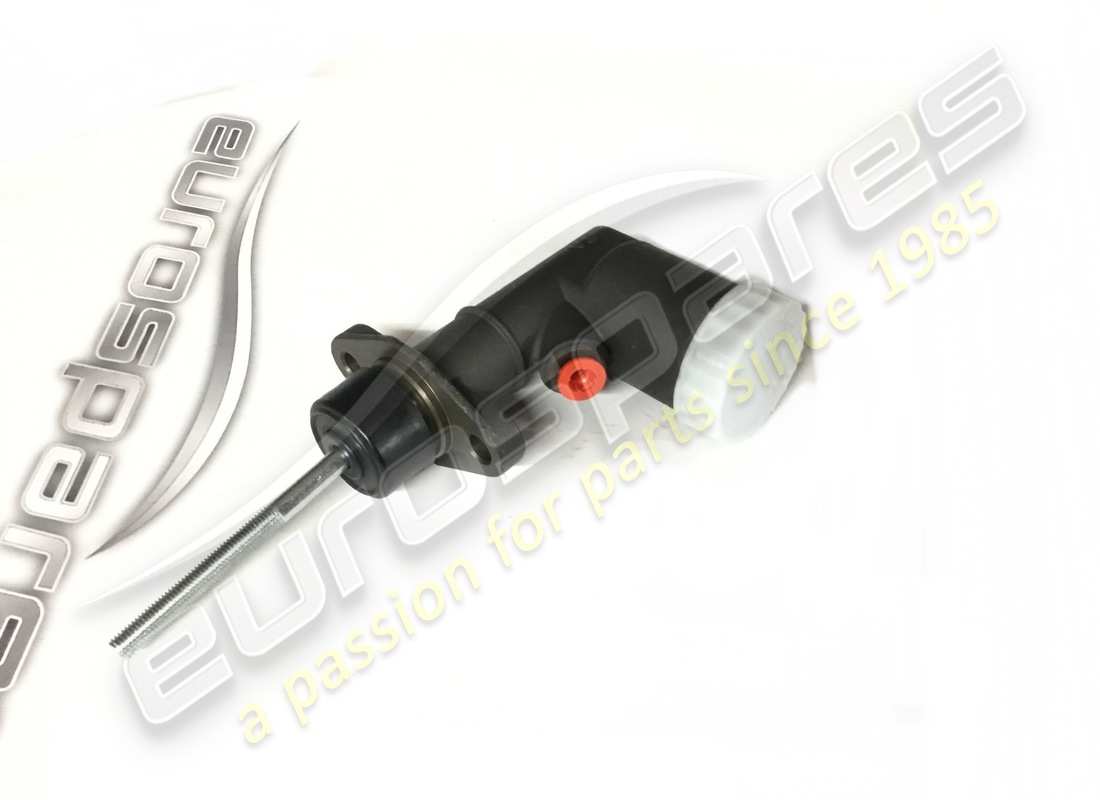

                                                                                                                    0,7 hydraulic clutch pump with built-in reservoir
                                                                                                                    from £239.32
                                                                                                                    from £239.32
                                                                                                                    # 002
                                                                                                                    MPN: 107 - FC 56067
                                                                                                                    OIL TANK FOR HYDRAULIC BRAKE SYSTEM
                                                                                                                    # 003
                                                                                                                    MPN: 107 FC 58709
                                                                                                                    BRAKE OIL RESERVOIR SEAL CLAMP
                                                                                                                    # 004
                                                                                                                    MPN: 107 - FC 58710
                                                                                                                    COVER
                                                                                                                    # 005
                                                                                                                    MPN: 107 FC 58701
                                                                                                                    Bellows for brake fluid reservoir
                                                                                                                    # 006
                                                                                                                    MPN: 107 - FC 58712
                                                                                                                    BRAKE OIL TANK BODY
                                                                                                                    from £183.75
                                                                                                                    from £183.75
                                                                                                                    # 008
                                                                                                                    MPN: SRN 32497
                                                                                                                    WASHER
                                                                                                                    # 009
                                                                                                                    MPN: VNT 49215
                                                                                                                    SCREW
                                                                                                                    # 010
                                                                                                                    MPN: VRN 58047
                                                                                                                    SCREW
                                                                                                                    # 011
                                                                                                                    MPN: 112 FC 62801
                                                                                                                    BUNDY HOSE FROM 1/4 FROM THE PRIMARY PUMP TO THE SECONDARY CLUTCH PUMP
                                                                                                                    # 012
                                                                                                                    MPN: DRN 52896
                                                                                                                    NUT
                                                                                                                    # 013
                                                                                                                    MPN: DNT 46448
                                                                                                                    NUT
                                                                                                                    # 014
                                                                                                                    MPN: RDI 48337
                                                                                                                    WASHER
                                                                                                                    # 015
                                                                                                                    MPN: 101 15134 48336
                                                                                                                    FLEXIBLE PIPE
                                                                                                                    # 016
                                                                                                                    MPN: GN 37991
                                                                                                                    CRANKSET OIL SEAL ON CALIPERS AND FITTINGS
                                                                                                                    # 017
                                                                                                                    MPN: 116 FC 67651
                                                                                                                    TUBO BUNDY DA 1/4 DAL SERBAT ALLA POMPA FRENI ANT. E POST.
                                                                                                                    # 018
                                                                                                                    MPN: 116 FC 68745
                                                                                                                    BRAKE SERVO AND PUMP ASSEMBLY IN TANDEM BRAKE CONTROL WITH 77 MM PIN.
                                                                                                                    # 019
                                                                                                                    MPN: 107 FC 55341
                                                                                                                    Tubo Bundy da 3/16 dalla pompa freni post. at flessibile ponte 1° tratto
                                                                                                                    # 019
                                                                                                                    MPN: 116 FC 64901
                                                                                                                    Tubo Bundy 3/16 dalla pompa freni post. at flessibile ponte 1° tratto per guida destra
                                                                                                                    # 021
                                                                                                                    MPN: 101/10 FC 59653
                                                                                                                    Tubo Bundy da 3/16 dalla pompa freni post. at flessibile ponte 2° tratto
                                                                                                                    # 022
                                                                                                                    MPN: 101 15199 48346
                                                                                                                    FLEXIBLE PIPE
                                                                                                                    # 023
                                                                                                                    MPN: 116 FC 67795
                                                                                                                    FLEXIBLE PIPE
                                                                                                                    # 024
                                                                                                                    MPN: 107 FC 55876
                                                                                                                    TUBO BUNDY DA 3/16 DA 3 VIE PONTE AT CALIPER DESTRO
                                                                                                                    # 025
                                                                                                                    MPN: 101 15190 48347
                                                                                                                    UNION
                                                                                                                    # 027
                                                                                                                    MPN: 116 FC 67860
                                                                                                                    TUBO BUNDY DA 3/16 DALLA POMPA FRENI AL 3 VIE PER IDROSTOP
                                                                                                                    # 028
                                                                                                                    MPN: 101 15188 46964
                                                                                                                    UNION
                                                                                                                    # 029
                                                                                                                    MPN: 107/A FC 62614
                                                                                                                    INTERRUTTORE IDRAULICO PER IUCI D'ARRESTO
                                                                                                                    # 030
                                                                                                                    MPN: RSN 3 2 6 3 5
                                                                                                                    WASHER
                                                                                                                    # 031
                                                                                                                    MPN: DNT. 47031
                                                                                                                    NUT
                                                                                                                    # 032
                                                                                                                    MPN: 115 FC 64898
                                                                                                                    Tubo Bundy da 3/16 dal 3 vie stop at 3 vie traversa (1° tratto)
                                                                                                                    # 033
                                                                                                                    MPN: 107 FC 55279
                                                                                                                    Tubo Bundy da 3/16 dal 3 vie stop at 3 vie traversa (2° tratto)
                                                                                                                    # 033
                                                                                                                    MPN: 116 FC 64897
                                                                                                                    Tubo Bundy 3/16 dal 3 vie stop at 3 vie (2° tratto) per guida destra
                                                                                                                    # 034
                                                                                                                    MPN: VRN 67797
                                                                                                                    SCREW
                                                                                                                    # 035
                                                                                                                    MPN: GN 67835
                                                                                                                    GASKET OR SEAL
                                                                                                                    # 036
                                                                                                                    MPN: GN 67834
                                                                                                                    GASKET OR SEAL
                                                                                                                    # 037
                                                                                                                    MPN: 115 FC 64896
                                                                                                                    TUBO BUNDY DA 3/16 DAL 3 VIE TRAVERSA AI CALIPER FRENI ANT. RUOTA DEX E SIN
                                                                                                                    # 038
                                                                                                                    MPN: GI. 46636
                                                                                                                    CRANKSET 0 16 X 24,4 X 0,8 FOR SAID .
                                                                                                                    # 039
                                                                                                                    MPN: RMN 55939
                                                                                                                    UNION
                                                                                                                    # 040
                                                                                                                    MPN: MN 54780
                                                                                                                    SLEEVE 9,25X15X200 FROM 3 WAY TO THE VACUUM TANK CM. 170
                                                                                                                    This part replaces part number 54780
                                                                                                                    # 041
                                                                                                                    MPN: FRN 37824
                                                                                                                    MTO CLAMPS FOR FIXING THE VACUUM HOSE TO THE VACUUM CYLINDERS AND TO THE 3 WAY FITTING
                                                                                                                    # 042
                                                                                                                    MPN: 107 FC 57763
                                                                                                                    HOSE ON THE EMPTY BOTTLE FOR BONALDI BRAKE SERVO CONNECTION SLEEVE
                                                                                                                    # 043
                                                                                                                    MPN: 107-FC-58717
                                                                                                                    NON-RETURN VALVES FOR VACUUM CYLINDER
                                                                                                                    # 044
                                                                                                                    MPN: VRN/58715
                                                                                                                    UNION
                                                                                                                    # 045
                                                                                                                    MPN: GN/58716
                                                                                                                    CRANKSET FOR UPPER SEAL OF NON-RETURN VALVE
                                                                                                                    # 046
                                                                                                                    MPN: GN 58720
                                                                                                                    CRANKSET FOR LOWER SEAL OF NON-RETURN VALVE
                                                                                                                    # 047
                                                                                                                    MPN: 116 FC 68962
                                                                                                                    PIASTRINO LATERALE TENUTA VACUM
                                                                                                                    # 048
                                                                                                                    MPN: 101 15200 48334
                                                                                                                    VACUUM BOTTLE COMPLETE WITH VALVE AND FITTINGS FOR BONALDI BRAKE SERVO VACUUM RESERVE
                                                                                                                    # 049
                                                                                                                    MPN: BNT/47370
                                                                                                                    BOLT
                                                                                                                    from £3.26
                                                                                                                    from £3.26
                                                                                                                    This part replaces part number 47370
                                                                                                                    # 050
                                                                                                                    MPN: RSN 3 2 4 9 7
                                                                                                                    WASHER
                                                                                                                    # 051
                                                                                                                    MPN: DNT/62557
                                                                                                                    NUT
                                                                                                                    # 052
                                                                                                                    MPN: MN 54780
                                                                                                                    SLEEVE 9,25 X 15,8 FOR CONNECTION OF THE 3 WAY FITTING TO THE VACUM CM. 120
                                                                                                                    This part replaces part number 54780
                                                                                                                    # 053
                                                                                                                    MPN: MN 54780
                                                                                                                    MANICOTTO 0 9,25 X 15,8 COLLEGAMENTO COLLETTORE ASP. AL RACCORDO 3 VIE VACUM CM. 5
                                                                                                                    This part replaces part number 54780
                                                                                                                    # 054
                                                                                                                    MPN: RMN 70948
                                                                                                                    COMPLESSIVO RACC. A MANICOTTO 3 VIE COLLEGAMENTO VACUM AL COLLETTORE ASPIRAZIONE
                                                                                                                    # 055
                                                                                                                    MPN: MN 54780
                                                                                                                    SLEEVE 0 9,25 X 15,8 CONNECTION ON THE REAR SIDE. SUCTION COLLATERAL AT 3 VACUM WAY CM. 15
                                                                                                                    This part replaces part number 54780
                                                                                                                    # 056
                                                                                                                    MPN: FC 67395
                                                                                                                    Brake Pump Ø 25,4
                                                                                                                    # 057
                                                                                                                    MPN: 116 FC 72031
                                                                                                                    BRAKE SERVO COMPLETE
