029 - Rear coolerd brakes

Maserati Indy 4.2 Rear coolerd brakes Parts Diagram

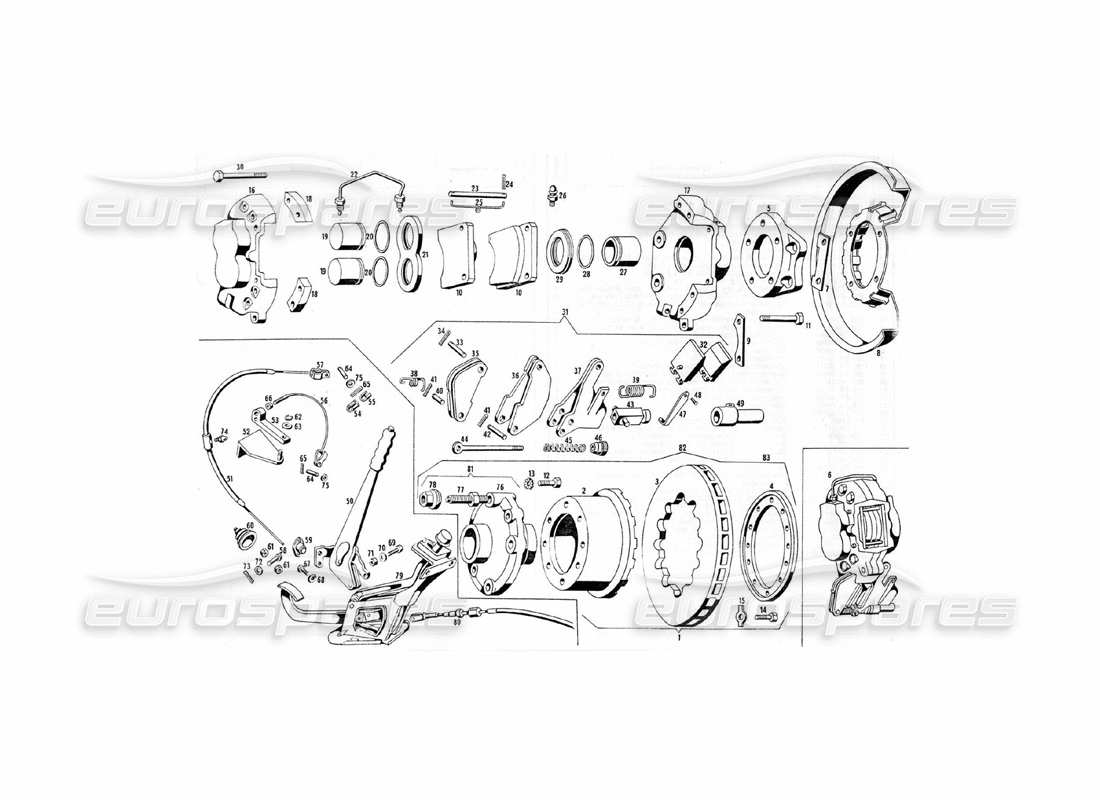

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                                      #
                                                                                                                                                                      Part number
                                                                                                                                                                      Description
                                                                                                                                                                      Price
                                                                                                                                                                      # 001
                                                                                                                                                                      MPN: 116 FP 65881
                                                                                                                                                                      REAR BRAKE VENTILATED DISC ASSEMBLY
                                                                                                                                                                      # 002
                                                                                                                                                                      MPN: 116 FP 65882
                                                                                                                                                                      BELL FOR REAR BRAKE DISC. VENTILATED
                                                                                                                                                                      # 003
                                                                                                                                                                      MPN: 116 FP 65883
                                                                                                                                                                      PLATE FOR REAR BRAKE DISC. VENTILATED
                                                                                                                                                                      # 004
                                                                                                                                                                      MPN: 116 FP 65884
                                                                                                                                                                      Flangia tenuta disco ventilato alla campana post.
                                                                                                                                                                      # 005
                                                                                                                                                                      MPN: 116 FP 65886
                                                                                                                                                                      SUPPORT
                                                                                                                                                                      # 005
                                                                                                                                                                      MPN: 116 FP 65887
                                                                                                                                                                      SUPPORT
                                                                                                                                                                      # 006
                                                                                                                                                                      MPN: 115 FP 65070
                                                                                                                                                                      CALIPER POST. DEX. TP. 12/3 HP
                                                                                                                                                                      # 006
                                                                                                                                                                      MPN: 115 FP 65071
                                                                                                                                                                      CALIPER POST. SIN. TP. 12/3 HP
                                                                                                                                                                      # 007
                                                                                                                                                                      MPN: 101/6 14554 51501
                                                                                                                                                                      LOCKING PLATE FOR BOLTS FIXING CALIPER TO THE SUPPORTS
                                                                                                                                                                      # 008
                                                                                                                                                                      MPN: 116 FP 65888
                                                                                                                                                                      REAR DISC PROTECTION PLATE DEX.
                                                                                                                                                                      # 008
                                                                                                                                                                      MPN: 116 FP 65889
                                                                                                                                                                      REAR DISC PROTECTION PLATE SIN.
                                                                                                                                                                      # 009
                                                                                                                                                                      MPN: 101/7 FP 54774
                                                                                                                                                                      DISTANZIALE FRA SUPPORTO CALIPER E CALIPER
                                                                                                                                                                      # 010
                                                                                                                                                                      MPN: 116 FP 71164
                                                                                                                                                                      Rear braking blocks
                                                                                                                                                                      # 011
                                                                                                                                                                      MPN: BN 64506
                                                                                                                                                                      BOLT
                                                                                                                                                                      # 012
                                                                                                                                                                      MPN: BNT 64468
                                                                                                                                                                      BOLT
                                                                                                                                                                      # 014
                                                                                                                                                                      MPN: BNT/47370
                                                                                                                                                                      BOLT
                                                                                                                                                                      from £3.28
                                                                                                                                                                      from £3.28
                                                                                                                                                                      This part replaces part number 47370
                                                                                                                                                                      # 015
                                                                                                                                                                      MPN: RDL 42638
                                                                                                                                                                      WASHER
                                                                                                                                                                      from £2.52
                                                                                                                                                                      from £2.52
                                                                                                                                                                      # 016
                                                                                                                                                                      MPN: 101/10 FP 61685
                                                                                                                                                                      SEMIPINZA POST. ESTERNA SIN.
                                                                                                                                                                      # 016
                                                                                                                                                                      MPN: 101/70 FP 61686
                                                                                                                                                                      SEMIPINZA POST. ESTERNA DEX.
                                                                                                                                                                      # 017
                                                                                                                                                                      MPN: 101/70 FP 61687
                                                                                                                                                                      SEMIPINZA POST. INTERNA SIN.
                                                                                                                                                                      # 018
                                                                                                                                                                      MPN: 115 FA 64876
                                                                                                                                                                      DISTANZIALE PER SEMIPINZE POST.
                                                                                                                                                                      # 019
                                                                                                                                                                      MPN: 107 FP 58456
                                                                                                                                                                      PISTONE Ø 30,18 (PICCOLO) PER SEMIPINZE ESTERNE
                                                                                                                                                                      # 021
                                                                                                                                                                      MPN: FP 58455
                                                                                                                                                                      REAR CALIPER REPAIR KIT (42 MM)
                                                                                                                                                                      from £63.52
                                                                                                                                                                      from £63.52
                                                                                                                                                                      # 022
                                                                                                                                                                      MPN: 107 FP 58452
                                                                                                                                                                      HOSE COMPLETE WITH CONNECTION FITTINGS
                                                                                                                                                                      # 023
                                                                                                                                                                      MPN: 107 FP 64882
                                                                                                                                                                      PIN
                                                                                                                                                                      # 024
                                                                                                                                                                      MPN: CN58454
                                                                                                                                                                      PIN FOR PLUG TO HOLD ANCHORS
                                                                                                                                                                      # 025
                                                                                                                                                                      MPN: 101/9 FP 55459
                                                                                                                                                                      SPRING
                                                                                                                                                                      # 027
                                                                                                                                                                      MPN: 107 FP 58450
                                                                                                                                                                      PISTONE Ø 42,82 (GRANDE)
                                                                                                                                                                      # 028
                                                                                                                                                                      MPN: GOM58449
                                                                                                                                                                      GOMMINO TENUTA SUL PISTONE Ø 42,82
                                                                                                                                                                      # 030
                                                                                                                                                                      MPN: BN 64883
                                                                                                                                                                      BOLT
                                                                                                                                                                      # 031
                                                                                                                                                                      MPN: 107 FP 70312
                                                                                                                                                                      HANDBRAKE LEVERAGE ASSEMBLY
                                                                                                                                                                      # 032
                                                                                                                                                                      MPN: 107 FP 65987
                                                                                                                                                                      Handbrake blocks
                                                                                                                                                                      # 033
                                                                                                                                                                      MPN: 107 FP 58459
                                                                                                                                                                      PIN
                                                                                                                                                                      # 034
                                                                                                                                                                      MPN: CN 63455
                                                                                                                                                                      PIN ON THE LEVER PINS
                                                                                                                                                                      # 036
                                                                                                                                                                      MPN: 107/A FP 65990
                                                                                                                                                                      LEVER
                                                                                                                                                                      # 037
                                                                                                                                                                      MPN: 107/A FP 65991
                                                                                                                                                                      LEVER
                                                                                                                                                                      # 038
                                                                                                                                                                      MPN: 107/FP 65992
                                                                                                                                                                      SPRING
                                                                                                                                                                      # 039
                                                                                                                                                                      MPN: 107/A FP 65993
                                                                                                                                                                      SPRING
                                                                                                                                                                      # 040
                                                                                                                                                                      MPN: 107/A FP 65994
                                                                                                                                                                      PIN
                                                                                                                                                                      # 041
                                                                                                                                                                      MPN: CN. 43776
                                                                                                                                                                      PIN FOR SAID AND FOR SUPPORT LEVER PIN
                                                                                                                                                                      from £0.86
                                                                                                                                                                      from £0.86
                                                                                                                                                                      # 042
                                                                                                                                                                      MPN: 107/A FP 66000
                                                                                                                                                                      PIN
                                                                                                                                                                      # 043
                                                                                                                                                                      MPN: 107/A FP 65995
                                                                                                                                                                      CRUISE FOR REGISTER TIE ROD
                                                                                                                                                                      # 044
                                                                                                                                                                      MPN: 107 FP 58464
                                                                                                                                                                      TIE ROD
                                                                                                                                                                      # 045
                                                                                                                                                                      MPN: 107/A FP 65996
                                                                                                                                                                      SPRING
                                                                                                                                                                      # 046
                                                                                                                                                                      MPN: 107/A FP 65997
                                                                                                                                                                      NUT
                                                                                                                                                                      # 047
                                                                                                                                                                      -
                                                                                                                                                                      SHEET ON THE CABLE FULCER LEVER FOR ADJUSTING NUT CONTROL
                                                                                                                                                                      # 048
                                                                                                                                                                      MPN: CHN 33756
                                                                                                                                                                      NAIL 4 X 7 FOR SAID
                                                                                                                                                                      # 049
                                                                                                                                                                      MPN: 107/A FP 65999
                                                                                                                                                                      CAP FOR TIE ROD AND AUTOMATIC ADJUSTMENT NUT
                                                                                                                                                                      # 050
                                                                                                                                                                      MPN: 107FM57654
                                                                                                                                                                      LAVA FRENO A MANO
                                                                                                                                                                      # 051
                                                                                                                                                                      MPN: 116 FM 67836
                                                                                                                                                                      COMPLETE HANDBRAKE CABLE FROM THE LEVER TO THE REAR BRAKE. DEX.
                                                                                                                                                                      # 051
                                                                                                                                                                      MPN: 116 FM 71552
                                                                                                                                                                      COMPLETE HAND BRAKE CABLE FROM THE LEVER TO THE REAR BRAKE. LEFT RIGHT DRIVE
                                                                                                                                                                      # 052
                                                                                                                                                                      MPN: 101/9 FM 54728
                                                                                                                                                                      BRACKET / SUPPORT
                                                                                                                                                                      # 052
                                                                                                                                                                      MPN: 109/A - FM 62072
                                                                                                                                                                      BRACKET / SUPPORT
                                                                                                                                                                      # 053
                                                                                                                                                                      MPN: 109/A FM 61531
                                                                                                                                                                      MOLDED HANDBRAKE FOCUS ARM
                                                                                                                                                                      # 054
                                                                                                                                                                      MPN: 101/7 15507 53301
                                                                                                                                                                      TASSELLO TENUTA FLESSIBILE SULLA STAFFA PONTE.(SOLO GUIDA SIN.)
                                                                                                                                                                      # 055
                                                                                                                                                                      MPN: 101/7 FM 54613
                                                                                                                                                                      PATTINO SUL TASSELLO TENUTA FLESSIBILE (SOLO GUIDA SINISTRA)
                                                                                                                                                                      # 056
                                                                                                                                                                      MPN: 115 FM 65063
                                                                                                                                                                      COMPLETE CABLE FROM JOINT TO REAR BRAKE. SIN.
                                                                                                                                                                      # 056
                                                                                                                                                                      MPN: 115 FM 65603
                                                                                                                                                                      COMPLETE CABLE FROM JOINT TO REAR BRAKE. DEX.
                                                                                                                                                                      # 057
                                                                                                                                                                      MPN: 107 FM 54264
                                                                                                                                                                      FORK
                                                                                                                                                                      # 058
                                                                                                                                                                      MPN: 109 FM 55602
                                                                                                                                                                      PIVOT
                                                                                                                                                                      # 060
                                                                                                                                                                      MPN: PFN 59817
                                                                                                                                                                      GROMMET
                                                                                                                                                                      # 060
                                                                                                                                                                      MPN: PFN/50304
                                                                                                                                                                      GROMMET
                                                                                                                                                                      # 061
                                                                                                                                                                      MPN: DNT 47047
                                                                                                                                                                      NUT
                                                                                                                                                                      # 063
                                                                                                                                                                      MPN: RN 38721
                                                                                                                                                                      WASHER
                                                                                                                                                                      # 064
                                                                                                                                                                      MPN: SN 48692
                                                                                                                                                                      PIN
                                                                                                                                                                      from £18.88
                                                                                                                                                                      from £18.88
                                                                                                                                                                      # 067
                                                                                                                                                                      MPN: BNT47021
                                                                                                                                                                      BOLT
                                                                                                                                                                      from £1.78
                                                                                                                                                                      from £1.78
                                                                                                                                                                      This part replaces part number 47021
                                                                                                                                                                      # 068
                                                                                                                                                                      MPN: RSN/32690
                                                                                                                                                                      WASHER
                                                                                                                                                                      # 069
                                                                                                                                                                      MPN: BNT. 47015
                                                                                                                                                                      BOLT
                                                                                                                                                                      # 071
                                                                                                                                                                      MPN: DST/48101
                                                                                                                                                                      NUT
                                                                                                                                                                      # 072
                                                                                                                                                                      MPN: RN 35806
                                                                                                                                                                      WASHER
                                                                                                                                                                      # 073
                                                                                                                                                                      MPN: CN 63373
                                                                                                                                                                      Cotter pin Ø 3,25 for pin on the lever
                                                                                                                                                                      # 074
                                                                                                                                                                      MPN: IN/48089
                                                                                                                                                                      GREASE GREASE Ø 8 X 1,25 ON THE HANDBRAKE CABLE
                                                                                                                                                                      # 075
                                                                                                                                                                      MPN: RN/43855
                                                                                                                                                                      WASHER
                                                                                                                                                                      # 076
                                                                                                                                                                      MPN: 116 FP 65931
                                                                                                                                                                      MOZZO POST. SIN. DEX.
                                                                                                                                                                      # 077
                                                                                                                                                                      MPN: 116 FP 64461
                                                                                                                                                                      COLUMN FOR REAR HUB.
                                                                                                                                                                      # 078
                                                                                                                                                                      MPN: DN/46440
                                                                                                                                                                      NUT
                                                                                                                                                                      # 079
                                                                                                                                                                      MPN: 116 FM 68792
                                                                                                                                                                      PARKING BRAKE COMPLETE WITH INDICATOR AND RETURN WASHERS ONLY FOR CARS WITH AUTOMATIC TRANSMISSION
                                                                                                                                                                      # 080
                                                                                                                                                                      MPN: 116 FM 69099
                                                                                                                                                                      COMPLETE HANDBRAKE CABLE FROM LEVER TO REAR BRAKE. LEFT ONLY WITH AUTOMATIC TRANSMISSION
                                                                                                                                                                      # 081
                                                                                                                                                                      MPN: 116 TP 116038
                                                                                                                                                                      REAR HUB ASSEMBLY
                                                                                                                                                                      # 082
                                                                                                                                                                      MPN: 116 TP 1116039
                                                                                                                                                                      REAR HUB AND VENTILATED DISC ASSEMBLY
