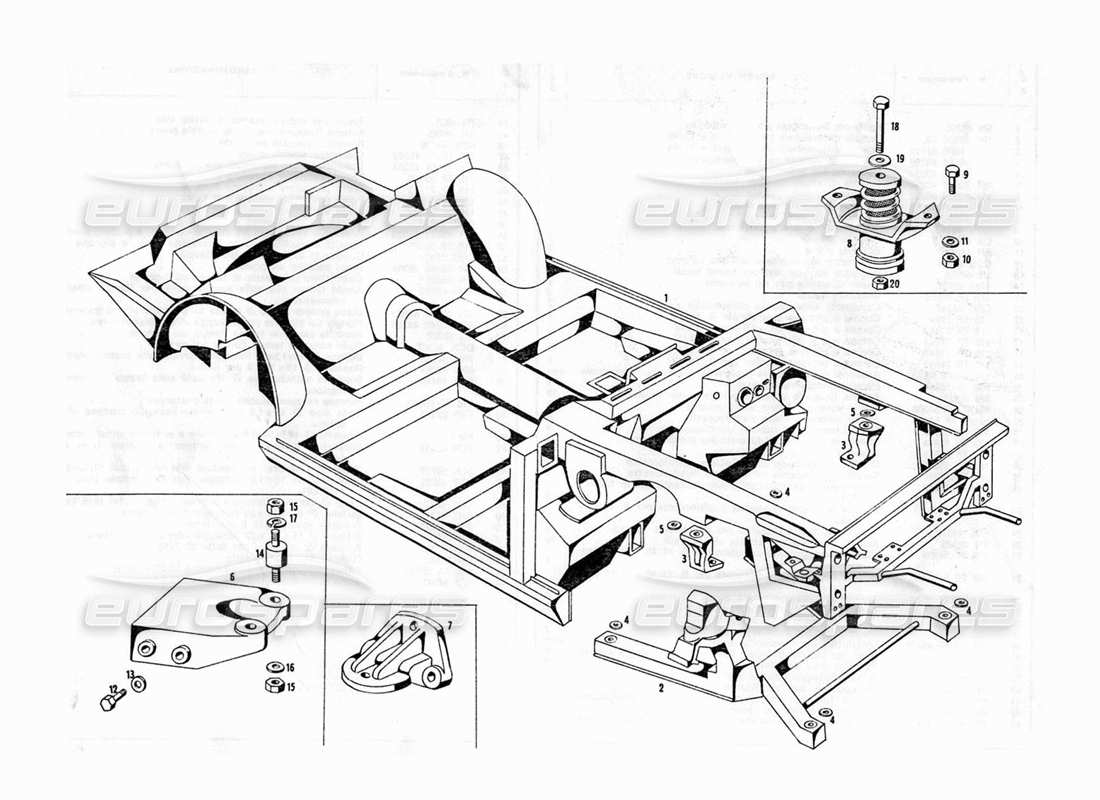

020 - Frame
Maserati Indy 4.2 Frame Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 116 CT 65977
COMPLETE FRAME
# 002
MPN: 116 CT 65078
SOTTOTELAIO COMPLETO
# 003
MPN: 107CT51980
SUPPORT
# 004
MPN: 107 CT 52786
CUSCINETTO IN GOMMA PER FISSAGGIO SOTTOTELAIO AT TELAIO
# 005
MPN: 107 CT 61069
CUSCINETTO IN GOMMA PER FISSAGGIO SOTTOTELAIO AT TELAIO SUILE TRAVI ANTERIORI
# 006
MPN: 101/10 TC 59375
SUPPORT
# 006
MPN: 116 CT 66562
SUPPORT
# 006
MPN: 116 CT 68572
SUPPORT
# 007
MPN: 116 CT 66557
SUPPORT
# 008
MPN: SLN 67157
SUPPORT
# 008
MPN: SLN 67157
SUPPORT
# 008
MPN: SLN 67158
SUPPORT
# 008
MPN: SLN 67738
SUPPORT
# 009
MPN: BNT 55554
BOLT
# 010
MPN: DST 55222
NUT
# 011
MPN: RNT 55375
WASHER
# 012
MPN: BNT 55554
BOLT
# 013
MPN: RAT/46736
WASHER
# 014
MPN: SLN 55531
SUPPORT
Supersession
Supersession
# 014
MPN: SLN 62572
SUPPORT
# 015
MPN: DST/48101
NUT 8 X 1.25
# 016
MPN: RNT 55379
WASHER
# 017
MPN: RSN/33114
WASHER
# 018
MPN: BNT 67312
BOLT
# 019
MPN: RNT 47087
WASHER
# 020
MPN: RNT 47087
NUT
