![maserati indy 4.2 clutch parts diagram](/img/CxEAAETdFtv3h5dmKUPOQARFtQzRKDTIdD7OpV8XmWg8Kni4jS0DAw%3D%3D/maserati-indy-4.2-part-diagram-010.webp)

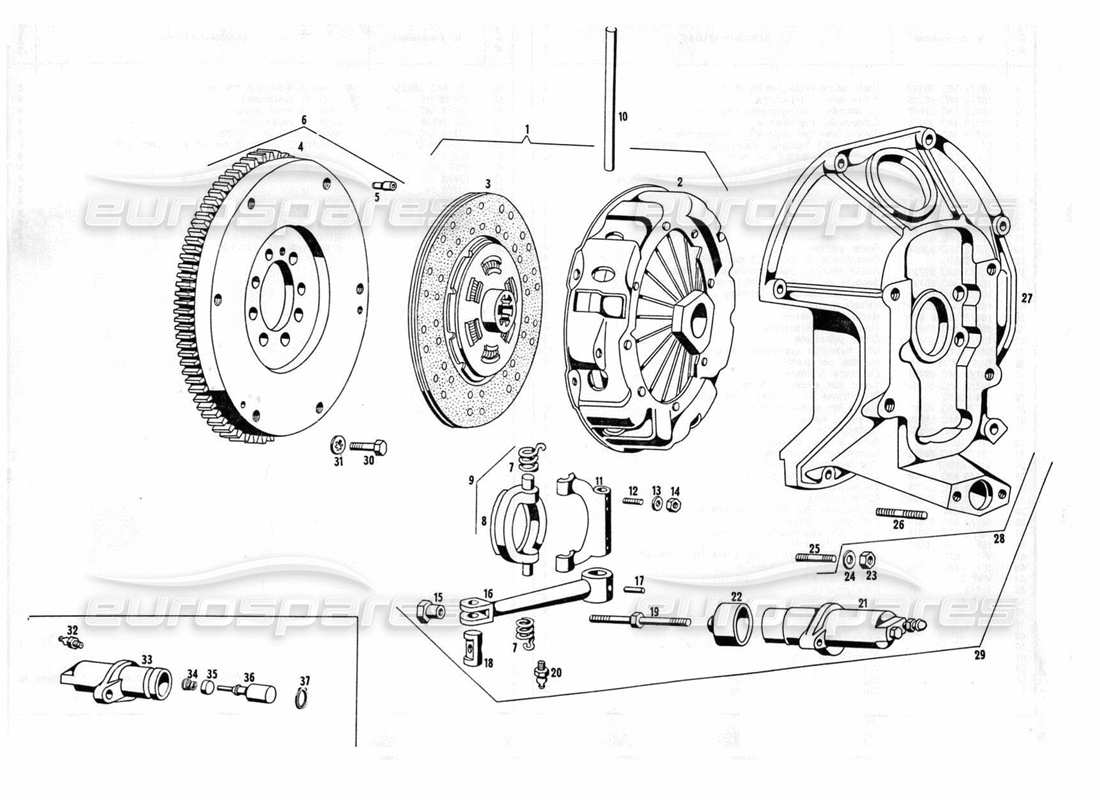

010 - clutch
Maserati Indy 4.2 Clutch Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
TF 62335
CLUTCH KIT 10.½
from
£1,187.42
from
£1,187.42
#
002
MPN:
TF 67154
PRESSURE PLATE 10.5
#
003
MPN:
TF 67819
CLUTCH DISC 10.5''
from
£251.36
from
£251.36
#
004
MPN:
107/2 MM 65984
ENGINE FLYWHEEL FOR CLUTCH
#
005
MPN:
GRN 62551
GRAIN 8 X 7 X 23 CLUTCH CENTERING ON THE FLYWHEEL
#
006
MPN:
116 MM 116007
ENGINE FLYWHEEL COMPLETE WITH GRIN
#
007
MPN:
101/4 TF 51171
SPRING
from
£431.04
from
£431.04
#
008
MPN:
TF 67032
Clutch Bearing
from
£147.00
from
£147.00
#
009
MPN:
107/A TF 68453
SLIDE ASSEMBLY COMPLETE WITH SPRINGS
#
010
MPN:
101/9 TF 55547
Clutch control fork shaft
#
011
MPN:
101 TF 48050
LEVER
#
012
MPN:
SN46652
PIN
from
£25.86
from
£25.86
#
013
MPN:
RAT/45678
WASHER
from
£0.86
from
£0.86
This part replaces part number 45678
#
014
MPN:
DNT 47046
NUT
from
£0.86
from
£0.86
This part replaces part number 47046
#
015
MPN:
DN/46474
NUT
from
£27.15
from
£27.15
#
016
MPN:
109 TF 57407
LEVER
from
£183.62
from
£183.62
#
017
MPN:
SN/46473
PIN
from
£26.37
from
£26.37
#
018
MPN:
101 TF 48111
PIVOT
#
019
MPN:
107/A TF 67379
PUNTALINO COMANDO POMPA SECONDARIA
#
020
MPN:
IN 58389
GREASE GREASE 12 X 1,5 ON THE FORK SHAFT
from
£10.34
from
£10.34
#
021
MPN:
TF 74201
CLUTCH SLAVE CYLINDER
from
£131.25
from
£131.25
This part replaces part number MT48335
- and 1 more. Click to view details
#
021A
MPN:
TM 78201
CLUTCH SLAVE CYLINDER REPAIR KIT
from
£41.95
from
£41.95
#
022
MPN:
101/9 - TF 58735
CAPPUCCIO PARAPOLVERE SULLA POMPA
#
023
MPN:
DNT/47064
NUT
#
024
MPN:
RAT/45680
WASHER
#
025
MPN:
PN/45832
THREADED STUD
#
026
MPN:
PN 68975
N/A
#
027
MPN:
107/A TF 67033
CLUTCH BELL SHIFT GEARBOX SUPPORT 5-20
#
027
MPN:
115 TF 63403
CLUTCH BELL SHIFT GEARBOX SUPPORT 5-325
#
028
MPN:
115 TF 115013
CLUTCH BELL COMPLETE L. STUDS 5-325.
#
028
MPN:
116 TF 116027
CLUTCH BELL COMPLETE WITH STUDS S.5-20
#
029
MPN:
115 TF 115014
L. CLUTCH BELL AND CONTROL ASSEMBLY 5-325
#
029
MPN:
116 TF 1116028
L. CLUTCH BELL AND CONTROL ASSEMBLY 5-20
#
030
MPN:
BNT. 65421
BOLT
#
031
MPN:
RDI54211
WASHER
#
032
MPN:
107FA58418
VENT CAP ON PUMP
#
033
MPN:
101/9TF58731
CORPO POMPA (COMPLETO DI BOCCOLA)
#
034
MPN:
101/9 TF 58732
SPRING
#
035
MPN:
101/9TF58733
RUBBER ON THE SECONDARY CLUTCH PUMP PISTON
#
036
MPN:
101/9TF58734
SECOND CLUTCH PUMP PISTON
#
037
MPN:
ART 47043
RING
