006 - engine cooling

Maserati Indy 4.2 Engine cooling Parts Diagram

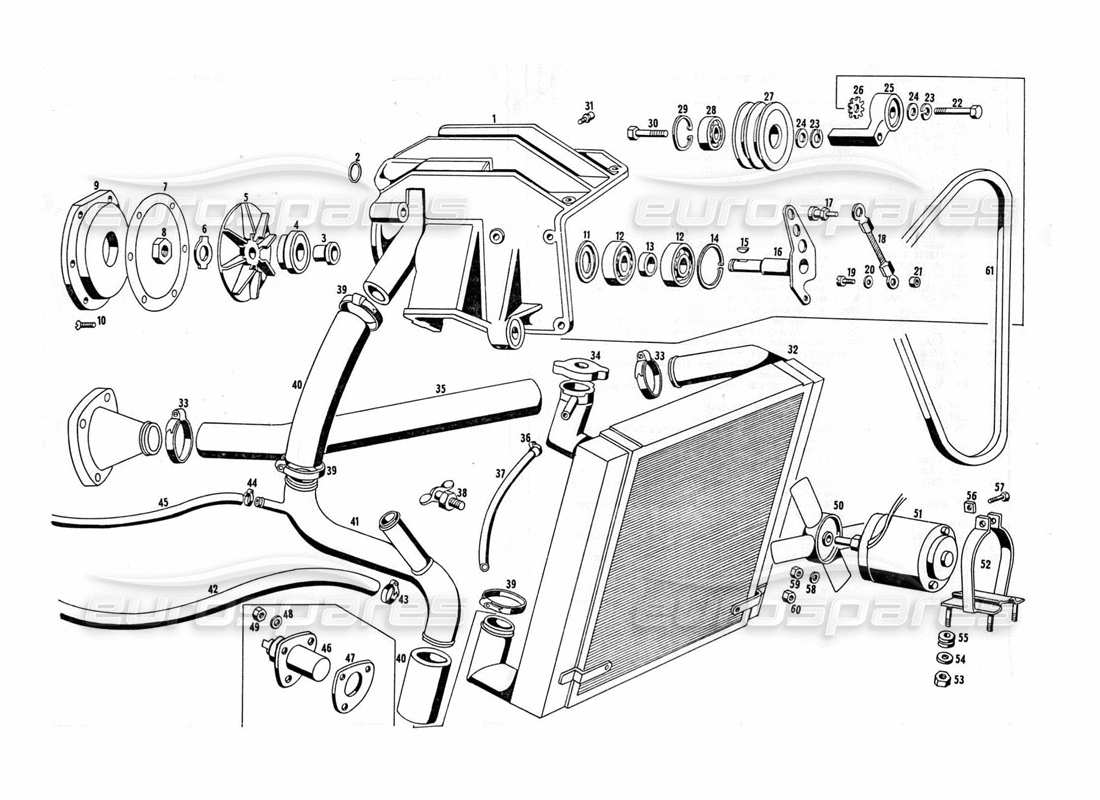

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 116 MA 116030
WATER PUMP ASSEMBLY
# 001
MPN: 116 MA 116031
WATER PUMP, COMPRESSOR AND BELT TENSIONER ASSEMBLY
# 001
MPN: 450253901
WATER PUMP ASSY
from £2,750.00
from £2,750.00
# 002
MPN: GOM 41462
RUBBER 38 X 44 X3 FOR SEAL BETWEEN WATER PUMP BODY AND BASE
# 003
MPN: 107MA54692
Bush on the water pump control shaft
# 004
MPN: MA 0115999
SEALING RING
d.38 mm
from £341.02
from £341.02
# 005
MPN: 107 4542 53913
GIRANTE POMPA ACQUA
Supersession
Supersession
# 006
MPN: GN 54461
STOPPING CRANKSET 14,5 X 27 X 0,8 FOR PUMP IMPELLER FIXING NUT
# 007
MPN: 103 4523 50524
GASKET OR SEAL
# 009
MPN: 107/2 MA 59614
COVER
from £247.86
from £247.86
# 010
MPN: VNT 33020
LIFE 5X 0.8 X 12 FOR FIXING THE REAR COVER TO THE PUMP BODY
# 011
MPN: 107 MA 54693
RING
# 012
MPN: CSC52079
BEARING 17 X 40 X 12 ON THE WATER PUMP DRIVE SHAFT
# 013
MPN: 107MA53930
DISTANZIAME SULL'ALBERO COMANDO POMPA ACQUA
# 014
MPN: ART. 43191
SEEGER RING
# 015
MPN: LN40155
TAB 3 X 5 FOR DRIVING THE PUMP IMPELLER
# 016
MPN: 107/2 MA 64368
Complete water pump control shaft
# 016
MPN: 116 MA 116029
Post complete with towing rope
# 017
MPN: 107/2 64374
GRAIN ON THE PULLEY TO DRIVE THE WATER PUMP SHAFT
# 018
MPN: MA 0064373
Water Pump Cord
from £110.26
from £110.26
# 019
MPN: BN 49603
BOLT
# 021
MPN: 107 MA 57789
COLUMN BETWEEN CORD AND PULLEY CONTROL WATER PUMP AND AIR CONDITIONER
# 022
MPN: BNT 55653
BOLT
# 024
MPN: RNT47101
WASHER
This part replaces part number 47101
# 025
MPN: 107MM55649
ECCENTRIC FOR BELT TENSIONER PULLEY
# 027
MPN: 107MM55650
BELT TENSIONER PULLEY
# 028
MPN: CSC49764
BEARING 20 X 47 X 14 ON THE BELT TENSIONER PULLEY
# 029
MPN: ART/46284
RING
# 030
MPN: 107 MM 55651
Vita bioccaggio puleggla tendicinghia
# 031
MPN: IN/48089
INGRASSATORE TECALAMIT TIPO IDRAULIC GC 36 PER IUBRIFLCAZIONE CUSCINETTI
# 032
MPN: 116 CR 67479
COMPLETE WATER RADIATOR FOR VERTICAL SINGLE-ANGLE CONDENSER ASSEMBLED UNTIL EXHAUSTION
Supersession
Supersession
# 032
MPN: 116 CR 70548
RADIATORE ACQUA COMPLETO SOSTITUISCE 116 CR 67479
# 033
MPN: FRN 37832
FASCETTA MT 3 Ø 50 X 70 PER FISSAGGIO TUBO COLLEGAMENTO RADIATORE H 20 AT MOTORE PARTE SUPERIORE
# 034
MPN: TN41374

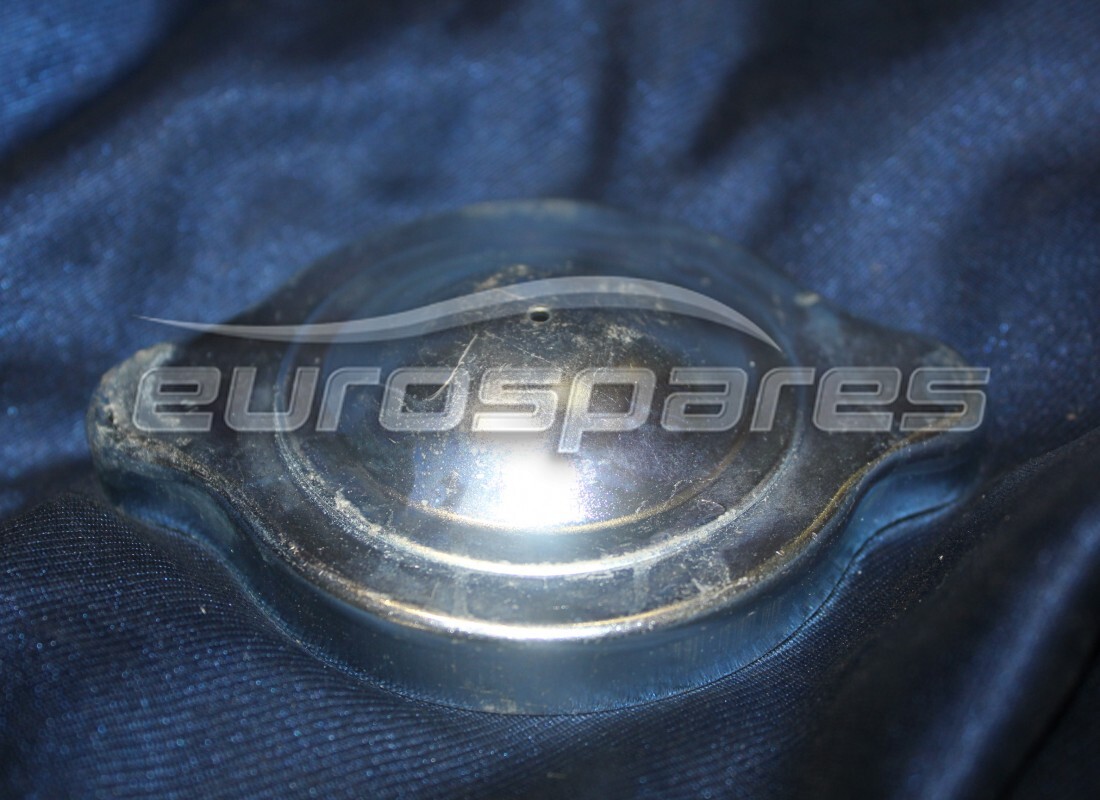

TAPPO Ø 38 PER RADIATORE
from £47.25
from £47.25
# 035
MPN: 116 CR 66571
TUBO COLLEGAMENTO RADIATORS H 20 AL MOTORS PARTE SUPER
# 036
MPN: FRN 65942
FASCETTA Ø 11 FISSAGGIO MANICOTTO RADIATORE
# 037
MPN: TPN 53758
Tubo plastica Ø 4 X 6 X600 sul radiatore
# 038
MPN: 101 - 16440 47390
TAP FOR DRAINAGE OF WATER FROM THE RADIATOR
# 039
MPN: FRN 62541
FASCETTA MT 1 PER FISSAGGIO TUBO RICIRCOLAZIONE ACQUA
# 041
MPN: 116 CR 67851
TUBO COLLEGAMENTO RADIATORE H 20 AL MOTORE (PARTE INFER.)
# 042
MPN: 112 CR 67596
Tubo Ø 32 X40 X380 per ricircolazione acqua dal termostato al raccordo
# 043
MPN: FRN37829
CLAMP FOR FIXING THE INTERMEDIATE HOSE CONNECTION LOWER PART OF THE RADIATOR UPPER PART. MOTOR.
# 044
MPN: FRN/37825
MTO CLAMP FOR WATER RETURN HOSE FROM THE RADIATOR
# 045
MPN: MN 54688
Sleeve Ø 14 X 20 X 130 heating water return from the radiator
# 046
MPN: 101/7 5022 54237
THERMOSTAT AUTOMATIC SWITCH FOR FANS
# 047
MPN: GN 54238
Guarnitura Ø 24 X 35 per tenuta fra radiatore e interruttore per coperchietto sul 2° foro
# 049
MPN: DNT/62557
NUT
# 051
MPN: 115 BL 68922
MOTORINO TP. GAMBERINI COMANDO VENTOLA
# 052
MPN: 115 BL 64904
Fascetta fissaggio motorino Tp. LUCAS e GAMBERINI
# 054
MPN: RN 58406
WASHER
# 055
MPN: GOM 58407
GOMMINO Ø 5X 14 X 10 PER DETTO
# 056
MPN: DNT 47046
DADA Ø 5 X 0,8 SULFA FASCETTA FISSAGGIO MOTORINO TP. LUCAS
from £0.86
from £0.86
This part replaces part number 47046
# 057
MPN: BNT 41857
BOLT
# 058
MPN: RMT 60333
WASHER
# 059
MPN: DST 53496
NUT
# 060
MPN: DNT 47047
NUT
