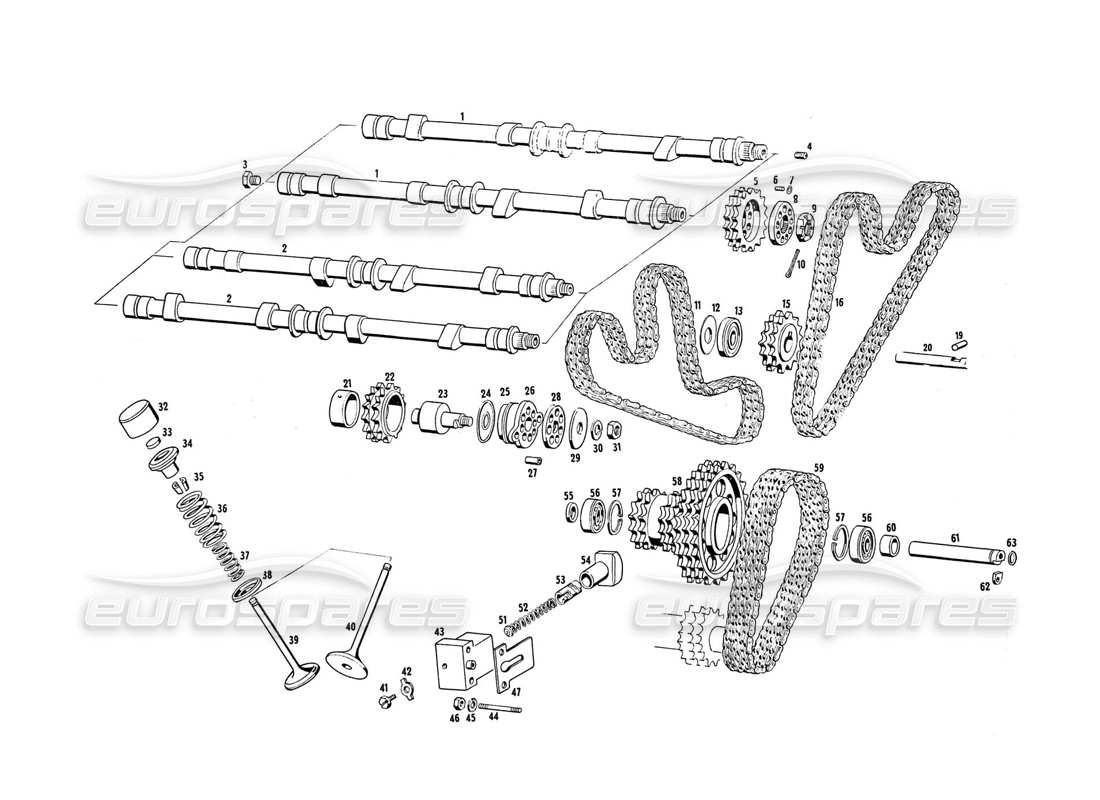

Maserati Indy 4.2 Timing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Key
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 107/3 MD 67203
                                                                                                            Left engine head distribution shaft 4200 cc.
                                                                                                            Left engine head distribution shaft 4200 cc. Genuine Maserati Part - New (to order)
                                                                                                            # 001
                                                                                                            MPN: 115 MD 67182
                                                                                                            Right engine head distribution shaft 4700 cc.
                                                                                                            Right engine head distribution shaft 4700 cc. Genuine Maserati Part - New (to order)
                                                                                                            # 002
                                                                                                            MPN: 107/3 MD 67201
                                                                                                            Right engine head distribution shaft 4200 cc.
                                                                                                            Right engine head distribution shaft 4200 cc. Genuine Maserati Part - New (to order)
                                                                                                            # 002
                                                                                                            MPN: 115 MD 67183
                                                                                                            Left engine head distribution shaft 4700 cc.
                                                                                                            Left engine head distribution shaft 4700 cc. Genuine Maserati Part - New (to order)
                                                                                                            # 003
                                                                                                            MPN: TN51754
                                                                                                            CAP 16X1,5 FOR TIMING SHAFT
                                                                                                            CAP 16xl,5 FOR TIMING SHAFT Genuine Maserati Part - New (to order)
                                                                                                            # 004
                                                                                                            MPN: TN 47332
                                                                                                            CAP 16X1,5 LEFT FOR TIMING SHAFT
                                                                                                            Left cap for camshaft 16 x 1,5 x 21 Genuine Maserati Part - New (to order)
                                                                                                            # 005
                                                                                                            MPN: 103360249794
                                                                                                            GEAR FOR TIMING SHAFT
                                                                                                            GEAR FOR TIMING SHAFT Genuine Maserati Part - New (to order)
                                                                                                            # 006
                                                                                                            MPN: GRN 31105
                                                                                                            SCREW Ø 6 FOR ENGAGEMENT WITH TIMING CONTROL GEAR FLANGE
                                                                                                            Grub screw with flange for distribution control gear Ø 6 x 10 Genuine Maserati Part - New (to order)
                                                                                                            # 007
                                                                                                            MPN: ART 49642
                                                                                                            RING
                                                                                                            RING Genuine Maserati Part - New (to order)
                                                                                                            # 008
                                                                                                            MPN: 103 3022 49795
                                                                                                            FLANGE FOR GEAR ON THE TIMING SHAFT
                                                                                                            CLUTCH WITH FLANGE FOR TIMING CONTROL GEAR Genuine Maserati Part - New (to order)
                                                                                                            # 009
                                                                                                            MPN: DCN 55165
                                                                                                            NUT
                                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                                            # 011
                                                                                                            MPN: 103355350527
                                                                                                            RIGHT DOUBLE CHAIN ​​TIMING CONTROL
                                                                                                            from £324.41
                                                                                                            from £324.41
                                                                                                            RIGHT DOUBLE CHAIN ​​TIMING CONTROL Genuine Maserati Part - New In stock
                                                                                                            CATENA DOPPLA DESTRA COMANDO DISTRIBUZIONE Eurospares Approved Part - New In stock
                                                                                                            # 012
                                                                                                            MPN: ART. 43191
                                                                                                            RING
                                                                                                            RING Genuine Maserati Part - New (to order)
                                                                                                            # 013
                                                                                                            MPN: CSC 45315
                                                                                                            BEARING FOR CRANKCASE IDLER
                                                                                                            Cuscinetto soils puleggia tendicinghia Genuine Maserati Part - New (to order)
                                                                                                            # 015
                                                                                                            MPN: 107/2 MD 59601
                                                                                                            RIGHT CHAIN ​​GEAR ON THE BASE
                                                                                                            LEFT CHAIN ​​GEAR ON THE CRANKCASE. Genuine Maserati Part - New (to order)
                                                                                                            # 016
                                                                                                            MPN: 103355450526
                                                                                                            LEFT DOUBLE CHAIN ​​TIMING CONTROL
                                                                                                            from £295.00
                                                                                                            from £295.00
                                                                                                            LEFT DOUBLE CHAIN ​​TIMING CONTROL Genuine Maserati Part - New (to order)
                                                                                                            CATENA DOPPLA SINISTRA COMANDO DISTRIBUZIONE Eurospares Approved Part - New In stock
                                                                                                            # 020
                                                                                                            MPN: 107/2 MD 59602
                                                                                                            GEAR SHAFT FOR RIGHT CHAIN
                                                                                                            PORTS GEAR SHAFT FOR LEFT CHAIN Genuine Maserati Part - New (to order)
                                                                                                            # 021
                                                                                                            MPN: 107 MD 54742
                                                                                                            BUSH FOR CHAIN ​​TENSIONER SPROCKET
                                                                                                            BUSH FOR CHAIN ​​TENSIONER SPROCKET Genuine Maserati Part - New (to order)
                                                                                                            # 022
                                                                                                            MPN: 433034600
                                                                                                            PIGNONE PER TENDICATENA (20 TEETH)
                                                                                                            (4,9 model)
                                                                                                            PIGNONE PER TENDICATENA (20 TEETH) Genuine Maserati Part - New (to order)
                                                                                                            # 022
                                                                                                            MPN: MD 64410
                                                                                                            PINION FOR CHAIN ​​TENSIONER
                                                                                                            PINION FOR CHAIN ​​TENSIONER Genuine Maserati Part - New (to order)
                                                                                                            # 023
                                                                                                            MPN: 107/2 MD 64411
                                                                                                            PIVOT
                                                                                                            PIVOT Genuine Maserati Part - New (to order)
                                                                                                            # 024
                                                                                                            MPN: Gom 49497
                                                                                                            Gommino Ø 39X46X3 per supporto tendicatena
                                                                                                            from £8.48
                                                                                                            from £8.48
                                                                                                            Rubber ring on chain, stretcher support Ø 39x45x3 Genuine Maserati Part - New (to order)
                                                                                                            # 025
                                                                                                            MPN: GOM/45791
                                                                                                            Gommino Ø 18X24X3 per supporto tendicatena
                                                                                                            RUBBER 18x24x3 ON THE CHAIN ​​TENSIONER PIN SUPPORT Genuine Maserati Part - New (to order)
                                                                                                            # 026
                                                                                                            MPN: 101 /2 3742 49285
                                                                                                            SUPPORT
                                                                                                            SUPPORT Genuine Maserati Part - New (to order)
                                                                                                            # 028
                                                                                                            MPN: 101/2 3743 49286
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 030
                                                                                                            MPN: RSN/33114
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 031
                                                                                                            -
                                                                                                            NUT
                                                                                                            # 031
                                                                                                            MPN: DN 64309
                                                                                                            NUT
                                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                                            # 032
                                                                                                            MPN: C114 MD 69086
                                                                                                            Valve control cup
                                                                                                            Valve control cup Genuine Maserati Part - New (to order)
                                                                                                            # 033
                                                                                                            MPN: 107/3 MD 68722
                                                                                                            Pastiqlia di regolazione gioco valvole
                                                                                                            Pastiqlia di regolazione gioco valvole Genuine Maserati Part - New (to order)
                                                                                                            # 034
                                                                                                            MPN: 101 - 3412 48008
                                                                                                            UPPER CAP FOR VALVE SPRINGS
                                                                                                            from £49.16
                                                                                                            from £49.16
                                                                                                            UPPER VALVE SPRING CAP Genuine Maserati Part - New (to order)
                                                                                                            # 035
                                                                                                            MPN: 101 - 3414 48005
                                                                                                            UPPER VALVE SPRING CAP RETAINING HALF
                                                                                                            SEMICONI RITEGNO SCOCLELLINO SUPERIORE MOLLE VALVOLE Genuine Maserati Part - New (to order)
                                                                                                            # 036
                                                                                                            MPN: 101 3402 47982
                                                                                                            SPRING
                                                                                                            from £64.40
                                                                                                            from £64.40
                                                                                                            SPRING Genuine Maserati Part - New (to order)
                                                                                                            # 037
                                                                                                            MPN: 101 3406 47983
                                                                                                            SPRING
                                                                                                            from £42.38
                                                                                                            from £42.38
                                                                                                            SPRING Genuine Maserati Part - New (to order)
                                                                                                            # 038
                                                                                                            MPN: 103 1034 50531
                                                                                                            Scodellino inferiore per molle valvole
                                                                                                            Scodellino inferiore per molle valvole Genuine Maserati Part - New (to order)
                                                                                                            # 039
                                                                                                            MPN: 107/3 MD 71218
                                                                                                            VALVOLA SCARICO
                                                                                                            VALVOLA SCARICO Genuine Maserati Part - New (to order)
                                                                                                            # 040
                                                                                                            MPN: 107330253904
                                                                                                            VALVOLA ASPIRAZIONE
                                                                                                            from £46.73
                                                                                                            from £46.73
                                                                                                            VALVOLA ASPIRAZIONE Genuine Maserati Part - New (to order)
                                                                                                            VALVE Eurospares Approved Part - New In stock
                                                                                                            VALVE Eurospares Approved Part - New (to order)
                                                                                                            # 041
                                                                                                            MPN: 107 MD 58376
                                                                                                            REAR AUTOMATIC TENSIONER CAP
                                                                                                            Automatic tensioner rear cap. Genuine Maserati Part - New (to order)
                                                                                                            # 043
                                                                                                            MPN: 107 MD 58378
                                                                                                            AUTOMATIC TENSIONER SHOE HOLDER BODY
                                                                                                            Pad holder Genuine Maserati Part - New (to order)
                                                                                                            # 044
                                                                                                            MPN: PN 64825
                                                                                                            THREADED STUD
                                                                                                            Details without numbers at the bottom of the illustrative table
                                                                                                            THREADED STUD Genuine Maserati Part - New (to order)
                                                                                                            # 045
                                                                                                            MPN: RDI55990
                                                                                                            WASHER
                                                                                                            Details without numbers at the bottom of the illustrative table
                                                                                                            Rondella Ø 8x15x0,8 per fissaggio pompe freno e frizione Genuine Maserati Part - New (to order)
                                                                                                            # 046
                                                                                                            MPN: DNT 54945
                                                                                                            NUT
                                                                                                            Details without numbers at the bottom of the illustrative table
                                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                                            # 047
                                                                                                            MPN: 107 MD 58379
                                                                                                            REAR PLATE AUTOMATIC TENSIONER
                                                                                                            Automatic tensioner rear plates Genuine Maserati Part - New (to order)
                                                                                                            # 051
                                                                                                            MPN: 107 MD 58380
                                                                                                            TENSIONER SPRING RETAINING CAPS
                                                                                                            SPRING RETAINER Genuine Maserati Part - New (to order)
                                                                                                            # 052
                                                                                                            MPN: 107 MD 58381
                                                                                                            SPRING
                                                                                                            from £5.94
                                                                                                            from £5.94
                                                                                                            Stretcher spring Genuine Maserati Part - New (to order)
                                                                                                            # 053
                                                                                                            MPN: 107 MD 58382
                                                                                                            AUTOMATIC TENSIONER SPRING RETAINER PISTON
                                                                                                            Automatic tensioner spring retainer plunger Genuine Maserati Part - New (to order)
                                                                                                            # 054
                                                                                                            MPN: 107 MD 58383
                                                                                                            SLIDE WITH RUBBER FOR AUTOMATIC TENSIONER
                                                                                                            Pad with rubber for automatic tensioner Genuine Maserati Part - New (to order)
                                                                                                            # 055
                                                                                                            MPN: 103350950521
                                                                                                            DISTANZIALE POSTERIORS PER INGRANAGGIO TRIPLO
                                                                                                            REAR SPACER FOR TRIPLE GEAR Genuine Maserati Part - New (to order)
                                                                                                            # 056
                                                                                                            MPN: CSC43806
                                                                                                            Triple gear bearing
                                                                                                            Triple gear bearing Genuine Maserati Part - New (to order)
                                                                                                            # 058
                                                                                                            MPN: 103350849782
                                                                                                            CENTRAL TRIPLE GEAR BASE
                                                                                                            from £1,478.82
                                                                                                            from £1,478.82
                                                                                                            CENTRAL TRIPLE GEAR BASE Genuine Maserati Part - New (to order)
                                                                                                            # 059
                                                                                                            MPN: 103355250525
                                                                                                            TRIPLE TIMING CONTROL CHAIN
                                                                                                            from £297.47
                                                                                                            from £297.47
                                                                                                            TRIPLE TIMING CONTROL CHAIN Genuine Maserati Part - New (to order)
                                                                                                            CATENA TRIPLE COMANDO DISTRIBUTORS Eurospares Approved Part - New In stock
                                                                                                            # 060
                                                                                                            MPN: 103350750522
                                                                                                            FRONT SPACER FOR TRIPLE CENTRAL GEAR
                                                                                                            FRONT SPACER FOR TRIPLE CENTRAL GEAR Genuine Maserati Part - New (to order)
                                                                                                            # 061
                                                                                                            MPN: 107 MD 55974
                                                                                                            SHAFT FOR CENTRAL TRIPLE GEAR BASE
                                                                                                            Shaft for central crankcase gear wheel Genuine Maserati Part - New (to order)
                                                                                                            # 062
                                                                                                            MPN: 107 MD 55975
                                                                                                            LOCKING PLATE FOR TRIPLE GEAR SHAFT
                                                                                                            Stopper for triple gear shaft Genuine Maserati Part - New (to order)
                                                                                                            # 063
                                                                                                            MPN: Gom 57307
                                                                                                            Rubber Ø 14,2X2,2 for triple gear shaft
                                                                                                            Rubber ring Ø 14.2x2.2 Genuine Maserati Part - New (to order)
