maserati ghibli (2017) a/c unit: diffusion parts diagram

08.42.1 - a/c unit: diffusion

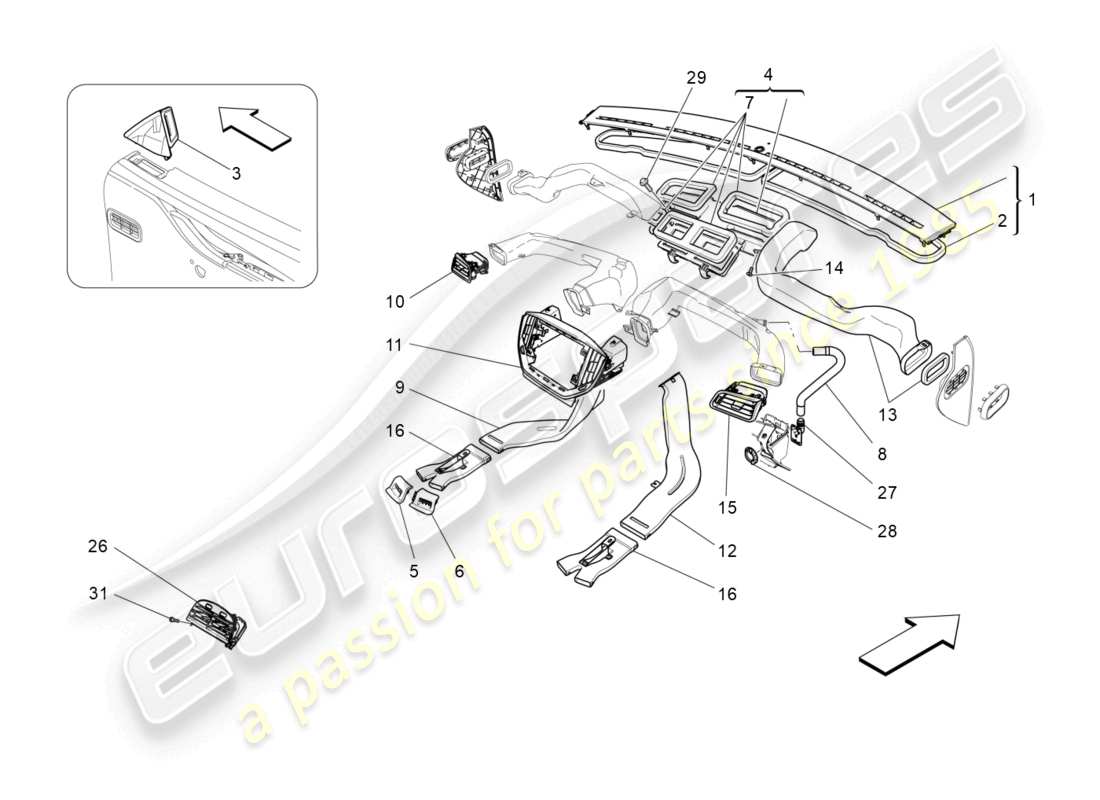

Maserati Ghibli (2017) A/C UNIT: DIFFUSION Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 670071084
DEFROSTER PLATE
Valid from assembly: 5055264 - 5091558. Colour: BLACK.Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £98.74
from £98.74
This part replaces part number 670011967
MOSTRINA DEFROSTER NERO Genuine Maserati Part - New (to order)

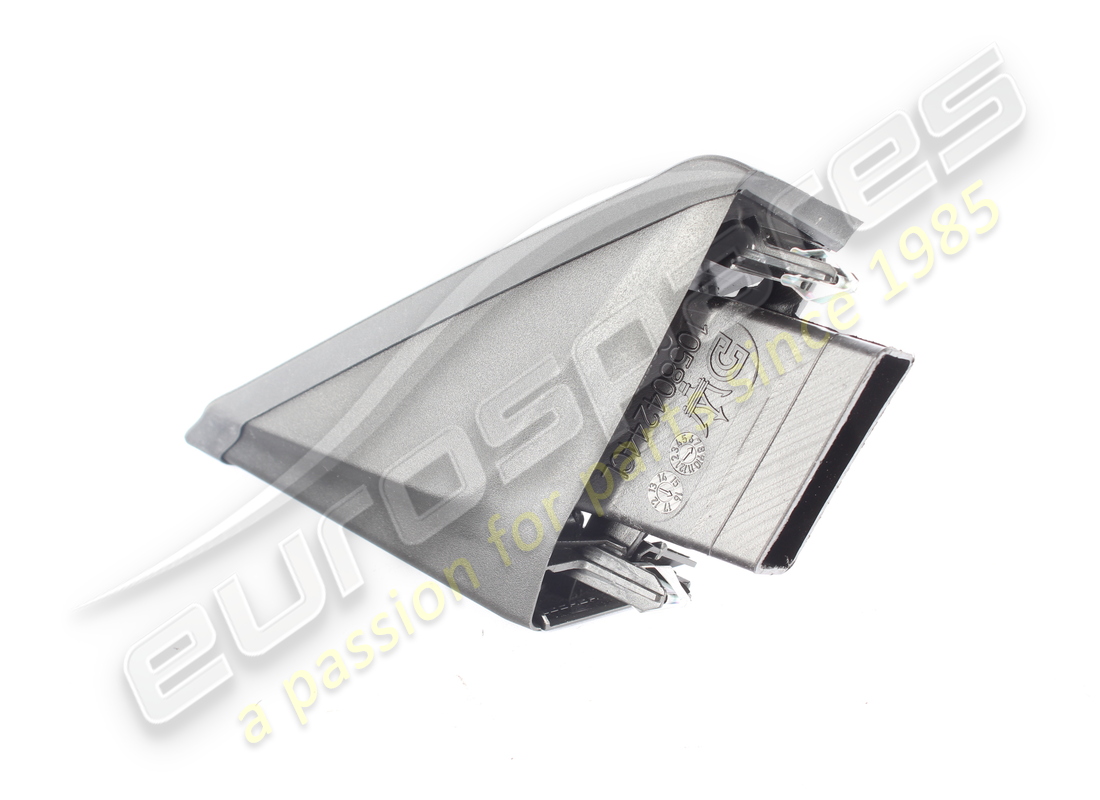

# 003
MPN: 670040480
RH MIRROR INTERNAL TRIM
Valid from assembly: 5039763. Colour: BLACK.Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £28.92
from £28.92
This part replaces part number 670011978 which we have in stock - and 1 more. Click to view details
MOSTRINA INTERNA SPECCHIO DX Genuine Maserati Part - New (to order)
MOSTRINA INTERNA SPECCHIO DX Genuine Maserati Part - Used In stock
# 003
MPN: 670040481

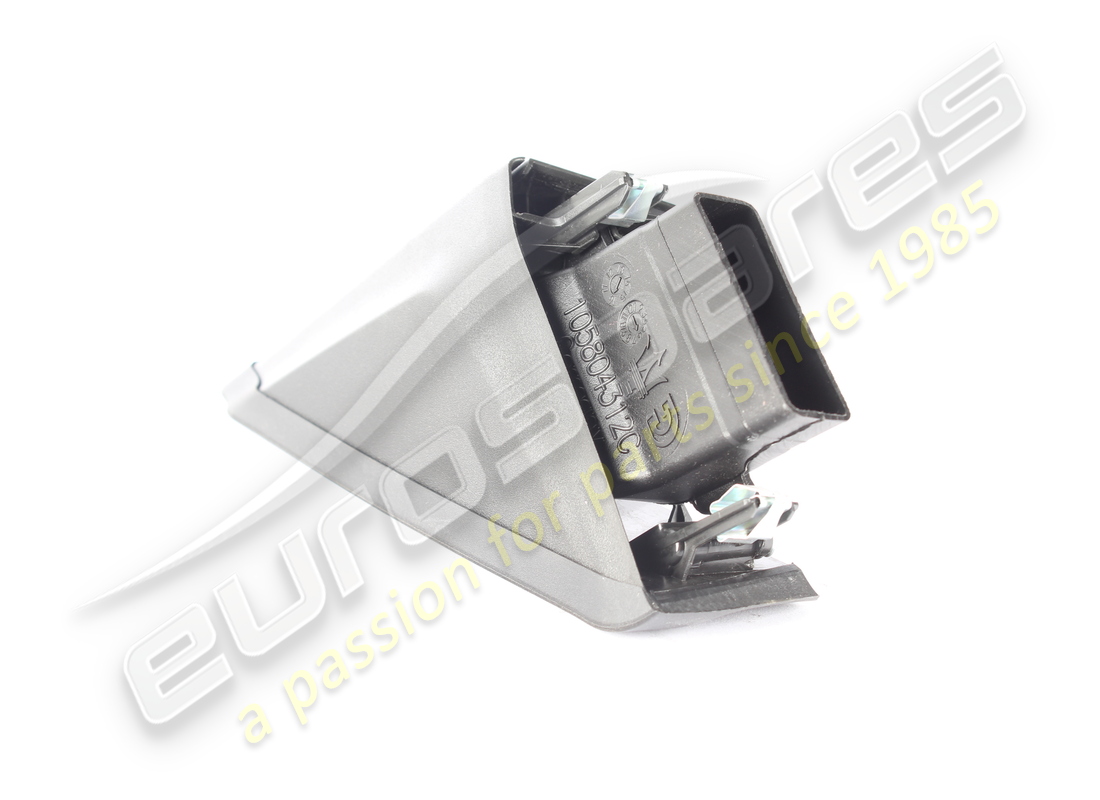

LH MIRROR INTERNAL TRIM
Valid from assembly: 5039763. Colour: BLACK.Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £35.63
from £35.63
This part replaces part number 670013598 which we have in stock - and 1 more. Click to view details
MOSTRINA INTERNA SPECCHIO SX Genuine Maserati Part - New (to order)
MOSTRINA INTERNA SPECCHIO SX Genuine Maserati Part - Used In stock
# 004
MPN: 670007558
DEFROSTER-HVAC CHANNEL UNION ASSEMBLY
Valid from assembly: 0 - 5103644. Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £67.22
from £67.22
RACCORDO VENTILAZIONE Genuine Maserati Part - New (to order)
# 005
MPN: 670014563
LH REAR AIR DUCT GRILL
Colour: BLACK.Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £3.36
from £3.36
LH REAR GRILL BLACK Genuine Maserati Part - New (to order)
# 006
MPN: 670015206
RH REAR AIR DUCT GRILL
Colour: BLACK.Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £3.36
from £3.36
RH REAR GRILL Genuine Maserati Part - New (to order)
# 007
MPN: 670007560
DEFROSTER-HVAC UNION GASKET
Valid from assembly: 0 - 5103644. Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £35.87
from £35.87
GUARNIZIONE RACCORDO DEFROST Genuine Maserati Part - New (to order)
# 008
MPN: 670031754
REFRIGERATED COMPARTMENT AIR DUCT
Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £19.02
from £19.02
CONDOTTO INGRESSO ARIA FRESC Genuine Maserati Part - New (to order)
# 009
MPN: 670001501
REAR LEFT AIR DUCT
Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £16.49
from £16.49
CONDOTTO ARIA PIEDI POST.SX Genuine Maserati Part - New (to order)

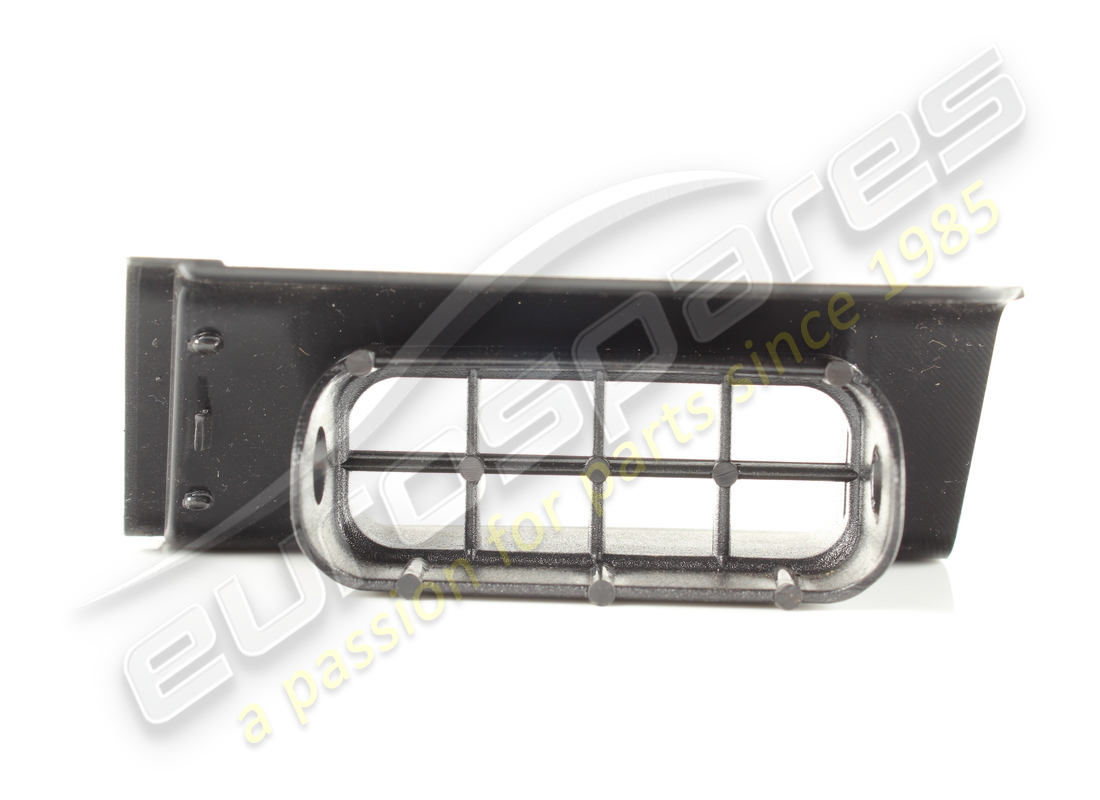

# 010
MPN: 670019062
LH SIDE DASHBOARD AIR VENT
Colour: BLACK.Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £31.11
from £31.11
BOCCHETTA PLANCIA SX. Genuine Maserati Part - New (to order)
BOCCHETTA PLANCIA SX. Genuine Maserati Part - Used In stock
# 011
MPN: 670066392
CENTRAL DASHBOARD TRIM PLATE
Valid from assembly: 5058886 - 5103644. Colour: BLACK.Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £162.76
from £162.76
MOSTRINA CENTR.PLANCIA Genuine Maserati Part - New (to order)

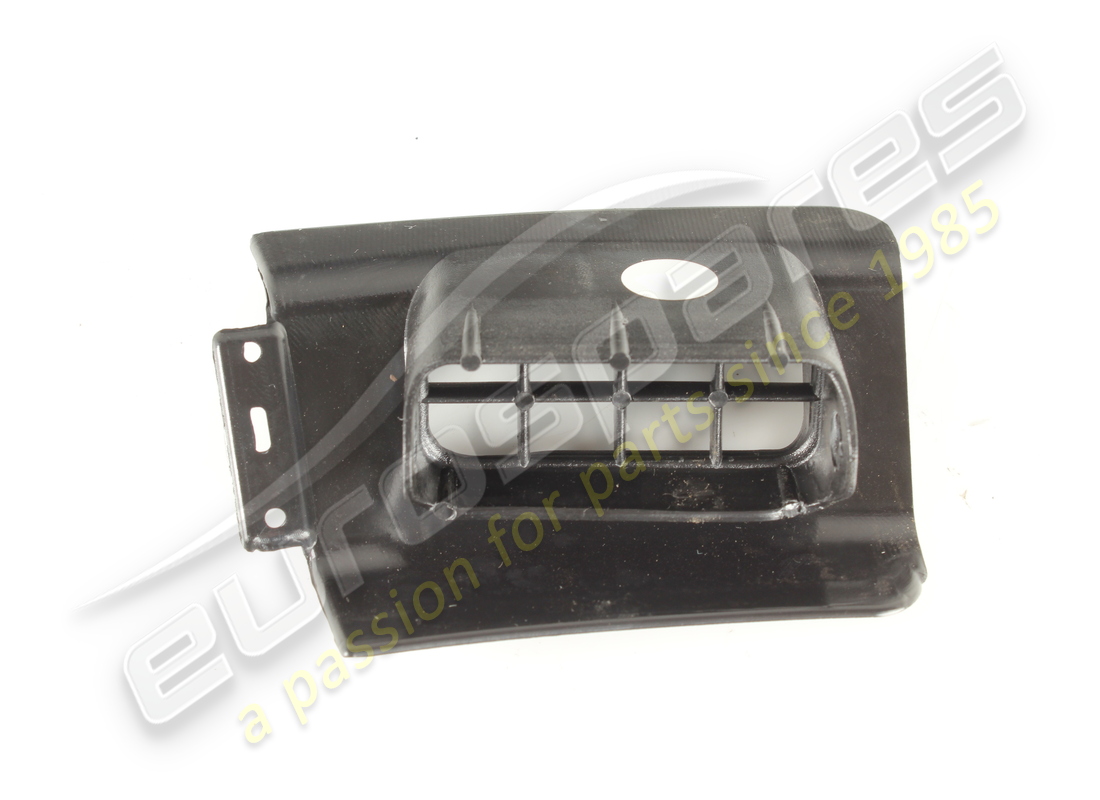

# 012
MPN: 670001500
REAR RIGHT AIR DUCT
Suitable for: AUTOMATIC | 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 410 HP, 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | CHILE, EUROPE, ITALY, JAPAN, USA
from £16.49
from £16.49
CONDOTTO ARIA PIEDI POST.DX Genuine Maserati Part - New (to order)
# 012
MPN: 670006023
REAR RIGHT AIR DUCT
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN, USA
from £16.20
from £16.20
CONDOTTO ARIA PIEDI POST.DX Genuine Maserati Part - New (to order)
# 013
MPN: 670004688
AIR DUCT
Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £28.46
from £28.46
CONDOTTO ARIA DEMISTER DX GS Genuine Maserati Part - New (to order)
# 014
MPN: 670006484
SCREW
Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £1.08
from £1.08
VITE(NORMALE) M5X16 TBFL Genuine Maserati Part - New (to order)
# 015
MPN: 670019061
RH SIDE DASHBOARD AIR VENT
Colour: BLACK.Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £31.11
from £31.11
BOCCHETTA PLANCIA DX. Genuine Maserati Part - New (to order)
BOCCHETTA PLANCIA DX. Genuine Maserati Part - Used In stock
# 016
MPN: 670004970
UNDER SEAT CONNECTOR
Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £9.11
from £9.11
RACCORDO CONDOTTO SOTTO SEDI Genuine Maserati Part - New (to order)
RACCORDO CONDOTTO SOTTO SEDI Genuine Maserati Part - Used In stock
# 026
MPN: 670021523
REAR AIR VENT
Valid from assembly: 0 - 5099615. Colour: BLACK.Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 027
MPN: 673001304
AIR DUCT UNION
Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £3.74
from £3.74
RACCORDO CONDOTTO ARIA Genuine Maserati Part - New (to order)
# 028
MPN: 673001306
AIR OUTLET CLOSURE
Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £2.85
from £2.85
AIR EXIT SEAL Genuine Maserati Part - New (to order)
# 029
MPN: 675000464
SCREW
Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £1.08
from £1.08
VITE A/MT/TBFNIC 4X16 TIPO A Genuine Maserati Part - New (to order)
# 031
MPN: 670006374
SCREW
Suitable for: CHILE, EUROPE, ITALY, JAPAN, USA
from £1.85
from £1.85
VITE CON ROSETTA M4.2X16 Genuine Maserati Part - New (to order)
