maserati ghibli 2.8 (non abs) central and engine compartment wiring parts diagram

039 - Central and Engine Compartment Wiring

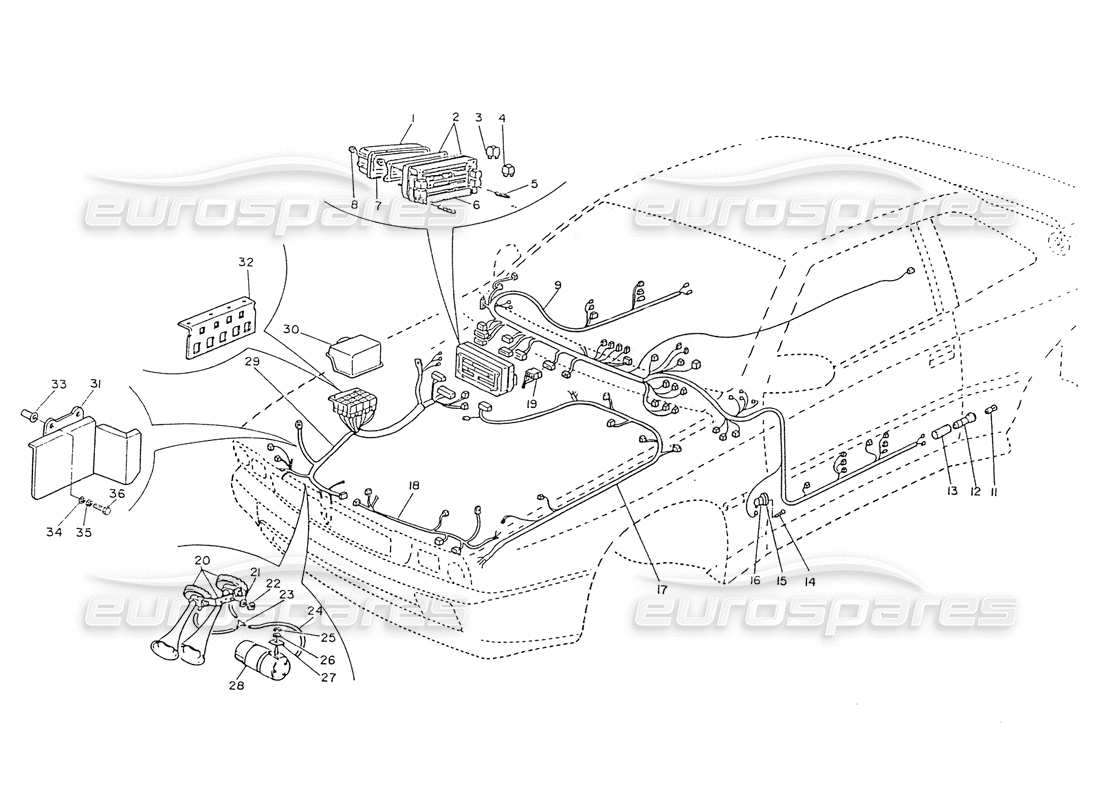

Maserati Ghibli 2.8 (Non ABS) Central and Engine Compartment Wiring Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 000
MPN: FHAN210

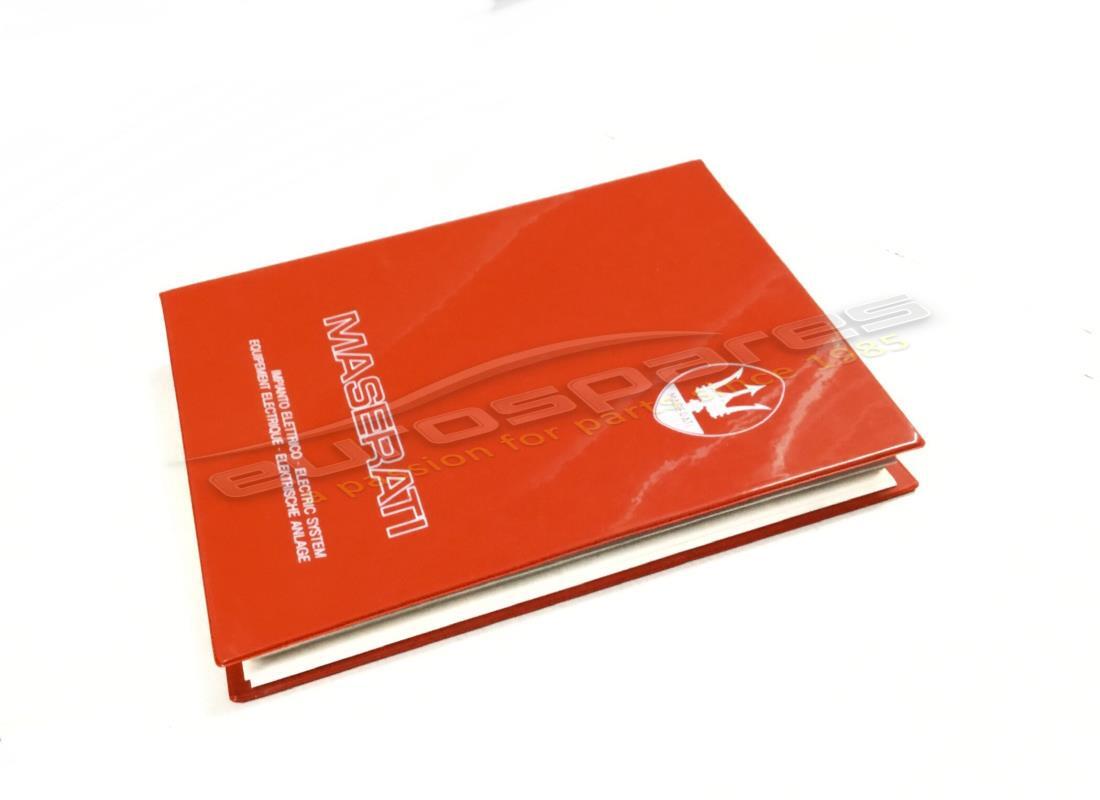

ELECTRIC SYSTEM EQUIPMENT CATALOGUE
from £250.00
from £250.00
# 001
MPN: 313052336
CONTROL UNIT GUARD
from £0.70
from £0.70
# 002
MPN: 313020104
CONTROL UNIT ASSY
from £253.17
from £253.17
# 003
MPN: 313351139
RELAY
from £2.00
from £2.00
This part replaces part number 30331137
# 004
MPN: 313320136
DIODE BRIDGE
from £6.44
from £6.44
# 005
MPN: 87200005
5A FUSE
Not supplied
# 005
MPN: 87200008
8A FUSE
Not supplied
# 005
MPN: 87200016
16A FUSE
Not supplied
# 006
MPN: 313020339
FUSE BOX COVER
from £0.68
from £0.68
# 009
MPN: 363000107
MAIN CABLE HARNESS
from £191.30
from £191.30
# 011
MPN: 187520300
12V 3W BULB
from £0.52
from £0.52
# 012
MPN: 30311113
DOOR LIGHT
from £4.13
from £4.13
# 013
MPN: 53311300
CUP
from £0.70
from £0.70
# 014
MPN: 119535130
SCREW
# 015
MPN: 53211305
GASKET
from £0.70
from £0.70
# 016
MPN: 34331114
DOOR SWITCH
# 017
MPN: 393050142
LH ENGINE COMPARTMENT HARNESS
from £118.70
from £118.70
This part replaces part number 313052142
# 018
MPN: 393050145
FRONT ENGINE COMPARTMENT HARNESS
from £87.92
from £87.92
# 019
MPN: 393050128
DIODE CONNECTOR
from £2.20
from £2.20
# 020
MPN: 313320006
HORN ASSY
from £19.10
from £19.10
# 023
MPN: 313320324
T -UN I ON
from £7.22
from £7.22
# 024
MPN: 314020316
PIPE
from £1.82
from £1.82
This part replaces part number 313320325
# 025
MPN: 125100080
NUT
from £0.86
from £0.86
# 028
MPN: 313320146
COMPRESSOR
from £56.57
from £56.57
# 029
MPN: 393050143
RH ENGINE COMPARTMENT HARNESS
from £174.86
from £174.86
# 030
MPN: 313052337
ENGINE COMPARTMENT RELAY PROTECTION
from £9.02
from £9.02
# 031
MPN: 363005502
DEFLECTOR
Valid for 05
from £27.93
from £27.93
# 032
MPN: 313052303
RELAY SUPPORT BRACKET
from £5.12
from £5.12
# 033
MPN: 315220303
BUSHING
Valid for 05
from £0.70
from £0.70
# 034
MPN: 312220411
WASHER
Valid for 05
from £0.47
from £0.47
# 035
MPN: 138410060
SPRING WASHER
Valid for 05
# 036
MPN: 311053394
SCREW
Valid for 05
