036 - Windshield Washer and Wiper

Maserati Ghibli 2.8 (Non ABS) Windshield Washer and Wiper Parts Diagram

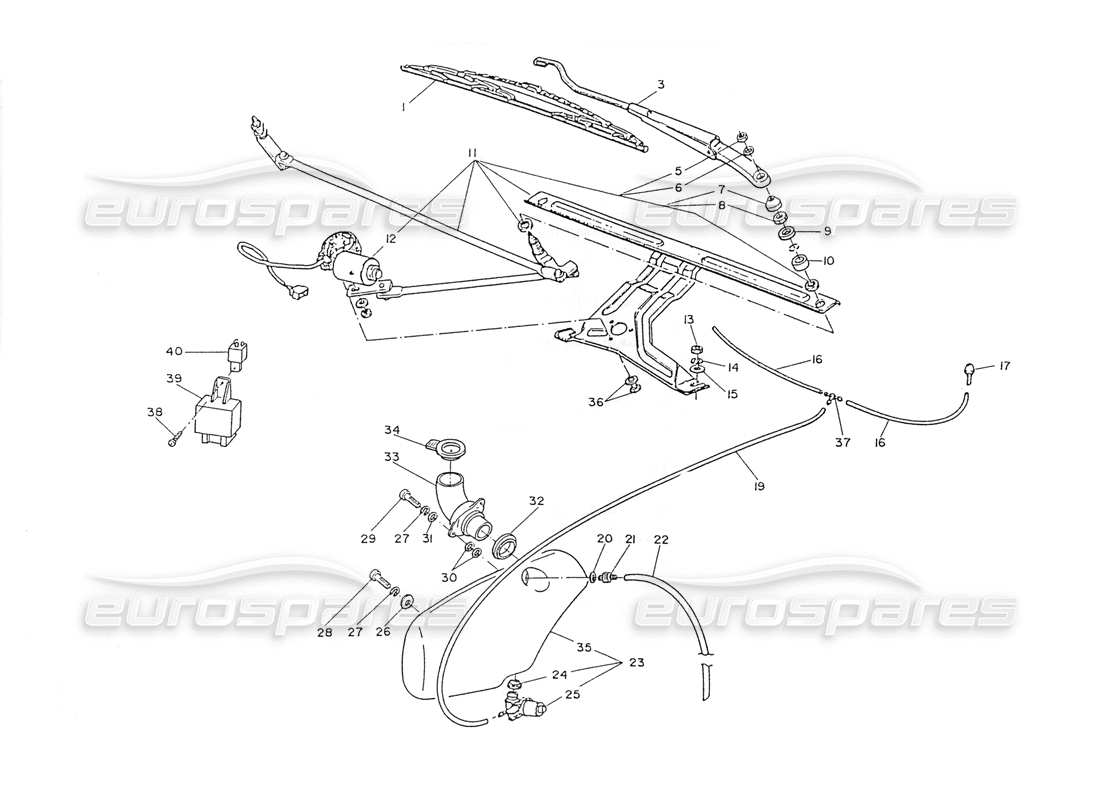

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 313352158
                                                                            BLADE WITH SPOILER
                                                                            from £54.06
                                                                            from £54.06
                                                                            This part replaces part number 323356128 - and 2 more. Click to view details
                                                                            # 003
                                                                            MPN: 393350117
                                                                            ARM
                                                                            from £77.82
                                                                            from £77.82
                                                                            # 007
                                                                            MPN: 313320405
                                                                            CUP
                                                                            from £1.05
                                                                            from £1.05
                                                                            # 008
                                                                            MPN: 313320402
                                                                            NUT
                                                                            from £1.63
                                                                            from £1.63
                                                                            # 009
                                                                            MPN: 393350329
                                                                            EXTERNAL SPACER
                                                                            from £1.63
                                                                            from £1.63
                                                                            # 010
                                                                            MPN: 313352327
                                                                            INTERNAL SPACER
                                                                            # 011
                                                                            MPN: 363300100
                                                                            WINDSHIELD WIPER ASSY
                                                                            from £182.27
                                                                            from £182.27
                                                                            # 012
                                                                            MPN: 313320201
                                                                            GEARHOTOR
                                                                            from £96.59
                                                                            from £96.59
                                                                            # 013
                                                                            MPN: 125100080
                                                                            NUT
                                                                            from £0.86
                                                                            from £0.86
                                                                            # 016
                                                                            MPN: 398150312
                                                                            PIPING
                                                                            Supersession
                                                                            Supersession
                                                                            # 017
                                                                            MPN: 53811109
                                                                            NOZZLE
                                                                            # 019
                                                                            MPN: 398150313
                                                                            PIPING
                                                                            Supersession
                                                                            Supersession
                                                                            # 020
                                                                            MPN: 330874000
                                                                            GROMMET
                                                                            from £1.08
                                                                            from £1.08
                                                                            # 021
                                                                            MPN: 312230461
                                                                            UNION
                                                                            from £0.98
                                                                            from £0.98
                                                                            # 022
                                                                            MPN: 54812330
                                                                            PIPE
                                                                            # 023
                                                                            MPN: 398150132
                                                                            TANK WITH PUMP
                                                                            from £44.67
                                                                            from £44.67
                                                                            This part replaces part number 398150024
                                                                            # 024
                                                                            MPN: 30331302
                                                                            GASKET
                                                                            from £0.70
                                                                            from £0.70
                                                                            # 025
                                                                            MPN: 373300183
                                                                            WINDSHIELD WASHER PUMP
                                                                            from £15.07
                                                                            from £15.07
                                                                            This part replaces part number 330907620
                                                                            # 026
                                                                            MPN: 135900064
                                                                            FLAT WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 028
                                                                            MPN: 112806016
                                                                            SCREW
                                                                            # 030
                                                                            MPN: 398150324
                                                                            SHIM
                                                                            from £1.55
                                                                            from £1.55
                                                                            # 031
                                                                            MPN: 13500053
                                                                            WASHER
                                                                            # 032
                                                                            MPN: 398150328
                                                                            GASKET
                                                                            from £22.95
                                                                            from £22.95
                                                                            # 033
                                                                            MPN: 398150192
                                                                            PIPE UNION
                                                                            from £4.13
                                                                            from £4.13
                                                                            This part replaces part number 398150329
                                                                            # 034
                                                                            MPN: 398150327
                                                                            PLUG
                                                                            from £1.08
                                                                            from £1.08
                                                                            # 035
                                                                            MPN: 398150132
                                                                            Tank
                                                                            from £44.67
                                                                            from £44.67
                                                                            This part replaces part number 398150024
                                                                            # 036
                                                                            MPN: 313320401
                                                                            SCREW AND WASHER
                                                                            # 037
                                                                            MPN: 30811310
                                                                            T-UNION
                                                                            from £0.78
                                                                            from £0.78
                                                                            # 038
                                                                            MPN: 119148130
                                                                            SCREW
                                                                            from £0.84
                                                                            from £0.84
                                                                            # 039
                                                                            MPN: 313320116
                                                                            TGE TIMER
                                                                            from £26.04
                                                                            from £26.04
                                                                            # 040
                                                                            MPN: 313320115
                                                                            INTERMITTENCE
                                                                            Supersession
                                                                            Supersession
                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
