maserati ghibli 2.8 (non abs) front wheels, hubs & brakes parts diagram

019 - Front Wheels, Hubs & Brakes

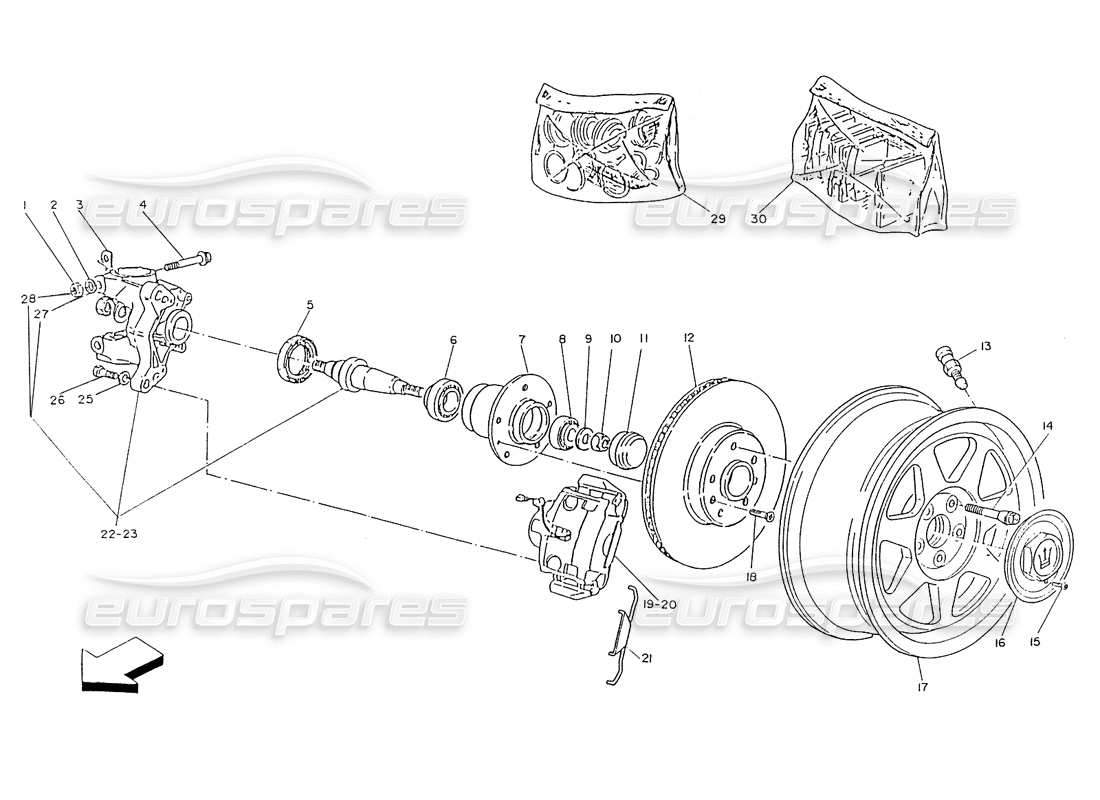

Maserati Ghibli 2.8 (Non ABS) Front Wheels, Hubs & Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 000

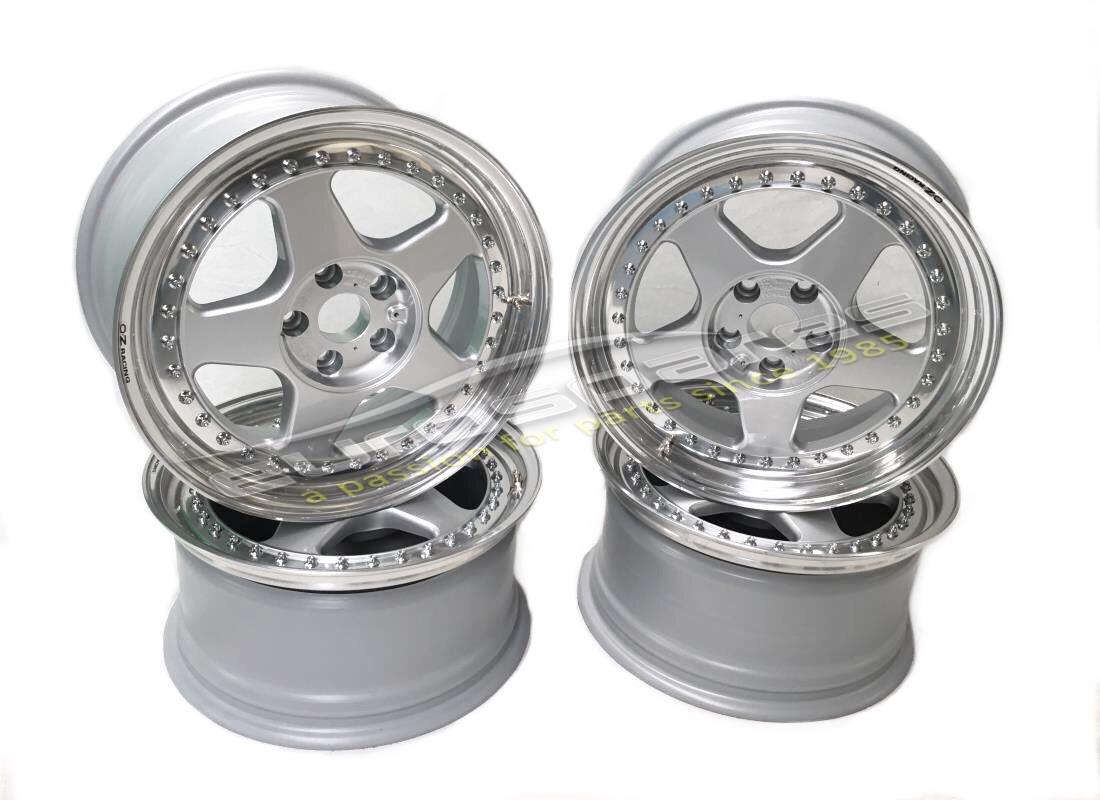

                                                  MPN: MWHE005
                                                  WHEELS SET
                                                  from £2,495.00
                                                  from £2,495.00
                                                  # 001
                                                  MPN: 326656321
                                                  NUT
                                                  from £3.56
                                                  from £3.56
                                                  # 002
                                                  MPN: 14496601
                                                  FLAT WASHER
                                                  Supersession
                                                  Supersession
                                                  # 003
                                                  MPN: 326656313
                                                  SHIM
                                                  from £2.85
                                                  from £2.85
                                                  # 004
                                                  MPN: 326656309
                                                  SCREW
                                                  from £2.85
                                                  from £2.85
                                                  # 005
                                                  MPN: 317220316
                                                  SEAL RING
                                                  from £1.08
                                                  from £1.08
                                                  # 006
                                                  MPN: 317220312
                                                  BEARING
                                                  from £30.07
                                                  from £30.07
                                                  # 007
                                                  MPN: 327256313
                                                  WHEEL HUB
                                                  from £43.35
                                                  from £43.35
                                                  # 008
                                                  MPN: 317220311
                                                  BEARING
                                                  from £23.88
                                                  from £23.88
                                                  # 009
                                                  MPN: 317220315
                                                  WASHER
                                                  from £1.08
                                                  from £1.08
                                                  # 010
                                                  MPN: 317220314
                                                  NUT
                                                  from £14.60
                                                  from £14.60
                                                  # 011
                                                  MPN: 557201324
                                                  CUP
                                                  from £0.70
                                                  from £0.70
                                                  # 012
                                                  MPN: 397250321
                                                  BRAKE DISK
                                                  from £112.93
                                                  from £112.93
                                                  # 013
                                                  MPN: 317250104
                                                  TUBELESS VALVE
                                                  from £5.43
                                                  from £5.43
                                                  This part replaces part number 317220103
                                                  # 014
                                                  MPN: 327253306
                                                  BOLT OZ
                                                  In alternative
                                                  from £25.09
                                                  from £25.09
                                                  # 014
                                                  MPN: 327253308
                                                  BOLT FOMB
                                                  In alternative
                                                  from £1.55
                                                  from £1.55
                                                  # 015
                                                  MPN: 327253363
                                                  ANTI -THEFT SCREW OZ
                                                  In alternative
                                                  from £34.38
                                                  from £34.38
                                                  # 015
                                                  MPN: 327253365
                                                  ANTI -THEFT SCREW FOMB
                                                  In alternative
                                                  from £3.71
                                                  from £3.71
                                                  # 016

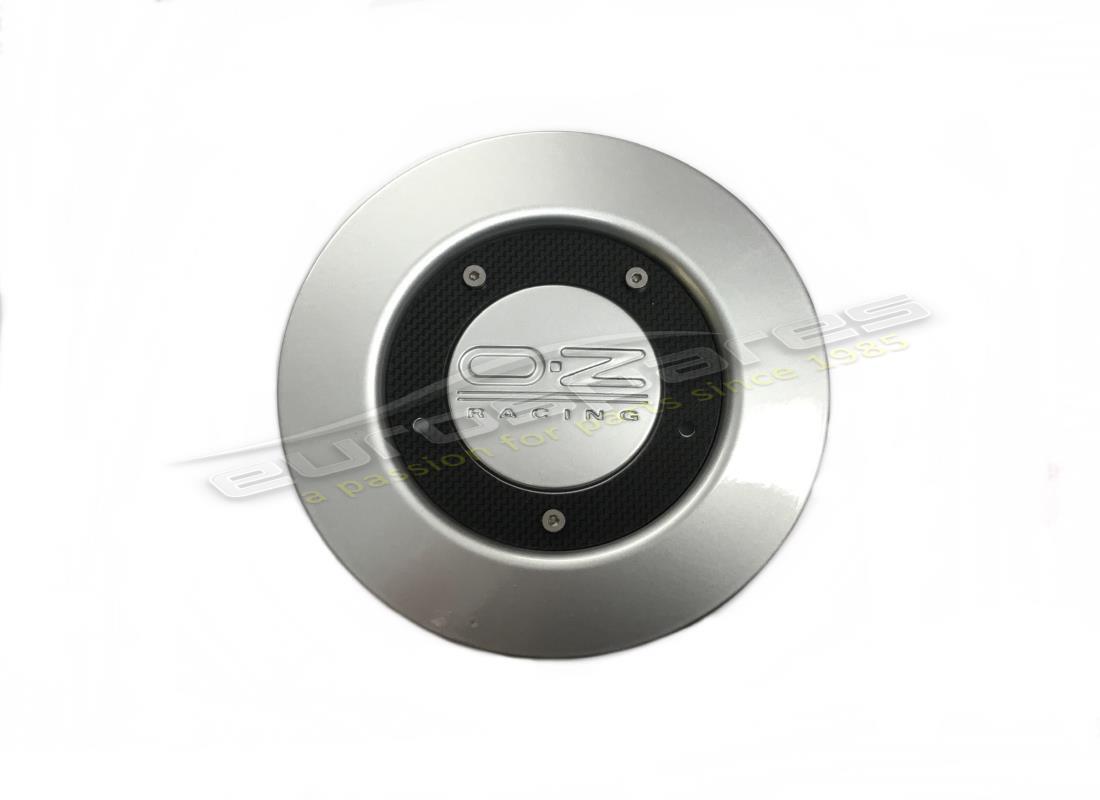

                                                  MPN: 327253361
                                                  HUB COVER FOMB
                                                  In alternative
                                                  from £204.75
                                                  from £204.75
                                                  # 016
                                                  MPN: 327253362
                                                  HUB COVER OZ
                                                  In alternative
                                                  from £204.75
                                                  from £204.75
                                                  # 017
                                                  MPN: 327253333
                                                  WHEEL RIM 7 X 16 ET 35 OZ
                                                  In alternative
                                                  Supersession
                                                  Supersession
                                                  # 017
                                                  MPN: 327253334
                                                  FRONT WHEEL 7 X 16 ET 35
                                                  from £147.74
                                                  from £147.74
                                                  This part replaces part number 327253333
                                                  # 018

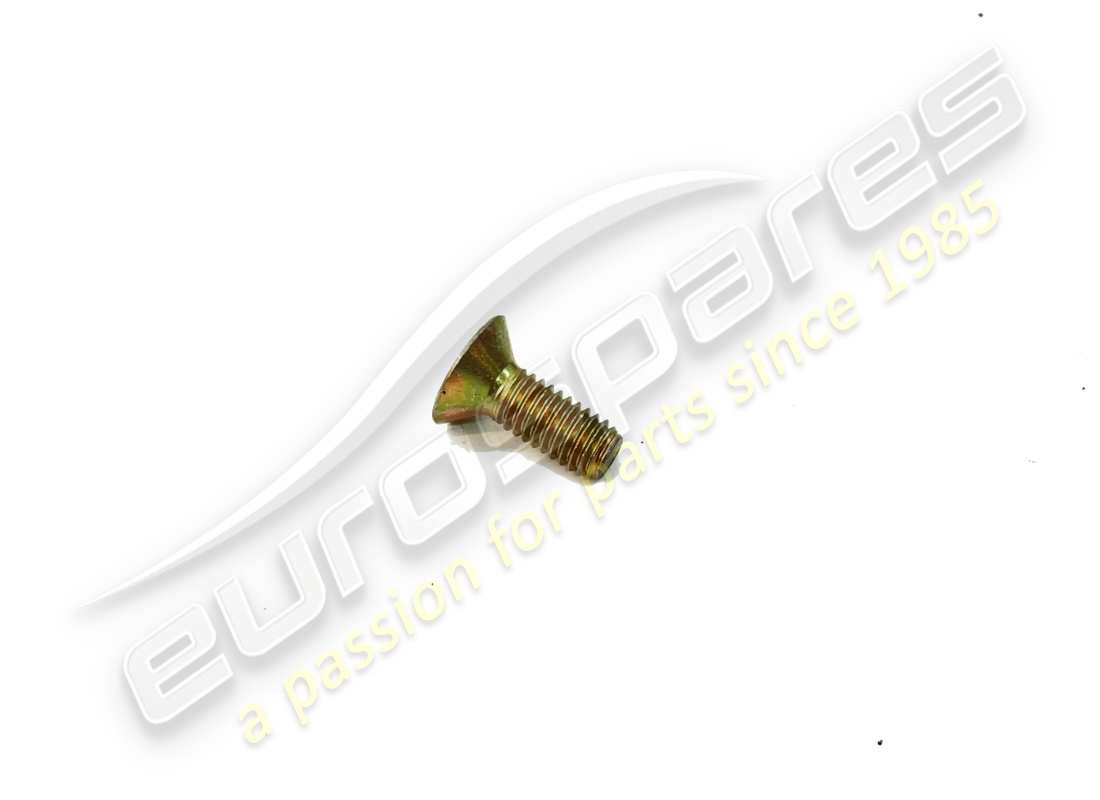

                                                  MPN: 108506016
                                                  SCREW
                                                  from £1.11
                                                  from £1.11
                                                  # 019
                                                  MPN: 397250107
                                                  LH FRONT BRAKE CALIPER
                                                  # 020
                                                  MPN: 397250108
                                                  RH FRONT BRAKE CALIPER
                                                  # 021

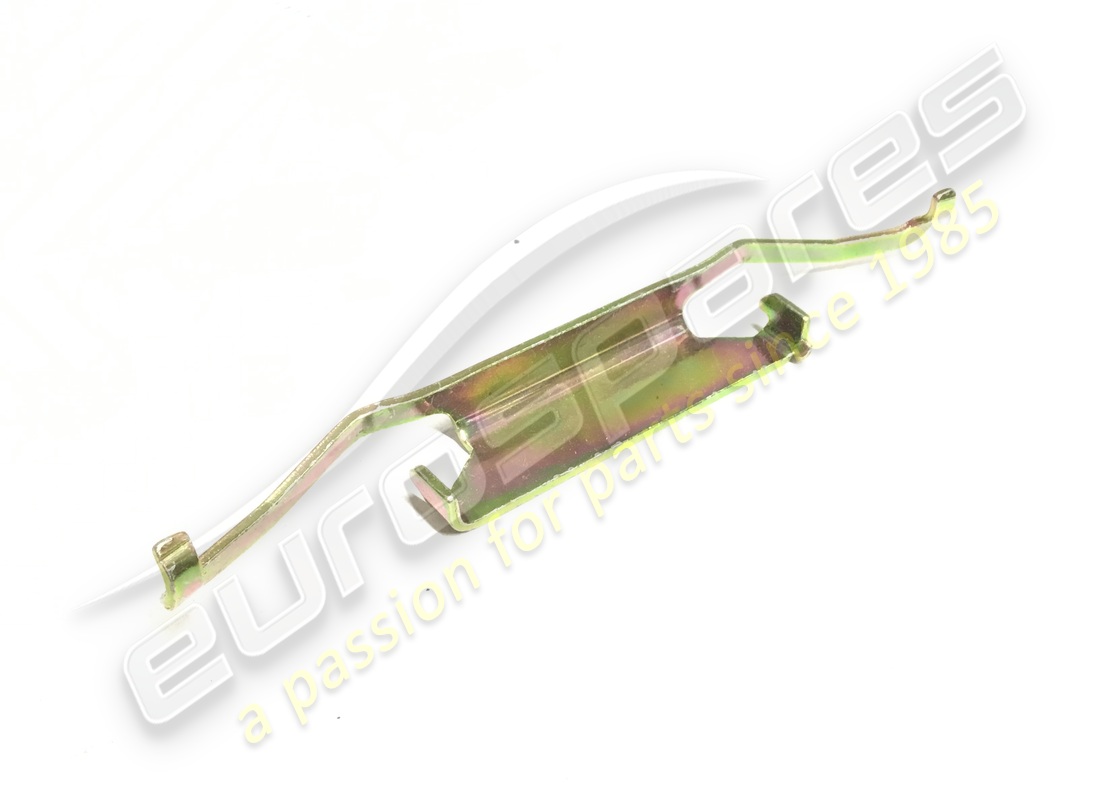

                                                  MPN: 327256318
                                                  BRAKE PAD RETAINING SPRING
                                                  from £10.50
                                                  from £10.50
                                                  # 022
                                                  MPN: 396650115
                                                  L.H SHAFT CARRIER
                                                  from £65.63
                                                  from £65.63
                                                  # 023
                                                  MPN: 396650116
                                                  R.H SHAFT CARRIER
                                                  from £267.03
                                                  from £267.03
                                                  # 025
                                                  MPN: 138420120
                                                  LOCK WASHER
                                                  Supersession
                                                  Supersession
                                                  # 026

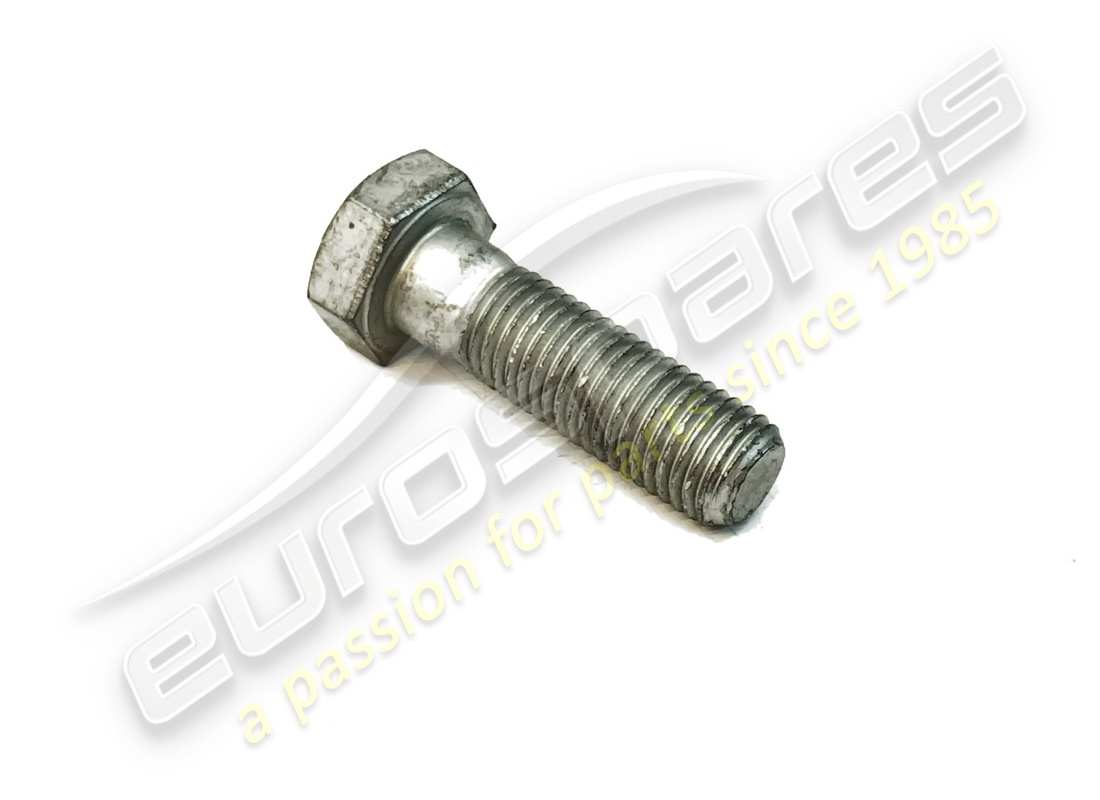

                                                  MPN: 327256319
                                                  SCREW
                                                  from £1.08
                                                  from £1.08
                                                  # 027
                                                  MPN: 326656320
                                                  WASHER
                                                  Not supplied
                                                  from £11.05
                                                  from £11.05
                                                  # 028
                                                  MPN: 326656314
                                                  NUT
                                                  Not supplied
                                                  from £20.17
                                                  from £20.17
                                                  # 029
                                                  MPN: 320256031
                                                  KIT FOR BRAKE CALIPER OVERHAUL
                                                  from £33.57
                                                  from £33.57
                                                  # 030

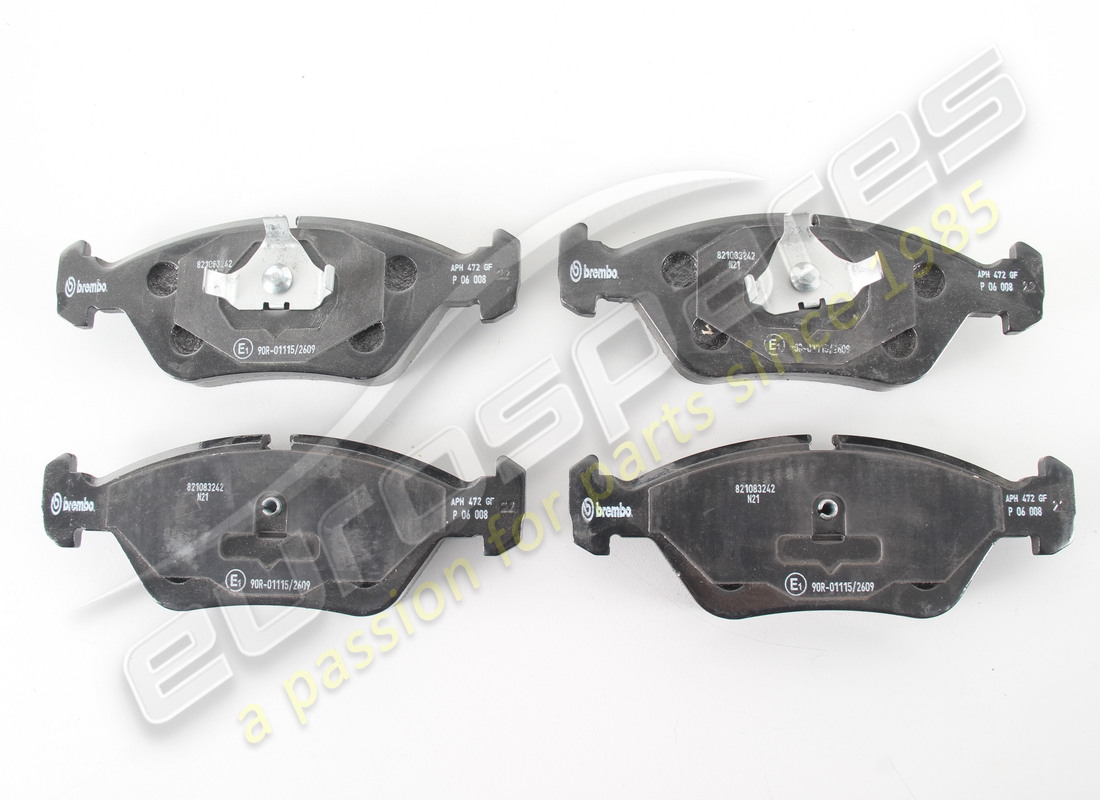

                                                  MPN: 310254039
                                                  BRAKE PAD SET
                                                  from £74.68
                                                  from £74.68
                                                  This part replaces part number 327256130
