011 - Differential With Radiator

Maserati Ghibli 2.8 (Non ABS) Differential With Radiator Parts Diagram

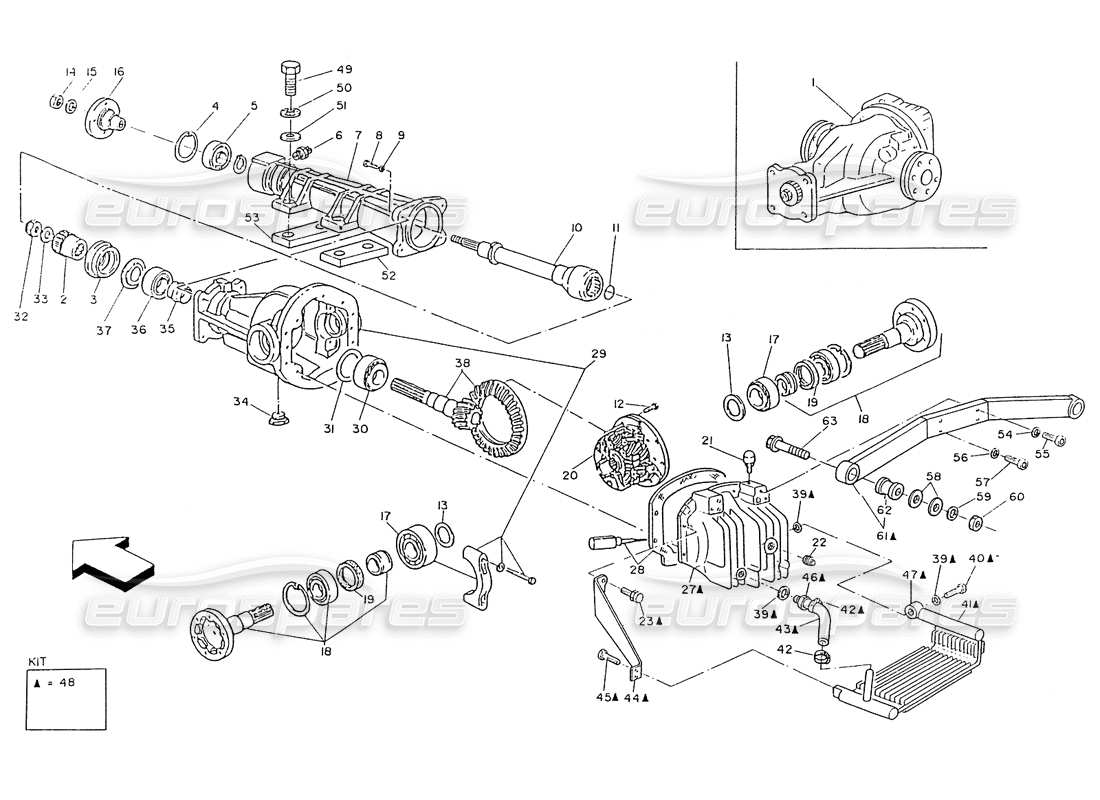

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                              #
                                                                                                              Part number
                                                                                                              Description
                                                                                                              Price
                                                                                                              # 001
                                                                                                              MPN: 316259005
                                                                                                              DIFFERENTIAL UNIT, R=3, 77 WITH MODIF. COVER
                                                                                                              Valid for 00
                                                                                                              from £1,035.40
                                                                                                              from £1,035.40
                                                                                                              This part replaces part number 326253009 - and 1 more. Click to view details
                                                                                                              # 001
                                                                                                              MPN: 396250004
                                                                                                              DIFFERENTIAL UNIT, R=3, 31 WITH MODIF. COVER
                                                                                                              Valid for 01, 05
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 002
                                                                                                              MPN: 316220347
                                                                                                              GROOVED UNION
                                                                                                              from £118.34
                                                                                                              from £118.34
                                                                                                              This part replaces part number 316220342
                                                                                                              # 003
                                                                                                              MPN: 316220121
                                                                                                              SEAL RING
                                                                                                              from £80.42
                                                                                                              from £80.42
                                                                                                              # 005
                                                                                                              MPN: 178402030
                                                                                                              BEARING
                                                                                                              from £15.71
                                                                                                              from £15.71
                                                                                                              # 007
                                                                                                              MPN: 316255306
                                                                                                              SUPPORT
                                                                                                              BEFORE CHANGE
                                                                                                              from £26.97
                                                                                                              from £26.97
                                                                                                              # 007
                                                                                                              MPN: 326253305
                                                                                                              SUPPORT
                                                                                                              AFTER CHANGE
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              This part replaces part number 316250305
                                                                                                              # 008
                                                                                                              MPN: 101212035
                                                                                                              SCREW
                                                                                                              # 009
                                                                                                              MPN: 138420120
                                                                                                              LOCK WASHER
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 010
                                                                                                              MPN: 366202317
                                                                                                              SHAFT
                                                                                                              from £1,173.15
                                                                                                              from £1,173.15
                                                                                                              This part replaces part number 396250316
                                                                                                              # 012
                                                                                                              MPN: 316220357
                                                                                                              SCREW
                                                                                                              from £1.93
                                                                                                              from £1.93
                                                                                                              # 013
                                                                                                              MPN: 316220353
                                                                                                              003 SHIM WASHER
                                                                                                              from £1.63
                                                                                                              from £1.63
                                                                                                              # 013
                                                                                                              MPN: 316220354
                                                                                                              005 SHIM WASHER
                                                                                                              from £105.09
                                                                                                              from £105.09
                                                                                                              # 013
                                                                                                              MPN: 316220355
                                                                                                              010 SHIM WASHER
                                                                                                              from £1.63
                                                                                                              from £1.63
                                                                                                              # 013
                                                                                                              MPN: 316220356
                                                                                                              030 SHIM WASHER
                                                                                                              from £2.17
                                                                                                              from £2.17
                                                                                                              # 014
                                                                                                              MPN: 396250522
                                                                                                              RING NUT
                                                                                                              from £3.64
                                                                                                              from £3.64
                                                                                                              # 015
                                                                                                              MPN: 396250516
                                                                                                              WASHER
                                                                                                              # 016
                                                                                                              MPN: 396250311
                                                                                                              FLANGE
                                                                                                              from £68.23
                                                                                                              from £68.23
                                                                                                              # 017
                                                                                                              MPN: 316220126
                                                                                                              BEARING
                                                                                                              from £129.62
                                                                                                              from £129.62
                                                                                                              # 018
                                                                                                              MPN: 316220013
                                                                                                              PROPELLER SHAFT COMPLETE ASSY
                                                                                                              from £338.28
                                                                                                              from £338.28
                                                                                                              # 019
                                                                                                              MPN: 316220125
                                                                                                              SEAL RING
                                                                                                              from £8.65
                                                                                                              from £8.65
                                                                                                              # 020
                                                                                                              MPN: 326256010
                                                                                                              QUAIFE DIFFERENTIAL CASING
                                                                                                              from £1,383.03
                                                                                                              from £1,383.03
                                                                                                              # 021
                                                                                                              MPN: 316220107
                                                                                                              BREATHER VALVE
                                                                                                              from £17.68
                                                                                                              from £17.68
                                                                                                              # 022
                                                                                                              MPN: 396250548
                                                                                                              LEVEL PLUG
                                                                                                              from £0.70
                                                                                                              from £0.70
                                                                                                              # 023
                                                                                                              MPN: 316220364
                                                                                                              SCREW AND WASHER
                                                                                                              from £1.31
                                                                                                              from £1.31
                                                                                                              # 024
                                                                                                              MPN: 316220327
                                                                                                              AIR DEFLECTOR
                                                                                                              from £0.57
                                                                                                              from £0.57
                                                                                                              # 027
                                                                                                              MPN: 396250525
                                                                                                              COVER
                                                                                                              from £241.69
                                                                                                              from £241.69
                                                                                                              # 028
                                                                                                              MPN: 316220365
                                                                                                              GASKET
                                                                                                              In alternative
                                                                                                              from £3.64
                                                                                                              from £3.64
                                                                                                              # 028
                                                                                                              MPN: 9441
                                                                                                              HYLOSIL SILICON
                                                                                                              In alternative
                                                                                                              from £15.85
                                                                                                              from £15.85
                                                                                                              # 029
                                                                                                              -
                                                                                                              DIFFERENTIAL CASING
                                                                                                              # 030
                                                                                                              MPN: 316220123
                                                                                                              BEARING
                                                                                                              from £121.24
                                                                                                              from £121.24
                                                                                                              # 031
                                                                                                              MPN: 316220346
                                                                                                              003 SHIM WASHER
                                                                                                              from £18.32
                                                                                                              from £18.32
                                                                                                              This part replaces part number 316220362
                                                                                                              # 031
                                                                                                              MPN: 316220349
                                                                                                              005 SHIM WASHER
                                                                                                              from £4.56
                                                                                                              from £4.56
                                                                                                              # 031
                                                                                                              MPN: 316220350
                                                                                                              010 SHIM WASHER
                                                                                                              from £14.22
                                                                                                              from £14.22
                                                                                                              # 032
                                                                                                              MPN: 316220340
                                                                                                              SELF LOCKING NUT
                                                                                                              from £25.26
                                                                                                              from £25.26
                                                                                                              # 033
                                                                                                              MPN: 316220341
                                                                                                              WASHER
                                                                                                              from £1.31
                                                                                                              from £1.31
                                                                                                              # 034
                                                                                                              MPN: 316220346
                                                                                                              DRAINING PLUG
                                                                                                              from £18.32
                                                                                                              from £18.32
                                                                                                              This part replaces part number 316220362
                                                                                                              # 035
                                                                                                              MPN: 316220345
                                                                                                              SPACER
                                                                                                              from £2.47
                                                                                                              from £2.47
                                                                                                              # 036
                                                                                                              MPN: 316220122
                                                                                                              BEARING
                                                                                                              from £86.08
                                                                                                              from £86.08
                                                                                                              # 037
                                                                                                              MPN: 316220351
                                                                                                              SEAL RING
                                                                                                              from £23.78
                                                                                                              from £23.78
                                                                                                              # 038
                                                                                                              MPN: 316225025
                                                                                                              CROWN WHEEL AND PINION (R=3.31)
                                                                                                              Valid for 01, 05
                                                                                                              from £769.42
                                                                                                              from £769.42
                                                                                                              # 038
                                                                                                              MPN: 326253025
                                                                                                              CROWN WHEEL AND PINION (R=3.77)
                                                                                                              Valid for 00
                                                                                                              from £573.93
                                                                                                              from £573.93
                                                                                                              # 039
                                                                                                              MPN: 396250545
                                                                                                              WASHER
                                                                                                              # 040
                                                                                                              MPN: 396250543
                                                                                                              CAPSTAN SCREW
                                                                                                              from £8.41
                                                                                                              from £8.41
                                                                                                              # 041
                                                                                                              MPN: 396250160
                                                                                                              RADIATOR
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 042
                                                                                                              MPN: 396250540
                                                                                                              CLAMP
                                                                                                              from £1.55
                                                                                                              from £1.55
                                                                                                              # 043
                                                                                                              MPN: 396250537
                                                                                                              HOSE
                                                                                                              from £45.79
                                                                                                              from £45.79
                                                                                                              # 044
                                                                                                              MPN: 396250538
                                                                                                              BRACKET
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 046
                                                                                                              MPN: 396250541
                                                                                                              UNION
                                                                                                              from £26.92
                                                                                                              from £26.92
                                                                                                              # 047
                                                                                                              MPN: 396250546
                                                                                                              EYE UNION
                                                                                                              from £5.85
                                                                                                              from £5.85
                                                                                                              # 048
                                                                                                              MPN: 396250876
                                                                                                              KIT, DIFFERENTIAL RADIATOR
                                                                                                              from £622.46
                                                                                                              from £622.46
                                                                                                              # 050
                                                                                                              MPN: 138420120
                                                                                                              LOCK WASHER
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 051
                                                                                                              MPN: 14496601
                                                                                                              FLAT WASHER
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 052
                                                                                                              MPN: 316255506
                                                                                                              SPACER
                                                                                                              BEFORE CHANGE
                                                                                                              from £13.13
                                                                                                              from £13.13
                                                                                                              # 053
                                                                                                              MPN: 316255504
                                                                                                              SPACER
                                                                                                              BEFORE CHANGE
                                                                                                              from £39.40
                                                                                                              from £39.40
                                                                                                              # 054
                                                                                                              MPN: 43842
                                                                                                              SCREW
                                                                                                              AFTER CHANGE
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 055
                                                                                                              MPN: 100810040
                                                                                                              SCREW
                                                                                                              AFTER CHANGE
                                                                                                              from £1.31
                                                                                                              from £1.31
                                                                                                              # 056
                                                                                                              MPN: 51581
                                                                                                              SCREW
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 058
                                                                                                              MPN: 396250508
                                                                                                              WASHER
                                                                                                              from £5.10
                                                                                                              from £5.10
                                                                                                              # 059
                                                                                                              MPN: 136110110
                                                                                                              WASHER
                                                                                                              from £2.17
                                                                                                              from £2.17
                                                                                                              # 061
                                                                                                              MPN: 392150301
                                                                                                              BUFFER
                                                                                                              from £2.29
                                                                                                              from £2.29
                                                                                                              # 062
                                                                                                              MPN: 396250101
                                                                                                              VIBRATION-DAMPING SUPPORT
                                                                                                              from £9.29
                                                                                                              from £9.29
                                                                                                              # 063
                                                                                                              MPN: 326656309
                                                                                                              SCREW
                                                                                                              from £2.85
                                                                                                              from £2.85
