maserati ghibli 2.8 (non abs) propeller shaft parts diagram

010 - propeller shaft

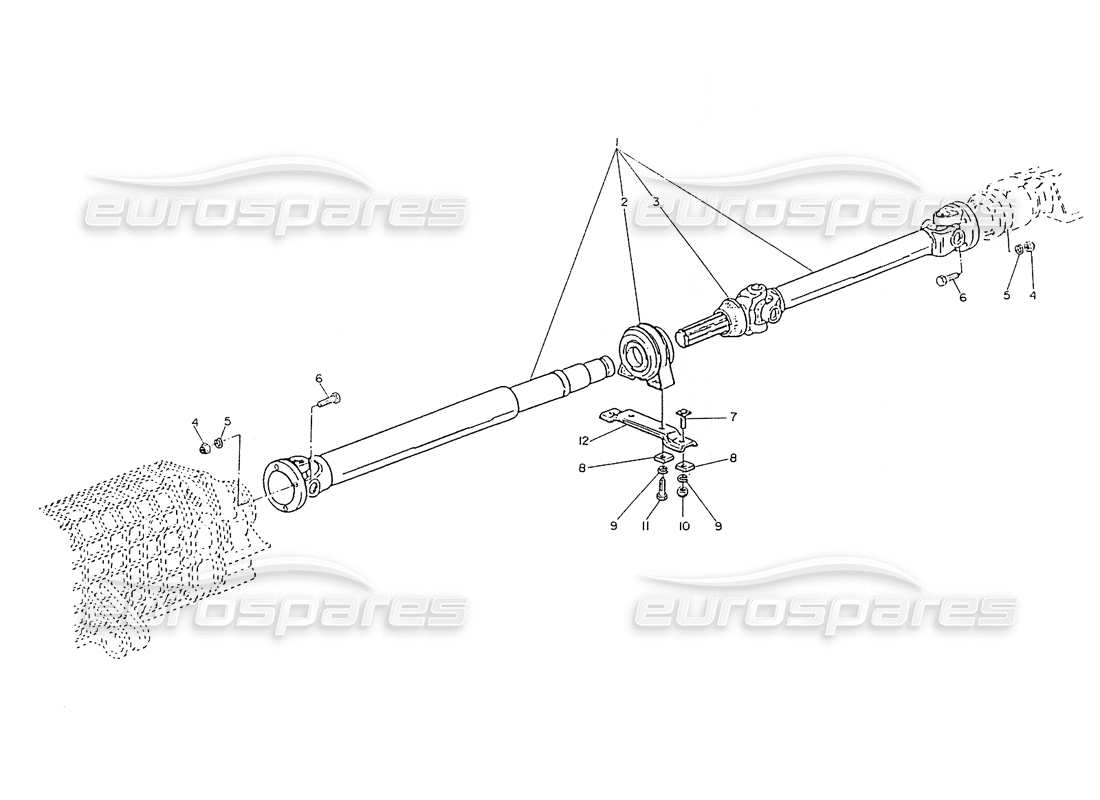

Maserati Ghibli 2.8 (Non ABS) Propeller Shaft Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 316020102
                        PROPELLER SHAFT ASSEMBLY
                        Valid for 01
                        from £582.41
                        from £582.41
                        This part replaces part number 316020100
                        # 001
                        MPN: 316052102
                        PROPELLER SHAFT ASSEMBLY
                        Valid for 00, 05
                        from £29.14
                        from £29.14
                        # 002
                        MPN: 316020103
                        CENTRAL SUPPORT
                        from £684.52
                        from £684.52
                        # 003
                        MPN: 316020306
                        Dust bellows
                        from £4.64
                        from £4.64
                        # 004
                        MPN: 128360100
                        SELF LOCKING NUT
                        # 006
                        MPN: 316020300
                        SCREW
                        from £13.83
                        from £13.83
                        # 007
                        MPN: 316020110
                        SCREW
                        from £1.16
                        from £1.16
                        # 008
                        MPN: 316020334
                        PLATE
                        from £1.31
                        from £1.31
                        # 010
                        MPN: 128350080
                        SELF LOCKING NUT
                        Supersession
                        Supersession
                        # 012
                        MPN: 316020330
                        CROSS MEMBER
                        from £4.64
                        from £4.64
