maserati ghibli 2.8 (non abs) radiator and cooling fans parts diagram

003 - radiator and cooling fans

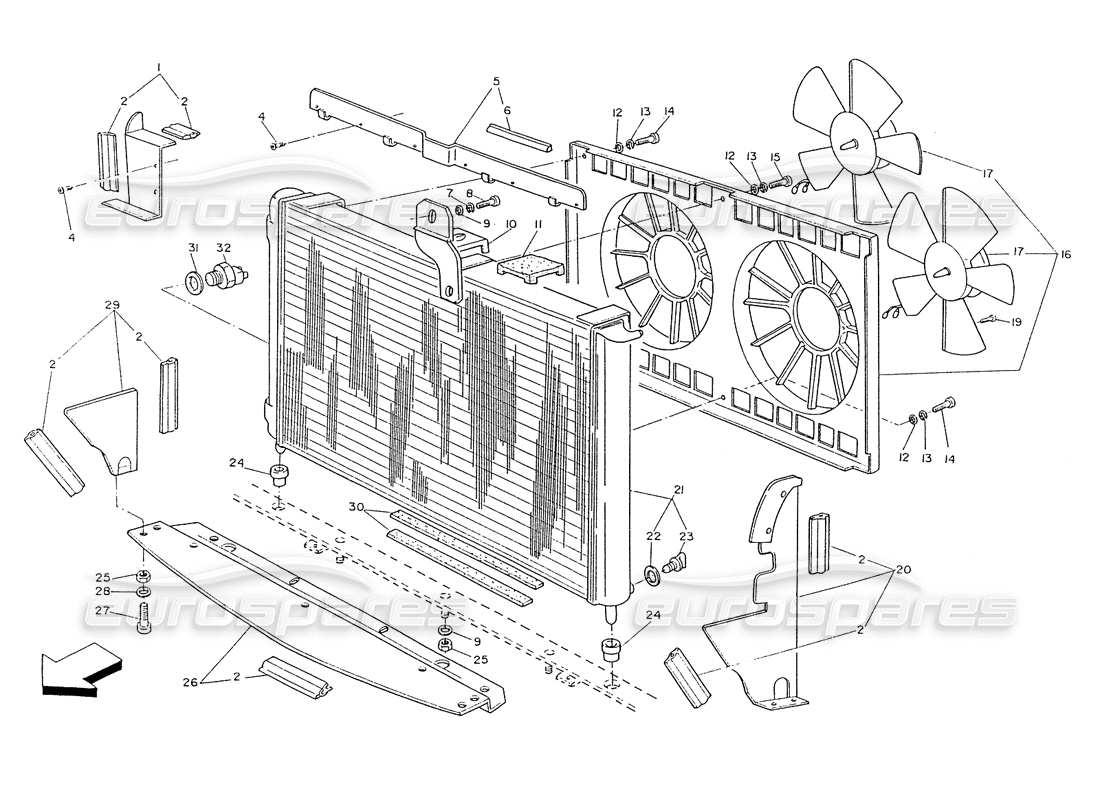

Maserati Ghibli 2.8 (Non ABS) Radiator and Cooling Fans Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 394050152
    RH UPPER AIR DEFLECTOR, ASSY
    Valid for 05
    from £10.97
    from £10.97
    # 002
    MPN: 318720301
    GASKET
    Valid for 05
    Supersession
    Supersession
    # 004
    MPN: 97207
    SELF TAPPING SCREW
    Valid for 05
    Supersession
    Supersession
    # 005
    MPN: 394050018
    UPPER PLATE
    Valid for 05
    from £19.02
    from £19.02
    # 007
    MPN: 135300064
    SPRING WASHER
    Valid for 05
    # 008
    MPN: 101206016
    SCREW
    Valid for 05
    # 009
    MPN: 163010060
    FLAT WASHER
    Valid for 05
    # 010
    MPN: 394050106
    UPPER BRACKET
    Valid for 05
    # 011
    MPN: 394050308
    BUFFER
    Valid for 05
    from £9.66
    from £9.66
    # 012
    MPN: 169020406
    WASHER
    Valid for 05
    from £0.78
    from £0.78
    # 013
    MPN: 138410060
    SPRING WASHER
    Valid for 05
    # 014
    MPN: 101206025
    SCREW
    Valid for 05
    # 015
    MPN: 101206030
    SCREW
    Valid for 05
    # 016
    MPN: 393350105
    FAN BLADE SHROUD, ASSY
    Valid for 05
    from £157.50
    from £157.50
    # 017
    MPN: 313354102
    FAN MOTOR (AP6)
    Valid for 05
    Supersession
    Supersession
    # 019
    MPN: 119142130
    SCREW
    Valid for 05
    # 020
    MPN: 364000128
    LH SIDE AIR DEFLECTOR, ASSY
    Valid for 05
    Supersession
    Supersession
    # 021
    MPN: 394050100
    RADIATOR
    Valid for 05
    from £714.42
    from £714.42
    # 022
    MPN: 314020327
    GASKET
    Valid for 05
    Supersession
    Supersession
    # 023
    MPN: 314037326
    WATER DRAIN COCK
    Valid for 05
    from £10.04
    from £10.04
    # 024
    MPN: 189453
    BUSH
    from £1.08
    from £1.08
    This part replaces part number 374030312
    # 025
    MPN: 128350060
    SELF LOCKING NUT
    Valid for 05
    # 026
    MPN: 364000133
    LOWER AIR DEFLECTOR
    Valid for 05
    from £144.65
    from £144.65
    # 027
    MPN: 108006012
    SCREW
    Valid for 05
    from £0.54
    from £0.54
    # 028
    MPN: 135000064
    FLAT WASHER
    Valid for 05
    # 029
    MPN: 364000129
    DEFLECTOR
    Valid for 05
    from £8.85
    from £8.85
    # 030
    MPN: 56714
    GASKET
    Valid for 05
    Supersession
    Supersession
    # 031
    MPN: 53331300
    WASHER
    Valid for 05
    from £1.08
    from £1.08
    # 032
    MPN: 313320172
    FAN ACTUATING THERMAL SWITCH
    Valid for 05
    from £2.19
    from £2.19
