Maserati Ghibli 2.0 Cup Engine Variations Parts Diagram

001 - Engine Variations

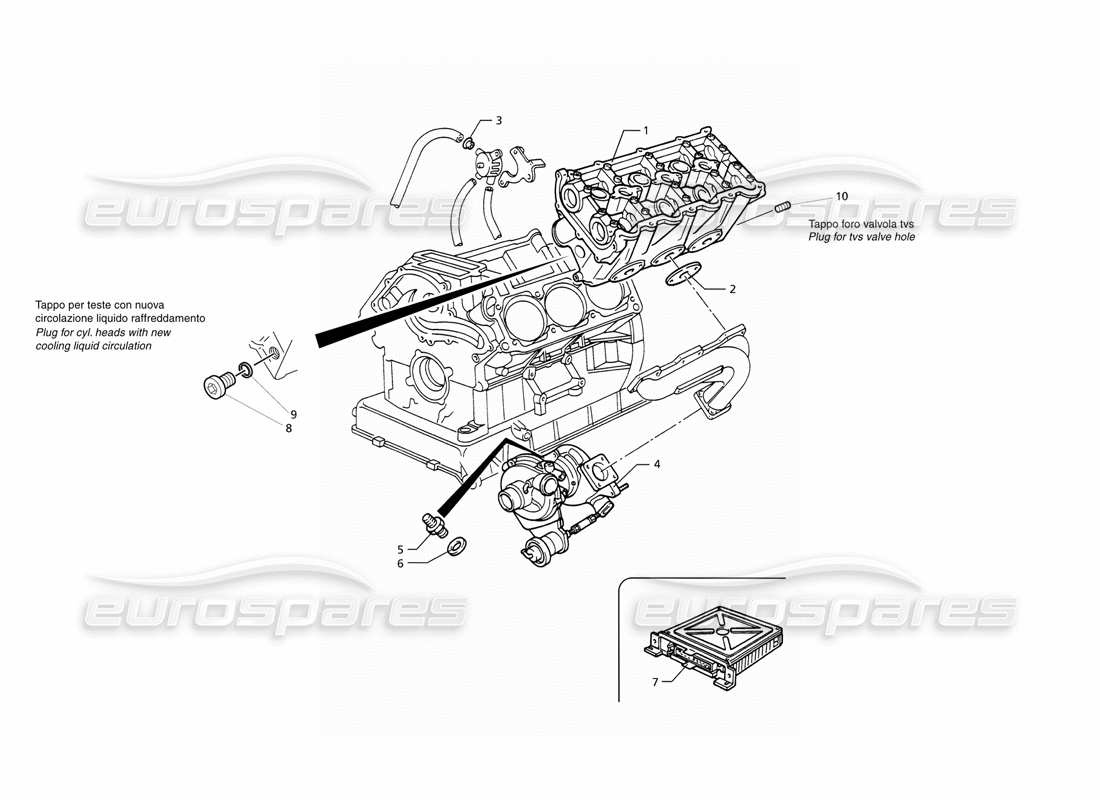

Maserati Ghibli 2.0 Cup Engine Variations Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 588003200
                      BARE RH HEAD
                      from £5,744.47
                      from £5,744.47
                      This part replaces part number 477003200
                      # 001
                      MPN: 588003300
                      BARE LH HEAD
                      from £4,418.82
                      from £4,418.82
                      This part replaces part number 477003300
                      # 002
                      MPN: 580362200

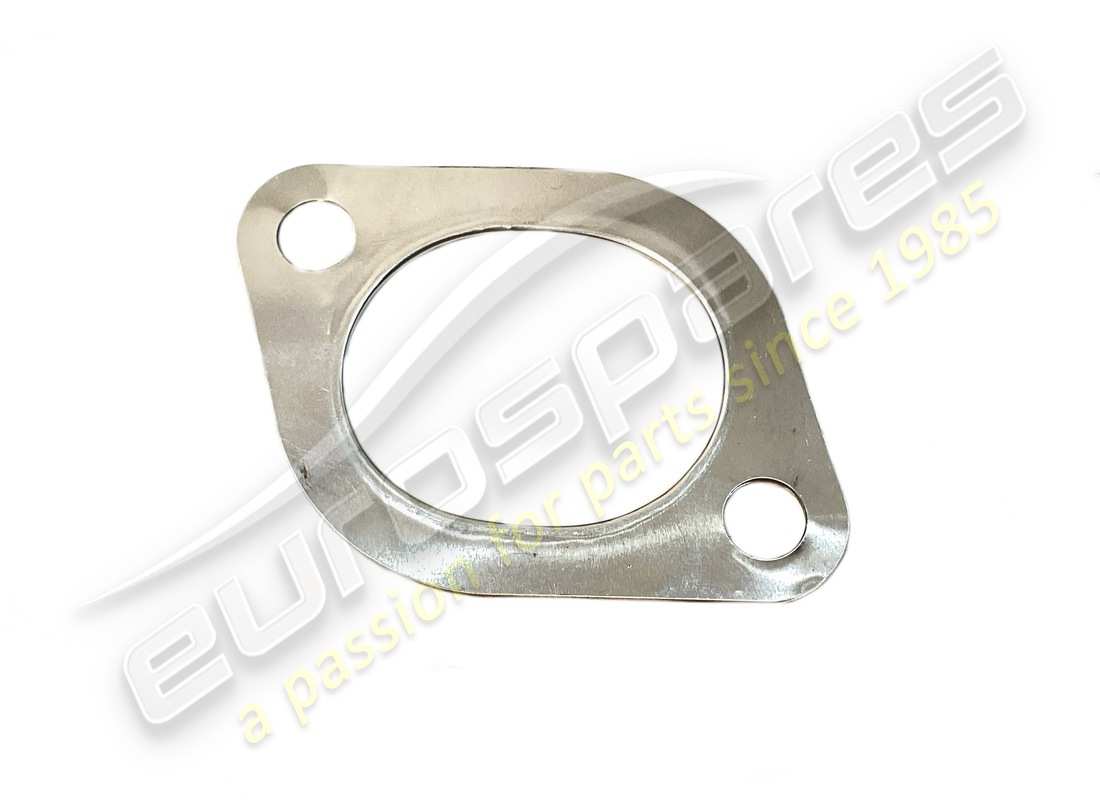

                      EXHAUST MANIFOLD SEAL
                      from £8.31
                      from £8.31
                      This part replaces part number 477362200 - and 1 more. Click to view details
                      # 003
                      MPN: 312053375
                      SOL. VALVE RESTRICTION
                      # 004
                      MPN: 501360000

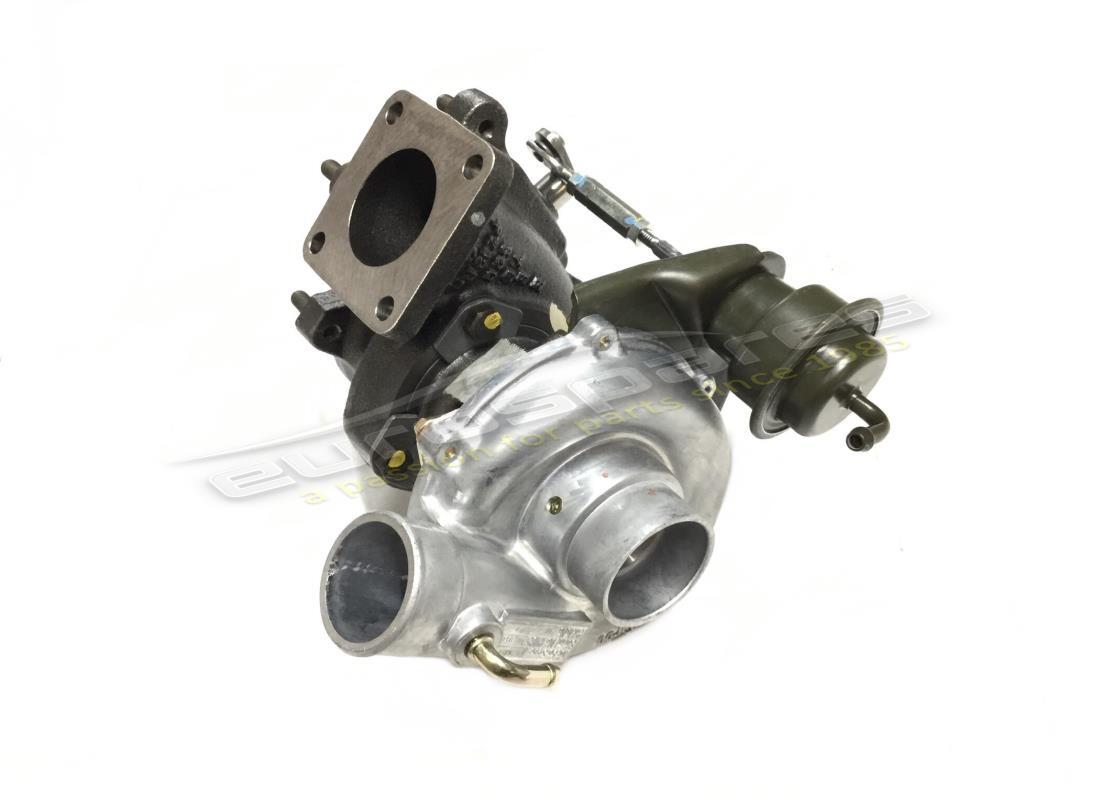

                      RH TURBO
                      from £4,010.05
                      from £4,010.05
                      # 004
                      MPN: 501360100
                      LH TURBO
                      from £4,272.30
                      from £4,272.30
                      # 005
                      MPN: 98029
                      UNION
                      from £1.57
                      from £1.57
                      # 006
                      MPN: 47208
                      WASHER
                      Supersession
                      Supersession
                      # 007
                      MPN: 583079500
                      CONTROL UNIT
                      from £1,321.16
                      from £1,321.16
                      # 008
                      MPN: 571044400
                      PLUG
                      from £8.77
                      from £8.77
                      # 009
                      MPN: 571044500
                      GASKET
                      from £1.96
                      from £1.96
                      # 010
                      MPN: 585411800
                      PLUG
                      from £2.58
                      from £2.58
