038 - Locks

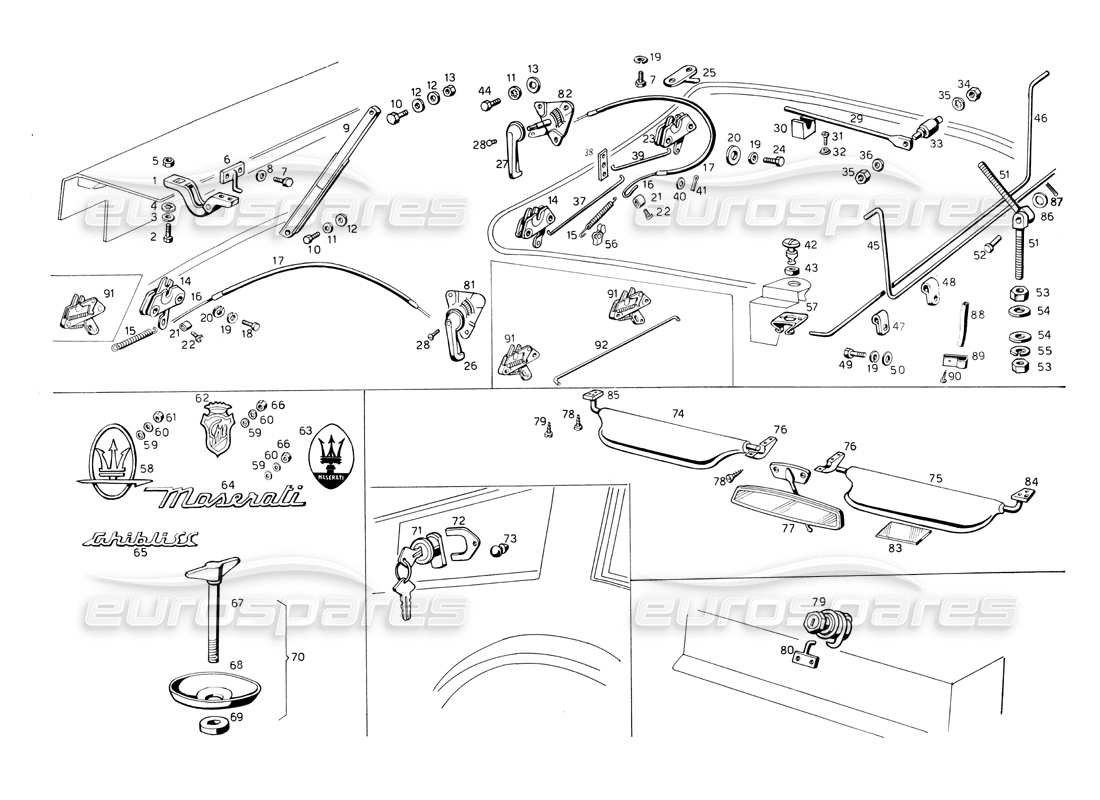

Maserati Ghibli 4.7 / 4.9 Locks Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                                                          #
                                                                                                                                                                                          Part number
                                                                                                                                                                                          Description
                                                                                                                                                                                          Price
                                                                                                                                                                                          # 001
                                                                                                                                                                                          MPN: 115 BM 66042
                                                                                                                                                                                          TRUNK HOOD HINGE.
                                                                                                                                                                                          # 002
                                                                                                                                                                                          MPN: BNT. 47015
                                                                                                                                                                                          BOLT
                                                                                                                                                                                          # 003
                                                                                                                                                                                          MPN: RNT 32635
                                                                                                                                                                                          WASHER
                                                                                                                                                                                          # 005
                                                                                                                                                                                          MPN: DNT. 47031
                                                                                                                                                                                          NUT 8 X 1.25
                                                                                                                                                                                          # 006
                                                                                                                                                                                          MPN: 115 BM 65570
                                                                                                                                                                                          HOOK FOR TRUNK LOCK
                                                                                                                                                                                          # 009
                                                                                                                                                                                          MPN: 115 BM 65569
                                                                                                                                                                                          Trunk lid opening compass
                                                                                                                                                                                          from £147.00
                                                                                                                                                                                          from £147.00
                                                                                                                                                                                          # 011
                                                                                                                                                                                          MPN: RDI 58544
                                                                                                                                                                                          WASHER
                                                                                                                                                                                          # 011
                                                                                                                                                                                          MPN: RDI 58544
                                                                                                                                                                                          RONDLELA DENTELLATA Ø 5 PER DETTO
                                                                                                                                                                                          # 012
                                                                                                                                                                                          MPN: RNT 35345
                                                                                                                                                                                          WASHER
                                                                                                                                                                                          # 013
                                                                                                                                                                                          MPN: DNT 47046
                                                                                                                                                                                          NUT
                                                                                                                                                                                          from £0.86
                                                                                                                                                                                          from £0.86
                                                                                                                                                                                          This part replaces part number 47046
                                                                                                                                                                                          # 013
                                                                                                                                                                                          MPN: DNT 47046
                                                                                                                                                                                          NUT
                                                                                                                                                                                          from £0.86
                                                                                                                                                                                          from £0.86
                                                                                                                                                                                          This part replaces part number 47046
                                                                                                                                                                                          # 014
                                                                                                                                                                                          MPN: 115 BM 64972
                                                                                                                                                                                          TRUNK BONNET LOCK AND RIGHT ENGINE BONNET LOCK (UP TO CAR N. 228)
                                                                                                                                                                                          # 015
                                                                                                                                                                                          MPN: 115 BM 65568
                                                                                                                                                                                          SPRING
                                                                                                                                                                                          # 016
                                                                                                                                                                                          MPN: FGN 55641
                                                                                                                                                                                          STEEL WIRE Ø 2 X 1000 ENGINE BONNET LOCK CONTROL
                                                                                                                                                                                          # 016
                                                                                                                                                                                          MPN: FGN 55641
                                                                                                                                                                                          Filo acciaio Ø 2 x 2200 comando serratura baule
                                                                                                                                                                                          # 017
                                                                                                                                                                                          MPN: GFN 56711
                                                                                                                                                                                          FLEXIBLE SHEATH Ø 2,5 X 1900 FOR TRUNK LOCK CONTROL
                                                                                                                                                                                          # 017
                                                                                                                                                                                          MPN: GFN 56711
                                                                                                                                                                                          FLEXIBLE SHEATH Ø 2,5 X 640 FOR TRUNK LOCK CONTROL
                                                                                                                                                                                          # 018
                                                                                                                                                                                          MPN: BNT 47369
                                                                                                                                                                                          BOLT
                                                                                                                                                                                          # 019
                                                                                                                                                                                          MPN: RSN/32690
                                                                                                                                                                                          WASHER
                                                                                                                                                                                          # 019
                                                                                                                                                                                          MPN: RSN/32690
                                                                                                                                                                                          WASHER
                                                                                                                                                                                          # 021
                                                                                                                                                                                          MPN: NPL 65597
                                                                                                                                                                                          Niples per cavo Ø 2 comando serratura baule e motore
                                                                                                                                                                                          # 022
                                                                                                                                                                                          MPN: BNT 65600
                                                                                                                                                                                          BOLT
                                                                                                                                                                                          # 023
                                                                                                                                                                                          MPN: 115 BM 64973
                                                                                                                                                                                          SERRATURA SINISTRA COFANO MOTORE (SINO VETTURA N. 228)
                                                                                                                                                                                          # 024
                                                                                                                                                                                          MPN: BNT 47351
                                                                                                                                                                                          BOLT
                                                                                                                                                                                          # 025
                                                                                                                                                                                          MPN: 115 BM 64978
                                                                                                                                                                                          HOOK FOR ENGINE BONNET LOCKS
                                                                                                                                                                                          # 026
                                                                                                                                                                                          MPN: 115 BO 64935
                                                                                                                                                                                          MANIGLIA APERTURA COFANO BAULE
                                                                                                                                                                                          from £2,304.75
                                                                                                                                                                                          from £2,304.75
                                                                                                                                                                                          # 027
                                                                                                                                                                                          MPN: 115 BO 64934
                                                                                                                                                                                          Engine bonnet opening handle
                                                                                                                                                                                          from £2,304.75
                                                                                                                                                                                          from £2,304.75
                                                                                                                                                                                          # 029
                                                                                                                                                                                          MPN: 115 BM 64981
                                                                                                                                                                                          ASTA SOSTEGNO COFANO MOTORE
                                                                                                                                                                                          from £99.75
                                                                                                                                                                                          from £99.75
                                                                                                                                                                                          # 030
                                                                                                                                                                                          MPN: PCN 65586
                                                                                                                                                                                          PARACOLPO IN GOMMA PER DETTO
                                                                                                                                                                                          # 031
                                                                                                                                                                                          MPN: VAT 65596
                                                                                                                                                                                          SCREW
                                                                                                                                                                                          # 032
                                                                                                                                                                                          MPN: SVT 56865
                                                                                                                                                                                          Sottovite Ø 3,5 per detto
                                                                                                                                                                                          # 033
                                                                                                                                                                                          MPN: 115 BM 64982
                                                                                                                                                                                          SHAFT FOR ENGINE BONNET SUPPORT ROD FULCRUM
                                                                                                                                                                                          # 034
                                                                                                                                                                                          MPN: RAT/45680
                                                                                                                                                                                          WASHER
                                                                                                                                                                                          # 035
                                                                                                                                                                                          MPN: DNT/47064
                                                                                                                                                                                          NUT 8 X 1.25
                                                                                                                                                                                          # 036
                                                                                                                                                                                          MPN: RN/43855
                                                                                                                                                                                          WASHER
                                                                                                                                                                                          # 037
                                                                                                                                                                                          MPN: 115 BM 64975
                                                                                                                                                                                          TIE ROD
                                                                                                                                                                                          # 038
                                                                                                                                                                                          MPN: 115 BM 64974
                                                                                                                                                                                          ENGINE BONNET LOCK RETURN PLATE
                                                                                                                                                                                          # 039
                                                                                                                                                                                          MPN: 115 BM 64976
                                                                                                                                                                                          TIE ROD
                                                                                                                                                                                          # 040
                                                                                                                                                                                          MPN: RAT. 45681
                                                                                                                                                                                          WASHER
                                                                                                                                                                                          This part replaces part number 45681
                                                                                                                                                                                          # 041
                                                                                                                                                                                          MPN: CN 64833
                                                                                                                                                                                          Copiglia Ø 1,3 X 10 per detto
                                                                                                                                                                                          # 042
                                                                                                                                                                                          MPN: 115 BM 64989
                                                                                                                                                                                          PIVOT
                                                                                                                                                                                          # 043
                                                                                                                                                                                          MPN: GOM 65605
                                                                                                                                                                                          Gommino Ø 5 X 13 X 5 per detto
                                                                                                                                                                                          # 044
                                                                                                                                                                                          MPN: BNT/47370
                                                                                                                                                                                          BOLT
                                                                                                                                                                                          from £3.26
                                                                                                                                                                                          from £3.26
                                                                                                                                                                                          This part replaces part number 47370
                                                                                                                                                                                          # 045
                                                                                                                                                                                          MPN: 115 BM 64980
                                                                                                                                                                                          SPRING
                                                                                                                                                                                          from £157.50
                                                                                                                                                                                          from £157.50
                                                                                                                                                                                          # 046
                                                                                                                                                                                          MPN: 115 BM 64979
                                                                                                                                                                                          SPRING
                                                                                                                                                                                          # 047
                                                                                                                                                                                          MPN: 115 BM 65606
                                                                                                                                                                                          SIDE CLAMP FOR FIXING TORSIONAL SPRINGS ON THE ENGINE BONNET
                                                                                                                                                                                          # 048
                                                                                                                                                                                          MPN: 115 BM 65607
                                                                                                                                                                                          CENTRAL CLAMP FOR FIXING TORSIONAL SPRINGS ON THE ENGINE BONNET
                                                                                                                                                                                          # 049
                                                                                                                                                                                          MPN: BNT. 53968
                                                                                                                                                                                          BOLT
                                                                                                                                                                                          # 050
                                                                                                                                                                                          MPN: RNT 62134
                                                                                                                                                                                          WASHER
                                                                                                                                                                                          # 051
                                                                                                                                                                                          MPN: 115 BM 64983
                                                                                                                                                                                          BODY FOR ADJUSTABLE ENGINE BONNET JOINT
                                                                                                                                                                                          # 052
                                                                                                                                                                                          MPN: 115 BM 64984
                                                                                                                                                                                          PIVOT
                                                                                                                                                                                          # 055
                                                                                                                                                                                          MPN: RSN/33112
                                                                                                                                                                                          WASHER
                                                                                                                                                                                          from £1.70
                                                                                                                                                                                          from £1.70
                                                                                                                                                                                          # 056
                                                                                                                                                                                          MPN: GRF 65587
                                                                                                                                                                                          CLIP FOR FIXING ENGINE BONNET LOCK TIES (FROM VEHICLE N. 230 PIECES N. 2)
                                                                                                                                                                                          # 057
                                                                                                                                                                                          MPN: GRF 65588
                                                                                                                                                                                          Graffetta fissaggio coper. contenitore aria vano radiatore
                                                                                                                                                                                          # 058
                                                                                                                                                                                          MPN: TRG 56206
                                                                                                                                                                                          BADGE PLATE Maserati ON THE REAR PILLAR. LEFT
                                                                                                                                                                                          # 058
                                                                                                                                                                                          MPN: TRG 56361
                                                                                                                                                                                          Badge plate Maserati on the rear upright. right
                                                                                                                                                                                          # 059
                                                                                                                                                                                          MPN: RNT 59020
                                                                                                                                                                                          WASHER
                                                                                                                                                                                          # 060
                                                                                                                                                                                          MPN: RDI 58543
                                                                                                                                                                                          WASHER
                                                                                                                                                                                          # 062
                                                                                                                                                                                          MPN: TRG 66043
                                                                                                                                                                                          TARGHETTA DISTINTIVO GHIA
                                                                                                                                                                                          # 063
                                                                                                                                                                                          MPN: TRG 32573
                                                                                                                                                                                          BADGE PLATE Maserati ENGINE BONNET
                                                                                                                                                                                          from £95.00
                                                                                                                                                                                          from £95.00
                                                                                                                                                                                          # 064
                                                                                                                                                                                          MPN: 107 BV 57591
                                                                                                                                                                                          WORDING Maserati ON THE REAR OF THE VEHICLE
                                                                                                                                                                                          from £52.50
                                                                                                                                                                                          from £52.50
                                                                                                                                                                                          # 065
                                                                                                                                                                                          MPN: 115 BM 64859
                                                                                                                                                                                          Scritta cromata ‹‹ GHIBLI SS ›› (richiesta)

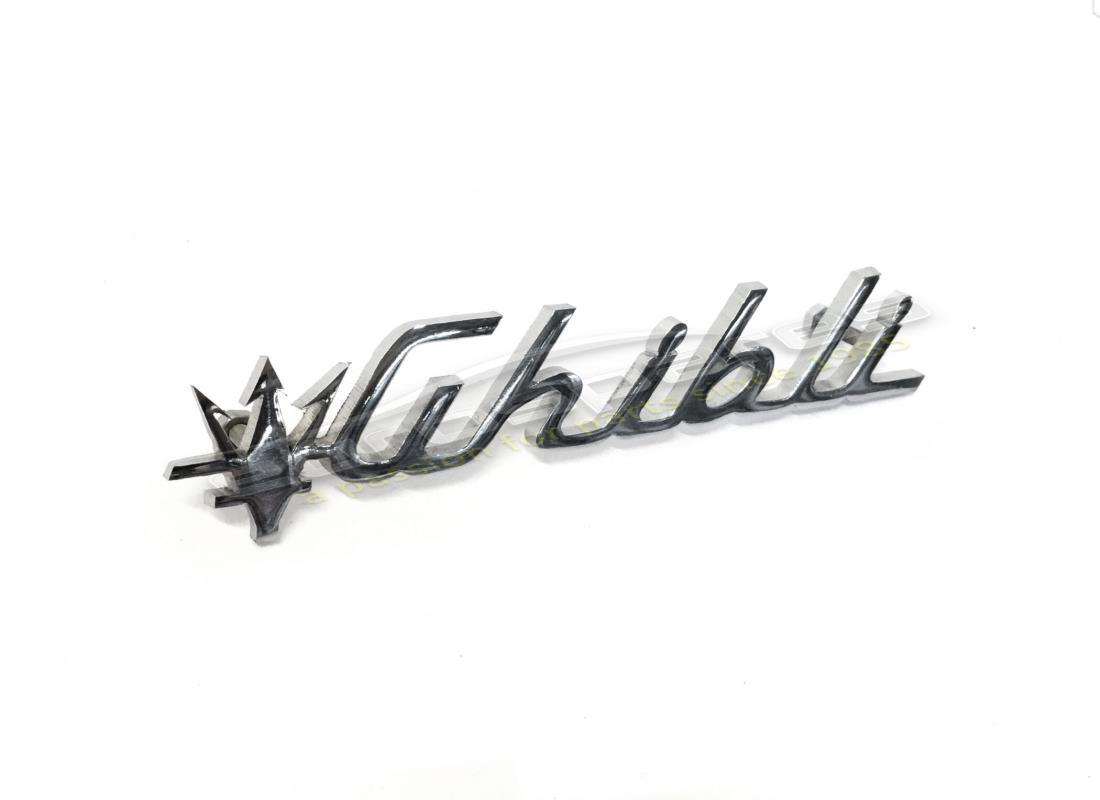

                                                                                                                                                                                          # 065
                                                                                                                                                                                          MPN: 115 MB 66491
                                                                                                                                                                                          Chromed GHIBLI writing
                                                                                                                                                                                          from £99.75
                                                                                                                                                                                          from £99.75
                                                                                                                                                                                          # 066
                                                                                                                                                                                          MPN: DNT/62557
                                                                                                                                                                                          NUT
                                                                                                                                                                                          # 067
                                                                                                                                                                                          MPN: 109BM 59028
                                                                                                                                                                                          SPARE WHEEL FIXING KNOCK
                                                                                                                                                                                          # 068
                                                                                                                                                                                          MPN: 109 - BM 57006
                                                                                                                                                                                          SPARE WHEEL KNOCKER PLATE
                                                                                                                                                                                          # 069
                                                                                                                                                                                          MPN: GOM 56995
                                                                                                                                                                                          Gommino Ø 6,5 X 25 per detto
                                                                                                                                                                                          # 070
                                                                                                                                                                                          MPN: 109BM 56855
                                                                                                                                                                                          SPARE WHEEL KNOCK ASSEMBLY
                                                                                                                                                                                          # 071
                                                                                                                                                                                          MPN: 115 BM 65567
                                                                                                                                                                                          FUEL FILLER LOCK
                                                                                                                                                                                          # 072
                                                                                                                                                                                          MPN: GRF 66123
                                                                                                                                                                                          Petrol filler lock fastening clip
                                                                                                                                                                                          # 073
                                                                                                                                                                                          MPN: PCN 65106
                                                                                                                                                                                          PARACOLPO COPERCHIO BOCCHETTONE BENZINA
                                                                                                                                                                                          # 074
                                                                                                                                                                                          MPN: 115 BT 65651
                                                                                                                                                                                          LEFT SUNVISOR COMPLETE WITH ATTACHMENTS
                                                                                                                                                                                          # 075
                                                                                                                                                                                          MPN: 115 BT 65652
                                                                                                                                                                                          RIGHT SUNVISOR COMPLETE WITH ATTACHMENTS
                                                                                                                                                                                          # 076
                                                                                                                                                                                          MPN: 115 BT 65653
                                                                                                                                                                                          Sunshade support hook
                                                                                                                                                                                          # 077
                                                                                                                                                                                          MPN: 115 BT 65519
                                                                                                                                                                                          REARVIEW MIRROR ON THE HOOD
                                                                                                                                                                                          # 078
                                                                                                                                                                                          MPN: VAT 62309
                                                                                                                                                                                          SCREW
                                                                                                                                                                                          # 078
                                                                                                                                                                                          MPN: VAT 62309
                                                                                                                                                                                          SCREW
                                                                                                                                                                                          # 078
                                                                                                                                                                                          MPN: VAT 62309
                                                                                                                                                                                          SCREW
                                                                                                                                                                                          # 079
                                                                                                                                                                                          MPN: 115 BC 65023
                                                                                                                                                                                          SERRATURA CASSETTO CRUSCOTTO
                                                                                                                                                                                          # 080
                                                                                                                                                                                          MPN: 115 BC 66044
                                                                                                                                                                                          Dashboard drawer lock striker hook
                                                                                                                                                                                          # 081
                                                                                                                                                                                          MPN: 115 BO 65581
                                                                                                                                                                                          RINVIO APRICOFANO BAULE
                                                                                                                                                                                          # 082
                                                                                                                                                                                          MPN: 115 BO 65540
                                                                                                                                                                                          Rinvio apricofano motore
                                                                                                                                                                                          # 083
                                                                                                                                                                                          MPN: 107 BT 59089
                                                                                                                                                                                          PASSENGER SUN MIRROR
                                                                                                                                                                                          # 084
                                                                                                                                                                                          MPN: 107 BT 65654
                                                                                                                                                                                          RIGHT SUN VISOR ATTACHMENT
                                                                                                                                                                                          # 085
                                                                                                                                                                                          MPN: 107 BT 65655
                                                                                                                                                                                          ATTACHMENT FOR LEFT SUNVISOR
                                                                                                                                                                                          # 086
                                                                                                                                                                                          MPN: RNT 553779
                                                                                                                                                                                          WASHER
                                                                                                                                                                                          # 087
                                                                                                                                                                                          MPN: CN33539
                                                                                                                                                                                          COPIGLIA Ø 2 X 20 PER DETTO
                                                                                                                                                                                          # 088
                                                                                                                                                                                          MPN: MN 65642
                                                                                                                                                                                          Rubber sleeve Ø 12 X 17 X 310 water drain around the engine hood
                                                                                                                                                                                          # 089
                                                                                                                                                                                          MPN: FRN 44677
                                                                                                                                                                                          Fascette sagomate Ø 12 per detto
                                                                                                                                                                                          # 090
                                                                                                                                                                                          MPN: VAT 65585
                                                                                                                                                                                          SCREW
                                                                                                                                                                                          # 091
                                                                                                                                                                                          MPN: 115 BO 66293
                                                                                                                                                                                          Serratura cofano motore a baule (dalla vett. N. 230 in poi)
                                                                                                                                                                                          # 092
                                                                                                                                                                                          MPN: 115 BO 66294
                                                                                                                                                                                          TIE ROD
