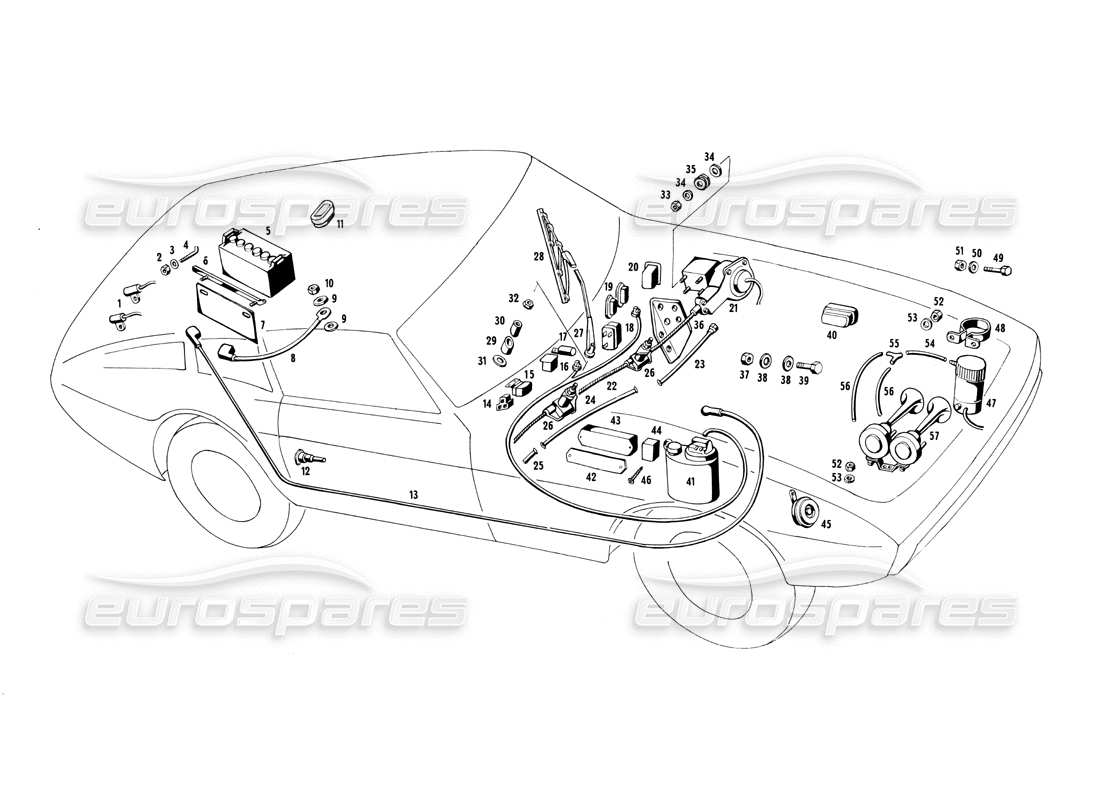

Maserati Ghibli 4.7 / 4.9 Electrical Equipment Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 101/7 ME-52898
CONDENSOR
# 002
MPN: DNT 47047
NUT
# 002
MPN: DNT 47047
NUT
# 003
MPN: RN 32025
WASHER
# 003
MPN: RN 32025
WASHER
# 004
MPN: 107 - BL 56622
TIE ROD
# 005
MPN: 101/9 BL 54977
Batteria d'alimentazione FIAMM 6 DE 4
# 006
MPN: 101/10 BL 58001
FRAME HOLDS BATTERY TO FRAME
# 007
MPN: 101/10 BL 58553
SPARE WHEEL PROTECTIVE BULKHEAD
# 008
MPN: 109 BL 56619
CAVO COMPLETO PER MASSA BATTERIA SUL TELAIO
# 011
MPN: 107 BL 56064
LAMP HOLDER FOR INTERIOR LIGHTING
# 012
MPN: 115 BL 64600
DOOR OPENING LIGHT
# 013
MPN: 107 BL 57185
CABLE FROM THE BATTERY TO THE STARTER MOTOR
# 014
MPN: 107 ME 58024
BLOCCHETTO COLLEGAMENTO REGOLATORE ALTERNAT.
# 015
MPN: 107 - ME 58568
REGOLATORE PER ALTERNATORE TIPO BOSCH
# 016
MPN: 107 BL 57631
RELAY PER COMANDO TROMBE PNEUMATICHE
# 017
MPN: 107 - BL 57278
INTERMITTENT DIRECTION LIGHT CONTROL
# 018
MPN: 107 BL 56288
HIGH BEAM HEADLIGHT CONTROL RELAY WITH FLASH
# 019
MPN: 107 BC 54807
Regolatori tensione per strumenti SMITHS
# 020
MPN: 107 BL 56288
RELAY COMANDO MEZZE LUCI CON FARI ALTO JODIO
# 021
MPN: 107 BL 59648
Motorino comando tergicristallo (fino Genn. ' 68)
from £519.75
from £519.75
# 021
MPN: 107/A BL 65745
Motorino comando tergicristallo completo di staffe a accessori (da Febbraio ' 68)
# 022
MPN: 107 BL 59643
FLEXIBLE HOUSING FOR WINDSHIELD WIPER CONTROL
# 023
MPN: 115BL64426
HOSE COMPLETE WITH NUT FOR FLEXIBLE SHEATH
# 024
MPN: 115 BL 63965
CENTRAL TUBE FOR FLEXIBLE SHEATH
# 025
MPN: 107BL59640
TERMINAL TUBE FOR FLEXIBLE SHEATH
# 026
MPN: 107 BL 59490
BOX WITH WIPER ARMS CONTROL SHAFT
Supersession
Supersession
# 027
MPN: 115BL64116
15 ARM FOR WIPER BLADES
from £84.62
from £84.62
# 028
MPN: 115 BL 64702
15 WIPER BLADE
from £55.56
from £55.56
# 029
MPN: 109 - BL 59473
EXTERNAL HUBCOVER FOR WINDSHIELD WIPER CONTROL SHAFT
# 030
MPN: 109 BL 59474
Distanziale sull'alberino comando tergicristalli
# 032
MPN: DNT 59475
NUT
# 034
MPN: RN 58406
WASHER
# 035
MPN: GOM 58407
Gommino sul motorino tergicristalli (fino Genn. ' 68)
# 036
MPN: 115 BL 65690
SUPPORT
# 037
MPN: DNT 47047
NUT
# 038
MPN: RNT 47074
WASHER
# 039
MPN: BNT 47019
BOLT
# 040
MPN: 107 BL 56064
Lamp holder for bonnet lighting

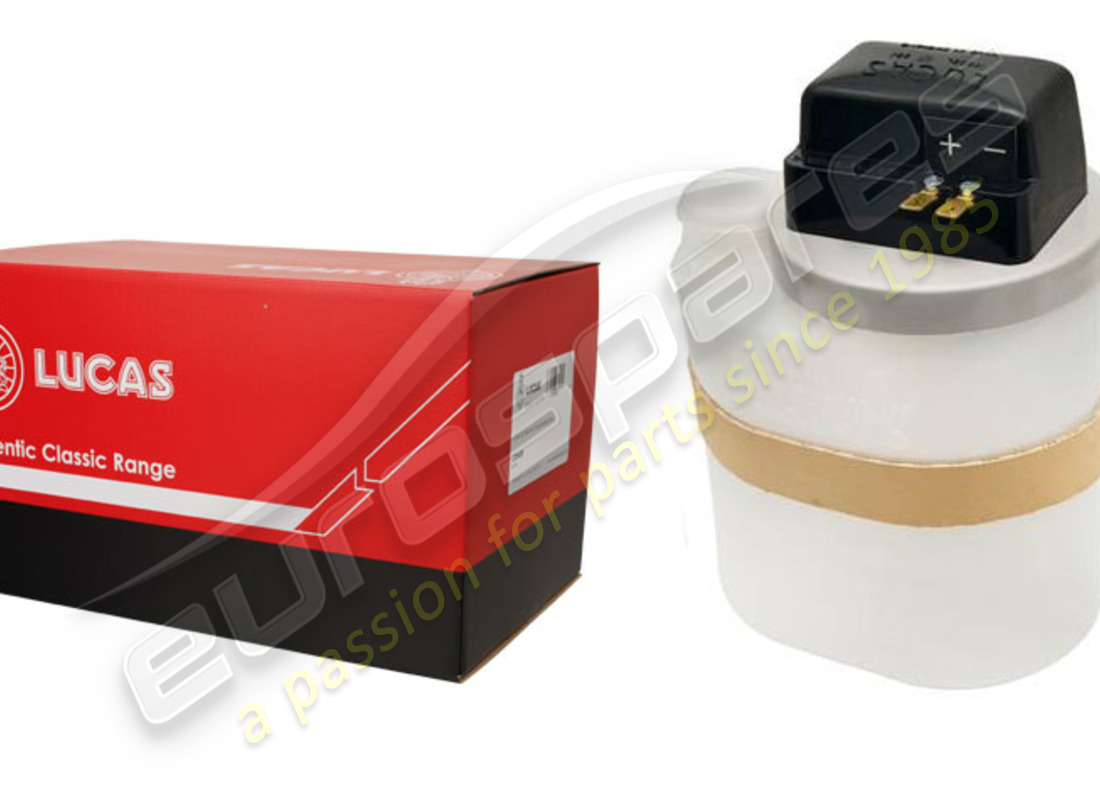

# 041
MPN: 115 BL 65969
TANK WITH Tubi AND WINDSHIELD WASHER SPRAYERS
from £209.00
from £209.00
# 042
MPN: 107/A BL 62995
VALVE BOX PROTECTION BASE
# 043
MPN: 107/A BL 61963
VALVE BOX FOR ELECTRICAL SYSTEM
# 044
MPN: 115 BL 64574
VALVE BOX FOR HEADLIGHT MOTOR
# 045
MPN: 60 - 17338 50343
DIAPHRAGM HORN FOR CITIES
# 046
MPN: VAT 56752
SCREW
# 047
MPN: 101/7 17349 52102
ONE SOUND PNEUMATIC HORN COMPRESSOR
# 048
MPN: 107 - BL 58685
Fascetta per fissaggio compressore trombe
# 049
MPN: BNT 54584
BOLT
# 050
MPN: RNT 47074
WASHER
# 051
MPN: DNT 47047
NUT
# 052
MPN: DNT 47030
NUT
# 052
MPN: DNT 47030
NUT
# 052
MPN: DNT 47030
NUT
# 053
MPN: RSN 3 2 6 3 5
WASHER
# 053
MPN: RSN 3 2 6 3 5
WASHER
# 053
MPN: RSN 3 2 6 3 5
WASHER
# 054
MPN: TPN 58683
PLASTIC HOSE FROM THE COMPRESSOR TO THE THREE WAY
# 055
MPN: 107 - BL 58684
UNION
# 056
MPN: TPN 58683
PLASTIC PIPE FROM THE THREE WAY TO THE HORNS
# 057
MPN: 101/7 17347 52101
COMPLETE PNEUMATIC HORNS WITH ONE SOUND
