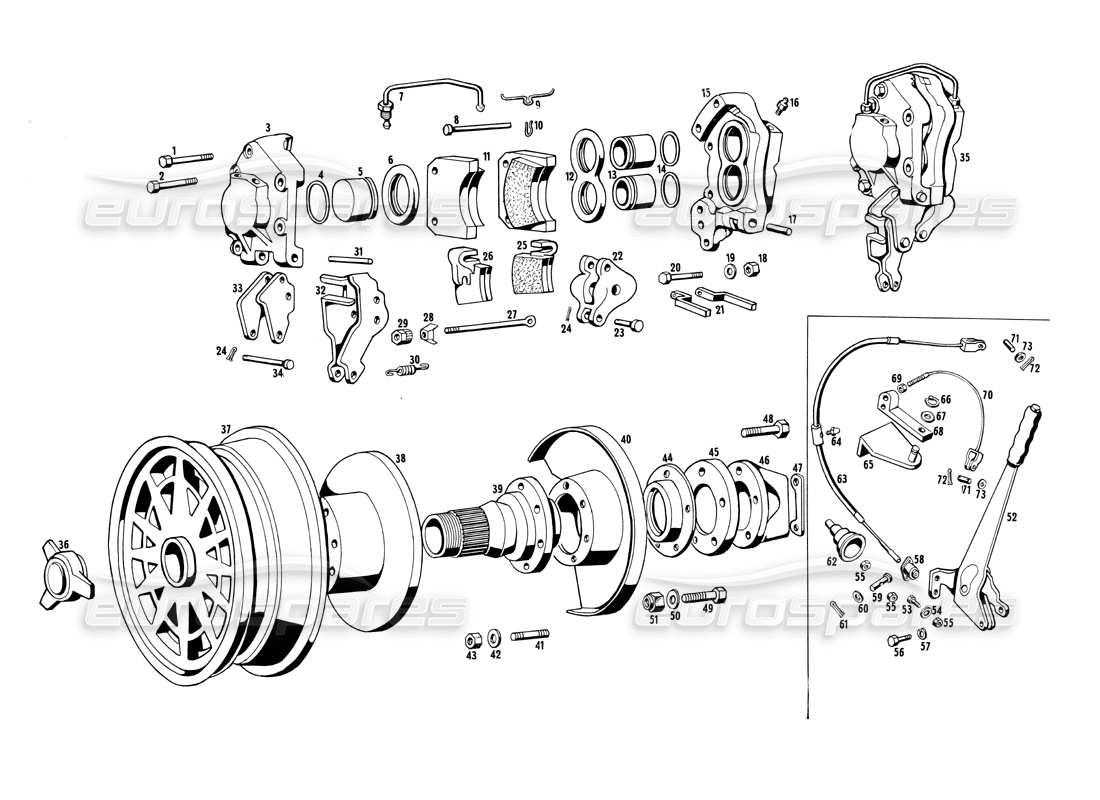

024 - Front Brakes and Handbrake
Maserati Ghibli 4.7 / 4.9 Front Brakes and Handbrake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
BN58447
BOLT
#
002
MPN:
BN58448
BOLT
#
003
MPN:
101/10 - FP 61688
SEMIPINZA POSTERIORE INTERNA DESTRA CALIPER 12/3
#
003
MPN:
101/10 FP 61687
SEMIPINZA POSTERIORE INTERNA SINISTRA CALIPER 12/3
#
004
MPN:
Gom. 55449
Seal on piston Ø 42,82
#
005
MPN:
107 FP 58450
PISTONE Ø 42,82 PER CALIPER POSTERIORE 12/3
#
006
MPN:
101/9 FA 58695
Gommino parapolvere per pistone Ø 42,82
from
£84.00
from
£84.00
#
007
MPN:
107 FP 58452
HOSE COMPLETE WITH FITTINGS FOR CONNECTING HALF-CALIPERS
#
008
MPN:
107FP58453
PIVOT
#
009
MPN:
101/9 - FP 55469
SPRING
#
010
MPN:
CN58454
CPL ON THE PINS HOLDING THE REAR BRAKING BLOCKS
#
011
MPN:
FP 51926

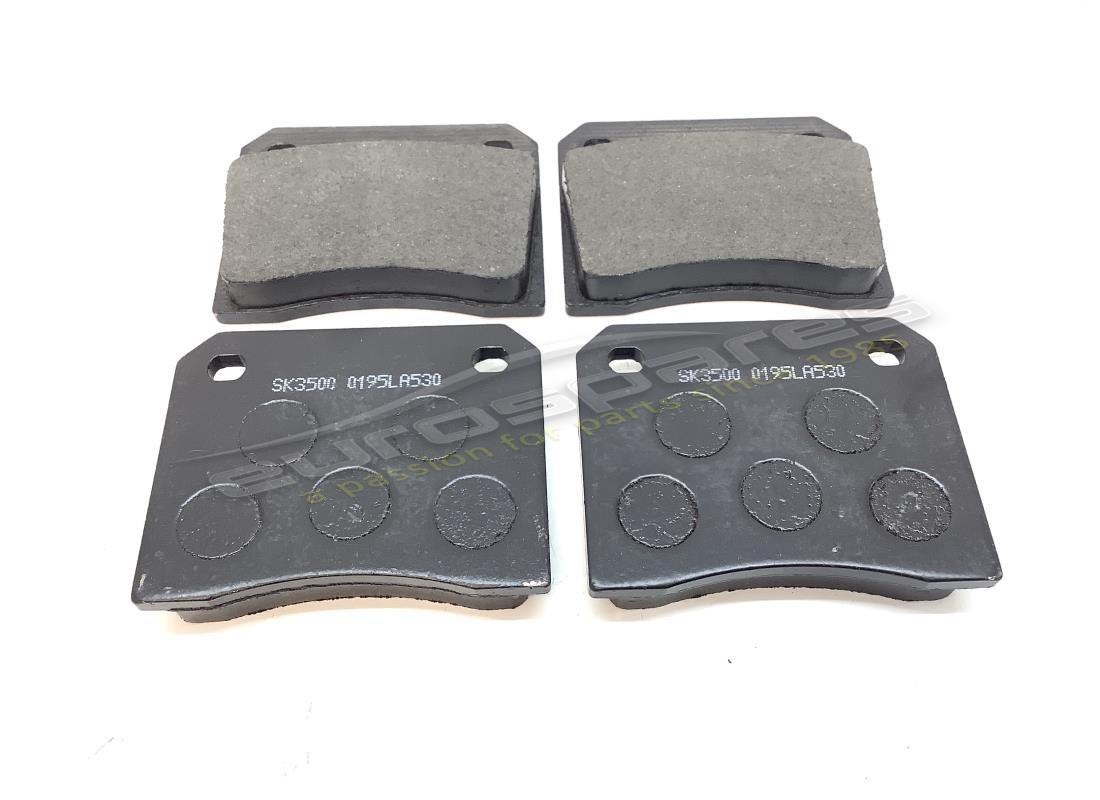

REAR BRAKE PADS SET
#

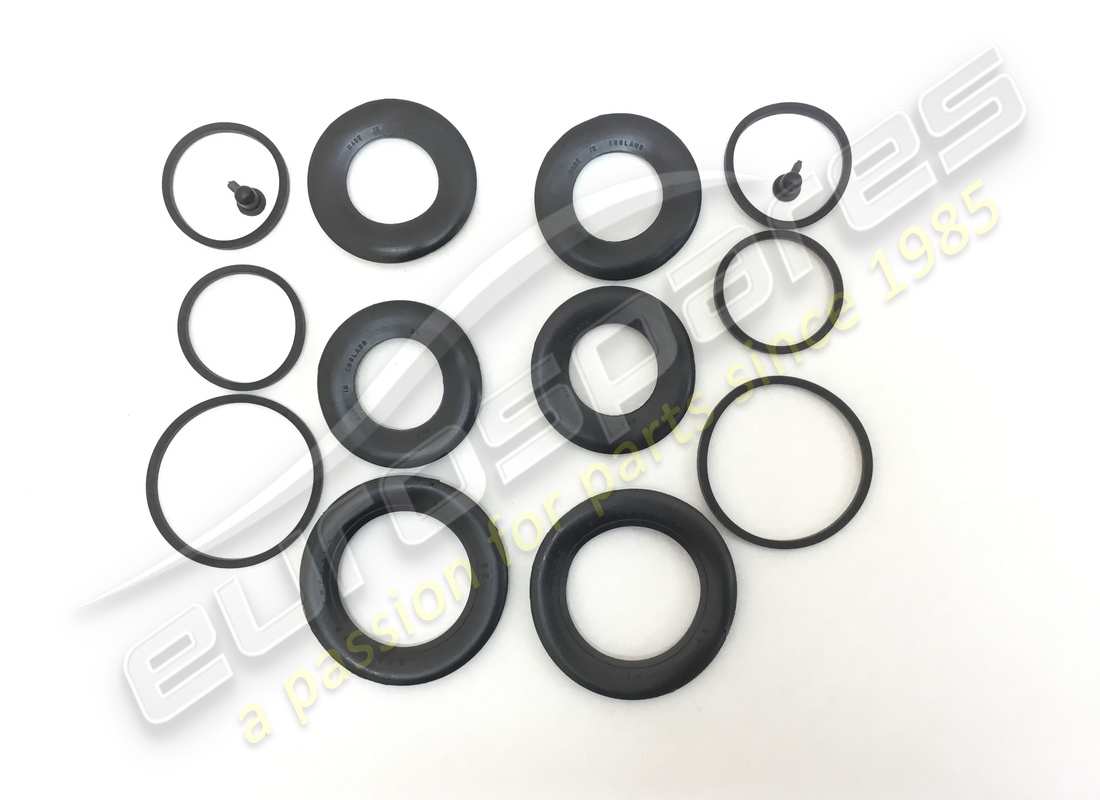

012
MPN:
FP 58455

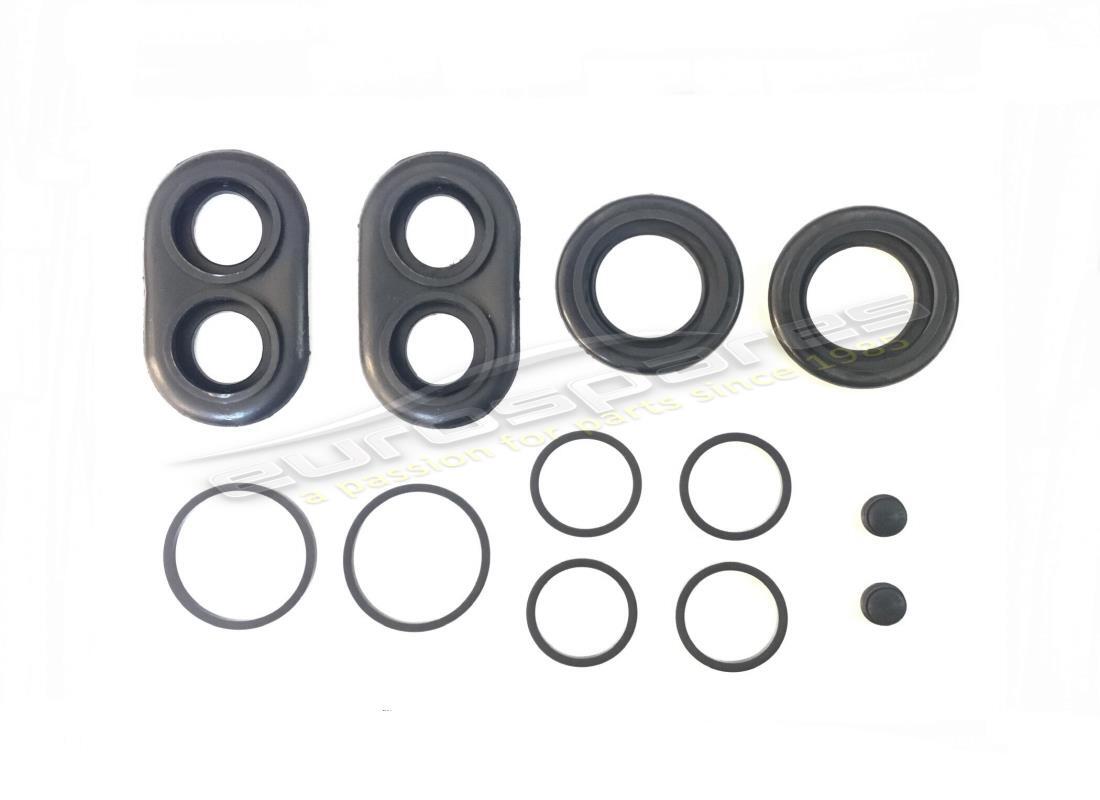

REAR CALIPER REPAIR KIT (42 MM)
from
£63.80
from
£63.80
#
013
MPN:
107 FP 58456
PISTONE Ø 30,18 PER CALIPER POSTERIORE 12/3
#
014
MPN:
GOM58457
Seal on piston Ø 30,18
#
015
MPN:
101/10 FP 61085
Semipinza posteriore esterna sinistra per caliper 12/3
#
015
MPN:
101/10 FP 61086
SEMIPINZA POSTERIORE ESTERNA DESTRA PER CALIPER 12/3
#
016
MPN:
107 FP 58458
AIR VENT CAP
#
017
MPN:
107 FP 58459
PIN
#
018
MPN:
DN58468
NUT
#
019
MPN:
RSN 58467
WASHER
#
020
MPN:
BN58466
BOLT
#
021
MPN:
107FP58473
Handbrake block holding plate
#
022
MPN:
107 FP 58462
LEVER
#
023
MPN:
107 FP 58465
PIN
#
024
MPN:
CN. 43776
PIN FOR SAID AND FOR LEVER CONTROL LEVER PIN
from
£0.86
from
£0.86
#
025
MPN:
107FP58460
RIGHT HANDBRAKE PLUSH
#
026
MPN:
107 FP 58461
LEFT HANDBRAKE PLUSH
#
027
MPN:
107 FP 58464
WASHER
#
028
MPN:
107 - FP 58470
NUT
#
029
MPN:
107 FP 58469
NUT
#
030
MPN:
107FP58472
SPRING
#
031
MPN:
107 FP 58459
PIN
#
032
MPN:
101/9 - FP 61020
LEVER
#
033
MPN:
107FP58463
SUPPORT
#
034
MPN:
107 - FP 58471
PIN
#
035
MPN:
FP 58268

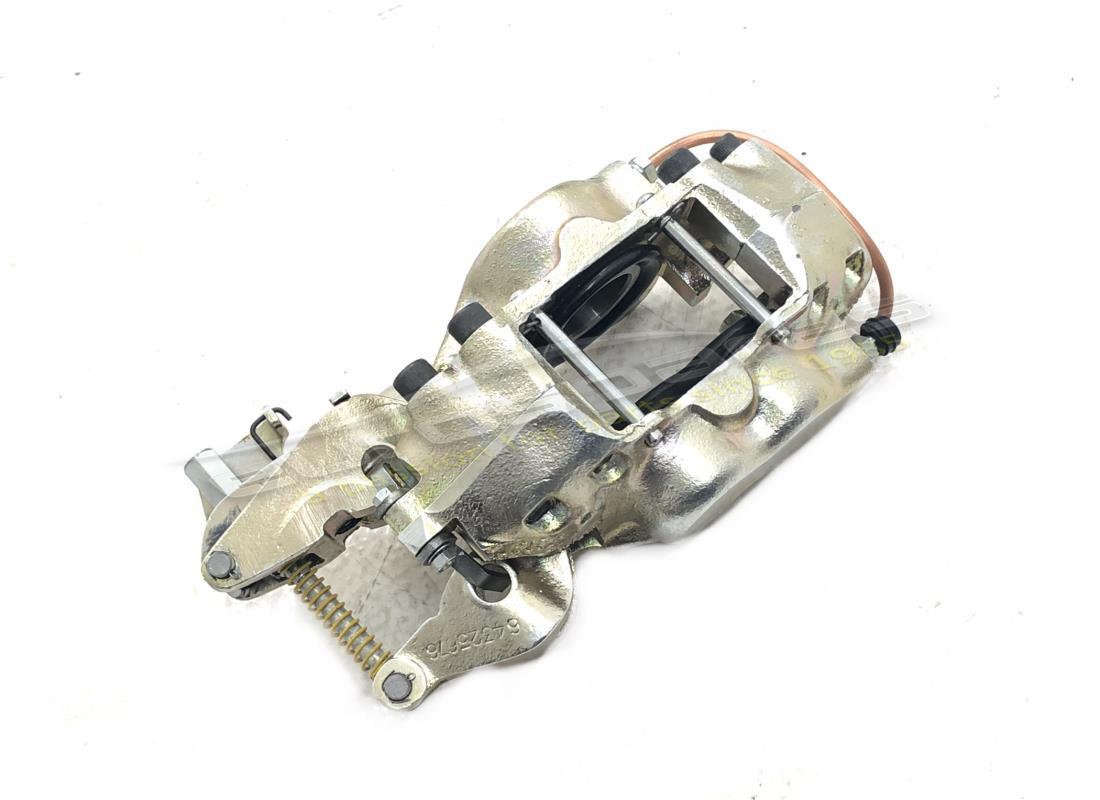

RH REAR CALIPER
from
£1,254.75
from
£1,254.75
#
035
MPN:
FP 58269
LH REAR CALIPER
from
£1,254.75
from
£1,254.75
#
036
MPN:
101 13024 51022
NUT
#
036
MPN:
101 13026 51023
NUT
#
037
MPN:
115 SR 63466
CAST WHEEL 7 L X 15 FOR 42 HUB
#
037
MPN:
115 SR 64841
SPOKED WHEEL 7 L X 15 FOR 42 HUB
#
038
MPN:
107/A :FP 63029
Rear brake disc
#
039
MPN:
107/A TP 63030

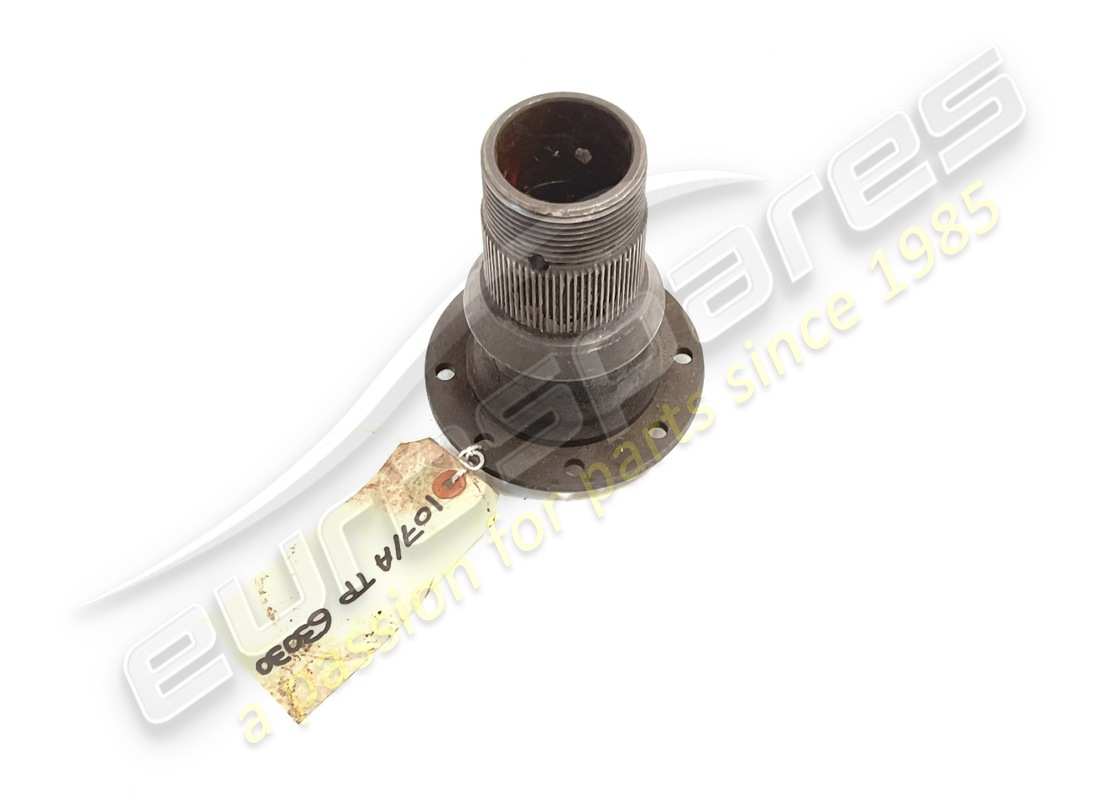

RIGHT REAR WHEEL HUB
from
£210.00
from
£210.00
#
039
MPN:
107/A TP 63031
LEFT REAR WHEEL HUB
from
£210.00
from
£210.00
#
040
MPN:
107/A FP 62410
RIGHT REAR BRAKE DISC PROTECTION PLATE
#
040
MPN:
107/A FP 62411
Rear left brake disc protection sheet
#
041
MPN:
PN 47217
THREADED STUD
#
042
MPN:
RAT/45680
WASHER
#
043
MPN:
DST 45670
NUT
#
044
MPN:
101 10127 48279
ANGUS SEAL REDUCTION BUSH FOR REAR HUB
#
045
MPN:
101 10128 48280
SPACER FOR SAID
#
046
MPN:
107/A FP 62333
SUPPORT
#
046
MPN:
107/A FP 62334
SUPPORT
#
047
MPN:
101/6 14554 51501
LOCKING PLATE FOR CALIPER FIXING BOLTS
#
048
MPN:
BN52041
BOLT
#
049
MPN:
BN 48285
BOLT
#
050
MPN:
RN 48286
WASHER
#
051
MPN:
DN 48287
NUT
#

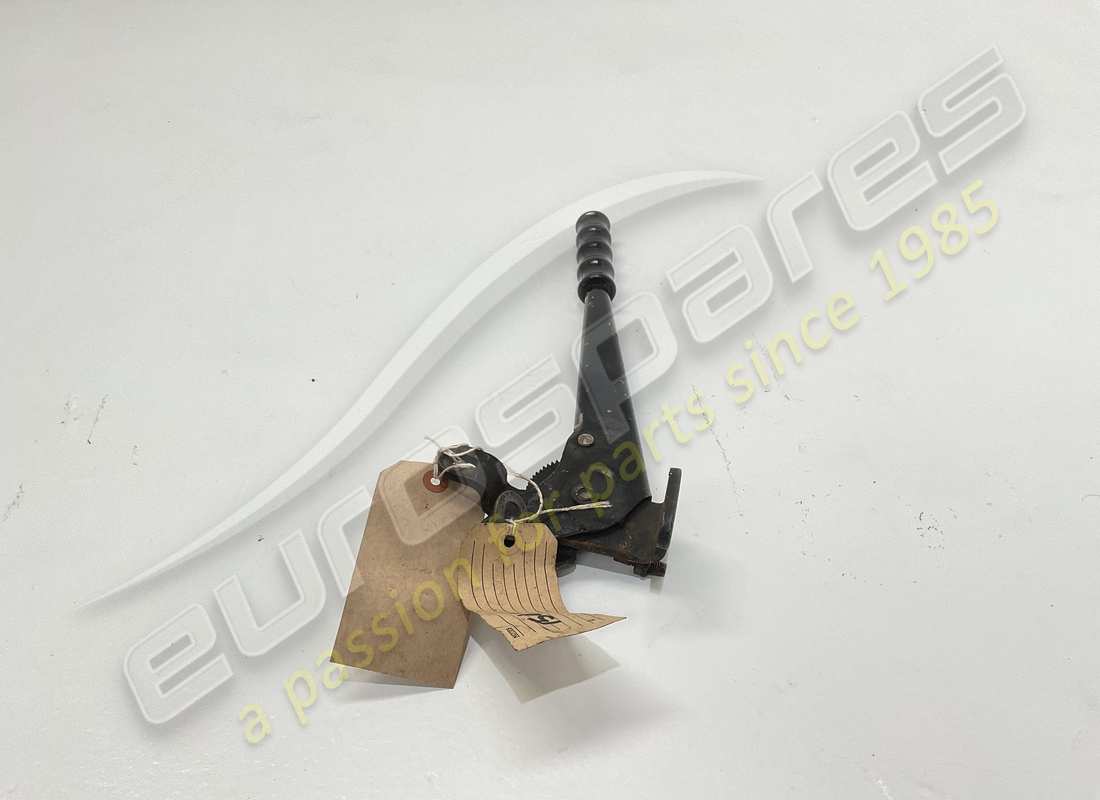

052
MPN:
101 15501 51082
LEVER
from
£350.00
from
£350.00
#
053
MPN:
BNT47021
BOLT
from
£1.80
from
£1.80
This part replaces part number 47021
#
054
MPN:
RSN/32690
WASHER
#
055
MPN:
DNT 47047
NUT
#
056
MPN:
BNT. 47015
BOLT
#
057
MPN:
RSN 3 2 6 3 5
WASHER
#
058
MPN:
107BL56933
HAND BRAKE ON SIGNAL SWITCH
#
059
MPN:
109 FM 55602
PIVOT
#
060
MPN:
RN 35806
WASHER
#
061
MPN:
CN 63373
COPIGLIA Ø 3 X 25 PER DETTO
#
062
MPN:
PFN 59817
GROMMET
#
063
MPN:
115 FM 64267
Complete handbrake cable from rear brake lever. right for left-hand drive
#
063
MPN:
115 FM 65602
Complete handbrake cable from lever to rear brake. right for right-hand drive
#
064
MPN:
IN/48089
GREASE GREASE Ø 8 X 1,25 ON THE HANDBRAKE CABLE
#
065
MPN:
101/9 FM 54728
BRACKET / SUPPORT
#
065
MPN:
109/A - FM 62072
BRACKET / SUPPORT
#
066
MPN:
ART 55631
RING
#
067
MPN:
RN 38721
WASHER
#
068
MPN:
109/A - FM 61248
ARM ON THE BRACKET FOR HAND BRAKE FOCUS RIGHT DRIVE
#
068
MPN:
109/A FM 61531
Sulfa arm bracket for handbrake fulcrum
#
069
MPN:
DNT. 47031
NUT
#
070
MPN:
115 FM 65063
Complete cable from the joint to the rear brake. left left hand drive
#
070
MPN:
115 FM 65603
Complete cable from the joint to the right rear brake, right-hand drive
#
071
MPN:
SN 48692
PIN
from
£18.96
from
£18.96
#
072
MPN:
CN32502
COPIGLIA Ø 2 X 25 PER DETTO
#
073
MPN:
RN/43855
WASHER
