Maserati Ghibli 4.7 / 4.9 Air Intake Manifold and Filter Parts Diagram

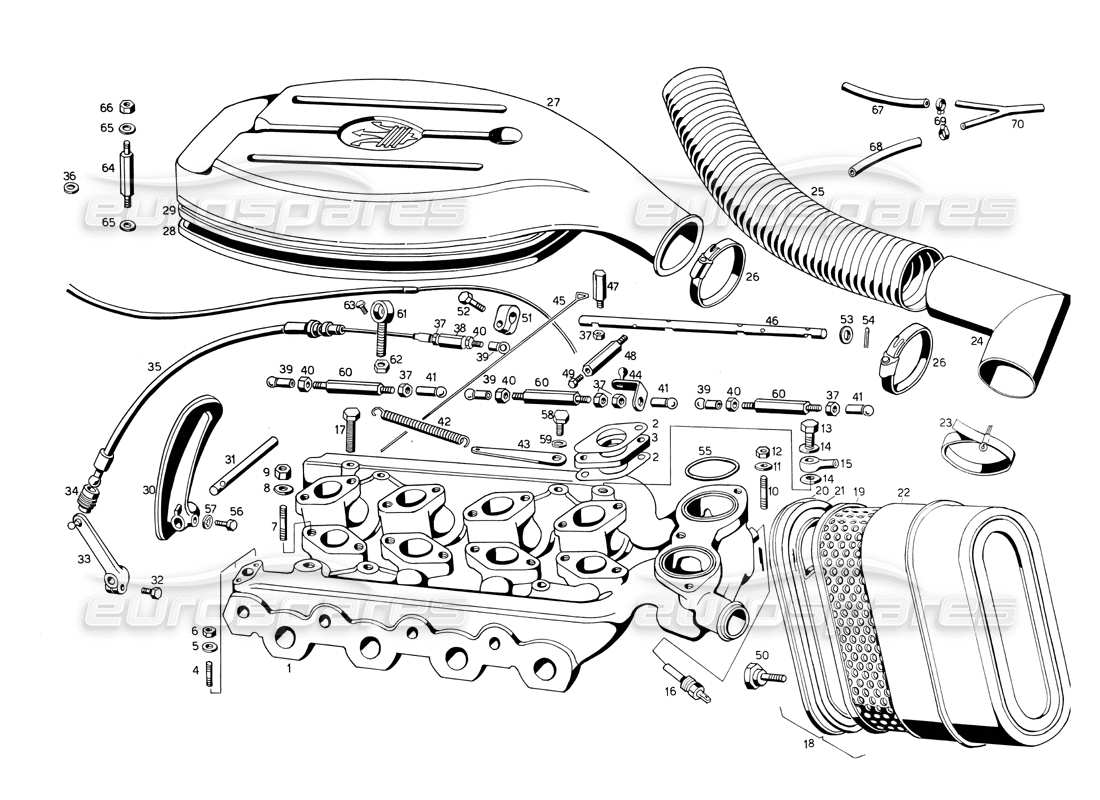

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 115 MT 62856
Collettore d'aspirazione
# 002
MPN: 115 MT 64183
GASKET OR SEAL
# 003
MPN: 115 MT 64179
GASKET OR SEAL
# 004
MPN: PN 32658
THREADED STUD
# 005
MPN: RAT/45679
WASHER
# 006
MPN: DNT 47047
NUT
# 007
MPN: PN 33006
THREADED STUD
# 009
MPN: DNT 47080
NUT
# 010
MPN: PN 33088
THREADED STUD
# 011
MPN: RAT/47078
WASHER
# 012
MPN: DST 51418
NUT
# 013
MPN: VRN 63028
SCREW
# 014
MPN: GN46637
GASKET OR SEAL
from £2.14
from £2.14
# 015
MPN: RON 63027
UNION
# 016
MPN: 107 - ML 5481 1
TESTINA PER TEMPERATURA ACQUA (STRUMENTI SMITHS) .
# 016
MPN: 115 ML 65219
Testina per temperatura acqua (Strumenti Borletti) .
# 018
MPN: MC 63566
AIR FILTER COMPLETE
from £1,135.35
from £1,135.35
# 019
MPN: 115 MC 63567

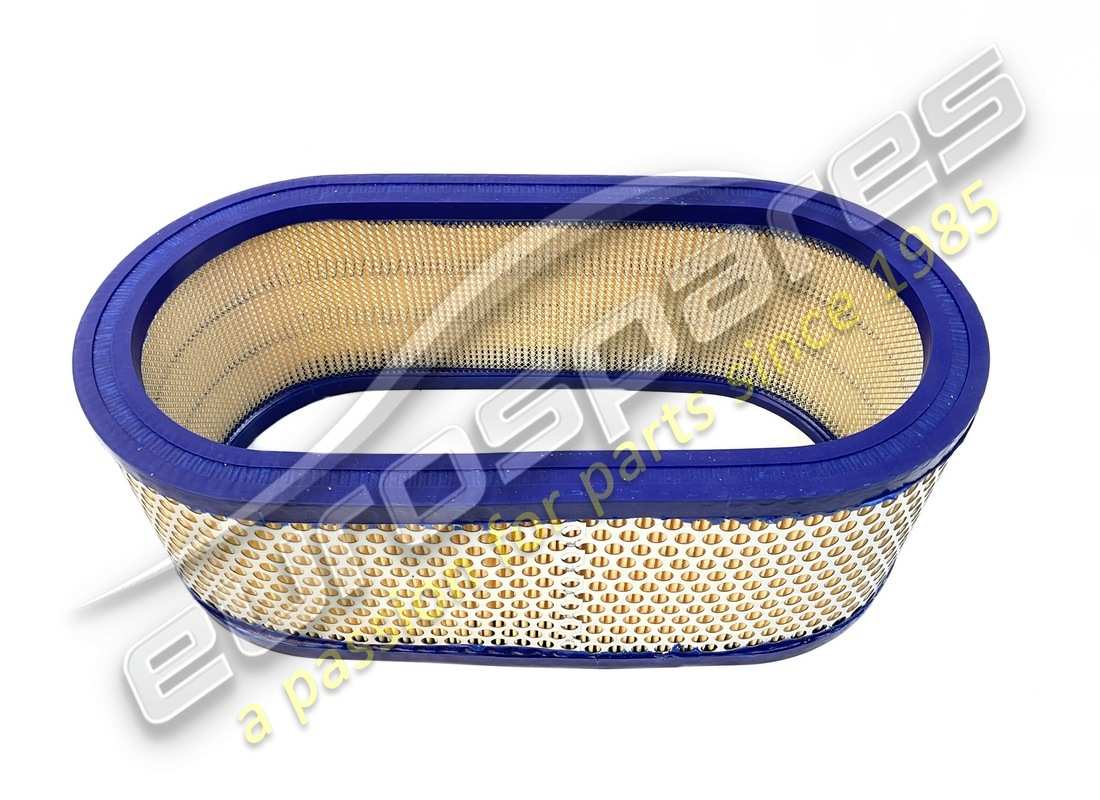

FILTER CARTRIDGE FOR AIR FILTER
from £92.72
from £92.72
# 021
MPN: PRN 66795
GASKET OR SEAL
# 022
MPN: non fornibile
Scatola contenitore filtro aria .
# 023
MPN: FRN 57322
CLAMP WITH PIN L=300 MM FOR FIXING CONNECTION PIPE AND AIR FILTER
# 024
MPN: 115 MC 64576
CONNECTION PIPE BETWEEN AIR FILTER AND CARBURETTOR BOX
# 025
MPN: 115 MC 65897
FLEXIBLE PIPE
# 026
MPN: FRN37835
FASCETTA Ø 70 - 89 PER DETTO .
# 027
MPN: 107 MC 54769
COVER
# 027
MPN: 115 MC 67206
COVER
# 028
MPN: 107MC54187
PLATE ON CARBURETTORS UNTIL JUNE ' 68 .
# 028
MPN: 115 MC 66965
P,iastra sui carburatori dal luglio ' 68 .
# 029
MPN: PRN 57276
RUBBER PROFILE BETWEEN COVER AND PLATE ON CARBURETORS L = MT. 1,34 .
# 030
MPN: 115 MC 64615
PEDALE ACCELERATORE
# 030
MPN: 15300005
Accelerator pedal Rubber
from £19.43
from £19.43
# 031
MPN: 115 MC 64240
ACCELERATOR CONTROL SHAFT.
# 033
MPN: 107 MC 57306
LEVER ON THE ACCELERATOR PEDAL LATCH.
# 034
MPN: 107MC58675
ACCELERATOR SHEATH PROTECTION BELLOWS
# 035
MPN: 107 MC 57288
COMPLESSIVO CAVO COMANDO ACCELERATORE (GUIDA SINISTRA) .
# 035
MPN: 115 MC 65401
COMPLESSIVO CAVO COMANDO ACCELERATORE (GUIDA DESTRA)
# 037
MPN: DNT 47046
NUT
This part replaces part number 47046
# 038
MPN: 107 MC 57294
PIVOT
# 039
MPN: 101/7 6095 52235
CORPO PER SNODO ANGOLARE SUL COMANDO ACCELERATORE (FILETTO SINISTRO)
# 041
MPN: 101/3609550186
BODY FOR RIGHT CORNER JOINT ON CARBURETTOR CONTROL TIES
# 042
MPN: 106 MC 57824
SPRING
# 043
MPN: 107/2 MC 63032
SHEET FOR ACCELERATOR RETURN SPRING ATTACHMENT.
# 044
MPN: 107 MC 60038
PLATE COMPLETE WITH JOINT FOR ACCELERATOR CONTROL SHEATH ATTACHMENT
# 045
MPN: FGN 57260
FILO ACCIAIO Ø 1,2 COMANDO STARTER L=225 MM
# 046
MPN: 107 MC 55075
ALBERINO COMANDO STARTER .
# 047
MPN: 107MC55077
Levetta sull'alberino comando starter
# 048
MPN: 107 MC 55076
TIE ROD
# 049
MPN: BNT 57325
BOLT
# 050
MPN: 115 MC 66796
SCREW
# 051
MPN: A6GCM606641247
WASH THE STARTER CONTROL SHAFT LOCKING .
# 053
MPN: RNT 55375
WASHER
# 054
MPN: CN 33065
COPIGLIA Ø 3 X 25 PER DETTO .
# 055
MPN: GOM 61411
Rubber Ø 58,42 X 63,2 X 2,62 thermostat retainer cover seal
# 059
MPN: RSN 3 2 4 9 7
WASHER
# 060
MPN: 107/2 MC 52038
TIE ROD
# 061
MPN: 107/2 MC 61399
UPPER ACCELERATOR SHEATH FIXING ANCHOR
# 062
MPN: DNT. 47031
NUT 8 X 1.25
# 064
MPN: 107/2 MC 66518
COLONNETTA FISSAGGIO SCATOLA SUI CARBURATORI (POSTERIORE) - FINE SETTEMBRE 68
# 064
MPN: 107/2 MC 66519
COLONNETTA FISSAGGIO SCATOLA SUI CARBURATORI (ANTERIORE) - FINE SETTEMBRE 68
# 064
MPN: 107/2 MC 67162
COLONNETTA FISSAGGIO SCATOLA CARBURATORI H.70 (ANTERIORE) - OTTOBRE 68 .
# 064
MPN: 107/2 MC 67163
COLONNETTA FISSAGGIO SCATOLA CARBURATORI H.70 (POSTERIORE) - OTTOBRE 68 .
# 066
MPN: DST 47462
NUT
# 067
MPN: MN 54780
MANICOTTO Ø 9 X 15 X 110 PRESA DEPRESSIONE RACCORDO ANTER.
This part replaces part number 54780
# 068
MPN: MN 54780
SLEEVE Ø 9 X 15 X 150 REAR FITTING VACUUM SOCKET.
This part replaces part number 54780
# 069
MPN: FRN 37824
TOO CLAMP FOR FIXING THE VACUUM SOCKETS.
# 070
MPN: RT 46959
UNION
