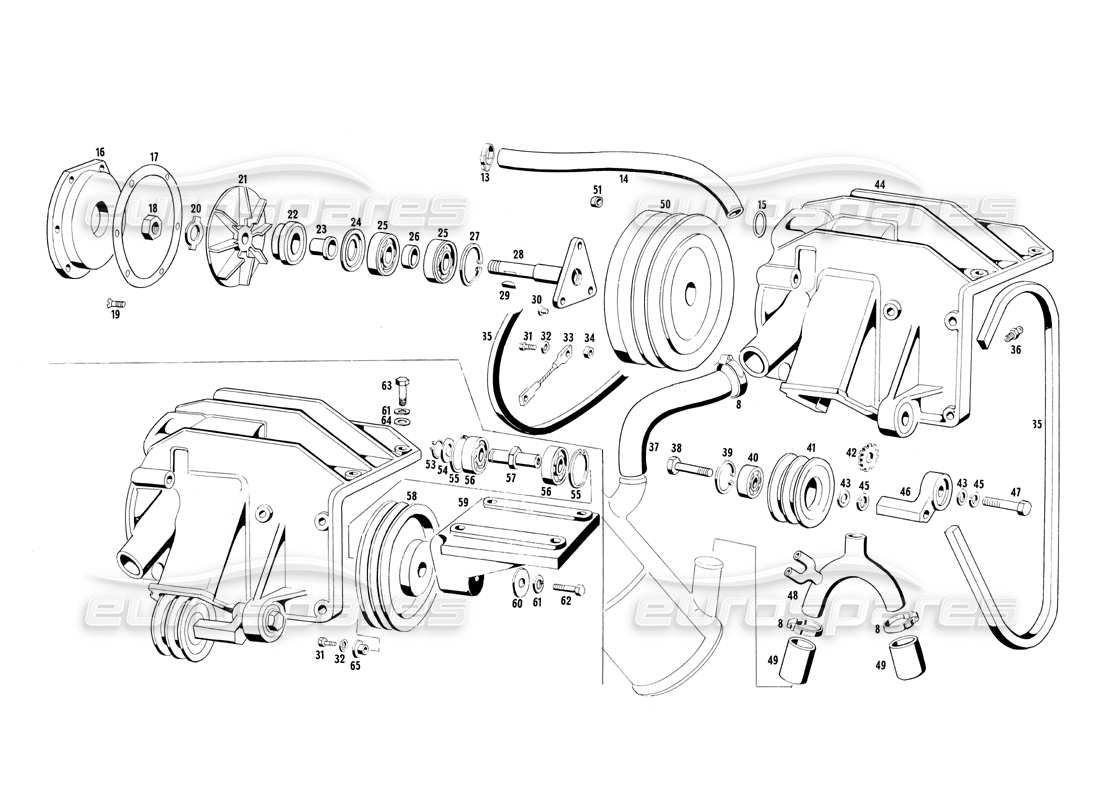

006 - engine cooling
Maserati Ghibli 4.7 / 4.9 Engine Cooling Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
008
MPN:
FRN 62541
MT CLAMP 1 X FOR RADIATOR EXCHANGER SLEEVES
#
013
MPN:
FRN 62541
CLAMP FOR SLEEVE BETWEEN EXCHANGER AND ENGINE.
#
014
MPN:
MN 54411
SLEEVE 32 X 40 X 500 FOR CONNECTION BETWEEN THE EXCHANGER AND THE ENGINE
#
015
MPN:
GOM 41462
RUBBER 38 X 44 X 3 FOR SEAL BETWEEN WATER PUMP BODY AND BASE
#
016
MPN:
107 4522 53905
COVER
#
017
MPN:
103 4523 50524
GASKET OR SEAL
#
019
MPN:
VNT 47051
SCREW
#
020
MPN:
RL54461
WASHER
#
021
MPN:
107 4542 53913
GIRANTE POMPA ACQUA
Supersession
Supersession
#
022
MPN:
ANT 53928
SEALING RING
#
023
MPN:
107MA54692
BUSH ON THE WATER PUMP CONTROL SHAFT.
#
024
MPN:
107 MA 54693
RING
#
025
MPN:
CSC52079
BEARING 17 X 40 X 12 ON THE WATER PUMP DRIVE SHAFT
#
026
MPN:
107MA53930
Spacer on the water pump shaft
#
027
MPN:
ART. 43191
RING
#
028
MPN:
107/2 MA 64368
Water pump control shaft
#
029
MPN:
LN40155
TAB 3 X 5 FOR DRIVING THE WATER PUMP
#
030
MPN:
CHN 53204
NAIL FOR WATER PUMP TOW CABLE
#
031
MPN:
BN 49603
BOLT
#
032
MPN:
RDI53899
WASHER
#
033
MPN:
MA 0064373

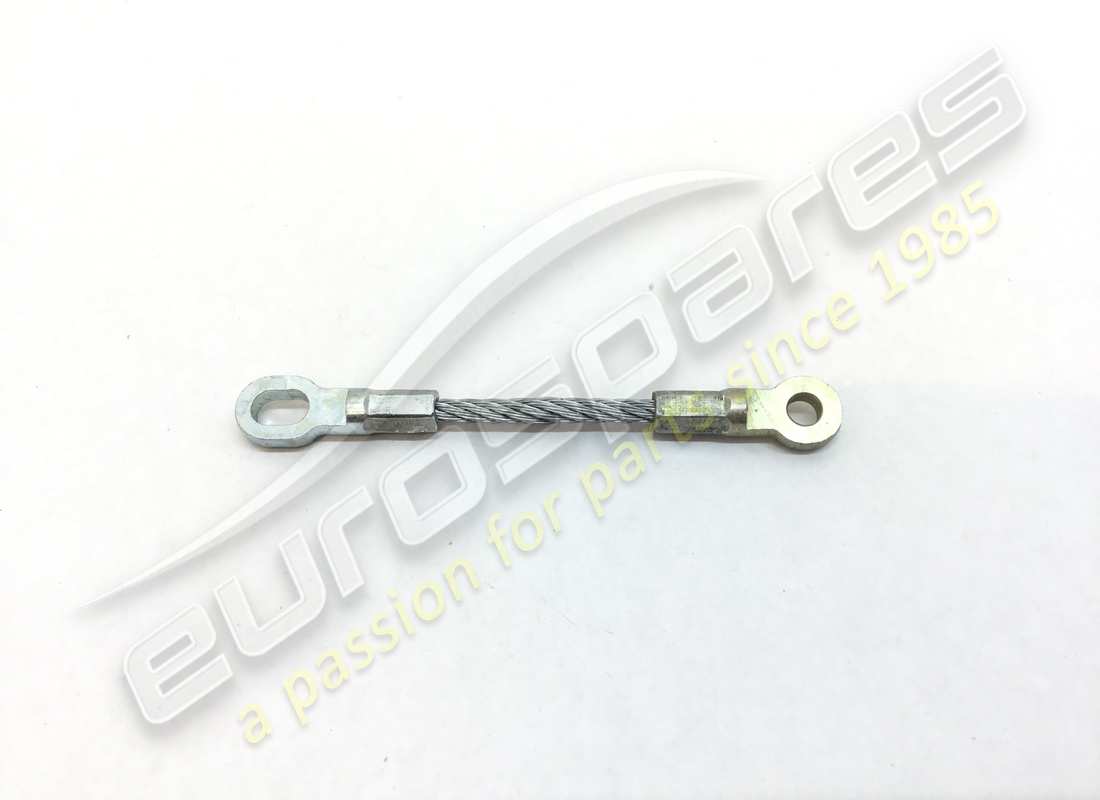

Water Pump Cord
from
£111.20
from
£111.20
#
034
MPN:
107 MA 57789
SPACER FOR WATER PUMP TOW ROPE.
#
035
MPN:
CTR52941
BELT TO DRAG PAMPA WATER VERSION WITHOUT COMPRESSOR
from
£27.58
from
£27.58
#
035
MPN:
CTR52941
BELT FOR DRIVING WATER PUMP AND COMPRESSOR.
from
£27.58
from
£27.58
#
036
MPN:
IN/48089
GREASE GREASE ON THE WATER PUMP BODY FOR BEARING LUBRICATION
#
037
MPN:
107 MA 56001
UNION
#
038
MPN:
107 MM 55651
SCREW
#
039
MPN:
ART/46284
RING
#
040
MPN:
CSC49764
BEARING 20 X 47 X 14 ON THE BELT TENSIONER PULLEY.
#
041
MPN:
107MM55650
BELT TENSIONER PULLEY
#
042
MPN:
RDE55652
WASHER
#
043
MPN:
RNT47101
WASHER
This part replaces part number 47101
#
044
MPN:
450253901

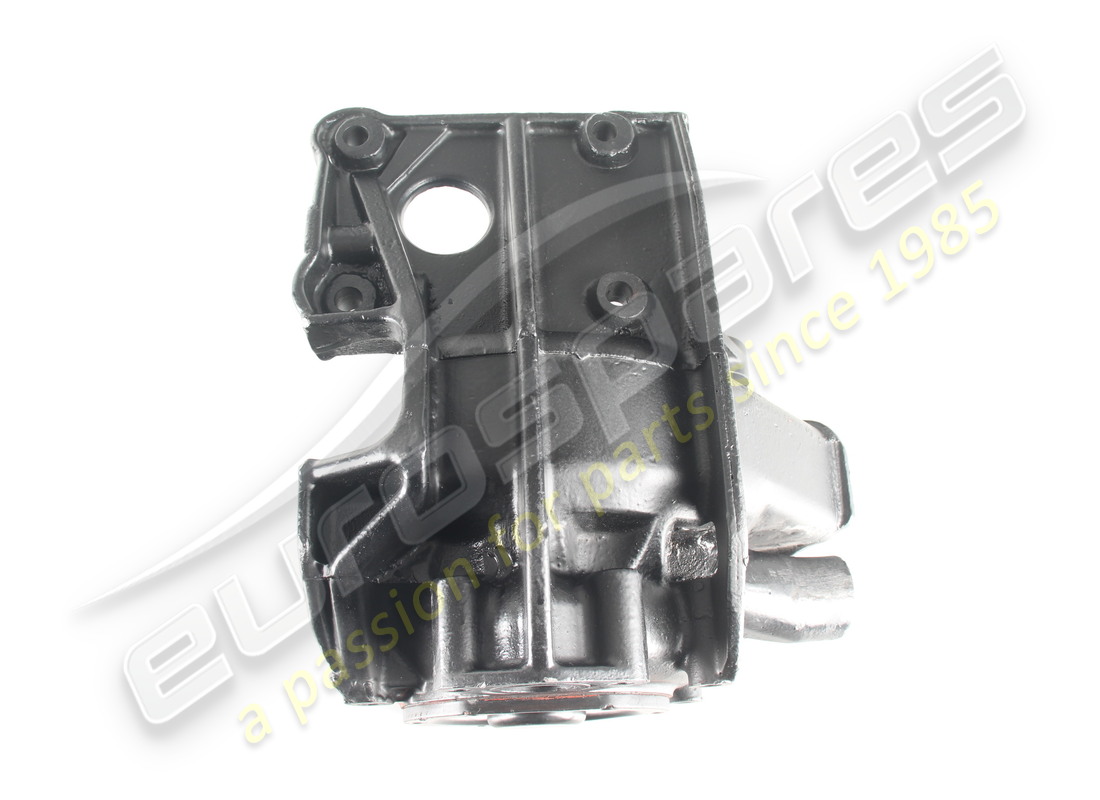

WATER PUMP ASSY
from
£2,750.00
from
£2,750.00
#
046
MPN:
107MM55649
ECCENTRIC FOR BELT TENSIONER PULLEY
#
047
MPN:
BNT 55653
BOLT
#
048
MPN:
115 CR 64651
UNION
#
048
MPN:
MN 55230
Manicotto 38 X 47 dal radiatore al scambiatore fino 100ª vett.
#
049
MPN:
MN 57230
SLEEVE 38 X 47 X 150 FROM THE HEAT EXCHANGER TO THE FITTING
#
050
MPN:
107 BR 54534
CLUTCH FOR AIR CONDITIONING COMPRESSOR
#
051
MPN:
107/2 MA 64374
GRAIN ON THE WATER PUMP SHAFT DRIVE PULLEY.
#
053
MPN:
ART 41406
RING
#
054
MPN:
107 MA 57629
RING
#
055
MPN:
ART/46284
RING
#
056
MPN:
CSC49764
Bearing for water pump control pulley
#
057
MPN:
107 MA 56942
SHAFT FOR WATER PUMP CONTROL PULLEY.
#
058
MPN:
107 MA 56941
PULEGGIA COMANDO POMPA ACQUA
#
059
MPN:
107 MA 56940
SUPPORT
#
060
MPN:
RN 56943
WASHER
#
061
MPN:
RSN/33112
WASHER
from
£1.72
from
£1.72
#
061
MPN:
RSN/33112
WASHER
from
£1.72
from
£1.72
#
062
MPN:
BN47028
BOLT
#
063
MPN:
BN54021
BOLT
#
064
MPN:
RNT52733
WASHER
#
065
MPN:
107 MA 57788
WATER PUMP TOWING SAFETY COLUMN
