062.1 - Instrument Panel and Console (RH Steering Cars)

Maserati Karif 2.8 Instrument Panel and Console (R.H. Steering Cars) Parts Diagram

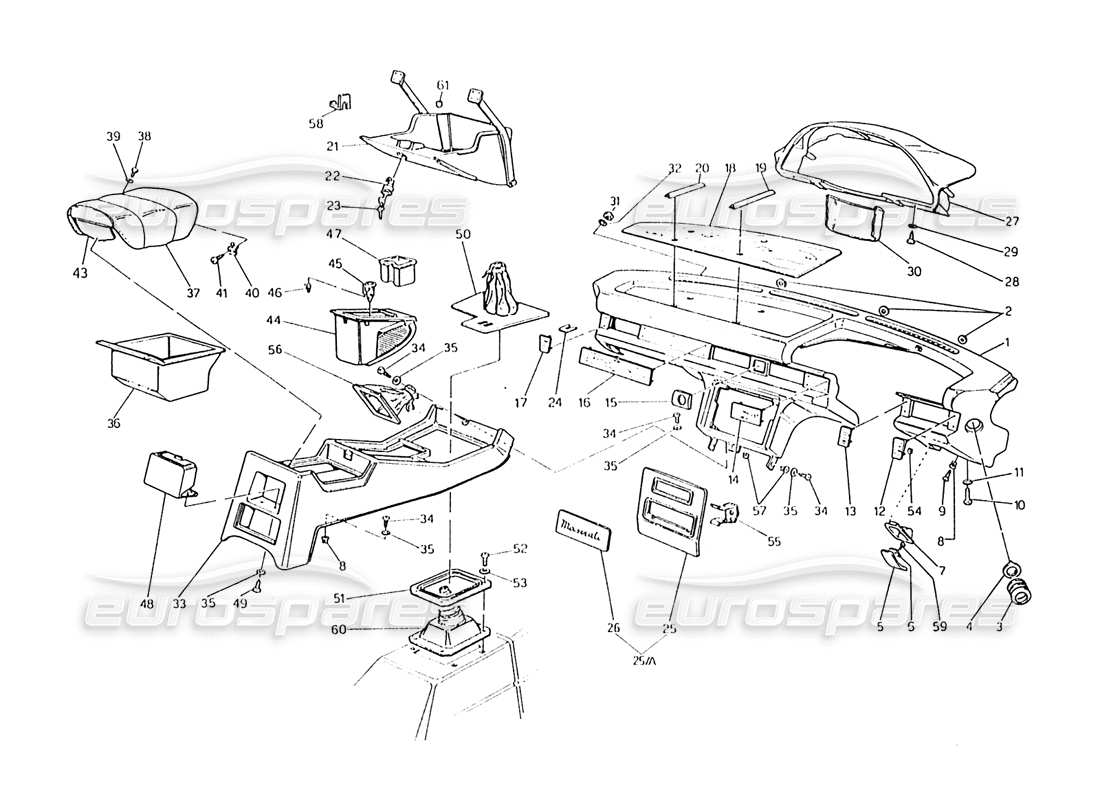

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 322370046
INSTRUMENT PANEL (LIGHT GREY PELT)
Valid for Version 20 and 24
# 001
MPN: 322370047
INSTRUMENT PANEL (BLACK PELT)
Valid for Version 20 and 24
# 001
MPN: 322370048
INSTRUMENT PANEL (AVIO PELT)
Valid for Version 20 and 24
# 001
MPN: 322370049
Instrument panel (ivory polt)
Valid for Version 20 and 24
# 001
MPN: 339127036
Instrument panel (boige pelt)
Valid for Version 20 and 24
# 002
MPN: 312320384
GASKET
Valid for Version 20 and 24
from £0.70
from £0.70
# 003
MPN: 315520320
BOOT
Valid for Version 20 and 24
from £16.30
from £16.30
# 004
MPN: 315520319
GROOVED NUT
Valid for Version 20 and 24
from £1.55
from £1.55
# 005
MPN: 552315333
PANEL (BROWN COLOR)
Valid for Version 20 and 24
from £1.68
from £1.68
# 006
MPN: 552315334
WASHER
Valid for Version 20 and 24
from £1.08
from £1.08
# 007
MPN: 312320336
LEVER SUPPORT (BROWN COLOR)
Valid for Version 20 and 24
Supersession
Supersession
# 008
MPN: 318320341
NUT
Valid for Version 20 and 24
from £0.70
from £0.70
This part replaces part number 14229280
# 009
MPN: 119942160
SCREW
Valid for Version 20 and 24
from £0.47
from £0.47
# 010
MPN: 101208030
SCREW
Valid for Version 20 and 24
# 011
MPN: 169020508
WASHER
Valid for Version 20 and 24
# 012
MPN: 322312153
LH SIDE FINISHER BRIAR
Valid for Version 20 and 24
from £33.19
from £33.19
# 013
MPN: 322312135
LH CONTRAL FINISHER BRIAR
Valid for Version 20 and 24
from £33.19
from £33.19
# 014
MPN: 322312139
CONLRAL FINISHER BRIAR
Valid for Version 20 and 24
from £74.16
from £74.16
# 015
MPN: 322312141
FINISHER BRIAR WATCH ROOM
Valid for Version 20 and 24 (after modif.)
from £89.34
from £89.34
# 015
MPN: 322327141
FINISHER BRIAR WATCH ROOM
Valid for Version 20 and 24 (pre modif.)
# 016
MPN: 322312136
RH CENTRAL FINISHER BRIAR
Valid for Version 20 and 24
from £124.62
from £124.62
# 017
MPN: 322312154
RH SIDE FINISHER BRIAR
Valid for Version 20 and 24
from £33.19
from £33.19
# 018
MPN: 322370175
(DARK GREY ALCANTARA) FINISHER
Valid for Version 20 and 24
# 018
MPN: 329127024
(CHAMOISE ALCANTARA) FINISHER
Valid for Version 20 and 24
# 018
MPN: 329327024
(LIGHT BLUE ALCANTARA) FINISHER
Valid for Version 20 and 24
# 019
MPN: 322356191
CENTRAL UPPER MOULDING (ALCANTARA DARK GREY)
Valid for Version 20 and 24
from £10.43
from £10.43
# 019
MPN: 322356193
CENTRAL UPPER MOULDING (BLACK PELT)
Valid for Version 20 and 24
from £10.97
from £10.97
# 019
MPN: 322356195
CENTRAL UPPER MOULDING (AVIO PELT)
Valid for Version 20 and 24
from £10.43
from £10.43
# 019
MPN: 339120025
CENTRAL UPPER MOULDING (BEIGE PELT)
Valid for Version 20 and 24
from £5.10
from £5.10
# 020
MPN: 322356192
RH UPPER MOULDING (ALCANTARA DARK GREY)
Valid for Version 20 and 24
from £10.43
from £10.43
# 020
MPN: 322356194
RH UPPER MOULDING (BLACK PELT)
Valid for Version 20 and 24
from £10.97
from £10.97
# 020
MPN: 322356196
RH UPPER MOULDING (AVIO PELT)
Valid for Version 20 and 24
from £10.43
from £10.43
# 020
MPN: 339120026
RH UPPER MOULDING (BEIGE PELT)
Valid for Version 20 and 24
from £3.25
from £3.25
# 021
MPN: 320912022
INSLR. PANEL BOX (IVORY PELL)
Valid for Version 20 and 24
# 021
MPN: 322356036
INSTR. PANEL BOX (LIGHT GREY PELT)
Valid for Version 20 and 24
from £52.11
from £52.11
# 021
MPN: 322356037
INSTR. PANEL BOX (BLACK POLT)
Valid for Version 20 and 24
from £50.66
from £50.66
# 021
MPN: 322356038
INSTR. PANEL BOX (AVIO PELT)
Valid for Version 20 and 24
# 021
MPN: 339120022
INSTR. PANEL BOX (BEIGE PELT)
Valid for Version 20 and 24
from £152.05
from £152.05
# 022
MPN: 372380012
lock
Valid for Version 20 and 24
from £92.49
from £92.49
This part replaces part number 372330012
# 023
MPN: 312320376
Key
Valid for Version 20 and 24
from £0.54
from £0.54
# 024
MPN: 312320301
SPACER
Valid for Version 20 and 24
# 025
MPN: 319122194
PANEL (BOIGO COLOR)
Valid for Version 20 and 24 (pre modif.)
Supersession
Supersession
# 025
MPN: 319350195
PANEL (AVIO COLOR)
Valid for Version 20 and 24 (pre modif.)
Supersession
Supersession
# 025
MPN: 319950194
PANEL (BLACK COLOR)
Valid for Version 20 and 24 (pre modif.)
Supersession
Supersession
# 025
MPN: 319953195
PANEL (LIGHT GREY COLOR)
Valid for Version 20 and 24 (pre modif.)
Supersession
Supersession
# 025
MPN: 320312243
PANEL
Valid for Version 20 and 24 (after modif.)
# 025
MPN: 328912194
PANEL (IVORY COLOR)
Valid for Version 20 and 24 (pre modif.)
# 026
MPN: 310320501
PANEL (BROWN COLOR)
Valid for Version 20 and 24 (pre modif.)
# 027
MPN: 322370106
INSTRUMENT HOUSING (ALCANTARA DARK GREY)
Valid for Version 20 and 24
# 027
MPN: 322370108
INSTRUMENT HOUSING (BLACK PELT)
Valid for Version 20 and 24
# 027
MPN: 322370190
INSTRUMENT HOUSING (AVIO PELT)
Valid for Version 20 and 24
# 027
MPN: 332340109
INSTRUMENT HOUSING (BEIGE PELT)
Valid for Version 20 and 24
# 028
MPN: 119935190
SCREW
Valid for Version 20 and 24
from £1.08
from £1.08
# 029
MPN: 310320443
WASHER
Valid for Version 20 and 24
# 030
MPN: 319122033
TRIM FOR STEERING COMPARTEMENT (BEIGE PELT)
Valid for Version 20 and 24
from £19.02
from £19.02
# 030
MPN: 322356180
TRIM FOR STEERING COMPARTEMENT (ALCANTARA DARK GREY)
Valid for Version 20 and 24
from £18.47
from £18.47
# 030
MPN: 322356182
TRIM FOR STEERING COMPARTEMENT (BLACK PERT)
Valid for Version 20 and 24
from £19.02
from £19.02
# 030
MPN: 322356184
TRIM FOR STEERING COMPARTEMENT (AVIO PELT)
Valid for Version 20 and 24
from £6.41
from £6.41
# 031
MPN: 120350060
NUT
Valid for Version 20 and 24
# 032
MPN: 163030060
WASHER
Valid for Version 20 and 24
from £1.08
from £1.08
# 033
MPN: 328912140
CONSOLE ASSY WITH POS.56 (IVORY PELT)
Valid for Version 20 and 24
# 033
MPN: 329356140
CONSOLE ASSY WITH POS.56 (AVIO PELT)
Valid for Version 20 and 24
# 033
MPN: 329956140
CONSOLE ASSY WITH POS.56 (LIGHT GREY POLL)
Valid for Version 20 and 24
# 033
MPN: 329956240
CONSOLE ASSY WITH POS.56 (BLACK PELT)
Valid for Version 20 and 24
from £3.25
from £3.25
# 033
MPN: 399100140
CONSOLE ASSY WITH POS.56 (BEIGE PELT)
Valid for Version 20 and 24
# 034
MPN: 119142160
Scrow
Valid for Version 20 and 24
from £0.84
from £0.84
# 035
MPN: 135900043
WASHER
Valid for Version 20 and 24
from £1.08
from £1.08
This part replaces part number 14496207
# 036
MPN: 310320511
CONSOLE BOX (BROWN COLOR)
Valid for Version 20 and 24
# 037
MPN: 320912101
CONSOLE CUSHION (IVORY PELT)
Valid for Version 20 and 24
# 037
MPN: 329356181
CONSOLE CUSHION (AVIO PELT)
Valid for Version 20 and 24
from £58.66
from £58.66
# 037
MPN: 329956181
CONSOLE CUSHION (LIGHT GREY PELT)
Valid for Version 20 and 24
from £105.09
from £105.09
# 037
MPN: 329956281
CONSOLE CUSHION (BLACK PELT)
Valid for Version 20 and 24
from £58.13
from £58.13
# 037
MPN: 339120181
CONSOLE CUSHION (BEIGE PELT)
Valid for Version 20 and 24
from £60.42
from £60.42
# 038
MPN: 119342160
SCREW
Valid for Version 20 and 24
# 039
MPN: 135000043
WASHER
Valid for Version 20 and 24
from £1.08
from £1.08
# 040
MPN: 310320549
BUTTON (BROWN COLOR)
Valid for Version 20 and 24
# 041
MPN: 119529095
SCREW
Valid for Version 20 and 24
# 042
MPN: 135300004
SPRING WASHER
Valid for Version 20 and 24
# 043
MPN: 310320555
CONSOLE CUSHION HINGE (BROWN)
Valid for Version 20 and 24
# 044
MPN: 310120022
Ashtray housing (brown color)
Valid for Version 20 and 24
# 045
MPN: 53336115
CIGAR LIGHTER
Valid for Version 20 and 24
from £29.46
from £29.46
# 046
MPN: 87760012
BULB
Valid for Version 20 and 24
from £0.47
from £0.47
# 047
MPN: 310120344
ASHTRAY (BROWN COLOR) (NOT SUPPLIED)
Valid for Version 20 and 24
# 048
MPN: 320156137
REAR ASHTRAY (LIGHT GREY PELT)
Valid for Version 20 and 24
# 048
MPN: 320156139
Roar ashtray (black pelt)
Valid for Version 20 and 24
# 048
MPN: 320156141
REAR ASHTRAY (AVIO PELT)
Valid for Version 20 and 24
# 048
MPN: 320912122
REAR ASHTRAY (IVORY PELT)
Valid for Version 20 and 24
# 048
MPN: 339120122
REAR ASHTRAY (BEIGE PELT)
Valid for Version 20 and 24
Supersession
Supersession
# 049
MPN: 112805010
SCREW
Valid for Version 20 and 24 (pre modif.)
# 050
MPN: 310951182
LEVER TRANSM. PANEL (AVORIO PELT)
Valid for Version 20 and 24 (after modif.)
# 050
MPN: 318950182
LEVER TRANSM. PANEL (AVORIO PELT)
Valid for Version 20 and 24 (pre modif.)
# 050
MPN: 319122182
LEVER TRANSM. PANEL (BEIGE PELT)
Valid for Version 20 and 24 (pre modif.)
from £17.85
from £17.85
# 050
MPN: 319353182
LEVER TRANSM. PANEL (AVIO PELT)
Valid for Version 20 and 24 (pre modif.)
# 050
MPN: 319354182
LEVER TRANSM. PANEL (AVIO PELT)
Valid for Version 20 and 24 (after modif.)
from £59.12
from £59.12
# 050
MPN: 319950234
LEVER TRANSM. PANEL (LIGHT GREY PELT)
Valid for Version 20 and 24 (after modif.)
from £178.30
from £178.30
# 050
MPN: 319951234
LEVER TRANSM. PANEL (LIGHT GREY PELT)
Valid for Version 20 and 24
from £58.66
from £58.66
# 050
MPN: 319953182
LEVER TRANSM. PANEL (BLACK PERT)
Valid for Version 20 and 24 (pre modif.)
from £54.32
from £54.32
# 050
MPN: 319954182
LOVER TRANSM. PANEL (BLACK PELT)
Valid for Version 20 and 24 (after modif.)
from £116.64
from £116.64
# 050
MPN: 339100182
LEVER TRANSM. PANEL (BEIGE PELT]
Valid for Version 20 and 24 (after modif.)
# 051
MPN: 315220301
FIXING PLATE
Valid for Version 20 and 24
from £2.91
from £2.91
# 052
MPN: 167200625
SCREW
Valid for Version 20 and 24
from £2.47
from £2.47
# 053
MPN: 169020406
WASHER
Valid for Version 20 and 24
from £0.78
from £0.78
# 054
MPN: 312320307
SPRING
Valid for Version 20 and 24
# 055
MPN: 310320027
PAD TO FIX. RADIO RECEIVER
Valid for Version 20 and 24
# 056
MPN: 320912247
BOOT (IVORY PELT)
Valid for Version 20 and 24
# 056
MPN: 329356247
BOOT (AVIO PELT)
Valid for Version 20 and 24
from £69.65
from £69.65
# 056
MPN: 329956247
BOOT (GREY PELT)
Valid for Version 20 and 24
from £12.26
from £12.26
# 056
MPN: 329956277
BOOT (BLACK PELT)
Valid for Version 20 and 24
from £18.23
from £18.23
# 056
MPN: 399100277
BOOT (BEIGE PELT)
Valid for Version 20 and 24
from £5.95
from £5.95
# 057
MPN: 312520499
NUT
Valid for Version 20 and 24
from £0.70
from £0.70
# 058
MPN: 312320339
LOCK SUPPORT
Valid for Version 20 and 24
from £1.55
from £1.55
# 059
MPN: 119142160
SCREW
Valid for Version 20 and 24
from £0.84
from £0.84
# 060
MPN: 315220300
GOAT SHIFT GAITOR
Valid for Version 20 and 24
from £3.25
from £3.25
# 061
MPN: 312320324
RUBBER
Valid for Version 20 and 24
from £0.70
from £0.70
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
