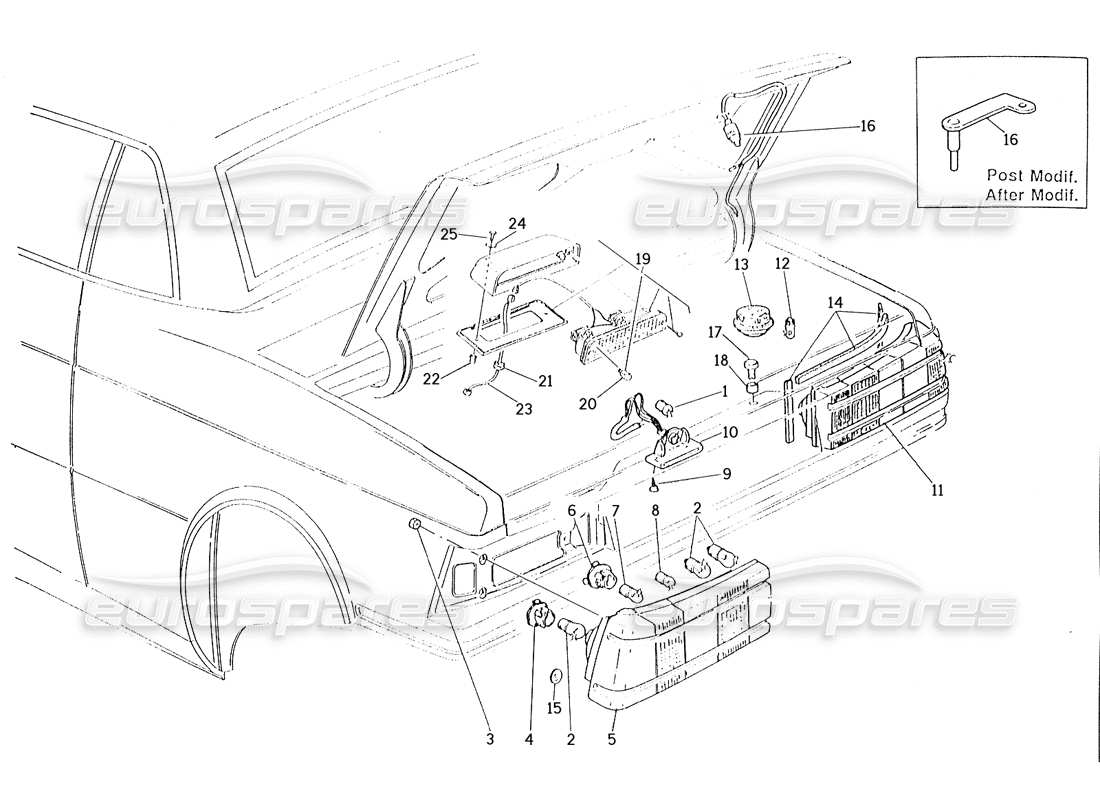

Maserati Karif 2.8 Rear Tail Lights Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 87540500
BULB 12V 5W
from £0.54
from £0.54
# 002
MPN: 87720021
BULB 12 V 21W
from £1.01
from £1.01
# 003
MPN: 122600060
NUT
# 004
MPN: 313120404
BULB HOLDER
from £4.05
from £4.05
# 005
MPN: 313120138
LH REAR LAMP
Supersession
Supersession
This part replaces part number 313120210
# 006
MPN: 313120405
BULBHOLDER.
from £0.86
from £0.86
# 007
MPN: 87720521
BULB 12 V 5/21 W
from £3.09
from £3.09
# 008
MPN: 87541000
BULB 12V 10 W
# 009
MPN: 119142190
SCREW
# 010
MPN: 30311111
NUMBER - PLATE LAMP
# 011
MPN: 313120137
RH REAR LAMP
Supersession
Supersession
This part replaces part number 313120211 which we have in stock
# 012
MPN: 87760005
BULB12V5W
from £0.98
from £0.98
# 013
MPN: 313120213
LUGGAGE ROOM LIGHT
# 014
MPN: 313120407
GASKET FOR TAIL LIGHT
minimum order quantity = 4
from £1.56
from £1.56
# 015
MPN: 313120309
RUBBER PAD
# 016
MPN: 30331111
SWITCH
(after modif.)
# 016
MPN: 323356104
SWITCH
(pre modif.)
Supersession
Supersession
# 017
MPN: 310320499
PLUG
(pre modif.)
# 018
MPN: 323356304
SWITCH
(pre modif.)
from £0.70
from £0.70
# 019
MPN: 333110219
SLOP CENTRAL LAMP ASSY (BLACK COLOR)
Valid for Version 24
from £46.33
from £46.33
# 019
MPN: 333110220
STOP CENTRAL LAMP ASSY (BLUE DARK COLOR)
Valid for Version 24
Supersession
Supersession
# 019
MPN: 333110221
STOP CENTRAL LAMP ASSY (WHITE COLOR)
Valid for Version 24
Supersession
Supersession
# 019
MPN: 333132217
STOP CENTRAL LAMP ASSY (BLUO SILVER COLOR)
Valid for Version 24
Supersession
Supersession
# 019
MPN: 333132218
STOP CONTRA! LAMP ASSY (Maserati RED COLOR)
Valid for Version 24
Supersession
Supersession
# 020
MPN: 323132325
BULB
Valid for Version 24
from £0.47
from £0.47
# 021
MPN: 53241312
GROMMET
Valid for Version 24
from £1.11
from £1.11
# 022
MPN: 315220303
NUT
Valid for Version 24
from £0.70
from £0.70
# 023
MPN: 323132102
KIT CABLE
Valid for Version 24
from £5.61
from £5.61
# 024
MPN: 53471344
WASHER
Valid for Version 24
# 025
MPN: 101206025
SCREW
Valid for Version 24
