maserati karif 2.8 windshield wiper - washer (lh steering cars) parts diagram

056 - Windshield Wiper - Washer (LH Steering Cars)

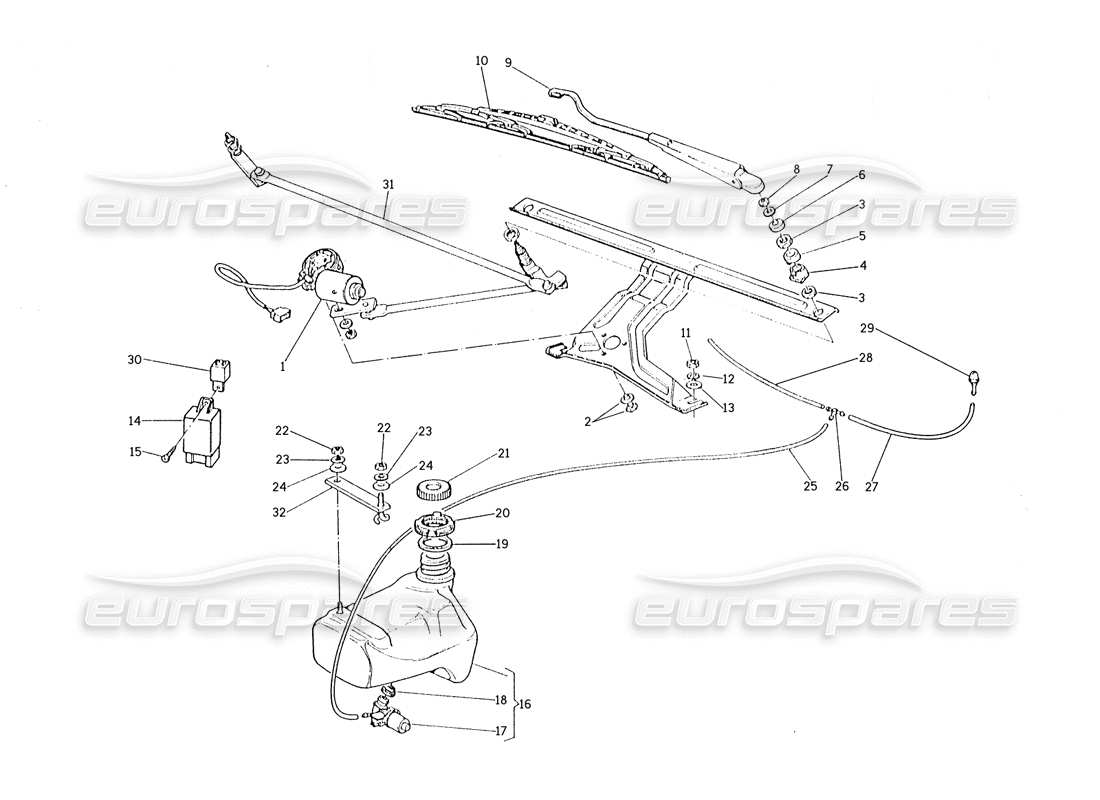

Maserati Karif 2.8 Windshield Wiper - Washer (L.H. Steering Cars) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 313320201
wiper motor
Valid for Version 00 and 02
from £97.00
from £97.00
# 002
MPN: 313320401
SCREW AND WASHER
Valid for Version 00 and 02
# 003
MPN: 313320402
NUT
Valid for Version 00 and 02
from £1.63
from £1.63
# 004
MPN: 313327328
INSIDE SPACER
Valid for Version 00 and 02
from £1.00
from £1.00
# 005
MPN: 313327329
OUTSIDE SPACER
Valid for Version 00 and 02
from £1.00
from £1.00
# 006
MPN: 313320405
PLUG
Valid for Version 00 and 02
from £1.05
from £1.05
# 007
MPN: 130410080
WASHER
Valid for Version 00 and 02
# 008
MPN: 125300000
NUT
Valid for Version 00 and 02
# 009
MPN: 313320118
WIPER ARM
Valid for Version 00 and 02
from £39.95
from £39.95
# 010
MPN: 323356128
WIPOR BLADE WITH SPOILER DRIVE SIDE
Valid for Version 00 and 02
Supersession
Supersession
# 010
MPN: 323356129
RH WIPER BLADE
Valid for Version 00 and 02
Supersession
Supersession
# 011
MPN: 125100080
NUT
Valid for Version 00 and 02
from £0.86
from £0.86
# 012
MPN: 135300084
SPRING WASHER
Valid for Version 00 and 02
# 013
MPN: 169020500
WASHER
Valid for Version 00 and 02
# 014
MPN: 313320110
INTERVAL SWITCH
Valid for Version 00 and 02
# 015
MPN: 119140130
SCREW
Valid for Version 00 and 02
# 016
MPN: 310120024
RESERVOIR, ASSY
Valid for Version 00 and 02
# 017
MPN: 30331103
ELECTRIC WIPER PUMP
Valid for Version 00 and 02
# 018
MPN: 30331302
SEAL
Valid for Version 00 and 02
from £0.70
from £0.70
# 019
MPN: 310120320
SEAL
Valid for Version 00 and 02
# 020
MPN: 310120329
GROOVED NUT
Valid for Version 00 and 02
# 021
MPN: 30811327
CAP
Valid for Version 00 and 02
# 022
MPN: 125100060
NUT TO FIX. TANK
Valid for Version 00 and 02
# 023
MPN: 135300064
SPRING WASHER
Valid for Version 00 and 02
# 024
MPN: 169020406
WASHER
Valid for Version 00 and 02
from £0.78
from £0.78
# 025
MPN: 310120313
CONNECTOR-PUMP LINE
Valid for Version 00 and 02
# 026
MPN: 30811310
CONNECTOR
Valid for Version 00 and 02
from £0.79
from £0.79
# 027
MPN: 310120311
LH NOZZLE-CONNECTOR LINE
Valid for Version 00 and 02
# 028
MPN: 310120312
RH NOZZLE-CONNECTOR LINE
Valid for Version 00 and 02
# 029
MPN: 53011109
NOZZLE
Valid for Version 00 and 02
# 030
MPN: 313320115
LIGHTS FLASHING
Valid for Version 00 and 02
Supersession
Supersession
# 031
MPN: 313320202
LEVERAGE
Valid for Version 00 and 02
Supersession
Supersession
# 032
MPN: 310120130
BRACKET
Valid for Version 00 and 02
