051 - Radiator Grille, Finishers-Fixed Glasses

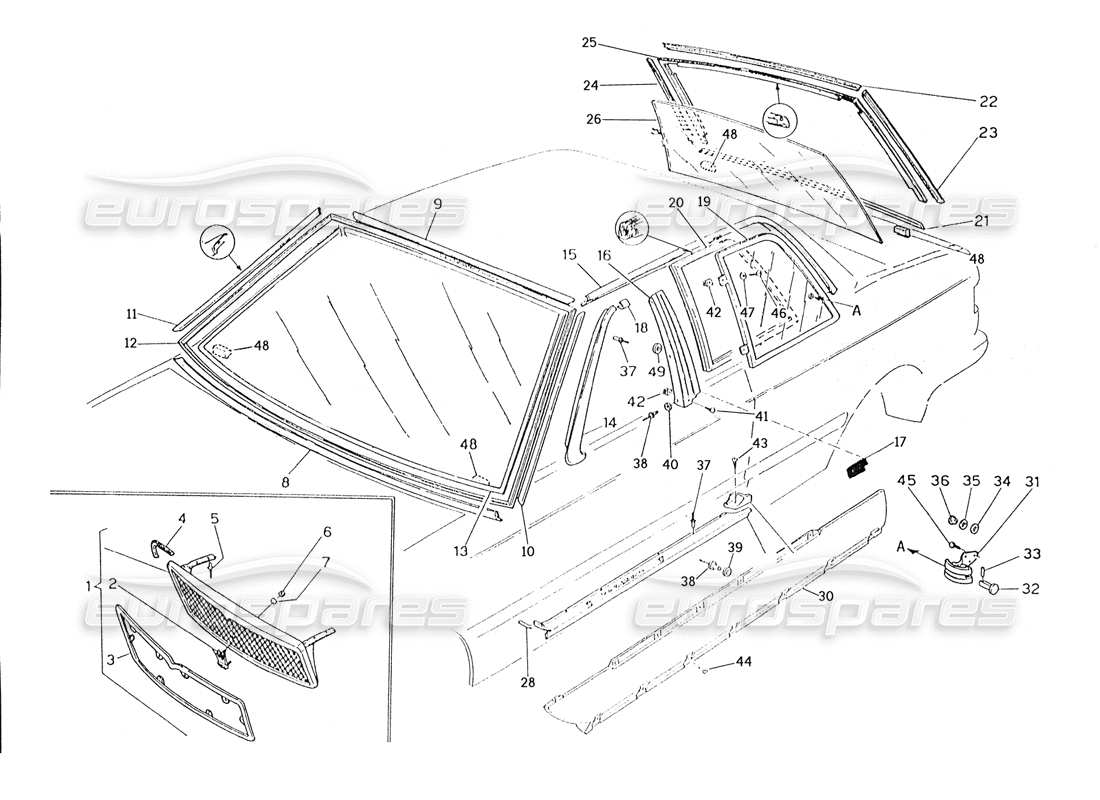

Maserati Karif 2.8 Radiator Grille, Finishers-Fixed Glasses Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 317753016
MOULDING SET
Supersession
Supersession
This part replaces part number 317721016
# 001
MPN: 324156005
RADIATOR GRILLE ASSY
from £290.30
from £290.30
This part replaces part number 314153005 which we have in stock
# 001
MPN: 397700017
REAR GLASSES MOULDING SET
from £92.19
from £92.19
# 002
MPN: 314120109
Badge
Supersession
Supersession
# 003
MPN: 324156100
bezel
from £36.16
from £36.16
# 004
MPN: 314120317
SEALING
from £3.43
from £3.43
# 005
MPN: 164354077
RIVET
# 006
MPN: 125100050
NUT
from £0.69
from £0.69
# 007
MPN: 135600050
SPRING WASHER
from £1.17
from £1.17
# 008
MPN: 317753301
FINISHER, LOWER
Supersession
Supersession
This part replaces part number 317721301
# 009
MPN: 317753302
FINISHER, UPPER
Supersession
Supersession
This part replaces part number 317721302
# 010
MPN: 317753303
LH SIDE FINISHER
Supersession
Supersession
This part replaces part number 317721303
# 011
MPN: 317753304
RH SIDE FINISHER
Supersession
Supersession
This part replaces part number 317721304
# 012
MPN: 317720013
WINDSHIELD WEATHERSTRIP SET
from £978.00
from £978.00
# 013
MPN: 317720120
WINDSHIELD GREEN TINTED
from £900.00
from £900.00
This part replaces part number 317747120
# 014
MPN: 310353329
LH central moulding finisher
# 014
MPN: 310353330
RH CENTRAL MOULDING FINISHER
# 015
MPN: 390300331
LH central moulding finisher
# 015
MPN: 390300332
RH CENTRAL MOULDING FINISHER
# 016
MPN: 390300339
LH central moulding finisher
# 016
MPN: 398300340
RH CENTRAL MOULDING FINISHER
from £16.60
from £16.60
# 017
MPN: 310320343
LH GASKET
# 017
MPN: 318320344
RH GASKET
from £0.70
from £0.70
# 018
MPN: 318353335
FRONT UNION
from £1.95
from £1.95
# 019
MPN: 397700131
LH REAR DOOR ASSY
from £1,077.12
from £1,077.12
# 019
MPN: 397700132
RH REAR DOOR ASSY
from £1,077.12
from £1,077.12
# 020
MPN: 397700149
LH GASKET (BROWN COLOR)
from £135.91
from £135.91
# 020
MPN: 397700150
RH GASKET (BROWN COLOR)
from £126.72
from £126.72
# 020
MPN: 397700157
LH GASKET (GREY 4226 COLOR)
from £126.72
from £126.72
# 020
MPN: 397700158
LH GASKET (GREY 4226 COLOR)
from £119.16
from £119.16
# 021
MPN: 397700421
FINISHER LOWER
# 022
MPN: 397700422
FINISHER UPPER
# 023
MPN: 397700423
LH SIDE FINISHER
# 024
MPN: 397700424
RH SIDE FINISHER
# 025
MPN: 397700014
GASKET SOT
from £17.45
from £17.45
# 026
MPN: 397700156
TINTED, HEATED BACKLIGHT (GREEN)
from £311.78
from £311.78
# 027
MPN: 310320309
LH MOULDING
# 027
MPN: 318320310
RH MOULDING
from £5.23
from £5.23
# 028
MPN: 310320300
GASKET FOR RH MOULDING
# 028
MPN: 310320307
GASKET OR LH MOULDING
# 029
MPN: 310320313
END PIECE FOR LH FINISHER
# 029
MPN: 318320314
END PIECE FOR RH FINISHER
from £38.42
from £38.42
# 030
MPN: 330320330
RH OUTSIDE COVERING
# 030
MPN: 330320337
LH OUTSIDE COVERING
# 031
MPN: 317720145
LH OPENING DEVICE
from £5.38
from £5.38
# 031
MPN: 317720146
RH OPENING DEVICE
from £5.38
from £5.38
# 032
MPN: 317720390
PIN TO FIX GLASS
# 033
MPN: 144203530
PIN
from £0.70
from £0.70
# 034
MPN: 317720399
OUTSIDE PIN GASKET
from £0.70
from £0.70
# 035
MPN: 317720400
INSIDE PIN GASKET
from £0.70
from £0.70
# 036
MPN: 317720401
RING NUT
from £0.70
from £0.70
# 037
MPN: 164323308
POP RIVET
Order quantities as necessary
# 038
MPN: 164323311
POP RIVET
Order quantities as necessary
# 039
MPN: 136200043
WASHER
Order quantities as necessary
# 040
MPN: 135000043
WASHER
Order quantities as necessary
from £1.09
from £1.09
# 041
MPN: 119142160
SCREW
Order quantities as necessary
from £0.86
from £0.86
# 042
MPN: 310320341
NUT
Order quantities as necessary
# 043
MPN: 119942190
SCREW
# 044
MPN: 330320349
RIVET
# 045
MPN: 113305016
SCREW
# 046
MPN: 119142190
SCREW
# 047
MPN: 169020005
WASHER
from £1.09
from £1.09
# 048
MPN: 317720311
PLATE
from £3.11
from £3.11
# 049
MPN: 310320342
GASKET
