maserati karif 2.8 body shell: outer panels parts diagram

044 - Body Shell: Outer Panels

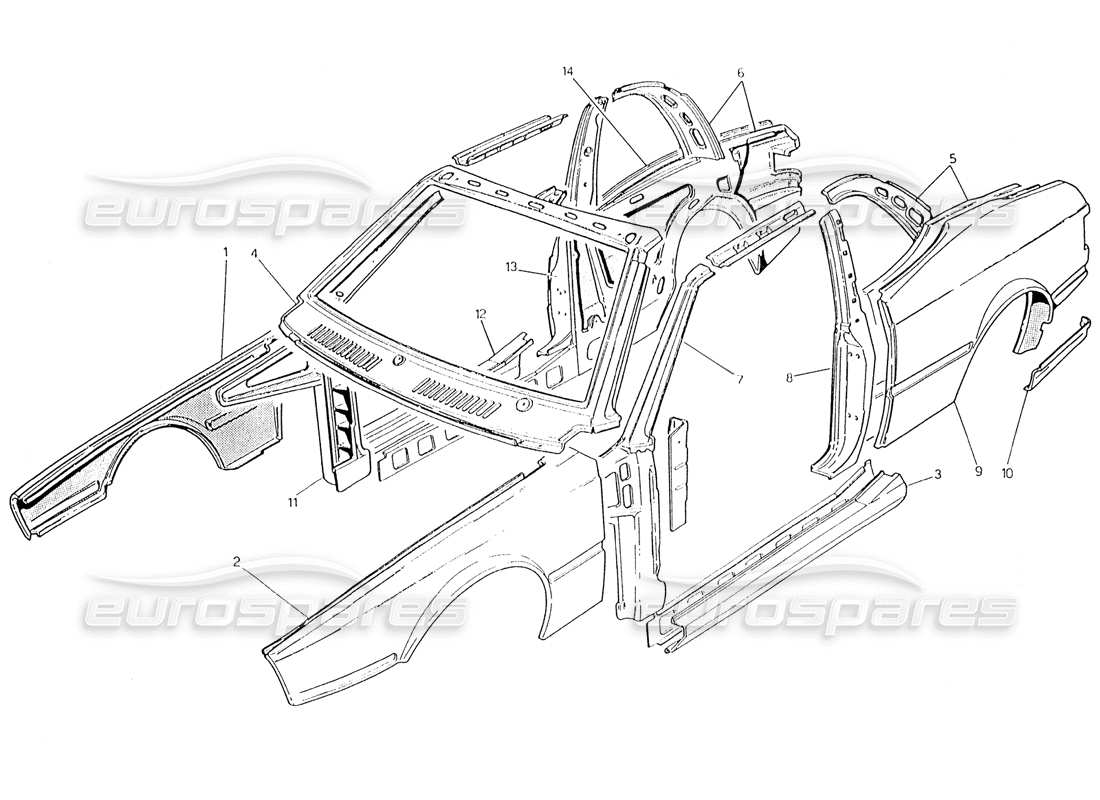

Maserati Karif 2.8 Body Shell: Outer Panels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 001
                            MPN: 312550301
                            OUTSIDE BODY PANEL FOR LH FRONT
                            from £89.54
                            from £89.54
                            LH FRONT FENDER Genuine Maserati Part - New (to order)
                            # 002
                            MPN: 312550302
                            OUTSIDE BODY PANEL FOR RH FRONT
                            from £89.54
                            from £89.54
                            RH FRONT FENDER Genuine Maserati Part - New (to order)
                            # 003
                            MPN: 332520329
                            OUTSIDE BODY PANEL FOR LH SPAR
                            from £106.44
                            from £106.44
                            LH TRIM PANEL Genuine Maserati Part - New (to order)
                            # 004
                            MPN: 312520148
                            RING
                            Valid for Version 00 and 02
                            from £563.76
                            from £563.76
                            OUTSIDE WINDSHIELD LINING Genuine Maserati Part - New (to order)
                            # 004
                            MPN: 312527148
                            RING
                            Valid for Version 20 and 24
                            from £46.97
                            from £46.97
                            RIVESTIMENTO ESTERNO Genuine Maserati Part - New (to order)
                            # 005
                            MPN: 392500101
                            LH rear body side assy
                            LH rear body side assy Genuine Maserati Part - New (to order)
                            # 006
                            MPN: 392500102
                            RH REAR BODY SIDE ASSY
                            RH REAR BODY SIDE ASSY Genuine Maserati Part - New (to order)
                            # 007
                            MPN: 312520105
                            LH FRONT HINGE PILLAR, ASSY
                            from £88.82
                            from £88.82
                            LH FRONT MOUNTING PILL Genuine Maserati Part - New (to order)
                            # 008
                            MPN: 392500113
                            LH DOOR CENTRAL PILLAR, ASSY
                            LH DOOR CENTRAL PILLAR, ASSY Genuine Maserati Part - New (to order)
                            # 009
                            MPN: 392500377
                            OUTSIDE BODY PANEL FOR LH REAR FENDER
                            Supersession
                            Supersession
                            Genuine Maserati Part (no longer available to order)
                            # 010
                            MPN: 312520127
                            LH REAR BODY PANEL, ASSY
                            from £10.13
                            from £10.13
                            LH REAR CONNECTION PANEL Genuine Maserati Part - New (to order)
                            # 010
                            MPN: 312520128
                            RH REAR BODY PANEL, ASSY
                            from £34.29
                            from £34.29
                            RH REAR CONNECTION PANEL Genuine Maserati Part - New (to order)
                            # 011
                            MPN: 312520106
                            RH FRONT HINGE PILLAR, ASSY
                            from £86.40
                            from £86.40
                            RH A-PILLAR Genuine Maserati Part - New (to order)
                            # 012
                            MPN: 332520330
                            OUTSIDE BODY PANEL FOR RH SPAR
                            from £106.44
                            from £106.44
                            RH TRIM PANEL Genuine Maserati Part - New (to order)
                            # 013
                            MPN: 392500114
                            RH DOOR CENTRAL PILLAR, ASSY
                            RH DOOR CENTRAL PILLAR, ASSY Genuine Maserati Part - New (to order)
                            # 014
                            MPN: 392500370
                            OUTSIDE BODY PANEL FOR RH REAR FENDER
                            OUTSIDE BODY PANEL FOR RH REAR FENDER Genuine Maserati Part - New (to order)
