035 - Front Suspension

Maserati Karif 2.8 Front Suspension Parts Diagram

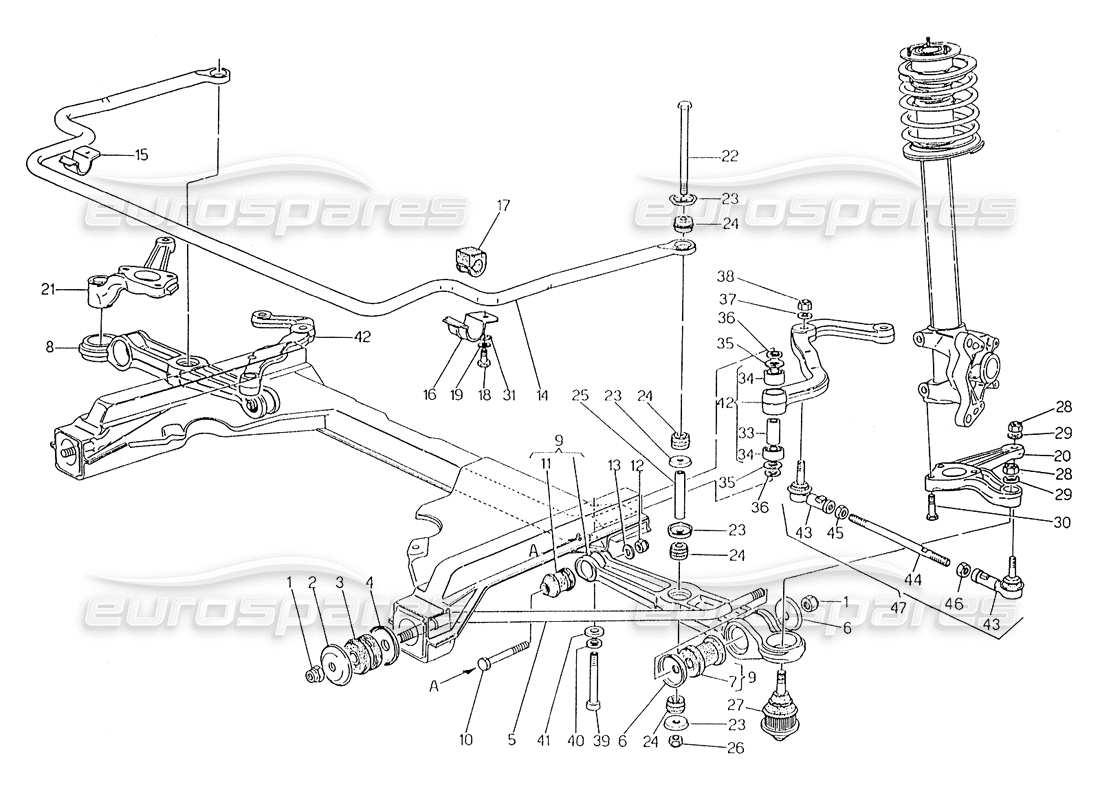

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Price
                                                                                            # 001
                                                                                            MPN: 12575811

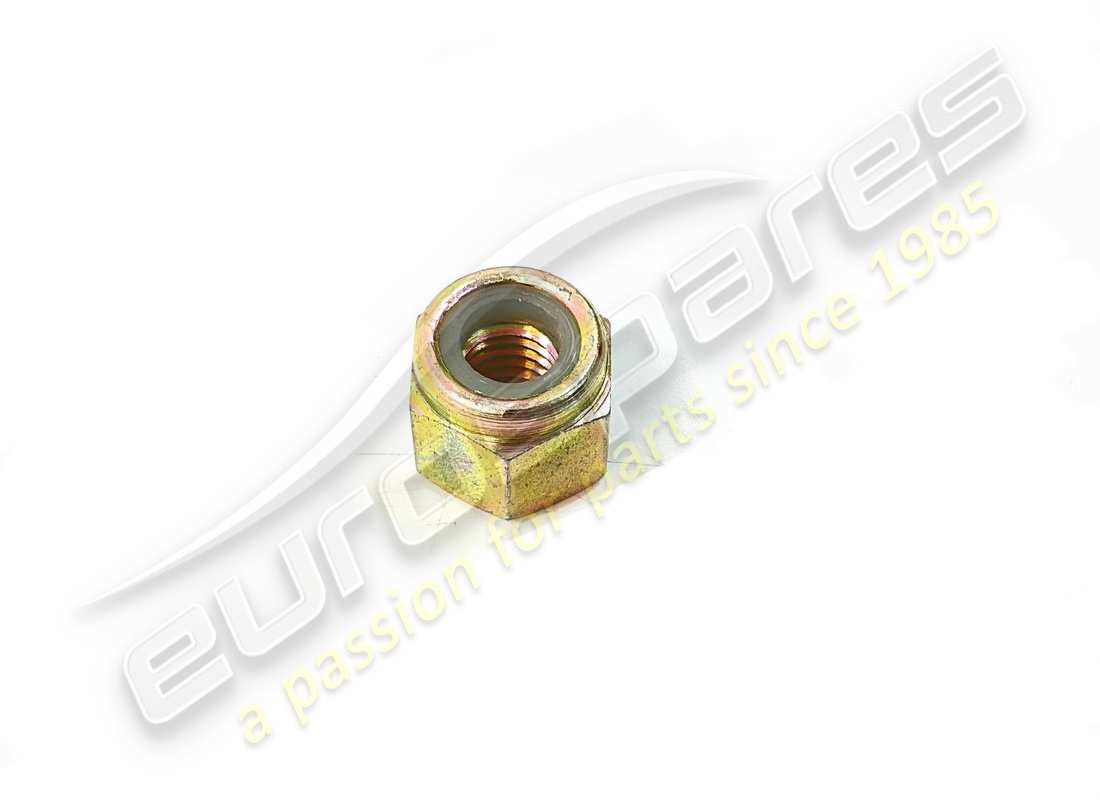

                                                                                            SELF LOCKING NUT
                                                                                            from £1.31
                                                                                            from £1.31
                                                                                            # 002
                                                                                            MPN: 346601343
                                                                                            WASHER
                                                                                            from £15.75
                                                                                            from £15.75
                                                                                            # 003
                                                                                            MPN: 396650110
                                                                                            BUFFER
                                                                                            from £27.35
                                                                                            from £27.35
                                                                                            # 004
                                                                                            MPN: 346601341
                                                                                            WASHER
                                                                                            from £9.58
                                                                                            from £9.58
                                                                                            # 005
                                                                                            MPN: 326656318
                                                                                            CONTROL ARM
                                                                                            from £64.10
                                                                                            from £64.10
                                                                                            # 006
                                                                                            MPN: 316620342
                                                                                            WASHER
                                                                                            from £2.33
                                                                                            from £2.33
                                                                                            # 007
                                                                                            MPN: 316620112
                                                                                            BUFFER
                                                                                            from £2.22
                                                                                            from £2.22
                                                                                            # 008
                                                                                            MPN: 326656120
                                                                                            RH LOWER SUSPENSION ARM, ASSY (7-11-27 POSITION MAKE UP)
                                                                                            from £384.53
                                                                                            from £384.53
                                                                                            # 009
                                                                                            MPN: 326656119
                                                                                            LH LOWER SUSPENSION ARM, ASSY (7 -11-27 POSITION MAKE UP)
                                                                                            from £276.07
                                                                                            from £276.07
                                                                                            # 011
                                                                                            MPN: 316620113
                                                                                            RUBBER BUSHING
                                                                                            from £3.27
                                                                                            from £3.27
                                                                                            # 012
                                                                                            MPN: 128350120
                                                                                            SELF LOCKING NUT
                                                                                            from £1.62
                                                                                            from £1.62
                                                                                            # 014
                                                                                            MPN: 326656350
                                                                                            STABILIZER BAR Ø 19
                                                                                            from £60.44
                                                                                            from £60.44
                                                                                            # 015
                                                                                            MPN: 316620352
                                                                                            CRAMP FOR RH INSULATOR
                                                                                            from £1.08
                                                                                            from £1.08
                                                                                            # 016
                                                                                            MPN: 316620353
                                                                                            CRAMP FOR LH INSULATOR
                                                                                            from £1.08
                                                                                            from £1.08

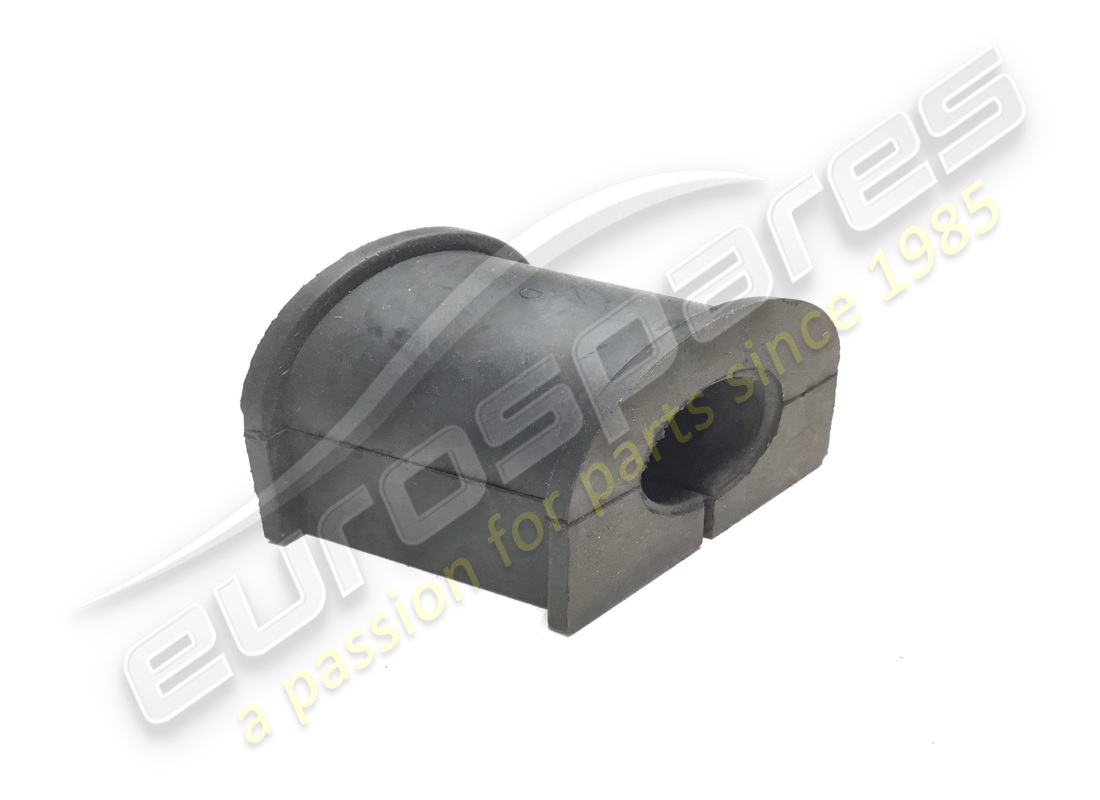

                                                                                            # 017
                                                                                            MPN: 326656354
                                                                                            L.H, INSULATOR
                                                                                            from £0.70
                                                                                            from £0.70
                                                                                            # 017
                                                                                            MPN: 326656355
                                                                                            RH INSULATOR
                                                                                            from £2.63
                                                                                            from £2.63
                                                                                            # 018
                                                                                            MPN: 101210030
                                                                                            CRAMP BOLT
                                                                                            from £1.55
                                                                                            from £1.55
                                                                                            # 020
                                                                                            MPN: 326656305
                                                                                            LH ARM TO CONTROL WHEEL
                                                                                            from £55.40
                                                                                            from £55.40
                                                                                            # 021
                                                                                            MPN: 326656306
                                                                                            RH ARM TO CONTROL WHEEL
                                                                                            from £42.03
                                                                                            from £42.03
                                                                                            # 022
                                                                                            MPN: 316620363

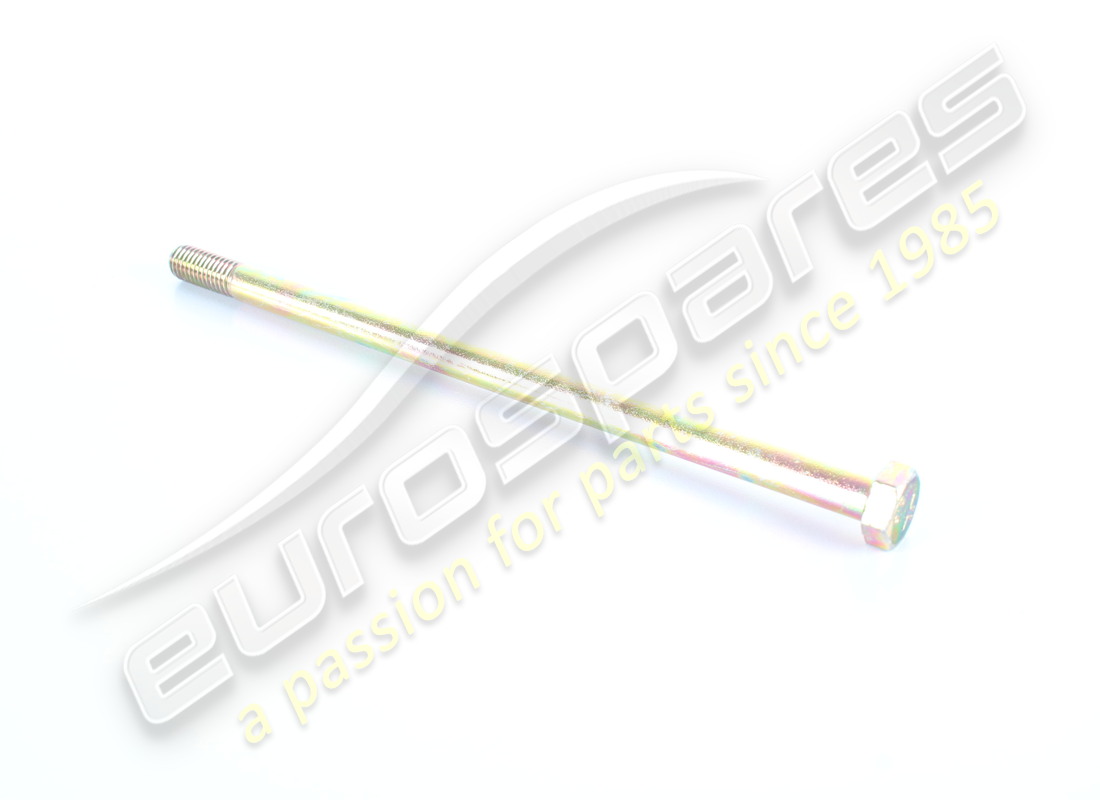

                                                                                            BOLT
                                                                                            from £14.68
                                                                                            from £14.68
                                                                                            # 023
                                                                                            MPN: 316620362
                                                                                            WASHER FOR ROD
                                                                                            from £1.05
                                                                                            from £1.05
                                                                                            # 024
                                                                                            MPN: 316620360
                                                                                            RUBBER FOR ROD
                                                                                            from £3.47
                                                                                            from £3.47
                                                                                            # 025
                                                                                            MPN: 326656361

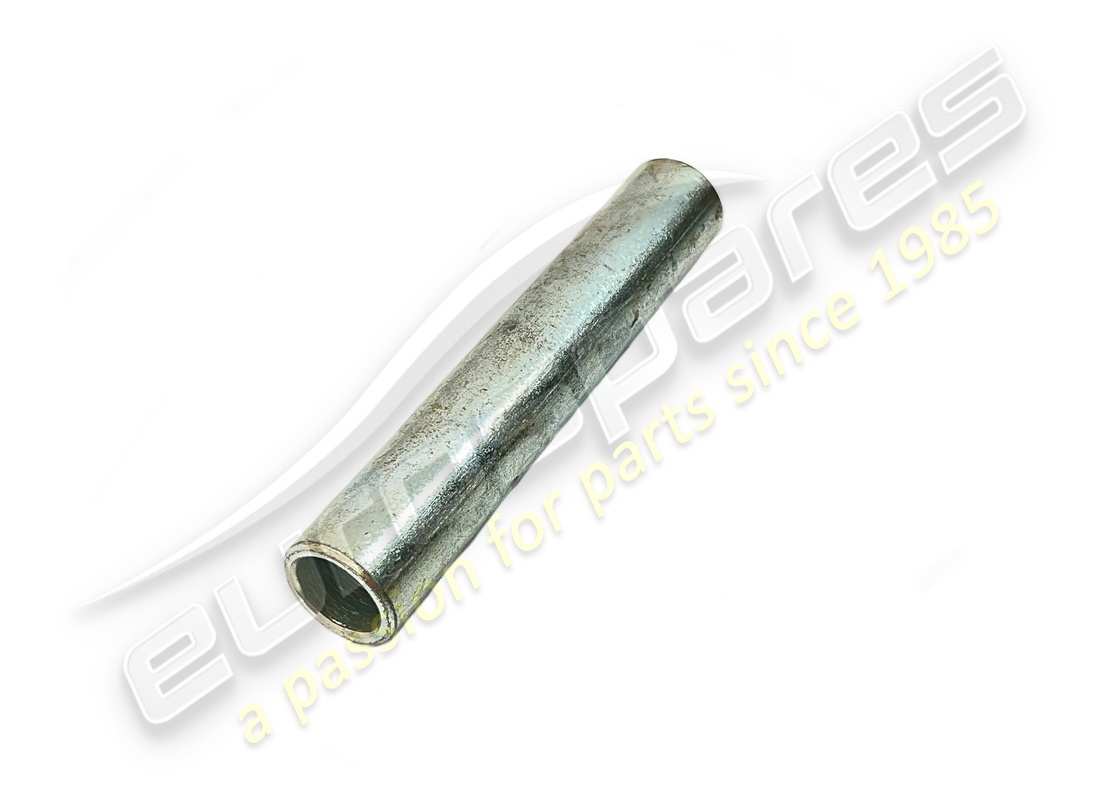

                                                                                            SPACER FOR ROD
                                                                                            from £3.15
                                                                                            from £3.15
                                                                                            # 026
                                                                                            MPN: 128200080
                                                                                            NUT FOR ROD
                                                                                            from £0.85
                                                                                            from £0.85
                                                                                            # 027
                                                                                            MPN: 316620103
                                                                                            JOINT FOR LOWER ARM
                                                                                            from £186.65
                                                                                            from £186.65
                                                                                            # 028
                                                                                            MPN: 127800120
                                                                                            SELF LOCKING NUT
                                                                                            # 030
                                                                                            MPN: 326656337
                                                                                            BOLT
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 031
                                                                                            MPN: 136110110
                                                                                            WASHER
                                                                                            from £2.17
                                                                                            from £2.17
                                                                                            # 033
                                                                                            MPN: 326656348
                                                                                            BUSHING
                                                                                            (minimium order quantity = 2)
                                                                                            from £30.91
                                                                                            from £30.91
                                                                                            # 034
                                                                                            MPN: 326656310
                                                                                            BEARING
                                                                                            from £7.47
                                                                                            from £7.47
                                                                                            # 035
                                                                                            MPN: 326656349
                                                                                            WASHER
                                                                                            from £11.97
                                                                                            from £11.97
                                                                                            # 036
                                                                                            MPN: 326656344
                                                                                            WASHER
                                                                                            from £47.45
                                                                                            from £47.45
                                                                                            # 036
                                                                                            MPN: 326656346
                                                                                            WASHER
                                                                                            from £39.72
                                                                                            from £39.72
                                                                                            # 036
                                                                                            MPN: 326656347
                                                                                            WASHER
                                                                                            from £28.35
                                                                                            from £28.35
                                                                                            # 039
                                                                                            MPN: 326656338
                                                                                            SCREW
                                                                                            from £5.48
                                                                                            from £5.48
                                                                                            # 040
                                                                                            MPN: 138200120
                                                                                            SPRING WASHER
                                                                                            from £0.78
                                                                                            from £0.78
                                                                                            # 042
                                                                                            MPN: 326656125
                                                                                            LH LEVER ASS
                                                                                            from £934.25
                                                                                            from £934.25
                                                                                            # 042
                                                                                            MPN: 326656126
                                                                                            R.H, LEVER ASS
                                                                                            from £402.67
                                                                                            from £402.67
                                                                                            # 043
                                                                                            MPN: 327056133
                                                                                            L.H, HEAD
                                                                                            # 043
                                                                                            MPN: 366602134
                                                                                            RH HEAD
                                                                                            from £33.15
                                                                                            from £33.15
                                                                                            This part replaces part number 397850134
                                                                                            # 044
                                                                                            MPN: 327856340
                                                                                            TIE ROD
                                                                                            from £5.49
                                                                                            from £5.49
                                                                                            # 045
                                                                                            MPN: 327856347
                                                                                            NUT
                                                                                            from £11.97
                                                                                            from £11.97
                                                                                            # 047
                                                                                            MPN: 321856124
                                                                                            TIE ROD ASSY
                                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
